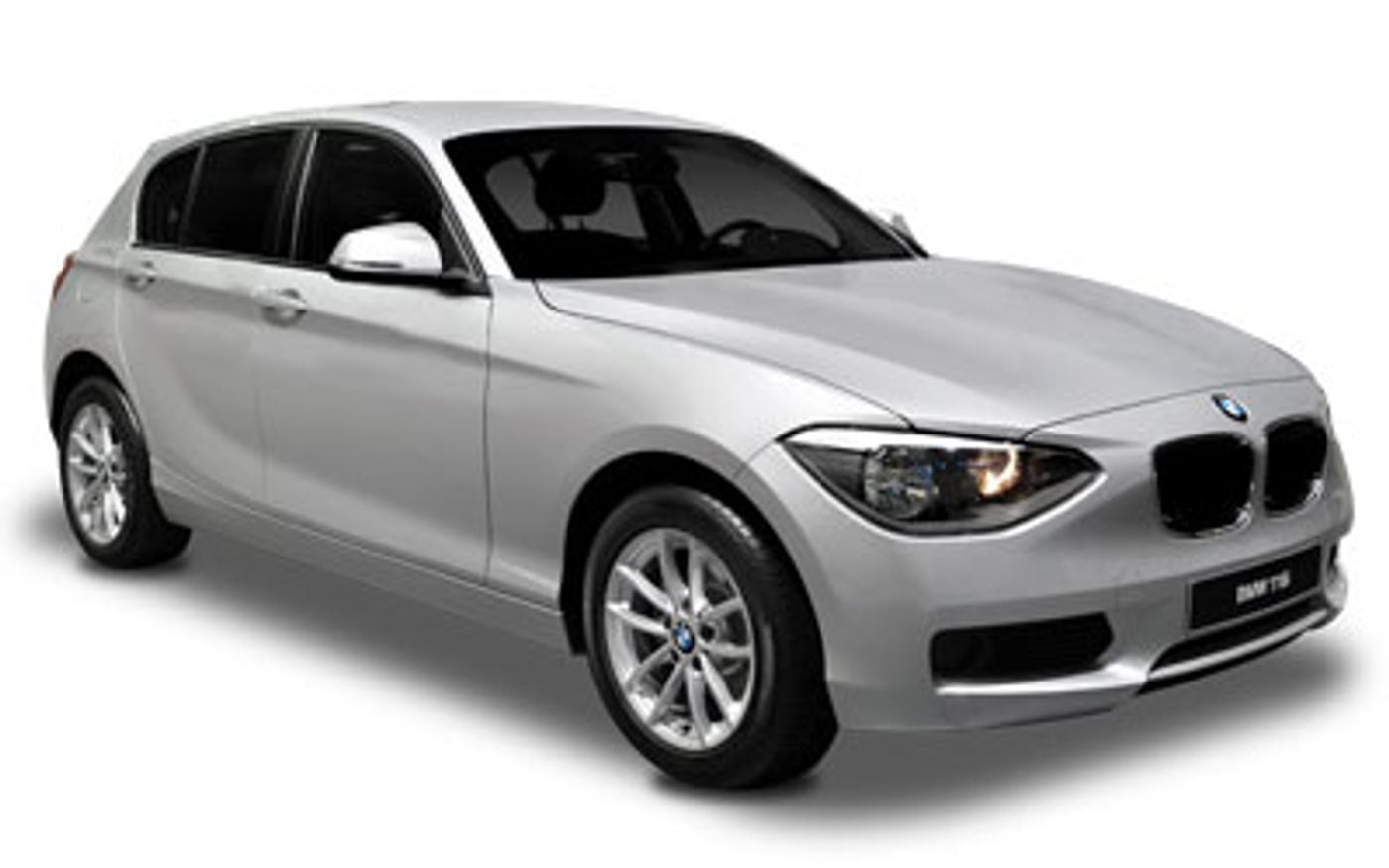

BMW 1 Series M Sport (2014) price & specs
Save $$$ with CarExpert*
From
$46,700â€
M Sport
Overview
The 2014 BMW 1 Series M Sport is a rear-wheel drive, 5-door Hatchback that was released to the Australian market on 2nd April 2014 classified as a F20. The BMW 1 Series is regarded as a Small Luxury built in Germany with prices starting at $46,700 before on-road costs.
This BMW 1 Series is powered by a 2.0L 4-cylinder engine that has 105 kW of power (at 4000 rpm) and 320 Nm of torque (at 1750 rpm) via a Six-speed Manual transmission. BMW claims the 1 Series M Sport uses 4.5L/100km of Diesel in the combined city and highway cycle while putting out 118g of CO2. It has a 50L fuel tank, meaning it should be able to travel 1111km per full tank
The BMW 1 Series measures 1421mm (55.9 inches) in height, 4324mm (170.2 inches) in length, 1765mm (69.5 inches) in width with a 2690mm (105.9 inches) wheelbase that brings about a total of 1320kg (2910.1 lbs) of unladen weight. The 1 Series M Sport comes standard with 225/35 R18 front tyres and 245/35 R18 rear tyres. It has a 36 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the 1 Series compare?
Quickly see how the 2014 BMW 1 Series M Sport stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
73.8 - 164.34 kW/t
52.13 kW/t
170.42 kW/t
Boot Space
360 litres
250 litres
605 litres
Fuel Efficiency
4.5 - 8 L/100km
0.6 L/100km
10.4 L/100km
Vehicle Range
650 - 1,111 km
576 km
1,325 km
Price
$36,700 - $65,400
$21,490
$74,900
Warranty (Years)
3 years
3 years
4 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
1 - 2 years
1 year
4 years
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,324 mm
1,765 mm
1,421 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,324 mm |
| Overall Width | 1,765 mm |
| Overall Height | 1,421 mm |
| Wheelbase | 2,690 mm |
| Load Capacity | 530 mm |
Looking for complete BMW 1 Series size & space specs?
Our BMW 1 Series Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
BMW 1 Series Sales rolling 12-months#
Explore BMW 1 Series Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Courtesy Lights
Footwell Lights: yes
Driver Modes
Engine Mapping: yes
Stability Control: yes
Suspension: yes
Traction Control: yes
Memorised Adjustment
Door Mirror Position: yes
Parking Assistance
Location: Rear
Rear Type: Full Automatic Parking
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Reading Lights
Location: Front
Location: Rear
Smart Card/Smart Key
Includes Keyless Start: yes
Includes Radio Settings: yes
Type: Automatic
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 6.0
Australia Greenhouse Rating: 8.5
Australia Overall Emission Control Level Rating: 4.0
CO2 Level (Combined): 118
Standard Met: EU5
Engine
Bore Engine: 84.0
Engine (cc): 1995
Engine Configuration: In-Line
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 90.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 13.2
Main Capacity (L): 50
Main Capacity Uk Gallons: 11.0
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Number of Screens: 1
Screen Size (in): 6.5
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1111
ADR 81/02 Calculated Vehicle Range (miles): 690
ADR 81/02 Combined (km/L): 22.2
ADR 81/02 Combined (L/100km): 4.5
ADR 81/02 Combined (miles per UK gallon): 63
ADR 81/02 Combined (mpg): 52
ADR 81/02 Country Highway (km/L): 25.6
ADR 81/02 Country Highway (L/100km): 3.9
ADR 81/02 Country Highway (miles per UK gallon): 72
ADR 81/02 Country Highway (mpg): 60
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 18.2
ADR 81/02 Urban (L/100km): 5.5
ADR 81/02 Urban (miles per UK gallon): 51
ADR 81/02 Urban (mpg): 43
Fuel Economy
ADR 81/02 (L/100km): 4.5
Performance
Acceleration 0 To 100 km/h: 8.9
Maximum Speed (km/h): 212
Maximum Speed (mph): 132
Power
Maximum Power (hp/PS): 143
Maximum Power (kW): 105
Maximum Torque (Nm): 320
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 1750
Drive
Driven Wheels: Rear
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Manual
Number of Speeds: 6
Shift Lever Location: Floor
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Heated: yes
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Alternate Suspension
Type: Sport
Responsive Suspension
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Location: Front
Front Wheels Tire Profile: 40
Front Wheels Tire Run Flat: yes
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 35
Rear Wheels Tire Run Flat: yes
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.0
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Platform Code: F20
Wheelbase Type: Short
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Capacity
Rear Seat Down (cu ft): 42.4
Rear Seat Down (L): 1200
Rear Seat Up to Lower Window (cu ft): 12.7
Rear Seat Up to Lower Window (L): 360
External Dimensions
Front Track (in): 60.4
Front Track (mm): 1535
Overall Height (in): 55.9
Overall Height (mm): 1421
Overall Length (in): 170.2
Overall Length (mm): 4324
Overall Width (in): 69.5
Overall Width (mm): 1765
Rear Track (in): 61.8
Rear Track (mm): 1569
Wall to Wall Turning Circle (ft): 35.8
Wall to Wall Turning Circle (mm): 10900
Wheelbase (in): 105.9
Wheelbase (mm): 2690
Internal Dimensions
Front Headroom (in): 40.1
Front Headroom (mm): 1018
Rear Headroom (in): 38.3
Rear Headroom (mm): 972
Front Hip Room (in): 55.1
Front Hip Room (mm): 1400
Rear Hip Room (in): 55.8
Rear Hip Room (mm): 1417
Front Shoulder Room (in): 54.6
Front Shoulder Room (mm): 1386
Rear Shoulder Room (in): 53.8
Rear Shoulder Room (mm): 1366
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof One Touch Opening: yes
Front Sunroof Operation: Electric
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Vehicle Weight (kg): 1850
Gross Vehicle Weight (lb): 4079
Published Kerb Weight (kg): 1320
Published Kerb Weight (lb): 2910
Tare Weight (kg): 1286
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Luxury Trim
Centre Floor Console: Alloy
Doors: Alloy
Gear Selector: Leather
Handbrake Grip: Leather
Instrument Panel: Alloy
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Overall: 5.00
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Fore/Aft Adjustment: yes
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining: yes
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Sports
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Height Adjustment: yes
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining: yes
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Anti-Theft Protection
Anti-Lift: yes
Interior Monitoring: yes
Peripheral: yes
Remote Operation: yes
Power Locks
Includes Sunroof: yes
Operation: Remote
Intermediate Service
Variable Distance Period: yes
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
