Urban Line
1.6L, 6-speed manual, 5-door Hatchback, Petrol, RWD
Save $$$ with CarExpert*
$38,700â€

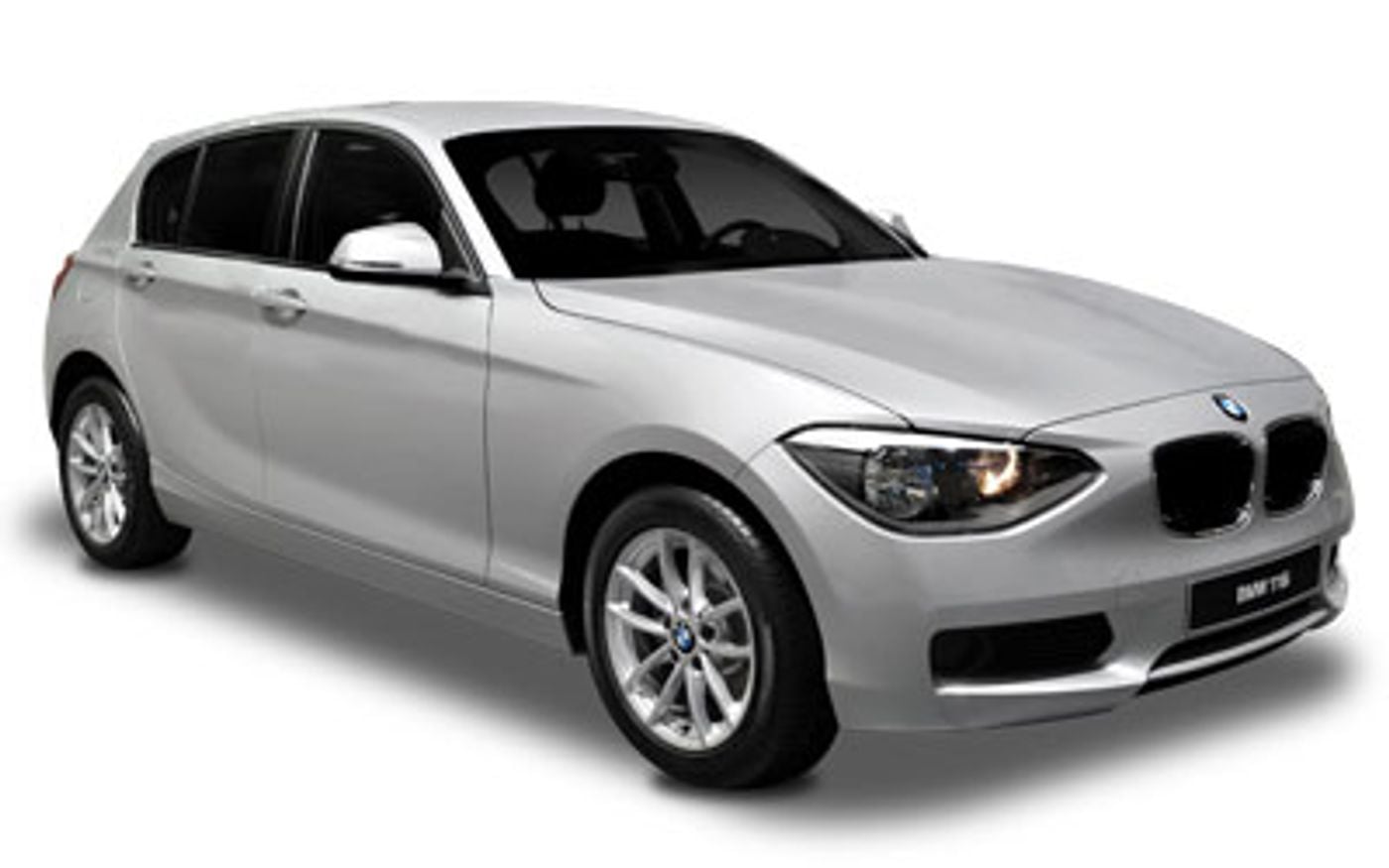

BMW 1 Series Urban Line (2014) price & specs
Save $$$ with CarExpert*
From
$38,700â€
Urban Line
Overview
The 2014 BMW 1 Series Urban Line is a rear-wheel drive, 5-door Hatchback that was released to the Australian market on 2nd April 2014 classified as a F20. The BMW 1 Series is regarded as a Small Luxury built in Germany with prices starting at $38,700 before on-road costs.
This BMW 1 Series is powered by a 1.6L 4-cylinder engine that has 100 kW of power (at 4400 rpm) and 220 Nm of torque (at 1350 rpm) via a Six-speed Manual transmission. BMW claims the 1 Series Urban Line uses 5.8L/100km of Premium Unleaded in the combined city and highway cycle while putting out 134g of CO2. It has a 52L fuel tank, meaning it should be able to travel 897km per full tank
The BMW 1 Series measures 1421mm (55.9 inches) in height, 4324mm (170.2 inches) in length, 1765mm (69.5 inches) in width with a 2690mm (105.9 inches) wheelbase that brings about a total of 1310kg (2888.1 lbs) of unladen weight. The 1 Series Urban Line comes standard with 205/55 R16 front tyres and 205/55 R16 rear tyres. It has a 36 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the 1 Series compare?
Quickly see how the 2014 BMW 1 Series Urban Line stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
73.8 - 164.34 kW/t
52.13 kW/t
170.42 kW/t
Boot Space
360 litres
250 litres
605 litres
Fuel Efficiency
4.5 - 8 L/100km
0.6 L/100km
10.4 L/100km
Vehicle Range
650 - 1,111 km
576 km
1,325 km
Price
$36,700 - $65,400
$21,490
$74,900
Warranty (Years)
3 years
3 years
4 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
1 - 2 years
1 year
4 years
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,324 mm
1,765 mm
1,421 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,324 mm |
| Overall Width | 1,765 mm |
| Overall Height | 1,421 mm |
| Wheelbase | 2,690 mm |
| Load Capacity | 530 mm |
Looking for complete BMW 1 Series size & space specs?
Our BMW 1 Series Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
BMW 1 Series Sales rolling 12-months#
Explore BMW 1 Series Features & Specs
Bluetooth
Includes Phone Connection: yes
Courtesy Lights
Footwell Lights: yes
Driver Modes
Engine Mapping: yes
Memorised Adjustment
Door Mirror Position: yes
Parking Assistance
Location: Rear
Rear Type: Full Automatic Parking
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor
Power Outlet 12V
Location (12V): Front
Reading Lights
Location: Front
Location: Rear
Smart Card/Smart Key
Includes Keyless Start: yes
Includes Radio Settings: yes
Type: Automatic
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 7.5
Australia Greenhouse Rating: 8.0
Australia Overall Emission Control Level Rating: 4.5
CO2 Level (Combined): 134
Standard Met: EU5
Engine
Engine (cc): 1598
Engine Configuration: In-Line
Engine (L): 1.6
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Valve Gear Type: Double Overhead Cam
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Other Fuel Type: Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 13.7
Main Capacity (L): 52
Main Capacity Uk Gallons: 11.4
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 897
ADR 81/02 Calculated Vehicle Range (miles): 557
ADR 81/02 Combined (km/L): 17.2
ADR 81/02 Combined (L/100km): 5.8
ADR 81/02 Combined (miles per UK gallon): 49
ADR 81/02 Combined (mpg): 41
ADR 81/02 Country Highway (km/L): 20.8
ADR 81/02 Country Highway (L/100km): 4.8
ADR 81/02 Country Highway (miles per UK gallon): 59
ADR 81/02 Country Highway (mpg): 49
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 13.5
ADR 81/02 Urban (L/100km): 7.4
ADR 81/02 Urban (miles per UK gallon): 38
ADR 81/02 Urban (mpg): 32
Fuel Economy
ADR 81/02 (L/100km): 5.8
Performance
Acceleration 0 To 100 km/h: 9.1
Maximum Speed (km/h): 210
Maximum Speed (mph): 130
Power
Maximum Power (hp/PS): 136
Maximum Power (kW): 100
Maximum Torque (Nm): 220
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4400
Rpm For Maximum Torque Low: 1350
Drive
Driven Wheels: Rear
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Manual
Number of Speeds: 6
Shift Lever Location: Floor
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Heated: yes
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 91
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Run Flat: yes
Front Wheels Tire Speed Rating: W
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Load Index: 91
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Run Flat: yes
Rear Wheels Tire Speed Rating: W
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Platform Code: F20
Wheelbase Type: Short
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Capacity
Rear Seat Down (cu ft): 42.4
Rear Seat Down (L): 1200
Rear Seat Up to Lower Window (cu ft): 12.7
Rear Seat Up to Lower Window (L): 360
External Dimensions
Front Track (in): 60.4
Front Track (mm): 1535
Overall Height (in): 55.9
Overall Height (mm): 1421
Overall Length (in): 170.2
Overall Length (mm): 4324
Overall Width (in): 69.5
Overall Width (mm): 1765
Rear Track (in): 61.8
Rear Track (mm): 1569
Wall to Wall Turning Circle (ft): 35.8
Wall to Wall Turning Circle (mm): 10900
Wheelbase (in): 105.9
Wheelbase (mm): 2690
Internal Dimensions
Front Headroom (in): 40.1
Front Headroom (mm): 1018
Rear Headroom (in): 38.3
Rear Headroom (mm): 972
Front Hip Room (in): 55.1
Front Hip Room (mm): 1400
Rear Hip Room (in): 55.8
Rear Hip Room (mm): 1417
Front Shoulder Room (in): 54.6
Front Shoulder Room (mm): 1386
Rear Shoulder Room (in): 53.8
Rear Shoulder Room (mm): 1366
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof One Touch Opening: yes
Front Sunroof Operation: Electric
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Weights
Gross Vehicle Weight (kg): 1840
Gross Vehicle Weight (lb): 4057
Published Kerb Weight (kg): 1310
Published Kerb Weight (lb): 2888
Tare Weight (kg): 1279
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Luxury Trim
Centre Floor Console: Piano Black
Doors: Piano Black
Gear Selector: Alloy Look
Instrument Panel: Piano Black
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Overall: 5.00
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Fore/Aft Adjustment: yes
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining: yes
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Height Adjustment: yes
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining: yes
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Anti-Theft Protection
Anti-Lift: yes
Interior Monitoring: yes
Peripheral: yes
Remote Operation: yes
Power Locks
Includes Sunroof: yes
Operation: Remote
Intermediate Service
Variable Distance Period: yes
