BMW 1 Series Sport Line (2016) price & specs
Save $$$ with CarExpert*
From
$41,900â€
Sport Line
Overview

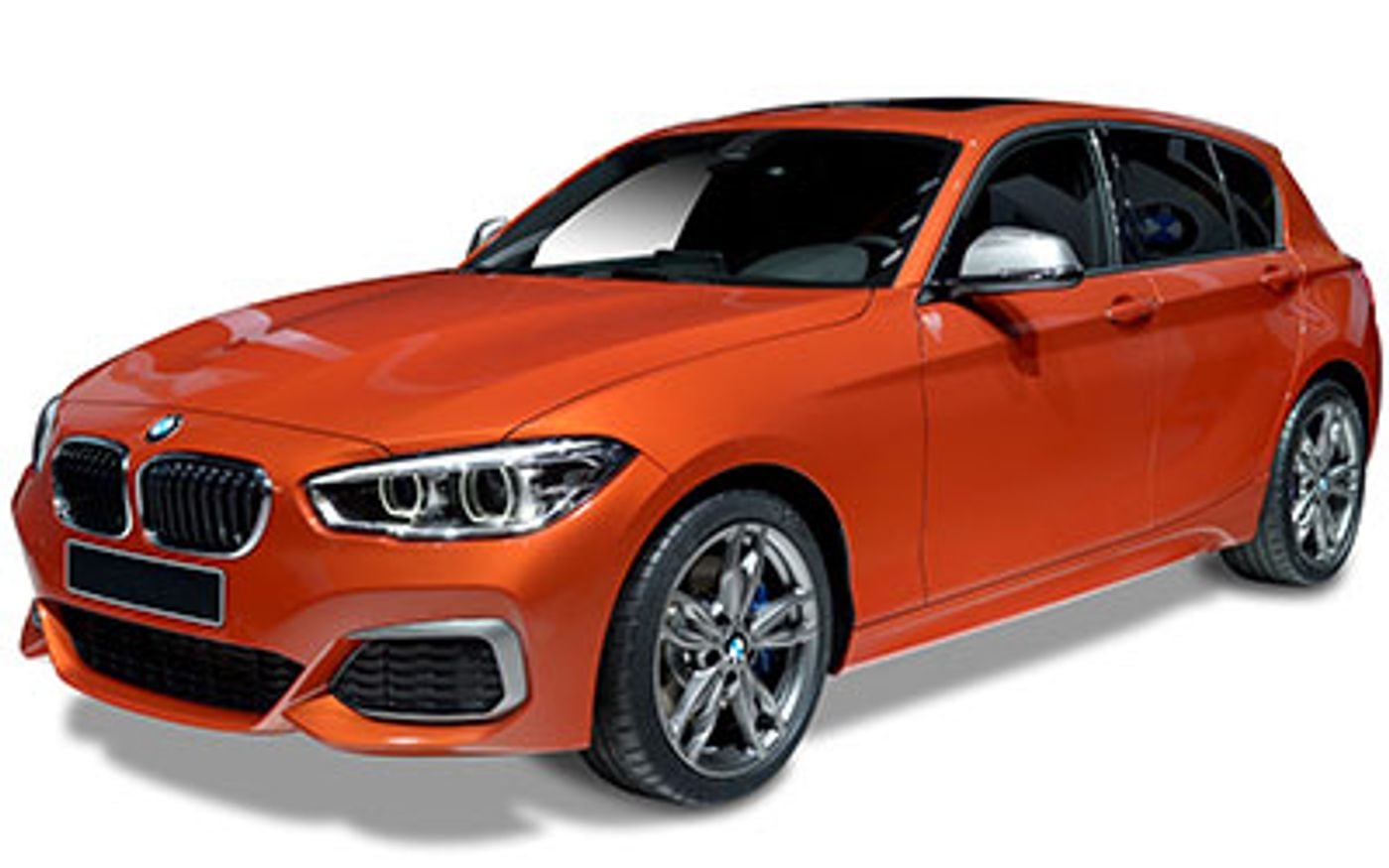

The 2016 BMW 1 Series Sport Line is a rear-wheel drive, 5-door Hatchback that was released to the Australian market on 2nd January 2016 classified as a F20. The BMW 1 Series is regarded as a Small Luxury built in Germany with prices starting at $41,900 before on-road costs.
This BMW 1 Series is powered by a 1.6L 4-cylinder engine that has 130 kW of power (at 4800 rpm) and 250 Nm of torque (at 1500 rpm) via an Eight-speed Automatic transmission. BMW claims the 1 Series Sport Line uses 5.7L/100km of Premium Unleaded in the combined city and highway cycle while putting out 133g of CO2. It has a 52L fuel tank, meaning it should be able to travel 912km per full tank
The BMW 1 Series measures 1440mm (56.7 inches) in height, 4329mm (170.4 inches) in length, 1765mm (69.5 inches) in width with a 2690mm (105.9 inches) wheelbase that brings about a total of 1395kg (3075.4 lbs) of unladen weight. The 1 Series Sport Line comes standard with 225/45 R17 front tyres and 225/45 R17 rear tyres. It has a 36 month, unlimited km warranty.
The 2016 BMW 1 Series Sport Line has a 140mm ground clearance with a 1200kg braked and 670kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the 1 Series compare?
Quickly see how the 2016 BMW 1 Series Sport Line stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
71.68 - 159.47 kW/t
59.78 kW/t
180.06 kW/t
Boot Space
360 litres
280 litres
605 litres
Fuel Efficiency
3.8 - 8 L/100km
1.6 L/100km
9.2 L/100km
Vehicle Range
650 - 1,368 km
566 km
1,368 km
Price
$36,900 - $62,900
$22,490
$78,900
Warranty (Years)
3 years
3 years
4 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
1 - 2 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
1,865 - 2,015 kg
1,735 kg
2,050 kg
Braked Towing Capacity
1,200 - 1,500 kg
750 kg
1,800 kg
Ground Clearance Unladen
130 - 140 mm
98 mm
175 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,329 mm
1,765 mm
1,440 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,329 mm |
| Overall Width | 1,765 mm |
| Overall Height | 1,440 mm |
| Wheelbase | 2,690 mm |
| Load Capacity | 490 mm |
Looking for complete BMW 1 Series size & space specs?
Our BMW 1 Series Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
BMW 1 Series Sales rolling 12-months#
Explore BMW 1 Series Features & Specs
Sport Line
1.6L, 8-speed auto, 5-door Hatchback, Petrol, RWD
Save $$$ with CarExpert*
$41,900â€
Driver Modes
Engine Mapping: yes
Steering: yes
Suspension: yes
Traction Control: yes
Entertainment Display Screen
Front DVD: yes
Location: Front
Memorised Adjustment
Door Mirror Position: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Start: yes
Includes Radio Settings: yes
Type: Automatic
Telematics
Advanced Auto Collision Notification: yes
Connection Type: Via Sim In Vehicle
Manufacturer Name: Concierge Services
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 133
Standard Met: EU6
Engine
Bore Engine: 77.0
Engine (cc): 1598
Engine Configuration: In-Line
Engine Code: N13b16m0
Engine (L): 1.6
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 85.8
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel Tanks
Main Capacity Gal: 13.7
Main Capacity (L): 52
Main Capacity Uk Gallons: 11.4
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Screen Size (in): 8.80
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 912
ADR 81/02 Calculated Vehicle Range (miles): 567
ADR 81/02 Combined (km/L): 17.5
ADR 81/02 Combined (L/100km): 5.7
ADR 81/02 Combined (miles per UK gallon): 50
ADR 81/02 Combined (mpg): 41
ADR 81/02 Country Highway (km/L): 20.8
ADR 81/02 Country Highway (L/100km): 4.8
ADR 81/02 Country Highway (miles per UK gallon): 59
ADR 81/02 Country Highway (mpg): 49
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 13.5
ADR 81/02 Urban (L/100km): 7.4
ADR 81/02 Urban (miles per UK gallon): 38
ADR 81/02 Urban (mpg): 32
Fuel Economy
ADR 81/02 (L/100km): 5.7
Performance
Acceleration 0 To 100 km/h: 7.2
Maximum Speed (km/h): 222
Maximum Speed (mph): 138
Power
Maximum Power (hp/PS): 177
Maximum Power (kW): 130
Maximum Torque (Nm): 250
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4800
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Rear
Limited Slip Differential
Location: Rear
Rear Type: Electronic
Transmission
Code: 8hp45
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Heated: yes
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Alternate Suspension
Type: Sport
Responsive Suspension
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Diameter: 17
Front Wheels Tire Load Index: 91
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Run Flat: yes
Front Wheels Tire Speed Rating: W
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Diameter: 17
Rear Wheels Tire Load Index: 91
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Run Flat: yes
Rear Wheels Tire Speed Rating: W
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Rear Two Tone: yes
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Platform Code: F20
Wheelbase Type: Short
Cargo Capacity
Measurement Standard: ISO
Rear Seat Down (cu ft): 42.4
Rear Seat Down (L): 1200
Rear Seat Up to Lower Window (cu ft): 12.7
Rear Seat Up to Lower Window (L): 360
External Dimensions
Front Track (in): 60.4
Front Track (mm): 1535
Ground Clearance Unladen (in): 5.5
Ground Clearance Unladen (mm): 140
Overall Height (in): 56.7
Overall Height (mm): 1440
Overall Length (in): 170.4
Overall Length (mm): 4329
Overall Width (in): 69.5
Overall Width (mm): 1765
Rear Track (in): 61.8
Rear Track (mm): 1569
Wall to Wall Turning Circle (ft): 35.8
Wall to Wall Turning Circle (mm): 10900
Wheelbase (in): 105.9
Wheelbase (mm): 2690
Internal Dimensions
Front Headroom (in): 40.1
Front Headroom (mm): 1018
Rear Headroom (in): 38.3
Rear Headroom (mm): 972
Front Hip Room (in): 55.1
Front Hip Room (mm): 1400
Rear Hip Room (in): 55.8
Rear Hip Room (mm): 1417
Front Leg Room (in): 41.5
Front Leg Room (mm): 1055
Rear Leg Room (in): 33.0
Rear Leg Room (mm): 837
Front Shoulder Room (in): 54.6
Front Shoulder Room (mm): 1386
Rear Shoulder Room (in): 53.8
Rear Shoulder Room (mm): 1366
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
LED Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof One Touch Opening: yes
Front Sunroof Operation: Electric
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Electrically Foldable Mirrors
Operation: Electric
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1200
Gross Trailer Weight Braked (lb): 2646
Gross Trailer Weight Unbraked (kg): 670
Gross Trailer Weight Unbraked (lb): 1477
Gross Vehicle Weight (kg): 1885
Gross Vehicle Weight (lb): 4156
Published Kerb Weight (kg): 1395
Published Kerb Weight (lb): 3075
Tare Weight (kg): 1364
Audio System
Radio Type: Am/Fm
External Connections
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Surround Sound: yes
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Luxury Trim
Centre Floor Console: Piano Black
Doors: Piano Black
Gear Selector: Alloy Look
Instrument Panel: Piano Black
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Overall: 5.0
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Fore/Aft Adjustment: yes
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Number of Electrical Adjustments: 1
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining: yes
Driver Front Seat Reclining Type: Manual
Driver Front Seat Thigh Support Type: Manual
Driver Front Seat Type: Sports
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Height Adjustment: yes
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Number of Electrical Adjustments: 1
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining: yes
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Thigh Support Type: Manual
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Synthetic Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Anti-Theft Protection
Anti-Lift: yes
Interior Monitoring: yes
Peripheral: yes
Remote Operation: yes
Power Locks
Includes Sunroof: yes
Operation: Remote
Intermediate Service
Variable Distance Period: yes
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
