M Sport
2.0L, 8-speed auto, 2-door Convertible, Petrol, RWD
Save $$$ with CarExpert*
$71,900â€

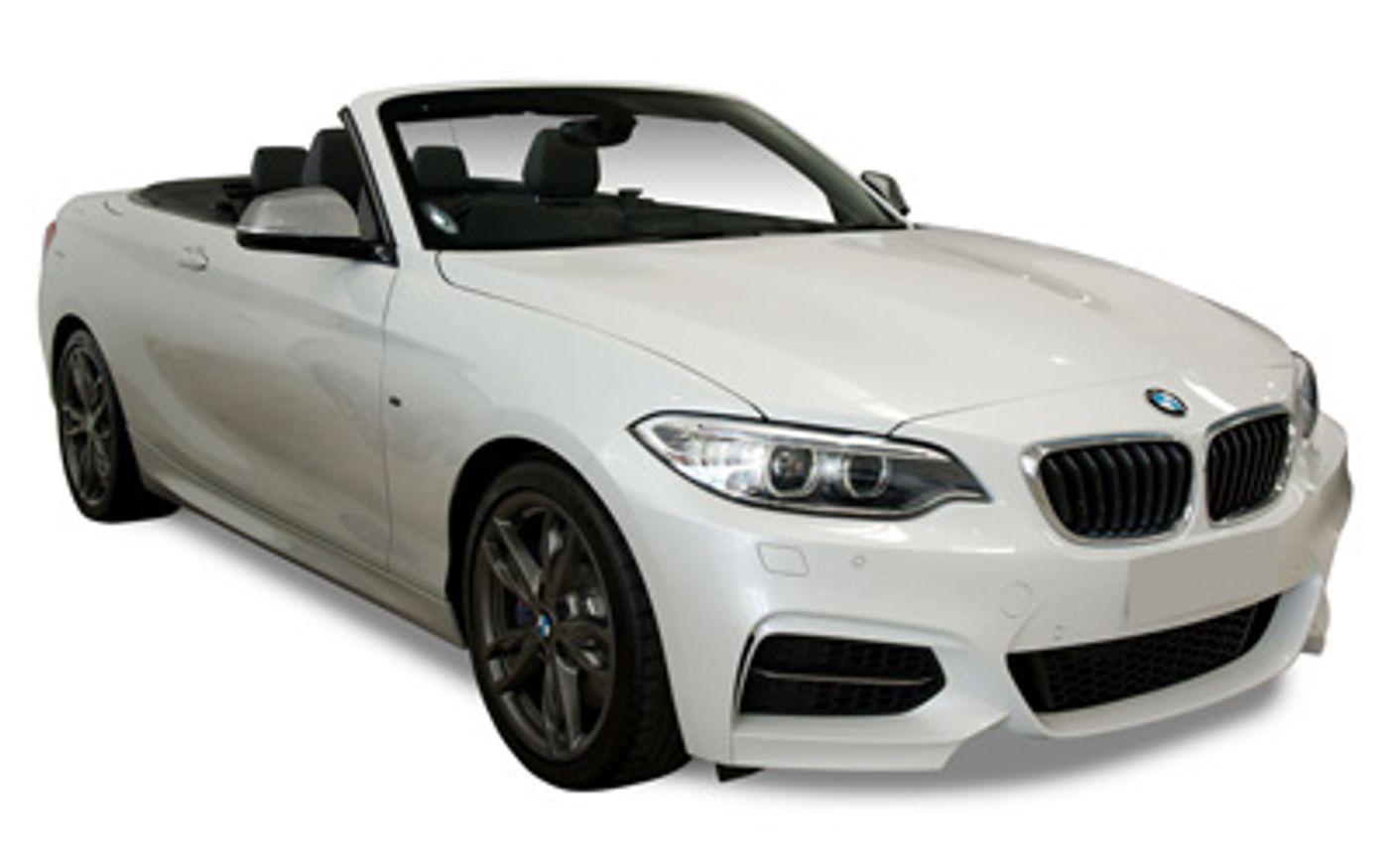

BMW 2 Series M Sport (2017) price & specs
Save $$$ with CarExpert*
From
$71,900â€
M Sport
Overview
The 2017 BMW 2 Series M Sport is a rear-wheel drive, 2-door Convertible that was released to the Australian market on 1st January 2017 classified as a F23. The BMW 2 Series is regarded as a sports car built in Germany with prices starting at $71,900 before on-road costs.
This BMW 2 Series is powered by a 2.0L 4-cylinder engine that has 185 kW of power (at 5200 rpm) and 350 Nm of torque (at 1450 rpm) via an Eight-speed Automatic transmission. BMW claims the 2 Series M Sport uses 6.2L/100km of Premium Unleaded in the combined city and highway cycle while putting out 142g of CO2. It has a 52L fuel tank, meaning it should be able to travel 839km per full tank
The BMW 2 Series measures 1413mm (55.6 inches) in height, 4432mm (174.5 inches) in length, 1774mm (69.8 inches) in width with a 2690mm (105.9 inches) wheelbase that brings about a total of 1630kg (3593.5 lbs) of unladen weight. The 2 Series M Sport comes standard with 225/35 R18 front tyres and 245/35 R18 rear tyres. It has a 36 month, unlimited km warranty.
The 2017 BMW 2 Series M Sport has a 140mm ground clearance with a 1200kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the 2 Series compare?
Quickly see how the 2017 BMW 2 Series M Sport stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
84.11 - 170.07 kW/t
74.83 kW/t
253.59 kW/t
Boot Space
280 - 390 litres
127 litres
465 litres
Fuel Efficiency
5.8 - 7.4 L/100km
4.4 L/100km
13.1 L/100km
Vehicle Range
703 - 897 km
462 km
1,500 km
Price
$51,300 - $83,900
$29,590
$521,715
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
4 - 5 years
3 years
10 years
Towing & Off-Road Capability
Gross Vehicle Weight
1,890 - 2,050 kg
1,630 kg
2,635 kg
Braked Towing Capacity
1,200 - 1,500 kg
1,200 kg
2,100 kg
Ground Clearance Unladen
130 - 140 mm
100 mm
150 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,432 mm
1,774 mm
1,413 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,432 mm |
| Overall Width | 1,774 mm |
| Overall Height | 1,413 mm |
| Wheelbase | 2,690 mm |
| Load Capacity | 365 mm |
Looking for complete BMW 2 Series size & space specs?
Our BMW 2 Series Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore BMW 2 Series Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Stability Control: yes
Steering: yes
Traction Control: yes
Entertainment Display Screen
Front DVD: yes
Location: Front
Front Screen Size (in): 8.8
Memorised Adjustment
Door Mirror Position: yes
Mobile Integration
Apple Carplay: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Remote HVAC Control
Includes Phone: yes
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Telematics
Advanced Auto Collision Notification: yes
Connection Type: Via Sim In Vehicle
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 142
Standard Met: EU6
Engine
Bore Engine: 82.0
Engine (cc): 1998
Engine Configuration: In-Line
Engine Code: B48b20o0
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 94.6
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 13.7
Main Capacity (L): 52
Main Capacity Uk Gallons: 11.4
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Number of Screens: 1
Screen Size (in): 8.8
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 839
ADR 81/02 Calculated Vehicle Range (miles): 521
ADR 81/02 Combined (km/L): 16.1
ADR 81/02 Combined (L/100km): 6.2
ADR 81/02 Combined (miles per UK gallon): 46
ADR 81/02 Combined (mpg): 38
ADR 81/02 Country Highway (km/L): 18.9
ADR 81/02 Country Highway (L/100km): 5.3
ADR 81/02 Country Highway (miles per UK gallon): 53
ADR 81/02 Country Highway (mpg): 44
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 12.8
ADR 81/02 Urban (L/100km): 7.8
ADR 81/02 Urban (miles per UK gallon): 36
ADR 81/02 Urban (mpg): 30
Fuel Economy
ADR 81/02 (L/100km): 6.2
Performance
Acceleration 0 To 100 km/h: 5.9
Maximum Speed (km/h): 250
Maximum Speed (mph): 155
Power
Maximum Power (hp/PS): 252
Maximum Power (kW): 185
Maximum Torque (Nm): 350
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5200
Rpm For Maximum Torque Low: 1450
Drive
Driven Wheels: Rear
Limited Slip Differential
Location: Rear
Rear Type: Electronic
Transmission
Code: 8hp50
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Variable Rack: yes
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Alternate Suspension
Type: Sport
Responsive Suspension
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 88
Location: Front
Front Wheels Tire Profile: 40
Front Wheels Tire Run Flat: yes
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Load Index: 92
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 35
Rear Wheels Tire Run Flat: yes
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.0
Body Style
Body Type: Convertible
Local Body Type: Convertible
Platform Code: F20
Wheelbase Type: Short
Bumpers
Location: Front
Location: Rear
Cargo Capacity
Measurement Standard: ISO
Rear Seat Up to Lower Window (cu ft): 9.9
Rear Seat Up to Lower Window (L): 280
External Dimensions
Front Track (in): 59.9
Front Track (mm): 1521
Ground Clearance Unladen (in): 5.5
Ground Clearance Unladen (mm): 140
Overall Height (in): 55.6
Overall Height (mm): 1413
Overall Length (in): 174.5
Overall Length (mm): 4432
Overall Width (in): 69.8
Overall Width (mm): 1774
Rear Track (in): 61.3
Rear Track (mm): 1556
Wall to Wall Turning Circle (ft): 35.8
Wall to Wall Turning Circle (mm): 10900
Wheelbase (in): 105.9
Wheelbase (mm): 2690
Internal Dimensions
Front Headroom (in): 40.5
Front Headroom (mm): 1028
Rear Headroom (in): 37.0
Rear Headroom (mm): 940
Front Hip Room (in): 56.5
Front Hip Room (mm): 1436
Rear Hip Room (in): 43.5
Rear Hip Room (mm): 1104
Front Leg Room (in): 41.5
Front Leg Room (mm): 1055
Rear Leg Room (in): 31.8
Rear Leg Room (mm): 807
Front Shoulder Room (in): 54.4
Front Shoulder Room (mm): 1383
Rear Shoulder Room (in): 42.2
Rear Shoulder Room (mm): 1072
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: Bi-Xenon
Low Beam Bulb Type: Bi-Xenon
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Convertible Rollover Protection
Rollover Protection Type: Concealed System
Convertible Roof
Roof Soft Colour: Grey
Soft Top Rear Glass Window: yes
Roof Soft Operation: Electric
Roof Soft Type: Soft
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1200
Gross Trailer Weight Braked (lb): 2646
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 1995
Gross Vehicle Weight (lb): 4398
Kerb Weight Inc Driver (kg): 1630
Kerb Weight Inc Driver (lb): 3594
Kerb Weight Includes Driver: yes
Published Kerb Weight (kg): 1630
Published Kerb Weight (lb): 3594
Tare Weight (kg): 1599
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
Digital Radio: yes
In-Dash CD: yes
In-Dash DVD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Subwoofer: yes
Upgraded Speakers: yes
Luxury Trim
Centre Floor Console: Alloy
Doors: Alloy
Gear Selector: Alloy & Leather
Handbrake Grip: Leather
Instrument Panel: Alloy
Airbags
Number of Airbags: 4
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 2
Rear Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Front Head Protection: yes
Location: Front
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Thigh Support Type: Manual
Driver Front Seat Type: Sports
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Memory
Location: Passenger
Passenger Front Seat Number of Electrical Adjustments: 5
Passenger Front Seat Reach Type: Memory
Passenger Front Seat Reclining Type: Memory
Passenger Front Seat Thigh Support Type: Manual
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 4
Configuration: 2+2
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Anti-Theft Protection
Anti-Lift: yes
Interior Monitoring: yes
Peripheral: yes
Remote Operation: yes
Power Locks
Operation: Card Key
Intermediate Service
Variable Distance Period: yes
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
