BMW 3 Series M Sport (2016) price & specs
Save $$$ with CarExpert*
From
$72,254â€
M Sport
Overview

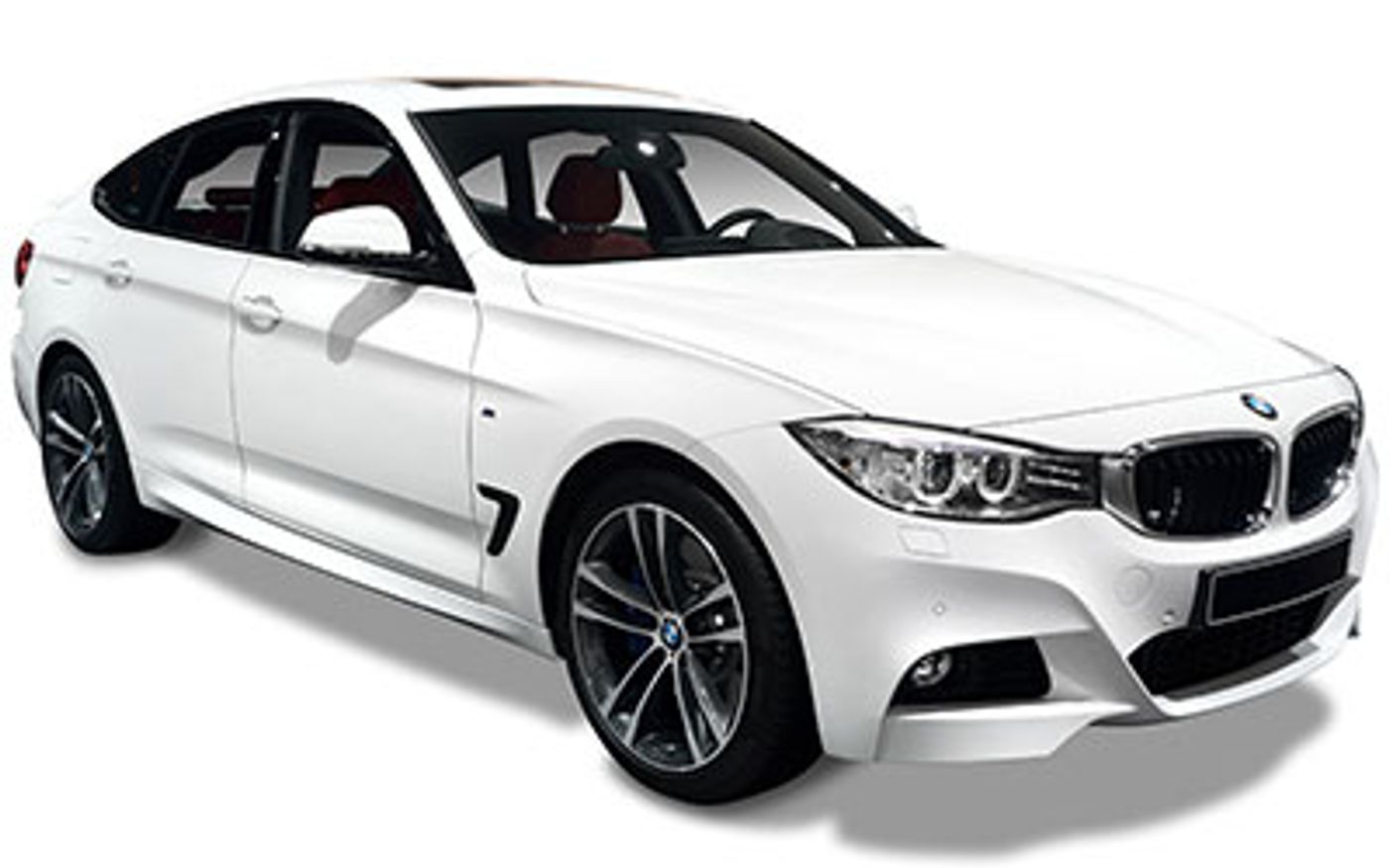

The 2016 BMW 3 Series M Sport is a rear-wheel drive, 5-door Hatchback that was released to the Australian market on 5th November 2015 classified as a F34. The BMW 3 Series is regarded as a Medium Luxury built in Germany with prices starting at $72,254 before on-road costs.
This BMW 3 Series is powered by a 2.0L 4-cylinder engine that has 135 kW of power (at 5000 rpm) and 270 Nm of torque (at 1250 rpm) via an Eight-speed Automatic transmission. BMW claims the 3 Series M Sport uses 6.3L/100km of Premium Unleaded in the combined city and highway cycle while putting out 147g of CO2. It has a 60L fuel tank, meaning it should be able to travel 952km per full tank
The BMW 3 Series measures 1508mm (59.4 inches) in height, 4824mm (189.9 inches) in length, 1828mm (72.0 inches) in width with a 2920mm (115.0 inches) wheelbase that brings about a total of 1560kg (3439.2 lbs) of unladen weight. The 3 Series M Sport comes standard with 225/40 R19 front tyres and 255/40 R19 rear tyres. It has a 36 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the 3 Series compare?
Quickly see how the 2016 BMW 3 Series M Sport stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
70.18 - 207.52 kW/t
63.29 kW/t
216.76 kW/t
Boot Space
370 - 520 litres
370 litres
520 litres
Fuel Efficiency
2.1 - 8.8 L/100km
2.1 L/100km
9.7 L/100km
Vehicle Range
682 - 1,295 km
680 km
1,619 km
Price
$54,900 - $154,615
$49,990
$241,762
Warranty (Years)
3 years
3 years
4 years
Warranty (Distance)
Unlimited
80,000 km
Unlimited
Years on Sale
1 - 6 years
1 year
6 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,000 - 2,195 kg
2,000 kg
2,455 kg
Braked Towing Capacity
1,500 - 1,800 kg
1,400 kg
2,100 kg
Ground Clearance Unladen
120 - 140 mm
110 mm
201 mm
Battery & Charging
Max. battery kilowatt hour
7.6 kWh
0.8 kWh
100 kWh
Vehicle Range (EV)
37 km
1 km
613 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,824 mm
1,828 mm
1,508 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,824 mm |
| Overall Width | 1,828 mm |
| Overall Height | 1,508 mm |
| Wheelbase | 2,920 mm |
| Load Capacity | 570 mm |
Looking for complete BMW 3 Series size & space specs?
Our BMW 3 Series Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
BMW 3 Series Sales rolling 12-months#
Explore BMW 3 Series Features & Specs
M Sport
2.0L, 8-speed auto, 5-door Hatchback, Petrol, RWD
Save $$$ with CarExpert*
$72,254â€
Automatic Door Closing
Rear Boot Hatch: yes
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Type: Bluetooth
Driver Modes
Engine Mapping: yes
Stability Control: yes
Steering: yes
Suspension: yes
Traction Control: yes
Entertainment Display Screen
Location: Front
Front TV: yes
Memorised Adjustment
Door Mirror Position: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Remote HVAC Control
Includes Phone: yes
Smart Card/Smart Key
Includes Keyless Start: yes
Includes Radio Settings: yes
Type: Automatic
Telematics
Connection Type: Via Sim In Vehicle
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 147
Standard Met: EU6
Engine
Bore Engine: 84.0
Engine (cc): 1997
Engine Configuration: In-Line
Engine Code: N20b20u0
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 90.1
Valve Gear Type: Double Overhead Cam
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 15.9
Main Capacity (L): 60
Main Capacity Uk Gallons: 13.2
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Number of Screens: 2
Screen Size (in): 6.5
Instrument Cluster
Head Up Display: yes
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 952
ADR 81/02 Calculated Vehicle Range (miles): 592
ADR 81/02 Combined (km/L): 15.9
ADR 81/02 Combined (L/100km): 6.3
ADR 81/02 Combined (miles per UK gallon): 45
ADR 81/02 Combined (mpg): 37
ADR 81/02 Country Highway (km/L): 19.6
ADR 81/02 Country Highway (L/100km): 5.1
ADR 81/02 Country Highway (miles per UK gallon): 55
ADR 81/02 Country Highway (mpg): 46
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 12.0
ADR 81/02 Urban (L/100km): 8.3
ADR 81/02 Urban (miles per UK gallon): 34
ADR 81/02 Urban (mpg): 28
Fuel Economy
ADR 81/02 (L/100km): 6.3
Performance
Acceleration 0 To 100 km/h: 8.0
Maximum Speed (km/h): 229
Maximum Speed (mph): 142
Power
Maximum Power (hp/PS): 184
Maximum Power (kW): 135
Maximum Torque (Nm): 270
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5000
Rpm For Maximum Torque Low: 1250
Differential Lock
Location: Rear
Drive
Driven Wheels: Rear
Transmission
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Alternate Suspension
Type: Sport
Responsive Suspension
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 92
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Run Flat: yes
Front Wheels Tire Speed Rating: W
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Load Index: 96
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 40
Rear Wheels Tire Run Flat: yes
Rear Wheels Tire Speed Rating: W
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 19
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.0
Location: Rear
Rear Rim Diameter (In): 19
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 9.0
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Platform Code: F20
Wheelbase Type: Short
Spoiler
Location: Boot/Hatch
Bumpers
Location: Front
Location: Rear
Cargo Capacity
Rear Seat Up to Lower Window (cu ft): 18.4
Rear Seat Up to Lower Window (L): 520
External Dimensions
Front Track (in): 60.7
Front Track (mm): 1541
Overall Height (in): 59.4
Overall Height (mm): 1508
Overall Length (in): 189.9
Overall Length (mm): 4824
Overall Width (in): 72.0
Overall Width (mm): 1828
Rear Track (in): 62.4
Rear Track (mm): 1586
Wall to Wall Turning Circle (ft): 38.7
Wall to Wall Turning Circle (mm): 11800
Wheelbase (in): 115.0
Wheelbase (mm): 2920
Internal Dimensions
Front Headroom (in): 41.3
Front Headroom (mm): 1048
Rear Headroom (in): 38.3
Rear Headroom (mm): 974
Front Hip Room (in): 57.7
Front Hip Room (mm): 1465
Rear Hip Room (in): 57.3
Rear Hip Room (mm): 1455
Front Shoulder Room (in): 55.2
Front Shoulder Room (mm): 1401
Rear Shoulder Room (in): 54.1
Rear Shoulder Room (mm): 1375
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Bi-Xenon
Low Beam Bulb Type: Bi-Xenon
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Location: Rear Lights
Paint
External Colour: red
Type: Gloss
Sunroof
Front to Rear Sunroof Location: Front To Rear
Front to Rear Sunroof Operation: Electric
Front to Rear Sunroof Sliding: yes
Front to Rear Sunroof Sunshade: yes
Front to Rear Sunroof Tilting: yes
Front to Rear Sunroof Type: Glass
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors Tilting for Reverse: Automatic
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Auto-Dimming Passenger Door Mirrors: yes
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1500
Gross Trailer Weight Braked (lb): 3307
Gross Trailer Weight Unbraked (kg): 695
Gross Trailer Weight Unbraked (lb): 1532
Gross Vehicle Weight (kg): 2130
Gross Vehicle Weight (lb): 4696
Published Kerb Weight (kg): 1560
Published Kerb Weight (lb): 3439
Tare Weight (kg): 1523
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
Digital Radio: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Luxury Trim
Centre Floor Console: Alloy
Doors: Alloy
Gear Selector: Alloy & Leather
Instrument Panel: Alloy
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Date Tested: 20120612
ANCAP Overall: 5.00
ANCAP Standard: Ancap
ANCAP Version Tested: 320d
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Shoulder Adjustment: yes
Driver Front Seat Thigh Support: yes
Driver Front Seat Thigh Support Type: Manual
Driver Front Seat Tilt Adjustment: yes
Driver Front Seat Type: Sports
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Number of Electrical Adjustments: 5
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Shoulder Adjustment: yes
Passenger Front Seat Thigh Support: yes
Passenger Front Seat Thigh Support Type: Manual
Passenger Front Seat Tilt Adjustment: yes
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Anti-Theft Protection
Interior Monitoring: yes
Peripheral: yes
Remote Operation: yes
Power Locks
Includes Sunroof: yes
Operation: Remote
Intermediate Service
Variable Distance Period: yes
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
