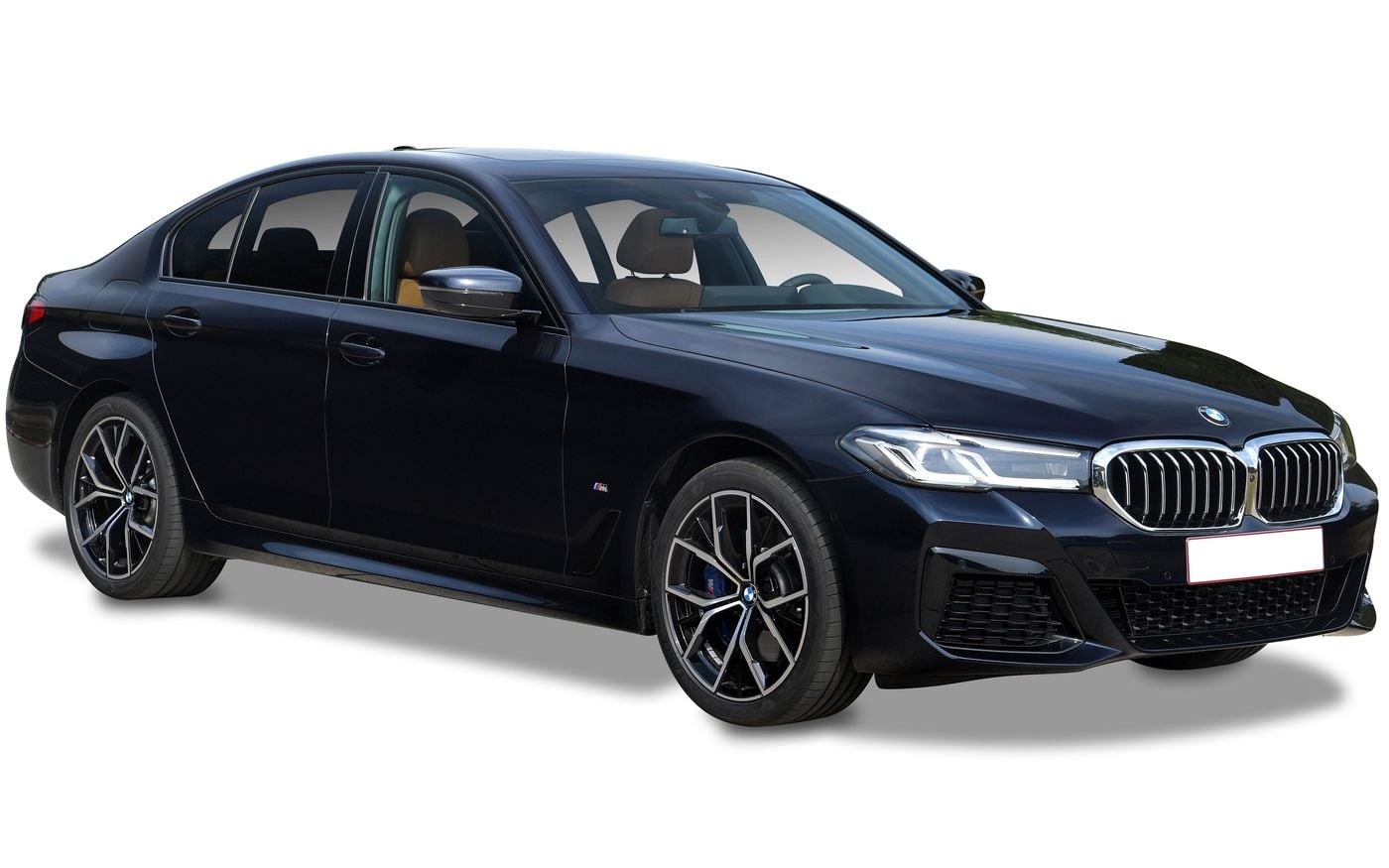

BMW 5 Series M Sport (2023) price & specs
Save $$$ with CarExpert*
From
$105,700â€
M Sport
Overview
The 2023 BMW 5 Series M Sport is a rear-wheel drive, 4-door Sedan that was released to the Australian market on 4th January 2023 classified as a G30. The BMW 5 Series is regarded as a Large Luxury built in Germany with prices starting at $105,700 before on-road costs.
This BMW 5 Series is powered by a 2.0L 4-cylinder engine that has 135 kW of power (at 5000 rpm) and 290 Nm of torque (at 1350 rpm) via an Eight-speed Automatic transmission. BMW claims the 5 Series M Sport uses 6.8L/100km of Premium Unleaded in the combined city and highway cycle while putting out 156g of CO2. It has a 68L fuel tank, meaning it should be able to travel 1000km per full tank
The BMW 5 Series measures 1479mm (58.2 inches) in height, 4963mm (195.4 inches) in length, 1868mm (73.5 inches) in width with a 2975mm (117.1 inches) wheelbase that brings about a total of 1685kg (3714.8 lbs) of unladen weight. The 5 Series M Sport comes standard with 245/35 R19 front tyres and 275/35 R19 rear tyres. It has a 60 month, unlimited km warranty.
The 2023 BMW 5 Series M Sport has a 144mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the 5 Series compare?
Quickly see how the 2023 BMW 5 Series M Sport stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
80.12 - 195.98 kW/t
75.47 kW/t
237.11 kW/t
Boot Space
410 - 530 litres
354 litres
570 litres
Fuel Efficiency
2.3 - 10.7 L/100km
2.2 L/100km
12.3 L/100km
Vehicle Range
636 - 1,200 km
624 km
1,200 km
Price
$105,700 - $169,000
$85,670
$311,900
Warranty (Years)
5 years
5 years
Warranty (Distance)
Unlimited
Unlimited
Years on Sale
2 - 3 years
2 years
3 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,285 - 2,560 kg
2,225 kg
2,770 kg
Braked Towing Capacity
1,700 - 2,000 kg
1,700 kg
2,500 kg
Ground Clearance Unladen
131 - 150 mm
97 mm
150 mm
Battery & Charging
Max. battery kilowatt hour
12 kWh
0.5 kWh
96 kWh
AC Charging (max kW)
3.7 kW
3.7 kW
11 kW
Vehicle Range (EV)
67 km
50 km
626 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,963 mm
1,868 mm
inc mirror: 2,126 mm
inc mirror: 2,126 mm
1,479 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,963 mm |
| Overall Width | 1,868 mm |
| Overall Width (Inc Mirror) | 2,126 mm |
| Overall Height | 1,479 mm |
| Wheelbase | 2,975 mm |
| Load Capacity | 600 mm |
Looking for complete BMW 5 Series size & space specs?
Our BMW 5 Series Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
BMW 5 Series Sales rolling 12-months#
Explore BMW 5 Series Features & Specs
Automatic Door Closing
Side Doors: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Stability Control: yes
Steering: yes
Traction Control: yes
Entertainment Display Screen
Back of Front Seats Blu-ray: yes
Digital Television Back of Front Seats: yes
Back of Front Seats DVD: yes
Location: Back Of Front Seats
Back of Front Seats TV: yes
Front Digital Television: yes
Location: Front
Front TV: yes
Back of Front Seats Size (in): 10.00
Memorised Adjustment
Door Mirror Position: yes
Wheel Position: yes
Mobile Integration
Android Auto: yes
Android Wireless Connection: yes
Apple Carplay: yes
Apple Wireless Connection: yes
Mirrorlink Months Subscription Included: 0
Over Air Updates
Type: Os Version
Parking Assistance
Rear Automatic Braking Whilst: yes
Location: Rear
Rear Type: Full Auto Park & Perpendicular & Exit
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Remote HVAC Control
Includes Cooling: yes
Includes Heating: yes
Includes Phone: yes
Includes Timer: yes
Months Subscription Included: 36
Remote Services
Beep Flash: yes
Find My Car: yes
Location Sharing: yes
Months Subscription Included: 36
Remote Lock Unlock: yes
Send Destination To Car: yes
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Walk Away Locking: yes
Telematics
Advanced Auto Collision Notification: yes
Concierge Months Included: 36
Concierge Service: yes
Connection Type: Via Sim In Vehicle
Tracker System: yes
USB Charging Port
Location: Front
Number of Ports in Front: 2
Location: Rear
Number of Ports in Rear: 2
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Virtual Assistant: Other
Compressor
Compressor: Turbo
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 133
CO2 Level (Combined): 156
CO2 Level (Urban): 195
Standard Met: EU6
Engine
Bore Engine: 82.0
Engine (cc): 1998
Engine Configuration: In-Line
Engine Code: B48b20m1
Engine (L): 2.0
Number of Cylinders: 4
Stroke Engine: 94.6
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel Tanks
Main Capacity Gal: 18.0
Main Capacity (L): 68
Main Capacity Uk Gallons: 15.0
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Dashboard Centre 1 Screen Control Wheel: yes
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 12.30
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 12.30
Instrument Cluster
Head Up Display: Windscreen
Reconfigurable: yes
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1000
ADR 81/02 Calculated Vehicle Range (miles): 621
ADR 81/02 Combined (km/L): 14.7
ADR 81/02 Combined (L/100km): 6.8
ADR 81/02 Combined (miles per UK gallon): 42
ADR 81/02 Combined (mpg): 35
ADR 81/02 Country Highway (km/L): 17.2
ADR 81/02 Country Highway (L/100km): 5.8
ADR 81/02 Country Highway (miles per UK gallon): 49
ADR 81/02 Country Highway (mpg): 41
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 11.8
ADR 81/02 Urban (L/100km): 8.5
ADR 81/02 Urban (miles per UK gallon): 33
ADR 81/02 Urban (mpg): 28
Fuel Economy
ADR 81/02 (L/100km): 6.8
Performance
Acceleration 0 To 100 km/h: 7.8
Maximum Speed (km/h): 235
Maximum Speed (mph): 146
Power
Maximum Power (hp/PS): 184
Maximum Power (kW): 135
Maximum Torque (Nm): 290
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5000
Rpm For Maximum Torque Low: 1350
Drive
Driven Wheels: Rear
Transmission
Code: Ga8l51cz
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Electric Adjustment: yes
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Alternate Suspension
Type: Sport
Responsive Suspension
Driver Selectable: yes
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Diameter: 20
Front Wheels Tire Load Index: 98
Location: Front
Front Wheels Tire Profile: 40
Front Wheels Tire Run Flat: yes
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 245
Rear Wheels Tire Diameter: 20
Rear Wheels Tire Load Index: 100
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 35
Rear Wheels Tire Run Flat: yes
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 275
Wheels
Front Coloured: yes
Location: Front
Front Wheels Rim Diameter (In): 19
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.0
Front Wheels Two Tone: yes
Rear Coloured: yes
Location: Rear
Rear Rim Diameter (In): 19
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 9.0
Rear Two Tone: yes
Black Trim
Around Side Windows: yes
Body Style
Body Type: Sedan
Local Body Type: Sedan
Platform Code: Clar
Wheelbase Type: Short
Chrome Bright Trim
Bright Chrome Trim Around Side Windows: yes
Spoiler
Location: Boot/Hatch
Cargo Capacity
Frunk Capacity (cu ft): 0.0
Frunk Capacity (L): 0
Measurement Standard: ISO
Rear Seat Up to Lower Window (cu ft): 18.7
Rear Seat Up to Lower Window (L): 530
External Dimensions
Front Track (in): 63.2
Front Track (mm): 1605
Ground Clearance Unladen (in): 5.7
Ground Clearance Unladen (mm): 144
Overall Height (in): 58.2
Overall Height (mm): 1479
Overall Length (in): 195.4
Overall Length (mm): 4963
Overall Width Folded Mirror (in): 73.5
Overall Width Folded Mirror (mm): 1868
Overall Width (in): 73.5
Overall Width Inc Mirror (in): 83.7
Overall Width Inc Mirror (mm): 2126
Overall Width (mm): 1868
Rear Track (in): 64.2
Rear Track (mm): 1630
Wall to Wall Turning Circle (ft): 39.4
Wall to Wall Turning Circle (mm): 12000
Wheelbase (in): 117.1
Wheelbase (mm): 2975
Internal Dimensions
Front Headroom (in): 40.7
Front Headroom (mm): 1034
Rear Headroom (in): 38.5
Rear Headroom (mm): 977
Front Hip Room (in): 60.0
Front Hip Room (mm): 1523
Rear Hip Room (in): 58.5
Rear Hip Room (mm): 1487
Front Leg Room (in): 41.4
Front Leg Room (mm): 1052
Rear Leg Room (in): 36.5
Rear Leg Room (mm): 928
Front Shoulder Room (in): 58.7
Front Shoulder Room (mm): 1490
Rear Shoulder Room (in): 55.9
Rear Shoulder Room (mm): 1420
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Active High Beam: yes
Directional Headlights: yes
Dusk Sensor: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Luxury Inner Roof Upholstery
Material: Synthetic Suede
Sunroof
Front Sunroof Location: Front
Front Sunroof One Touch Opening: yes
Front Sunroof Operation: Remote
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Type: Glass
Blind
Location: Rear
Rear Blind Type: Electric
Location: Side
Side Blind Type: Manual
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2285
Gross Vehicle Weight (lb): 5038
Kerb Weight Inc Driver (kg): 1685
Kerb Weight Inc Driver (lb): 3715
Kerb Weight Includes Driver: yes
Published Kerb Weight (kg): 1685
Published Kerb Weight (lb): 3715
Tare Weight (kg): 1642
Audio System
Digital Radio: yes
Radio Type: Am/Fm
System Power (W): 205
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 2
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 12
Subwoofer: yes
Luxury Trim
Centre Floor Console: Wood Or Woodlook
Doors: Wood Or Woodlook
Instrument Panel: Wood & Synthetic Leather
Airbags
Number of Airbags: 6
Autonomous Drive
Active Lane Control: yes
Level: 2 - Partial Automation
Traffic Jam Assist: yes
Traffic Sign Response: yes
Crash Test Results
ANCAP Adult Occupant Score: 91.0
ANCAP Child Occupant Score: 85.0
ANCAP Date Tested: 20210901
ANCAP Overall: 5.0
ANCAP Pedestrian Score: 81.0
ANCAP Rating Year: 2017
ANCAP Safety Assist Score: 59.0
ANCAP Standard: Ancap
ANCAP Version Tested: 520d
Front Airbag
Location: Driver
Location: Passenger
Front Cross Traffic Collision Avoidance
Type: Sensor & Camera
Front Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Head Restraints
Front Seats Electric Adjustable: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Active Without Turn Signal: yes
Includes Collision Avoidance: yes
Steering Vibration: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor & Camera
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Fore/Aft Adjustment: yes
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Number of Electrical Adjustments: 4
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining: yes
Driver Front Seat Reclining Type: Memory
Driver Front Seat Shoulder Adjustment: yes
Driver Front Seat Thigh Support: yes
Driver Front Seat Tilt Adjustment: yes
Driver Front Seat Tilt Type: Memory
Driver Front Seat Type: Sports
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Height Adjustment: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Number of Electrical Adjustments: 4
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining: yes
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Thigh Support: yes
Passenger Front Seat Tilt Adjustment: yes
Passenger Front Seat Tilt Type: Memory
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Individual Rear Digital Display: yes
Individual Rear Location: Individual Rear
Passenger Seat Digital Display: yes
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Engine Heater: yes
Power Locks
Operation: Card Key
Intermediate Service
Variable Distance Period: yes
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
