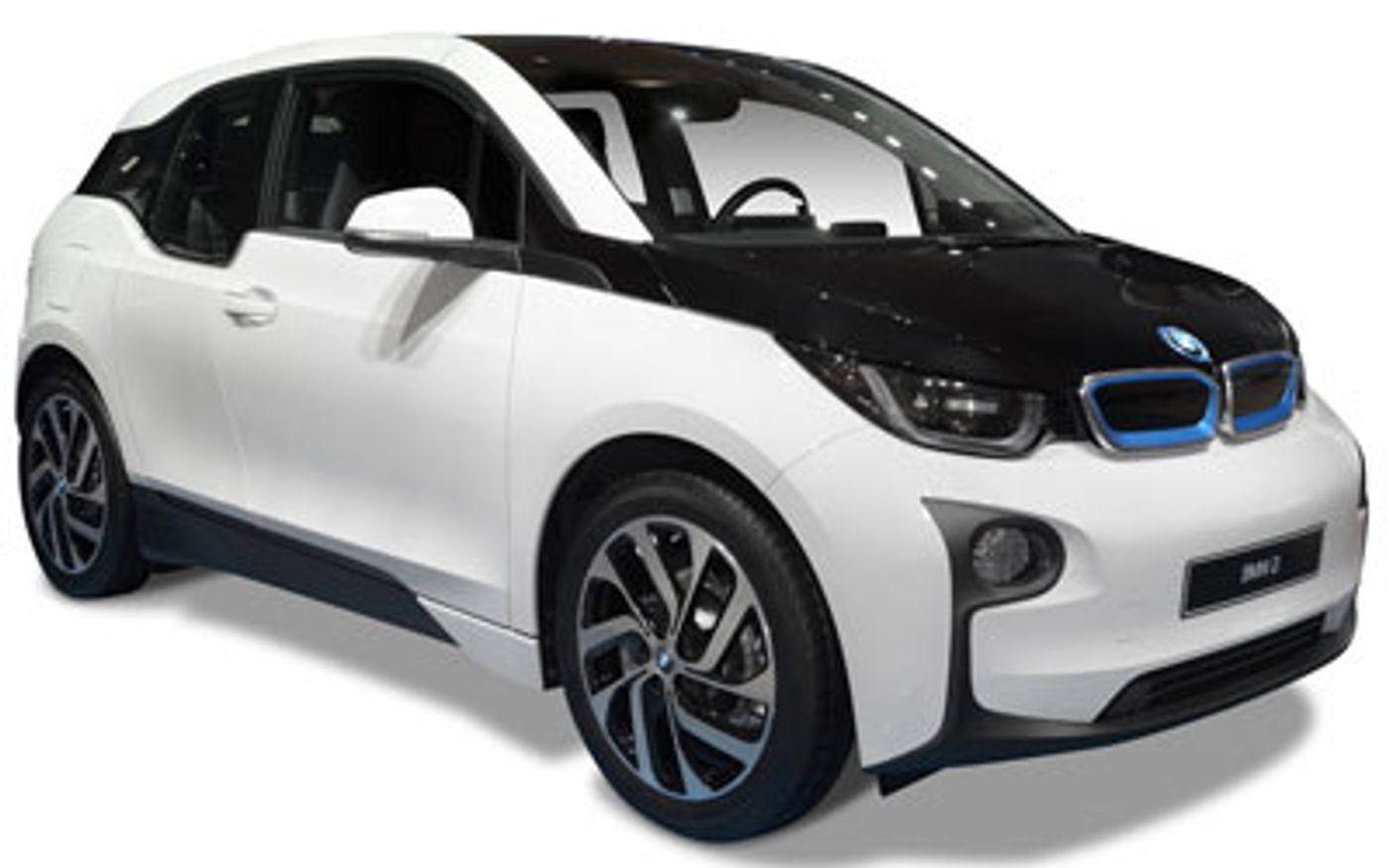

BMW i3 Base (2017) price & specs
Save $$$ with CarExpert*
From
$73,100â€
Base
Overview
The 2017 BMW i3 Base is a rear-wheel drive, 5-door Hatchback that was released to the Australian market on 1st January 2017 classified as a I01. The BMW i3 is regarded as a Small Luxury built in Germany with prices starting at $73,100 before on-road costs.
This BMW i3 uses a fully electric engine.
The BMW i3 measures 1597mm (62.9 inches) in height, 3999mm (157.4 inches) in length, 1775mm (69.9 inches) in width with a 2570mm (101.2 inches) wheelbase that brings about a total of 1365kg (3009.3 lbs) of unladen weight. The i3 Base comes standard with 155/60 R19 front tyres and 175/60 R19 rear tyres. It has a 36 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the i3 compare?
Quickly see how the 2017 BMW i3 Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
91.58 - 103.73 kW/t
59.78 kW/t
184.91 kW/t
Boot Space
260 litres
260 litres
605 litres
Fuel Efficiency
0.6 L/100km
0.6 L/100km
9.2 L/100km
Price
$63,900 - $74,100
$22,840
$84,900
Warranty (Years)
3 years
3 years
4 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Towing & Off-Road Capability
Gross Vehicle Weight
1,630 - 1,760 kg
1,630 kg
2,130 kg
Ground Clearance Unladen
140 mm
98 mm
175 mm
Battery & Charging
Max. battery kilowatt hour
22 - 33 kWh
22 kWh
33 kWh
Vehicle Range (EV)
170 - 312 km
170 km
312 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
3,999 mm
1,775 mm
1,597 mm
| Specification | Measurement |
|---|---|
| Overall Length | 3,999 mm |
| Overall Width | 1,775 mm |
| Overall Height | 1,597 mm |
| Wheelbase | 2,570 mm |
| Turning Circle | 9,860 mm |
| Load Capacity | 395 mm |
Looking for complete BMW i3 size & space specs?
Our BMW i3 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore BMW i3 Features & Specs
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Steering: yes
Parking Assistance
Location: Rear
Rear Type: Full Automatic Parking
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Remote Battery Management
Includes Battery Status Checking: yes
Includes Remote Battery Pre Heating: yes
Includes Remote Charge Activation: yes
Includes Timer Remote Charge Activation: yes
Remote HVAC Control
Includes Key: yes
Includes Phone: yes
Smart Card/Smart Key
Includes Keyless Start: yes
Includes Radio Settings: yes
Type: Automatic
Telematics
Advanced Auto Collision Notification: yes
Connection Type: Via Sim In Vehicle
Vanity Mirror
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Emission Control Level
CO2 Level (Combined): 12
Standard Met: EU6
Engine
Bore Engine: 79.0
Engine (cc): 647
Engine Configuration: In-Line
Engine Code: W20k06u0
Engine (L): 0.6
Number of Cylinders: 2
Number of Valves per Cylinder: 4
Stroke Engine: 66.0
Additional Fuel Types
Premium Unleaded Fuel: Premium Unleaded
Fuel
Generic Primary Fuel Type: Electric
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Premium Unleaded
Other Fuel Type: Premium Unleaded
Fuel Type: Electric
Fuel Tanks
Main Capacity Gal: 2.4
Main Capacity (L): 9
Main Capacity Uk Gallons: 2.0
Main Type: Total
Charging Information
Mode 2 Amps: 16
Mode 2 Duration: 7.50
Mode 2 Scenario: Mode 2
Mode 2 Voltage: 230
Mode 4 Duration: 0.65
Mode 4 Scenario: Mode 4
Electric Driven Wheels
Electric Driven Wheels: Rear
Electric Motor
Motor 1 Max Torque Motor (Nm): 250
Motor 1 Number: 1
Electric Power Source
Battery Type: Lithium Ion
Battery Voltage: 353.0
Maximum Battery (kWh): 33.00
Range (km): 240.00
Range (miles): 149.13
Hybrid Type
Hybrid Type: Electric Hybrid
Computer
Average Fuel Consumption: yes
Fuel Consumption
ADR 81/02 Combined (km/L): 166.7
ADR 81/02 Combined (L/100km): 0.6
ADR 81/02 Combined (miles per UK gallon): 471
ADR 81/02 Combined (mpg): 392
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 0.6
Performance
Acceleration 0 To 100 km/h: 8.1
Maximum Speed (km/h): 150
Maximum Speed (mph): 93
Power
Maximum Power (hp/PS): 170
Maximum Power hp/PS Electric Motor: 170
Maximum Power (kW): 125
Maximum Power kW Electric Motor: 125
Maximum Torque (Nm): 250
Maximum Torque Electric Motor (Nm): 250
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4800
Power Consumption
Combined (kWh/100 miles): 21.7
Combined (kWh/100km): 11.3
Combined (Wh/km): 135
Combined (Wh/mile): 217
Secondary Power
Maximum Power (hp/PS): 38
Maximum Power (kW): 28
Maximum Torque (Nm): 56
Rpm For Maximum Power Low: 5000
Rpm For Maximum Torque Low: 4500
Drive
Driven Wheels: Rear
Transmission
Code: Ge1b133h
Description: Automatic
Number of Speeds: 1
Shift Lever Location: Column
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Diameter: 19
Front Wheels Tire Load Index: 84
Location: Front
Front Wheels Tire Low Rolling Resistance: yes
Front Wheels Tire Profile: 70
Front Wheels Tire Speed Rating: Q
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 155
Rear Wheels Tire Diameter: 19
Rear Wheels Tire Load Index: 84
Rear Wheels Tire Location: Rear
Rear Wheels Tire Low Rolling Resistance: yes
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: Q
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 175
Wheels
Location: Front
Front Wheels Rim Diameter (In): 19
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 5.0
Location: Rear
Rear Rim Diameter (In): 19
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 5.5
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Platform Code: I01
Wheelbase Type: Short
Spoiler
Location: Roof
Cargo Capacity
Measurement Standard: ISO
Rear Seat Down (cu ft): 38.8
Rear Seat Down (L): 1100
Rear Seat Up to Lower Window (cu ft): 9.2
Rear Seat Up to Lower Window (L): 260
External Dimensions
Kerb to Kerb Turning Circle (mm): 9860
Front Track (in): 61.9
Front Track (mm): 1571
Ground Clearance Unladen (in): 5.5
Ground Clearance Unladen (mm): 140
Kerb To Kerb Turning Circle (ft): 32.3
Overall Height (in): 62.9
Overall Height (mm): 1597
Overall Length (in): 157.4
Overall Length (mm): 3999
Overall Width (in): 69.9
Overall Width (mm): 1775
Rear Track (in): 61.3
Rear Track (mm): 1556
Wheelbase (in): 101.2
Wheelbase (mm): 2570
Internal Dimensions
Front Headroom (in): 39.6
Front Headroom (mm): 1007
Rear Headroom (in): 37.2
Rear Headroom (mm): 946
Front Hip Room (in): 54.8
Front Hip Room (mm): 1392
Rear Hip Room (in): 50.4
Rear Hip Room (mm): 1281
Front Leg Room (in): 40.5
Front Leg Room (mm): 1029
Rear Leg Room (in): 31.9
Rear Leg Room (mm): 810
Front Shoulder Room (in): 53.6
Front Shoulder Room (mm): 1361
Rear Shoulder Room (in): 49.2
Rear Shoulder Room (mm): 1250
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Rear Hinged
Location: Rear Passenger
Rear Passenger Door Type: Rear Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
LED Lights
Location: Day Time Running Lights
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Silver
Two Tone: yes
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof One Touch Opening: yes
Front Sunroof Operation: Remote
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Toned
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Toned
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 0
Gross Trailer Weight Braked (lb): 0
Gross Trailer Weight Unbraked (kg): 0
Gross Trailer Weight Unbraked (lb): 0
Gross Vehicle Weight (kg): 1760
Gross Vehicle Weight (lb): 3880
Published Kerb Weight (kg): 1365
Published Kerb Weight (lb): 3009
Tare Weight (kg): 1366
Audio System
Digital Radio: yes
Radio Type: FM
External Connections
USB (Front): yes
Speakers
Number of Speakers: 4
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Floor Mats
Material: Textile
Luxury Trim
Doors: Leather
Gear Selector: Alloy Look
Instrument Panel: Wood & Leather
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Overall: 5.0
ANCAP Standard: Ancap
ANCAP Version Tested: I3 Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 2
Rear Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Cloth
Seating
Capacity: 4
Configuration: 2+2
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 1
Anti-Theft Protection
Anti-Lift: yes
Interior Monitoring: yes
Peripheral: yes
Remote Operation: yes
Power Locks
Includes Dead Bolt: yes
Operation: Remote
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
