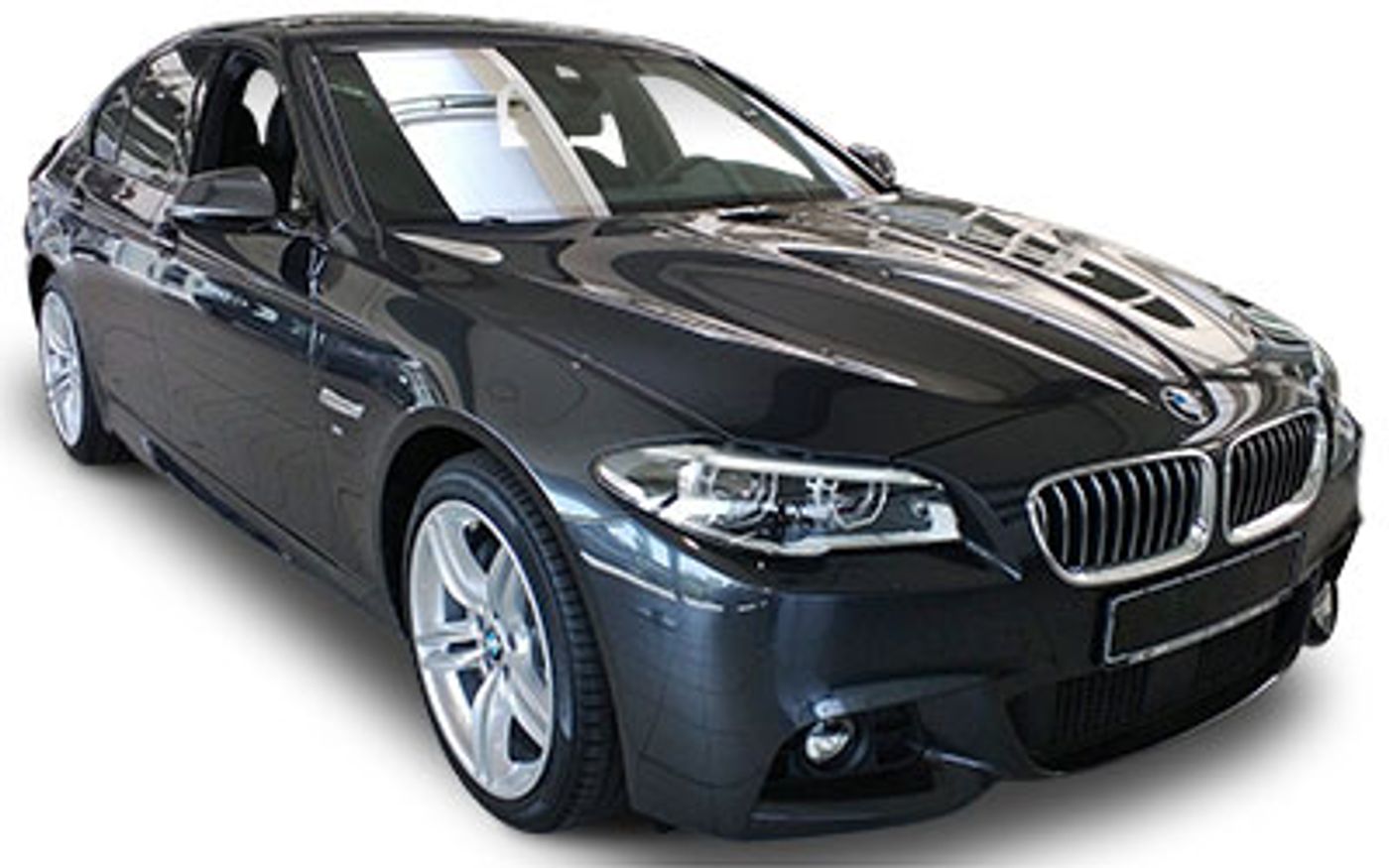

BMW M5 M5 (2014) price & specs
Save $$$ with CarExpert*
From
$230,400â€
Overview
The 2014 BMW M5 M5 is a rear-wheel drive, 4-door Sedan that was released to the Australian market on 2nd July 2014 classified as a F10. The BMW M5 is regarded as a Large Luxury built in Germany with prices starting at $230,400 before on-road costs.
This BMW M5 is powered by a 4.4L 8-cylinder engine that has 423 kW of power (at 6000 rpm) and 680 Nm of torque (at 1500 rpm) via a 7 SP MANUAL transmission. BMW claims the M5 M5 uses 9.9L/100km of Premium Unleaded in the combined city and highway cycle while putting out 232g of CO2. It has a 80L fuel tank, meaning it should be able to travel 808km per full tank
The BMW M5 measures 1456mm (57.3 inches) in height, 4910mm (193.3 inches) in length, 1891mm (74.4 inches) in width with a 2964mm (116.7 inches) wheelbase that brings about a total of 1870kg (4122.6 lbs) of unladen weight. The M5 M5 comes standard with 265/30 R20 front tyres and 295/30 R20 rear tyres. It has a 36 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the M5 compare?
Quickly see how the 2014 BMW M5 M5 stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
226.2 kW/t
72.05 kW/t
229.95 kW/t
Boot Space
520 litres
350 litres
695 litres
Fuel Efficiency
9.9 L/100km
4.3 L/100km
11.6 L/100km
Vehicle Range
808 km
603 km
1,860 km
Price
$229,900 - $230,400
$68,545
$251,400
Warranty (Years)
3 years
3 years
4 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
2 years
2 years
3 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,410 kg
2,165 kg
2,565 kg
Ground Clearance Unladen
117 mm
117 mm
152 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,910 mm
1,891 mm
1,456 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,910 mm |
| Overall Width | 1,891 mm |
| Overall Height | 1,456 mm |
| Wheelbase | 2,964 mm |
| Load Capacity | 540 mm |
Looking for complete BMW M5 size & space specs?
Our BMW M5 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore BMW M5 Features & Specs
Ashtray
Illuminated Front Ashtray: yes
Location: Front
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cigar Lighter
Illuminated Front Seat Lighter: yes
Location: Front Seats
Driver Modes
Engine Mapping: yes
Stability Control: yes
Steering: yes
Suspension: yes
Traction Control: yes
Entertainment Display Screen
Back of Front Seats DVD: yes
Location: Back Of Front Seats
Front DVD: yes
Location: Front
Front Screen Size (in): 10.2
Front TV: yes
Memorised Adjustment
Door Mirror Position: yes
Wheel Position: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Reading Lights
Location: Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Memory Seat Adjustments: yes
Type: Automatic
Telematics
Advanced Auto Collision Notification: yes
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 8.5
Australia Greenhouse Rating: 5.5
Australia Overall Emission Control Level Rating: 4.0
CO2 Level (Combined): 232
Standard Met: EU5
Engine
Bore Engine: 89.0
Engine (cc): 4395
Engine Configuration: V
Engine Code: S63b44t0
Engine (L): 4.4
Number of Cylinders: 8
Number of Valves per Cylinder: 4
Stroke Engine: 88.3
Valve Gear Type: Double Overhead Cam
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Premium Unleaded
Other Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 98
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Number of Screens: 1
Screen Size (in): 10.2
Instrument Cluster
Head Up Display: yes
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 808
ADR 81/02 Calculated Vehicle Range (miles): 502
ADR 81/02 Combined (km/L): 10.1
ADR 81/02 Combined (L/100km): 9.9
ADR 81/02 Combined (miles per UK gallon): 29
ADR 81/02 Combined (mpg): 24
ADR 81/02 Country Highway (km/L): 13.2
ADR 81/02 Country Highway (L/100km): 7.6
ADR 81/02 Country Highway (miles per UK gallon): 37
ADR 81/02 Country Highway (mpg): 31
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 7.1
ADR 81/02 Urban (L/100km): 14.0
ADR 81/02 Urban (miles per UK gallon): 20
ADR 81/02 Urban (mpg): 17
Fuel Economy
ADR 81/02 (L/100km): 9.9
Performance
Acceleration 0 To 100 km/h: 4.2
Maximum Speed (km/h): 250
Maximum Speed (mph): 155
Power
Maximum Power (hp/PS): 575
Maximum Power (kW): 423
Maximum Torque (Nm): 680
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6000
Rpm For Maximum Torque Low: 1500
Differential Lock
Location: Rear
Drive
Driven Wheels: Rear
Electronic Traction Control
Controlled By: Abs & Engine Management
Limited Slip Differential
Location: Rear
Rear Type: Mechanical
Transmission
Automatic Mode: yes
Code: M-Dkg 436
Description: Dual Clutch Sequential Trans (Dct)
Gear Change Paddles: yes
Manual Sequential: yes
Number of Speeds: 7
Shift Lever Location: Steering Wheel
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Electric Adjustment: yes
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Alternate Suspension
Type: Sport
Responsive Suspension
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 99
Location: Front
Front Wheels Tire Official Brochure Tire Size: yes
Front Wheels Tire Profile: 35
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 265
Rear Wheels Tire Load Index: 99
Rear Wheels Tire Location: Rear
Rear Wheels Tire Official Brochure Tire Size: yes
Rear Wheels Tire Profile: 30
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 295
Wheels
Location: Front
Front Wheels Rim Diameter (In): 20
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 9.0
Location: Rear
Rear Rim Diameter (In): 20
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 10.0
Body Style
Body Type: Sedan
Local Body Type: Sedan
Platform Code: F01
Wheelbase Type: Short
Spoiler
Location: Boot/Hatch
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Capacity
Rear Seat Up to Lower Window (cu ft): 18.4
Rear Seat Up to Lower Window (L): 520
External Dimensions
Front Track (in): 64.1
Front Track (mm): 1627
Ground Clearance Unladen (in): 4.6
Ground Clearance Unladen (mm): 117
Overall Height (in): 57.3
Overall Height (mm): 1456
Overall Length (in): 193.3
Overall Length (mm): 4910
Overall Width (in): 74.4
Overall Width (mm): 1891
Rear Track (in): 62.3
Rear Track (mm): 1582
Wall to Wall Turning Circle (ft): 41.3
Wall to Wall Turning Circle (mm): 12600
Wheelbase (in): 116.7
Wheelbase (mm): 2964
Internal Dimensions
Front Headroom (in): 40.5
Front Headroom (mm): 1028
Rear Headroom (in): 38.3
Rear Headroom (mm): 973
Front Hip Room (in): 59.8
Front Hip Room (mm): 1518
Rear Hip Room (in): 58.5
Rear Hip Room (mm): 1485
Front Shoulder Room (in): 58.3
Front Shoulder Room (mm): 1480
Rear Shoulder Room (in): 56.2
Rear Shoulder Room (mm): 1427
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Active High Beam: yes
Auto Highbeam: yes
Directional Headlights: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Gray
Type: Metallic
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Blind
Location: Rear
Rear Blind Type: Electric
Location: Side
Side Blind Type: Manual
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Auto-Dimming Passenger Door Mirrors: yes
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Electrically Foldable Mirrors
Operation: Electric
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2410
Gross Vehicle Weight (lb): 5313
Published Kerb Weight (kg): 1870
Published Kerb Weight (lb): 4123
Tare Weight (kg): 1818
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
Disc Autochanger: yes
Autochanger Disc Capacity: 6
In-Dash CD: yes
In-Dash DVD: yes
Radio Type: Am/Fm
Disc Player
Glove Box Capacity: 6
Location: Glove Box
Glove Box Media Type: DVD
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Harman/Kardon
Number of Speakers: 16
Upgraded Speakers: yes
Luxury Trim
Centre Floor Console: Alloy
Doors: Alloy
Gear Selector: Alloy & Leather
Instrument Panel: Alloy & Leather
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Overall: 5.00
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Active Massage: yes
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: Memory
Driver Front Seat Number of Electrical Adjustments: 6
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Sports
Driver Front Seat Ventilated: yes
Passenger Front Seat Active Massage: yes
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Lumbar Type: Electric
Passenger Front Seat Number of Electrical Adjustments: 6
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Type: Sports
Passenger Front Seat Ventilated: yes
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 4
Rear Control For Climate Control: yes
Secondary Ventilation Controls
Individual Rear Location: Individual Rear
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Variable Distance Period: yes
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
