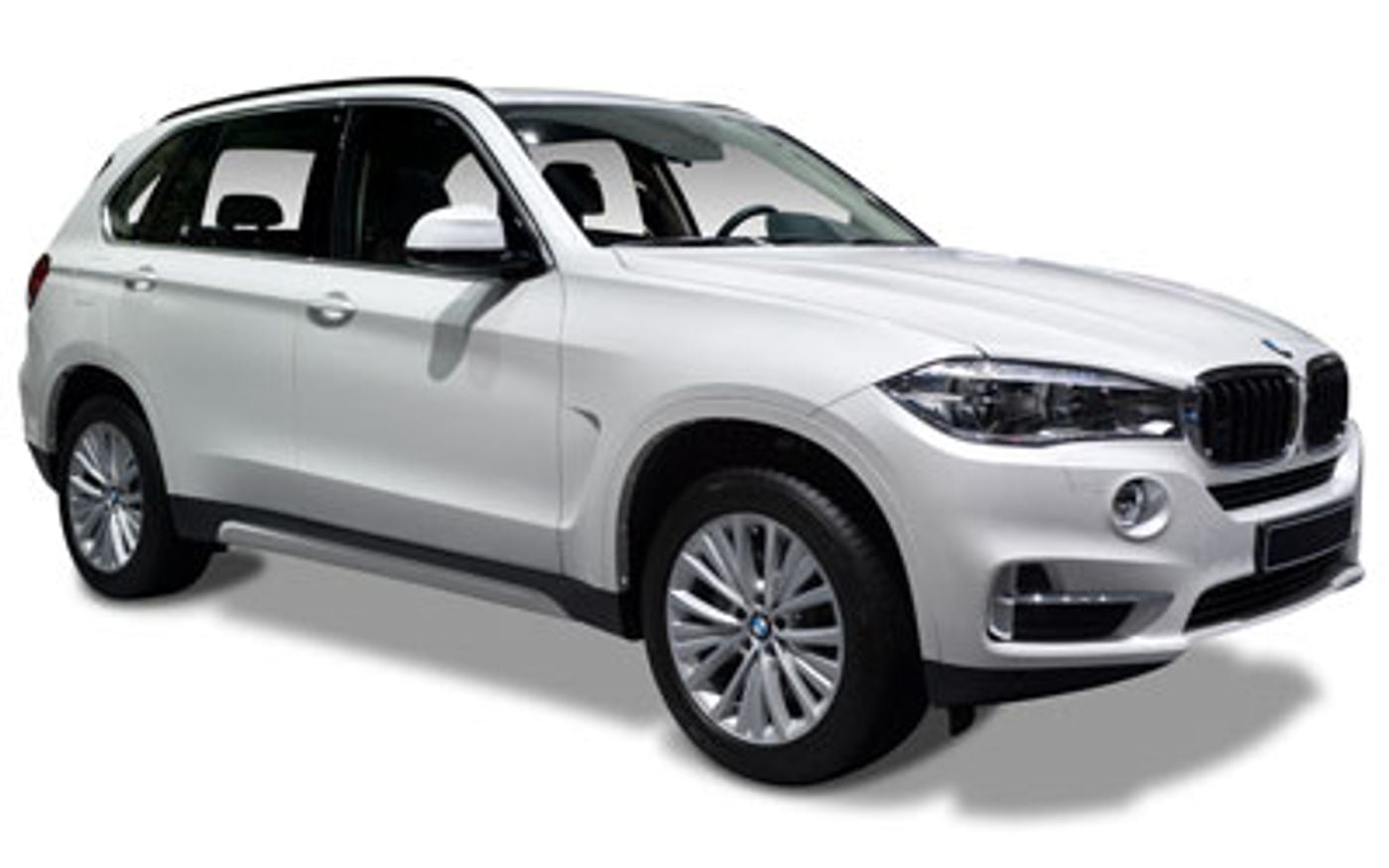

BMW X5 M Sport (2018) price & specs
Save $$$ with CarExpert*
From
$121,600â€
M Sport
Overview
The 2018 BMW X5 M Sport is a four-wheel drive, 5-door SUV that was released to the Australian market on 1st July 2017 classified as a F15. The BMW X5 is regarded as a Suv Large Luxury built in USA with prices starting at $121,600 before on-road costs.
This BMW X5 uses a fully electric engine.
The BMW X5 measures 1762mm (69.4 inches) in height, 4886mm (192.4 inches) in length, 1938mm (76.3 inches) in width with a 2933mm (115.5 inches) wheelbase that brings about a total of 2305kg (5081.6 lbs) of unladen weight. The X5 M Sport comes standard with 275/35 R20 front tyres and 315/35 R20 rear tyres. It has a 36 month, unlimited km warranty.
The 2018 BMW X5 M Sport has a 209mm ground clearance with a 2700kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the X5 compare?
Quickly see how the 2018 BMW X5 M Sport stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
84.49 - 185.93 kW/t
67.36 kW/t
195.74 kW/t
Boot Space
500 - 650 litres
176 litres
770 litres
Fuel Efficiency
3.3 - 11.1 L/100km
1.9 L/100km
13.1 L/100km
Vehicle Range
766 - 1,441 km
670 km
1,471 km
Price
$89,200 - $205,900
$68,990
$290,200
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
1 - 3 years
1 year
7 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,707 - 2,980 kg
2,380 kg
3,200 kg
Braked Towing Capacity
2,700 kg
1,000 kg
3,500 kg
Approach Angle
25°
16.3°
33°
Departure Angle
20 - 22.5°
14.4°
31°
Ground Clearance Unladen
195 - 209 mm
188 mm
278 mm
Battery & Charging
Max. battery kilowatt hour
9 kWh
1.9 kWh
17.3 kWh
Vehicle Range (EV)
31 km
31 km
56 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,886 mm
1,938 mm
1,762 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,886 mm |
| Overall Width | 1,938 mm |
| Overall Height | 1,762 mm |
| Wheelbase | 2,933 mm |
| Load Capacity | 675 mm |
Looking for complete BMW X5 size & space specs?
Our BMW X5 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
BMW X5 Sales rolling 12-months#
Explore BMW X5 Features & Specs
Ashtray
Illuminated Front Ashtray: yes
Location: Front
Automatic Door Closing
Rear Boot Hatch: yes
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cigar Lighter
Illuminated Front Seat Lighter: yes
Location: Front Seats
Cruise Control
Speed Limiter: yes
Steering Wheel Mounted Controls: yes
Driver Modes
Engine Mapping: yes
Stability Control: yes
Steering: yes
Suspension: yes
Traction Control: yes
Entertainment Display Screen
Back of Front Seats Blu-ray: yes
Back of Front Seats DVD: yes
Location: Back Of Front Seats
Front Digital Television: yes
Front DVD: yes
Location: Front
Front Screen Size (in): 10.3
Front Touch Screen: yes
Back of Front Seats Size (in): 10.2
Memorised Adjustment
Door Mirror Position: yes
Adjustment Head Restraint: yes
Wheel Position: yes
Mobile Integration
Apple Carplay: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Remote Battery Management
Includes Battery Status Checking: yes
Includes Charge Completion Alert: yes
Includes Remote Battery Pre Heating: yes
Includes Remote Charge Activation: yes
Includes Timer Remote Charge Activation: yes
Remote HVAC Control
Includes Phone: yes
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Memory Seat Adjustments: yes
Type: Automatic
Telematics
Advanced Auto Collision Notification: yes
Connection Type: Via Sim In Vehicle
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 77
Standard Met: EU6
Engine
Bore Engine: 84.0
Engine (cc): 1997
Engine Configuration: In-Line
Engine Code: N20b20o0
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 90.1
Additional Fuel Types
Unleaded Fuel: Unleaded
Fuel
Generic Primary Fuel Type: Electric
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Other Fuel Type: Unleaded
Fuel Type: Electric
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 22.5
Main Capacity (L): 85
Main Capacity Uk Gallons: 18.7
Main Type: Total
Charging Information
Mode 2 Amps: 16
Mode 2 Duration: 2.80
Mode 2 Scenario: Mode 2
Mode 2 Voltage: 230
Mode 4 Duration: 2.45
Mode 4 Scenario: Mode 4
Electric Motor
Motor 1 Max Torque Motor (Nm): 250
Motor 1 Number: 1
Electric Power Source
Battery Type: Lithium Ion
Maximum Battery (kWh): 9.0
Range (km): 31.00
Range (miles): 19.26
Hybrid Type
Hybrid Type: Active Hybrid
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Number of Screens: 1
Screen Size (in): 10.3
Touch Screen: yes
Instrument Cluster
Head Up Display: yes
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Combined (L/100km): 3.3
ADR 81/02 Combined (miles per UK gallon): 86
ADR 81/02 Combined (mpg): 71
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 3.3
Performance
Acceleration 0 To 100 km/h: 6.8
Max Speed On Electric Power Only (km/h): 120
Maximum Speed (km/h): 210
Maximum Speed (mph): 130
Power
Maximum Power (hp/PS): 313
Maximum Power hp/PS Electric Motor: 113
Maximum Power (kW): 230
Maximum Power kW Electric Motor: 83
Maximum Torque (Nm): 450
Maximum Torque Electric Motor (Nm): 250
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Power Consumption
Combined (kWh/100km): 15.4
Secondary Power
Maximum Power (hp/PS): 245
Maximum Power (kW): 180
Maximum Torque (Nm): 350
Rpm For Maximum Power Low: 5000
Rpm For Maximum Torque Low: 1250
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Limited Slip Differential
Location: Front
Front Type: Electronic
Location: Rear
Rear Type: Electronic
Transmission
Code: 8p75xph
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Electric Adjustment: yes
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Alternate Suspension
Type: Sport
Responsive Suspension
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: air
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Suspension Levelling
Location: Rear
Rear Operation: Automatic
Tires
Front Wheels Tire Diameter: 20
Front Wheels Tire Load Index: 106
Location: Front
Front Wheels Tire Profile: 40
Front Wheels Tire Run Flat: yes
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 275
Rear Wheels Tire Diameter: 20
Rear Wheels Tire Load Index: 110
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 35
Rear Wheels Tire Run Flat: yes
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 315
Wheels
Location: Front
Front Wheels Rim Diameter (In): 20
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 10.0
Location: Rear
Rear Rim Diameter (In): 20
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 11.0
Cargo Capacity
Measurement Standard: ISO
Rear Seat Down (cu ft): 60.7
Rear Seat Down (L): 1720
Rear Seat Up to Lower Window (cu ft): 17.7
Rear Seat Up to Lower Window (L): 500
External Dimensions
Ground Clearance Unladen (in): 8.2
Ground Clearance Unladen (mm): 209
Overall Height (in): 69.4
Overall Height (mm): 1762
Overall Length (in): 192.4
Overall Length (mm): 4886
Overall Width (in): 76.3
Overall Width (mm): 1938
Wall to Wall Turning Circle (ft): 41.7
Wall to Wall Turning Circle (mm): 12700
Wheelbase (in): 115.5
Wheelbase (mm): 2933
Internal Dimensions
Front Headroom (in): 40.5
Front Headroom (mm): 1029
Rear Headroom (in): 38.8
Rear Headroom (mm): 985
Front Hip Room (in): 61.5
Front Hip Room (mm): 1562
Rear Hip Room (in): 60.0
Rear Hip Room (mm): 1525
Front Shoulder Room (in): 60.5
Front Shoulder Room (mm): 1537
Rear Shoulder Room (in): 58.3
Rear Shoulder Room (mm): 1482
Ramp Angles
Approach Angle: 25.0
Departure Angle: 22.5
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: F15
Wheelbase Type: Short
Bumpers
Location: Front
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Split Gate
Headlight Control
Auto Highbeam: yes
Directional Headlights: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: Bi-Xenon
Low Beam Bulb Type: Bi-Xenon
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Black
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof One Touch Opening: yes
Front Sunroof Operation: Remote
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Rear Sunroof Location: Rear
One Touch Opening Rear Sunroof: yes
Rear Sunroof Operation: Remote
Rear Sunroof Tilting: yes
Rear Sunroof Type: Glass
Blind
Location: Side
Side Blind Type: Manual
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Auto-Dimming Passenger Door Mirrors: yes
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Heat Reflective Glass
Location: ?
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2700
Gross Trailer Weight Braked (lb): 5953
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2980
Gross Vehicle Weight (lb): 6570
Kerb Weight Includes Driver: yes
Published Kerb Weight (kg): 2305
Published Kerb Weight (lb): 5082
Tare Weight (kg): 2249
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
Digital Radio: yes
In-Dash CD: yes
In-Dash DVD: yes
Radio Type: FM
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Harman/Kardon
Number of Speakers: 16
Subwoofer: yes
Surround Sound: yes
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Centre Floor Console: Alloy
Doors: Alloy
Gear Selector: Alloy & Leather
Instrument Panel: Leather
Airbags
Number of Airbags: 6
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Fore/Aft Adjustment: yes
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining: yes
Driver Front Seat Reclining Type: Memory
Driver Front Seat Shoulder Adjustment: yes
Driver Front Seat Thigh Support: yes
Driver Front Seat Tilt Adjustment: yes
Driver Front Seat Tilt Type: Memory
Driver Front Seat Type: Sports
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Height Adjustment: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Number of Electrical Adjustments: 5
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining: yes
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Shoulder Adjustment: yes
Passenger Front Seat Thigh Support: yes
Passenger Front Seat Tilt Adjustment: yes
Passenger Front Seat Tilt Type: Memory
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Rear Outlet: yes
Secondary Ventilation Controls
Individual Rear Digital Display: yes
Individual Rear Location: Individual Rear
Passenger Seat Digital Display: yes
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Anti-Theft Protection
Anti-Lift: yes
Interior Monitoring: yes
Peripheral: yes
Remote Operation: yes
Power Locks
Includes Sunroof: yes
Operation: Card Key
Intermediate Service
Variable Distance Period: yes
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
