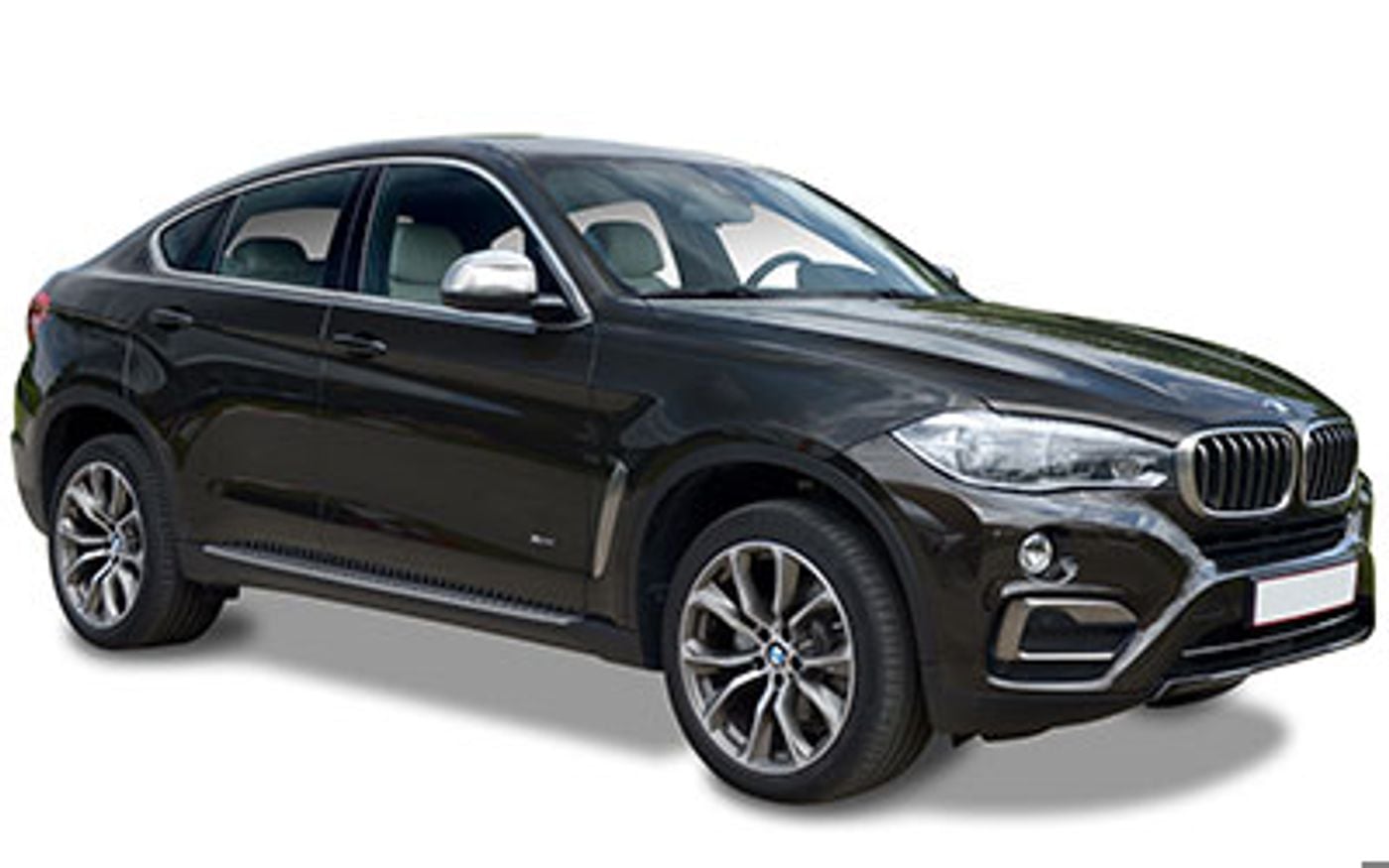

BMW X6 M Sport (2017) price & specs
Save $$$ with CarExpert*
From
$119,255â€
M Sport
Overview
The 2017 BMW X6 M Sport is a four-wheel drive, 5-door SUV that was released to the Australian market on 5th August 2016 classified as a F16. The BMW X6 is regarded as a Suv Large Luxury built in USA with prices starting at $119,255 before on-road costs.
This BMW X6 is powered by a 3.0L 6-cylinder engine that has 190 kW of power (at 4000 rpm) and 560 Nm of torque (at 1500 rpm) via an Eight-speed Automatic transmission. BMW claims the X6 M Sport uses 6.0L/100km of Diesel in the combined city and highway cycle while putting out 159g of CO2. It has a 85L fuel tank, meaning it should be able to travel 1417km per full tank
The BMW X6 measures 1702mm (67.0 inches) in height, 4909mm (193.3 inches) in length, 1989mm (78.3 inches) in width with a 2933mm (115.5 inches) wheelbase that brings about a total of 2140kg (4717.9 lbs) of unladen weight. The X6 M Sport comes standard with 275/35 R20 front tyres and 315/35 R20 rear tyres. It has a 36 month, unlimited km warranty.
The 2017 BMW X6 M Sport has a 212mm ground clearance with a 2700kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the X6 compare?
Quickly see how the 2017 BMW X6 M Sport stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
88.79 - 186.75 kW/t
67.36 kW/t
187.47 kW/t
Boot Space
580 litres
262 litres
690 litres
Fuel Efficiency
6 - 11.1 L/100km
2.1 L/100km
13.8 L/100km
Vehicle Range
766 - 1,417 km
687 km
1,471 km
Price
$117,455 - $198,200
$68,990
$287,500
Warranty (Years)
3 years
3 years
4 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
3 years
1 year
7 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,740 - 2,950 kg
2,460 kg
3,200 kg
Braked Towing Capacity
2,700 kg
2,000 kg
3,500 kg
Approach Angle
25°
23.1°
33°
Departure Angle
22.5°
14.4°
31°
Ground Clearance Unladen
195 - 212 mm
188 mm
278 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,909 mm
1,989 mm
1,702 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,909 mm |
| Overall Width | 1,989 mm |
| Overall Height | 1,702 mm |
| Wheelbase | 2,933 mm |
| Load Capacity | 640 mm |
Looking for complete BMW X6 size & space specs?
Our BMW X6 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
BMW X6 Sales rolling 12-months#
Explore BMW X6 Features & Specs
Ashtray
Illuminated Front Ashtray: yes
Location: Front
Automatic Door Closing
Side Doors: yes
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cigar Lighter
Illuminated Front Seat Lighter: yes
Location: Front Seats
Cruise Control
Speed Limiter: yes
Steering Wheel Mounted Controls: yes
Driver Modes
Engine Mapping: yes
Stability Control: yes
Steering: yes
Suspension: yes
Traction Control: yes
Entertainment Display Screen
Back of Front Seats Blu-ray: yes
Back of Front Seats DVD: yes
Location: Back Of Front Seats
Front Digital Television: yes
Front DVD: yes
Location: Front
Front Screen Size (in): 10.2
Front Touch Screen: yes
Back of Front Seats Size (in): 10.2
Memorised Adjustment
Door Mirror Position: yes
Adjustment Head Restraint: yes
Number of Memorised Driver Seat Positions: 4
Number of Memorised Passenger Seat Positions: 4
Adjustment Settings: 2
Wheel Position: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Remote HVAC Control
Includes Phone: yes
Smart Card/Smart Key
Includes Keyless Start: yes
Type: Automatic
Telematics
Advanced Auto Collision Notification: yes
Connection Type: Via Sim In Vehicle
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 159
Standard Met: EU5
Engine
Bore Engine: 84.0
Engine (cc): 2993
Engine Configuration: In-Line
Engine Code: N57d30o1
Engine (L): 3.0
Number of Cylinders: 6
Number of Valves per Cylinder: 4
Stroke Engine: 90.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 22.5
Main Capacity (L): 85
Main Capacity Uk Gallons: 18.7
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Screen Size (in): 10.2
Touch Screen: yes
Instrument Cluster
Head Up Display: yes
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Rim Mounted Sensor: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1417
ADR 81/02 Calculated Vehicle Range (miles): 880
ADR 81/02 Combined (km/L): 16.7
ADR 81/02 Combined (L/100km): 6.0
ADR 81/02 Combined (miles per UK gallon): 47
ADR 81/02 Combined (mpg): 39
ADR 81/02 Country Highway (km/L): 17.9
ADR 81/02 Country Highway (L/100km): 5.6
ADR 81/02 Country Highway (miles per UK gallon): 50
ADR 81/02 Country Highway (mpg): 42
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 14.7
ADR 81/02 Urban (L/100km): 6.8
ADR 81/02 Urban (miles per UK gallon): 42
ADR 81/02 Urban (mpg): 35
Fuel Economy
ADR 81/02 (L/100km): 6.0
Performance
Acceleration 0 To 100 km/h: 6.7
Maximum Speed (km/h): 230
Maximum Speed (mph): 143
Power
Maximum Power (hp/PS): 258
Maximum Power (kW): 190
Maximum Torque (Nm): 560
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 1500
Active Differential
Location: Rear
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Limited Slip Differential
Location: Front
Front Type: Electronic
Location: Rear
Rear Type: Electronic
Transmission
Code: 8hp75
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Alternate Suspension
Type: Sport
Responsive Suspension
Adjustable Anti Roll Bar: yes
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: air
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Suspension Levelling
Location: Rear
Rear Operation: Automatic
Tires
Front Wheels Tire Diameter: 20
Front Wheels Tire Load Index: 106
Location: Front
Front Wheels Tire Profile: 40
Front Wheels Tire Run Flat: yes
Front Wheels Tire Speed Rating: W
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 275
Rear Wheels Tire Diameter: 20
Rear Wheels Tire Load Index: 110
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 35
Rear Wheels Tire Run Flat: yes
Rear Wheels Tire Speed Rating: W
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 315
Wheels
Location: Front
Front Wheels Rim Diameter (In): 20
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 10.0
Location: Rear
Rear Rim Diameter (In): 20
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 11.0
Cargo Capacity
Measurement Standard: ISO
Rear Seat Down (cu ft): 53.9
Rear Seat Down (L): 1525
Rear Seat Up to Lower Window (cu ft): 20.5
Rear Seat Up to Lower Window (L): 580
External Dimensions
Front Track (in): 65.2
Front Track (mm): 1656
Ground Clearance Unladen (in): 8.3
Ground Clearance Unladen (mm): 212
Overall Height (in): 67.0
Overall Height (mm): 1702
Overall Length (in): 193.3
Overall Length (mm): 4909
Overall Width (in): 78.3
Overall Width (mm): 1989
Rear Track (in): 65.7
Rear Track (mm): 1668
Wall to Wall Turning Circle (ft): 42.0
Wall to Wall Turning Circle (mm): 12800
Wheelbase (in): 115.5
Wheelbase (mm): 2933
Internal Dimensions
Front Headroom (in): 39.9
Front Headroom (mm): 1013
Rear Headroom (in): 37.9
Rear Headroom (mm): 962
Front Hip Room (in): 61.5
Front Hip Room (mm): 1562
Rear Hip Room (in): 59.6
Rear Hip Room (mm): 1514
Front Leg Room (in): 40.3
Front Leg Room (mm): 1024
Rear Leg Room (in): 35.6
Rear Leg Room (mm): 903
Front Shoulder Room (in): 60.5
Front Shoulder Room (mm): 1537
Rear Shoulder Room (in): 57.9
Rear Shoulder Room (mm): 1471
Ramp Angles
Approach Angle: 25.0
Departure Angle: 22.5
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: F15
Wheelbase Type: Short
Step
Step Location: Side
Side Step Type: Other
Bumpers
Location: Front
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Active High Beam: yes
Directional Headlights: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof One Touch Opening: yes
Front Sunroof Operation: Remote
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Type: Glass
Blind
Location: Side
Side Blind Type: Manual
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Auto-Dimming Passenger Door Mirrors: yes
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2700
Gross Trailer Weight Braked (lb): 5953
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2780
Gross Vehicle Weight (lb): 6129
Published Kerb Weight (kg): 2140
Published Kerb Weight (lb): 4718
Tare Weight (kg): 2076
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
Digital Radio: yes
In-Dash CD: yes
In-Dash DVD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 9
Surround Sound: yes
Upgraded Speakers: yes
Luxury Trim
Centre Floor Console: Alloy
Doors: Alloy
Instrument Panel: Leather
Airbags
Number of Airbags: 6
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Fore/Aft Adjustment: yes
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Number of Electrical Adjustments: 4
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining: yes
Driver Front Seat Reclining Type: Memory
Driver Front Seat Shoulder Adjustment: yes
Driver Front Seat Thigh Support: yes
Driver Front Seat Thigh Support Type: Manual
Driver Front Seat Tilt Adjustment: yes
Driver Front Seat Tilt Type: Memory
Driver Front Seat Type: Sports
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Height Adjustment: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Number of Electrical Adjustments: 4
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining: yes
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Shoulder Adjustment: yes
Passenger Front Seat Thigh Support: yes
Passenger Front Seat Thigh Support Type: Manual
Passenger Front Seat Tilt Adjustment: yes
Passenger Front Seat Tilt Type: Memory
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Fully Automated Climate Control: yes
Rear Outlet: yes
Secondary Ventilation Controls
Individual Rear Digital Display: yes
Individual Rear Location: Individual Rear
Passenger Seat Digital Display: yes
Passenger Seat Location: Passenger Seat
Ventilation System
Active Carbon Filter: yes
Automatic Recirculation: yes
Digital Display: yes
Micro Filter: yes
Anti-Theft Protection
Anti-Lift: yes
Interior Monitoring: yes
Peripheral: yes
Remote Operation: yes
Power Locks
Includes Dead Bolt: yes
Operation: Remote
Intermediate Service
Variable Distance Period: yes
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
