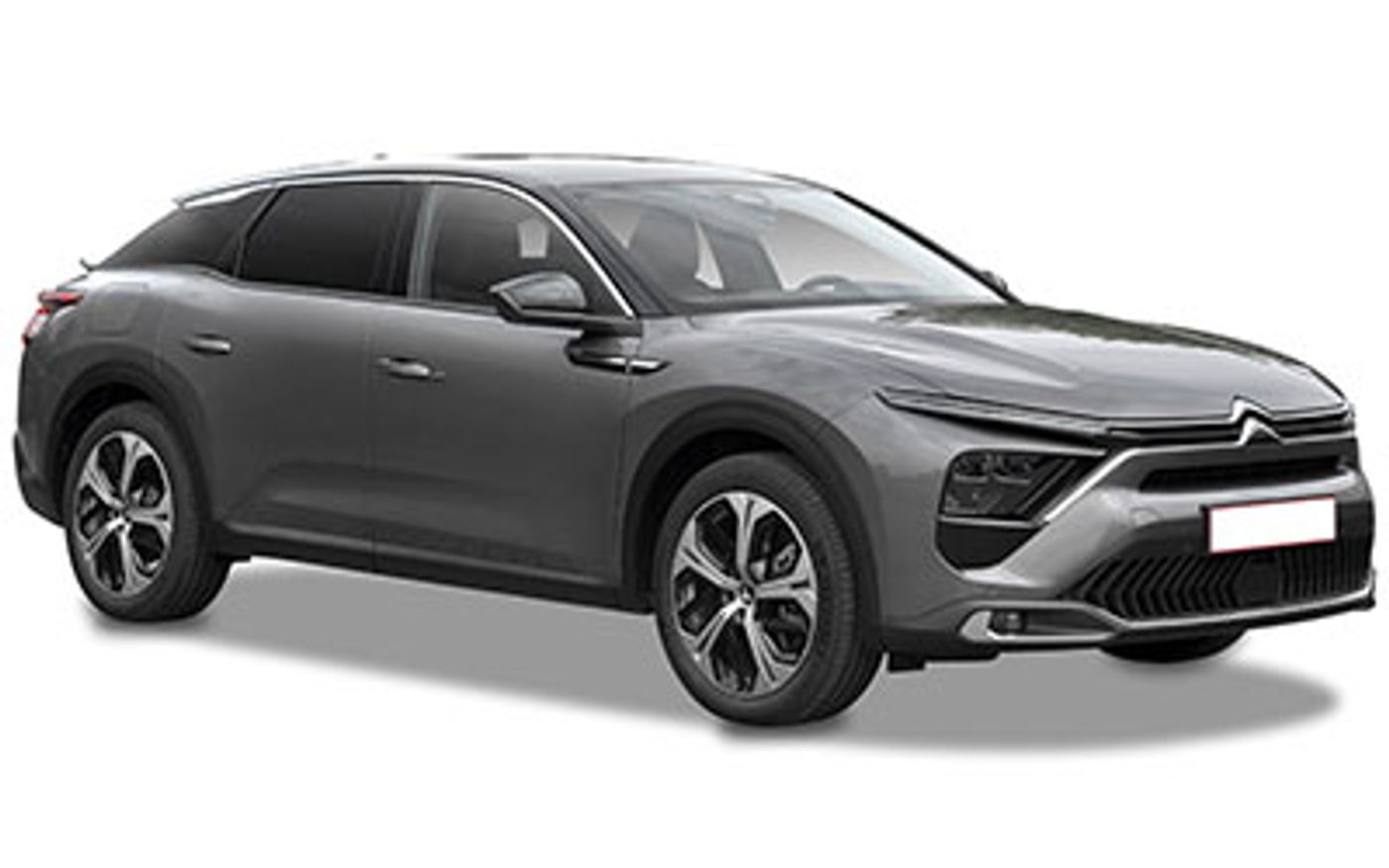

Citroen C5 X Shine (2024) price & specs
Save $$$ with CarExpert*
From
$73,990â€
Shine
Overview
The 2024 Citroen C5 X Shine is a front-wheel drive, 5-door Hatchback that was released to the Australian market on 3rd May 2024. The Citroen C5 X is regarded as a large car built in China with prices starting at $73,990 before on-road costs.
This Citroen C5 X uses a fully electric engine.
The Citroen C5 X measures 1485mm (58.5 inches) in height, 4805mm (189.2 inches) in length, 1815mm (71.5 inches) in width with a 2785mm (109.6 inches) wheelbase that brings about a total of 1722kg (3796.4 lbs) of unladen weight. The C5 X Shine comes standard with 205/55 R19 front tyres and 205/55 R19 rear tyres. It requires a service every 12 months or 20,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2024 Citroen C5 X Shine has a 194mm ground clearance with a 1350kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the C5 X compare?
Quickly see how the 2024 Citroen C5 X Shine stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
95.82 kW/t
95.82 kW/t
115.93 kW/t
Boot Space
485 litres
485 litres
660 litres
Fuel Efficiency
1.5 L/100km
1.5 L/100km
8.1 L/100km
Vehicle Range
2,867 km
815 km
2,867 km
Price
$73,990
$65,590
$73,990
Warranty (Years)
5 years
5 years
7 years
Warranty (Distance)
Unlimited
Unlimited
Years on Sale
2 - 4 years
1 year
1 year
Service Interval
12 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,185 kg
2,185 kg
2,200 kg
Braked Towing Capacity
1,350 kg
1,350 kg
2,200 kg
Ground Clearance Unladen
194 mm
136 mm
194 mm
Battery & Charging
Max. battery kilowatt hour
12.4 kWh
12.4 kWh
AC Charging (max kW)
3.7 kW
3.7 kW
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,805 mm
1,815 mm
inc mirror: 2,062 mm
inc mirror: 2,062 mm
1,485 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,805 mm |
| Overall Width | 1,815 mm |
| Overall Width (Inc Mirror) | 2,062 mm |
| Overall Height | 1,485 mm |
| Wheelbase | 2,785 mm |
| Turning Circle | 11,170 mm |
| Load Capacity | 463 mm |
Looking for complete Citroen C5 X size & space specs?
Our Citroen C5 X Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Citroen C5 X Sales rolling 12-months#
Explore Citroen C5 X Features & Specs
Automatic Door Closing
Rear Boot Hatch: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Steering: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Android Wireless Connection: yes
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Apple Wireless Connection: yes
Mirrorlink Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Remote Services
Find My Car: yes
Months Subscription Included: Unlimited
Vehicle Diagnostics: yes
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
USB Charging Port
Location: Front
Number of Ports in Front: 2
Location: Rear
Number of Ports in Rear: 2
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Virtual Assistant: Other
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
Standard Met: EU6
Engine
Engine (cc): 1598
Engine Configuration: In-Line
Engine Code: Ep6fdt
Engine (L): 1.6
Number of Cylinders: 4
WLTP Emissions
HEV Charge Depleting (Combined): 18.0
HEV Charge Depleting Testing Type: Hev Charge Depleting
HEV Charge Sustaining (Combined): 146.0
HEV Charge Sustaining Testing Type: Hev Charge Sustaining
HEV UF Weighted (Combined): 27.0
HEV UF Weighted Testing Type: Hev Uf Weighted
Additional Fuel Types
Unleaded Fuel: Unleaded
Fuel
Generic Primary Fuel Type: Electric
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Unleaded
Other Fuel Type: Unleaded
Fuel Type: Electric
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 11.4
Main Capacity (L): 43
Main Capacity Uk Gallons: 9.5
Main Type: Total
Charging Connector
Type 2 (Mennekes) Charging Socket AC 1: yes
Type 2 (Mennekes) Location of AC 1 Socket: Rear Side
Type 2 (Mennekes) Location of AC 2 Socket: Rear Side
Type 2 (Mennekes) Type: Type 2 (Mennekes)
Charging Information
Mode 2 Amps: 8
Mode 2 Duration: 5.94
Mode 2 Quoted kW Supplied To Vehicle: 2.30
Mode 2 Scenario: Mode 2
Mode 2 State of Charge Ends At (%): 100
Mode 2 State of Charge Starts At (%): 0
Mode 2 Voltage: 230
Mode 3 amps (A): 16
Mode 3 Calc Duration Max Supplied 0% To 100%: 3.68
Mode 3 Calculated Duration 3.7 kW 0% To 100%: 3.70
Mode 3 Calculated Duration 7.4 kW 0% To 100%: 3.68
Mode 3 Duration: 1.67
Mode 3 Max kW Supplied To Vehicle: 3.70
Mode 3 Quoted kW Supplied To Vehicle: 3.70
Mode 3 Scenario: Mode 3
Mode 3 State of Charge Ends At (%): 100
Mode 3 State of Charge Starts At (%): 0
Mode 3 Voltage: 230
Electric Driven Wheels
Electric Driven Wheels: Front
Electric Motor
Motor 1 Type: Ac Perm Magnet Synchronous
Motor 1 Max Torque Motor (Nm): 320
Motor 1 Location: Transmission-Integrated Motor Generator
Motor 1 Number: 1
Motor 1 Power Output (hp/PS): 110.4
Motor 1 Power Output Motor (kW): 81.2
Electric Power Source
Battery (Ah): 44.0
Battery Supplier: Lg Energy Solution
Battery Type: Lithium Ion
Battery Voltage: 300.0
Max Wireless Charging (kW): 0.0
Maximum Battery (kWh): 12.40
Number of kWh Included: 90
Onboard Charger: 3.7
Hybrid Type
Hybrid Type: Active Hybrid
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 12.00
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 3.90
Instrument Cluster
Head Up Display: Windscreen
HUD Including Augmented Reality: yes
Reconfigurable: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 2867
ADR 81/02 Calculated Vehicle Range (miles): 1781
ADR 81/02 Combined (km/L): 66.7
ADR 81/02 Combined (L/100km): 1.5
ADR 81/02 Combined (miles per UK gallon): 188
ADR 81/02 Combined (mpg): 157
ADR 81/02 Standard: Adr 81/02
WLTP HEV UF Weighted Combined (km/L): 66.7
WLTP HEV UF Weighted Combined (L/100km): 1.5
WLTP HEV UF Weighted Combined (miles per UK gallon): 188
WLTP HEV UF Weighted Combined (mpg): 157
WLTP HEV UF Weighted Standard: Wltp Hev Uf Weighted
Fuel Economy
ADR 81/02 (L/100km): 1.5
Performance
Acceleration 0 To 100 km/h: 7.8
Max Speed On Electric Power Only (km/h): 135
Maximum Speed (km/h): 233
Maximum Speed (mph): 145
Power
Maximum Power (hp/PS): 225
Maximum Power hp/PS Electric Motor: 110
Maximum Power (kW): 165
Maximum Power kW Electric Motor: 81
Maximum Torque (Nm): 360
Maximum Torque Electric Motor (Nm): 320
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5500
Rpm For Maximum Torque Low: 3000
Secondary Power
Maximum Power (hp/PS): 180
Maximum Power (kW): 132
Maximum Torque (Nm): 250
Rpm For Maximum Power Low: 6000
Rpm For Maximum Torque Low: 1750
Drive
Driven Wheels: Front
Transmission
Code: Eat8
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Heated: yes
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Touch Controls: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 97
Location: Front
Front Wheels Tire Low Rolling Resistance: yes
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Load Index: 97
Rear Wheels Tire Location: Rear
Rear Wheels Tire Low Rolling Resistance: yes
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: V
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 19
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.5
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 19
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.5
Rear Two Tone: yes
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Platform Code: Emp2
Wheelbase Type: Short
Spoiler
Location: Roof
Location: Boot/Hatch
Cargo Capacity
Frunk Capacity (cu ft): 0.0
Frunk Capacity (L): 0
Measurement Standard: VDA
Rear Seat Down (cu ft): 55.8
Rear Seat Down (L): 1580
Rear Seat Up to Lower Window (cu ft): 17.1
Rear Seat Up to Lower Window (L): 485
External Dimensions
Kerb to Kerb Turning Circle (mm): 11170
Front Track (in): 62.8
Front Track (mm): 1595
Ground Clearance Unladen (in): 7.6
Ground Clearance Unladen (mm): 194
Kerb To Kerb Turning Circle (ft): 36.6
Overall Height (in): 58.5
Overall Height (mm): 1485
Overall Length (in): 189.2
Overall Length (mm): 4805
Overall Width Folded Mirror (in): 73.4
Overall Width Folded Mirror (mm): 1865
Overall Width (in): 71.5
Overall Width Inc Mirror (in): 81.2
Overall Width Inc Mirror (mm): 2062
Overall Width (mm): 1815
Rear Track (in): 63.0
Rear Track (mm): 1600
Wall to Wall Turning Circle (ft): 38.4
Wall to Wall Turning Circle (mm): 11700
Wheelbase (in): 109.6
Wheelbase (mm): 2785
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Gray
Two Tone: yes
Type: Metallic
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Toned
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Toned
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1350
Gross Trailer Weight Braked (lb): 2976
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2185
Gross Vehicle Weight (lb): 4817
Published Kerb Weight (kg): 1722
Published Kerb Weight (lb): 3796
Tare Weight (kg): 1697
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
USB (Rear): yes
Total 3rd Row USB Connections: 0
Total Front USB Connections: 1
Total Rear USB Connections: 1
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 8
Subwoofer: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Centre Floor Console: Synthetic Leather
Doors: Synthetic Leather
Airbags
Number of Airbags: 6
Autonomous Drive
Active Lane Control: yes
Highway Assist: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Adult Occupant Score: 82.0
ANCAP Child Occupant Score: 88.0
ANCAP Date Tested: 20230201
ANCAP Overall: 5.0
ANCAP Pedestrian Score: 69.0
ANCAP Rating Year: 2022
ANCAP Safety Assist Score: 84.0
ANCAP Standard: Ancap
ANCAP Version Tested: C5 X Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Active Without Turn Signal: yes
Steering Vibration: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Location: Rear
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Electric Heater: yes
Touch Screen Controls: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 20000
Distance (miles): 12427
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
