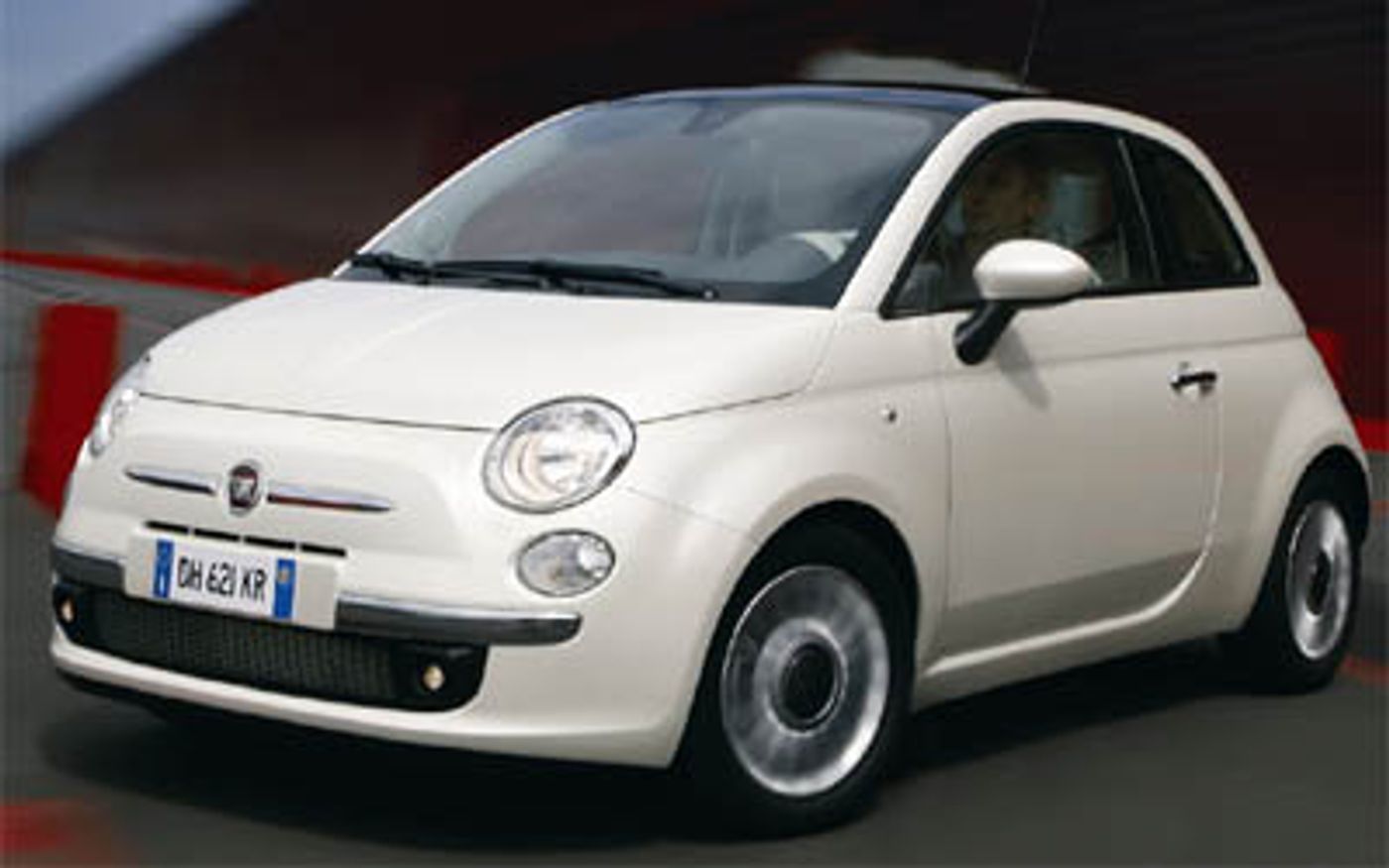

Fiat 500 By Diesel (2010) price & specs
Save $$$ with CarExpert*
From
$27,990â€
By Diesel
Overview
The 2010 Fiat 500 By Diesel is a front-wheel drive, 3-door Hatchback that was released to the Australian market on 4th October 2010. The Fiat 500 is regarded as a small car built in Italy with prices starting at $27,990 before on-road costs.
This Fiat 500 is powered by a 1.4L 4-cylinder engine that has 74 kW of power (at 6000 rpm) and 131 Nm of torque (at 4250 rpm) via a Five-speed Manual transmission. Fiat claims the 500 By Diesel uses 5.8L/100km of Premium Unleaded in the combined city and highway cycle while putting out 135g of CO2. It has a 35L fuel tank, meaning it should be able to travel 603km per full tank
The Fiat 500 measures 1488mm (58.6 inches) in height, 3546mm (139.6 inches) in length, 1627mm (64.1 inches) in width with a 2300mm (90.6 inches) wheelbase that brings about a total of 930kg (2050.3 lbs) of unladen weight. The 500 By Diesel comes standard with 195/45 R16 front tyres and 195/45 R16 rear tyres. It has a 36 month, 100,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the 500 compare?
Quickly see how the 2010 Fiat 500 By Diesel stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
79.57 kW/t
79.57 kW/t
Boot Space
185 litres
185 litres
Fuel Efficiency
5.8 - 6.3 L/100km
5.8 L/100km
6.3 L/100km
Vehicle Range
556 - 603 km
556 km
603 km
Price
$24,990 - $27,990
$24,990
$30,990
Warranty (Years)
3 years
2 years
3 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
5 years
3 years
3 years
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
3,546 mm
1,627 mm
1,488 mm
| Specification | Measurement |
|---|---|
| Overall Length | 3,546 mm |
| Overall Width | 1,627 mm |
| Overall Height | 1,488 mm |
| Wheelbase | 2,300 mm |
| Turning Circle | 9,280 mm |
| Load Capacity | 440 mm |
Looking for complete Fiat 500 size & space specs?
Our Fiat 500 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Fiat 500 Features & Specs
Emission Control Level
Australia Air Pollution Rating: 7.5
Australia Greenhouse Rating: 8.0
Australia Overall Emission Control Level Rating: 4.5
CO2 Level (Combined): 135
Standard Met: EU4
Engine
Bore Engine: 72.0
Engine (cc): 1368
Engine Configuration: In-Line
Engine Code: 169a3000
Engine (L): 1.4
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 84.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 9.2
Main Capacity (L): 35
Main Capacity Uk Gallons: 7.7
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 603
ADR 81/02 Calculated Vehicle Range (miles): 375
ADR 81/02 Combined (km/L): 17.2
ADR 81/02 Combined (L/100km): 5.8
ADR 81/02 Combined (miles per UK gallon): 49
ADR 81/02 Combined (mpg): 41
ADR 81/02 Country Highway (km/L): 20.0
ADR 81/02 Country Highway (L/100km): 5.0
ADR 81/02 Country Highway (miles per UK gallon): 57
ADR 81/02 Country Highway (mpg): 47
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 14.1
ADR 81/02 Urban (L/100km): 7.1
ADR 81/02 Urban (miles per UK gallon): 40
ADR 81/02 Urban (mpg): 33
Fuel Economy
ADR 81/02 (L/100km): 5.8
Performance
Acceleration 0 To 100 km/h: 10.5
Maximum Speed (km/h): 182
Maximum Speed (mph): 113
Power
Maximum Power (hp/PS): 101
Maximum Power (kW): 74
Maximum Torque (Nm): 131
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6000
Rpm For Maximum Torque Low: 4250
Drive
Driven Wheels: Front
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Automatic Mode: yes
Description: Automated Manual Sequential Trans (Amt)
Manual Sequential: yes
Number of Speeds: 5
Shift Lever Location: Dash
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Torsion Beam
Rear Wheel Dependence: Semi-Independent
Tires
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 195
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 195
Wheels
Front Covers: Partial
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.5
Rear Covers: Partial
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Platform Code: B2
Spoiler
Location: Roof
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Capacity
Rear Seat Down (cu ft): 19.4
Rear Seat Down (L): 550
Rear Seat Up to Lower Window (cu ft): 6.5
Rear Seat Up to Lower Window (L): 185
External Dimensions
Kerb to Kerb Turning Circle (mm): 9280
Front Track (in): 55.7
Front Track (mm): 1414
Kerb To Kerb Turning Circle (ft): 30.4
Overall Height (in): 58.6
Overall Height (mm): 1488
Overall Length (in): 139.6
Overall Length (mm): 3546
Overall Width (in): 64.1
Overall Width (mm): 1627
Rear Track (in): 55.4
Rear Track (mm): 1408
Wheelbase (in): 90.6
Wheelbase (mm): 2300
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: Green
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Toned
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Toned
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Gross Trailer Weight Braked (kg): 800
Gross Trailer Weight Braked (lb): 1764
Gross Trailer Weight Unbraked (kg): 400
Gross Trailer Weight Unbraked (lb): 882
Gross Vehicle Weight (kg): 1370
Gross Vehicle Weight (lb): 3020
Published Kerb Weight (kg): 930
Published Kerb Weight (lb): 2050
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Power Outlet 12V
Location (12V): Front
Vanity Mirror
Location: Passenger
Voice Activating System
Includes Navigation System: yes
Includes Phone: yes
Luxury Trim
Instrument Panel: Painted Body Colour
Crash Test Results
ANCAP Date Tested: 20080326
ANCAP Overall: 5.0
ANCAP Pedestrian: 2
ANCAP Standard: Ancap
ANCAP Version Tested: 1.2
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 2
Knee Airbags
Location: Driver
Rear Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Sports
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Upgraded Cloth/Velour
Main Seat Material: Upgraded Cloth/Velour
Seating
Capacity: 4
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 1
Ventilation System
Digital Display: yes
Power Locks
Operation: Remote
