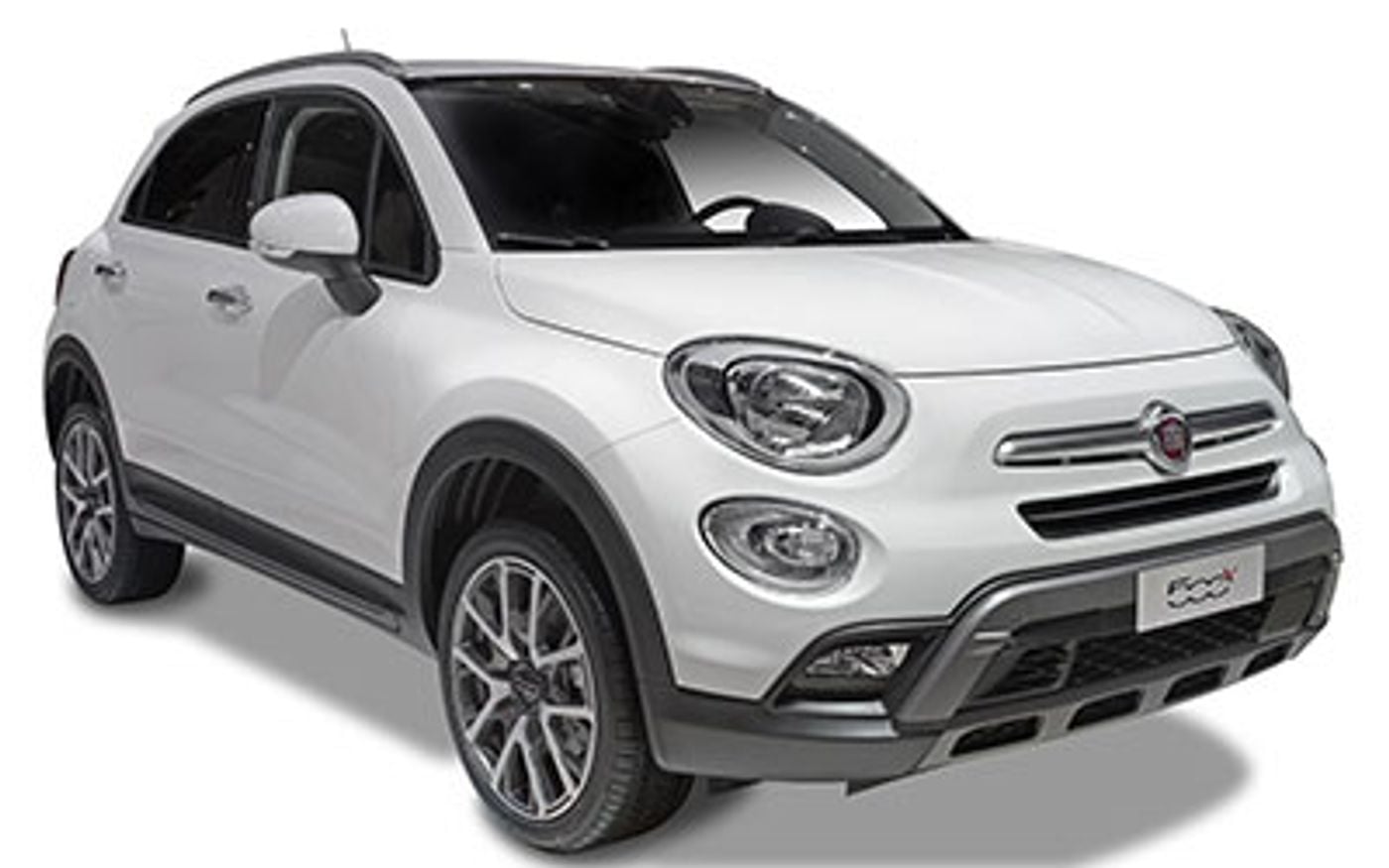

Fiat 500X Cross Plus (2015) price & specs
Save $$$ with CarExpert*
From
$39,000â€
Cross Plus
Overview
The 2015 Fiat 500X Cross Plus is a four-wheel drive, 5-door SUV that was released to the Australian market on 3rd November 2015. The Fiat 500X is regarded as a small SUV built in Italy with prices starting at $39,000 before on-road costs.
This Fiat 500X is powered by a 1.4L 4-cylinder engine that has 125 kW of power (at 5500 rpm) and 250 Nm of torque (at 2500 rpm) via a Nine-speed Automatic transmission. Fiat claims the 500X Cross Plus uses 6.7L/100km of Premium Unleaded in the combined city and highway cycle while putting out 157g of CO2. It has a 48L fuel tank, meaning it should be able to travel 716km per full tank
The Fiat 500X measures 1620mm (63.8 inches) in height, 4273mm (168.2 inches) in length, 1796mm (70.7 inches) in width with a 2570mm (101.2 inches) wheelbase that brings about a total of 1449kg (3194.5 lbs) of unladen weight. The 500X Cross Plus comes standard with 225/45 R18 front tyres and 225/45 R18 rear tyres. It has a 36 month, 150,000 km warranty.
The 2015 Fiat 500X Cross Plus has a 176mm ground clearance with a 1200kg braked and 600kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the 500X compare?
Quickly see how the 2015 Fiat 500X Cross Plus stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
76.92 - 86.27 kW/t
56.29 kW/t
104.32 kW/t
Boot Space
346 litres
207 litres
650 litres
Fuel Efficiency
5.7 - 6.7 L/100km
4.8 L/100km
9 L/100km
Vehicle Range
716 - 842 km
567 km
1,086 km
Price
$26,000 - $39,000
$19,990
$41,500
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
150,000 km
100,000 km
Unlimited
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Braked Towing Capacity
1,200 kg
454 kg
1,500 kg
Approach Angle
21.3°
17.9°
30.5°
Departure Angle
30.1°
26°
34.3°
Ground Clearance Unladen
163 - 176 mm
155 mm
220 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,273 mm
1,796 mm
1,620 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,273 mm |
| Overall Width | 1,796 mm |
| Overall Height | 1,620 mm |
| Wheelbase | 2,570 mm |
| Turning Circle | 11,050 mm |
Looking for complete Fiat 500X size & space specs?
Our Fiat 500X Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Fiat 500X Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Stability Control: yes
Steering: yes
Traction Control: yes
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Phone: yes
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 157
Standard Met: EU6
Engine
Bore Engine: 72.0
Engine (cc): 1368
Engine Configuration: In-Line
Engine Code: 55263623
Engine (L): 1.4
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 84.0
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 12.7
Main Capacity (L): 48
Main Capacity Uk Gallons: 10.6
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Screen Size (in): 6.5
Touch Screen: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 716
ADR 81/02 Calculated Vehicle Range (miles): 445
ADR 81/02 Combined (km/L): 14.9
ADR 81/02 Combined (L/100km): 6.7
ADR 81/02 Combined (miles per UK gallon): 42
ADR 81/02 Combined (mpg): 35
ADR 81/02 Country Highway (km/L): 17.5
ADR 81/02 Country Highway (L/100km): 5.7
ADR 81/02 Country Highway (miles per UK gallon): 50
ADR 81/02 Country Highway (mpg): 41
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 11.8
ADR 81/02 Urban (L/100km): 8.5
ADR 81/02 Urban (miles per UK gallon): 33
ADR 81/02 Urban (mpg): 28
Fuel Economy
ADR 81/02 (L/100km): 6.7
Performance
Acceleration 0 To 100 km/h: 8.6
Maximum Speed (km/h): 200
Maximum Speed (mph): 124
Power
Maximum Power (hp/PS): 170
Maximum Power (kW): 125
Maximum Torque (Nm): 250
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5500
Rpm For Maximum Torque Low: 2500
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Manual & Automatic
Transmission
Code: 948te
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 9
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Strut
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 91
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Load Index: 91
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Cargo Capacity
Measurement Standard: Manufacturer’S Own
Rear Seat Down (cu ft): 35.3
Rear Seat Down (L): 1000
Rear Seat Up to Lower Window (cu ft): 12.2
Rear Seat Up to Lower Window (L): 346
External Dimensions
Kerb to Kerb Turning Circle (mm): 11050
Front Track (in): 60.8
Front Track (mm): 1545
Ground Clearance Unladen (in): 6.9
Ground Clearance Unladen (mm): 176
Kerb To Kerb Turning Circle (ft): 36.3
Overall Height (in): 63.8
Overall Height (mm): 1620
Overall Length (in): 168.2
Overall Length (mm): 4273
Overall Width (in): 70.7
Overall Width (mm): 1796
Rear Track (in): 60.8
Rear Track (mm): 1545
Wall to Wall Turning Circle (ft): 37.7
Wall to Wall Turning Circle (mm): 11500
Wheelbase (in): 101.2
Wheelbase (mm): 2570
Ramp Angles
Approach Angle: 21.3
Departure Angle: 30.1
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: Sccs
Wheelbase Type: Short
Spoiler
Location: Roof
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Xenon
Low Beam Bulb Type: Xenon
Lens Type: Complex Surface
Paint
External Colour: red
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1200
Gross Trailer Weight Braked (lb): 2646
Gross Trailer Weight Unbraked (kg): 600
Gross Trailer Weight Unbraked (lb): 1323
Published Kerb Weight (kg): 1449
Published Kerb Weight (lb): 3193
Tare Weight (kg): 1405
Audio System
Colour Screen: yes
Digital Media Card: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Beats
Number of Speakers: 8
Subwoofer: yes
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Instrument Panel: Titanium Look
Airbags
Number of Airbags: 7
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Manufacturer Name: Blind Sport Monitoring
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Fore/Aft Adjustment: yes
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining: yes
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Height Adjustment: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining: yes
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Health Check
Distance (km): 20000
Distance (miles): 12427
Period (Months): 12
