Base
2.8L, 5-speed manual, 2-door Cab Chassis, Diesel, FWD
Save $$$ with CarExpert*
$35,990â€
Fiat Ducato Base (2002) price & specs
Save $$$ with CarExpert*
From
$35,990â€
Base
Overview

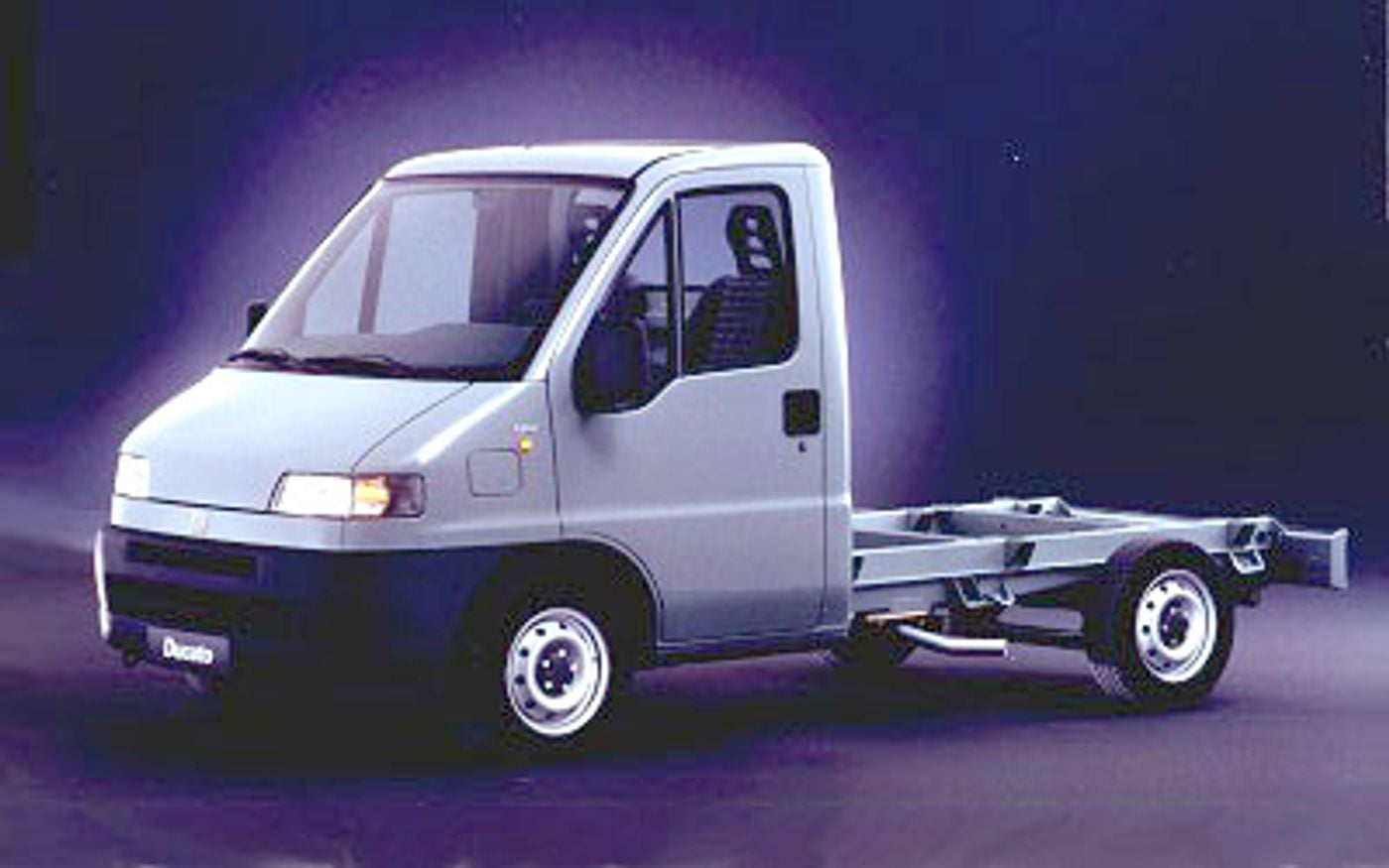

The 2002 Fiat Ducato Base is a front-wheel drive, 2-door Cab Chassis that was released to the Australian market on 4th January 1970. The Fiat Ducato is regarded as a Truck built in Italy with prices starting at $35,990 before on-road costs.
This Fiat Ducato is powered by a 2.8L 4-cylinder engine that has 93 kW of power (at 3600 rpm) and 300 Nm of torque (at 1800 rpm) via a Five-speed Manual transmission. It has a 80L fuel tank
The Fiat Ducato measures 2125mm (83.7 inches) in height, 5620mm (221.3 inches) in length, 1998mm (78.7 inches) in width with a 3700mm (145.7 inches) wheelbase that brings about a total of 1685kg (3714.8 lbs) of unladen weight. The Ducato Base comes standard with 205/75 R16 front tyres and 205/75 R16 rear tyres. It has a 36 month, 100,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Ducato compare?
Quickly see how the 2002 Fiat Ducato Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
46.53 kW/t
40.44 kW/t
70.29 kW/t
Price
$42,850
$22,990
$42,900
Warranty (Years)
3 years
2 years
3 years
Warranty (Distance)
100,000 - 180,000 km
60,000 km
180,000 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,620 mm
1,998 mm
2,125 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,620 mm |
| Overall Width | 1,998 mm |
| Overall Height | 2,125 mm |
| Wheelbase | 3,700 mm |
| Turning Circle | 13,700 mm |
| Load Capacity | 3,815 mm |
Looking for complete Fiat Ducato size & space specs?
Our Fiat Ducato Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Fiat Ducato Sales rolling 12-months#
Explore Fiat Ducato Features & Specs
Compressor
Compressor: Turbo
Engine
Bore Engine: 94.4
Engine (cc): 2800
Compression Ratio: 19
Engine Configuration: In-Line
Engine (L): 2.8
Number of Cylinders: 4
Number of Valves per Cylinder: 2
Stroke Engine: 100
Valve Gear Type: Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Fuel Type: Diesel
Main Type: Total
Water Temperature
Type: Gauge
Fuel Consumption
AS 2877 Country Highway (L/100km): 9
AS 2877 Country Highway (mpg): 26
AS 2877 Standard: As 2877
Fuel Economy
AS 2877 Highway (L/100km): 9
Power
Maximum Power (hp/PS): 127
Maximum Power (kW): 93
Maximum Torque (Nm): 300
Measurement Standard: EEC
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 1800
Drive
Driven Wheels: Front
Transmission
Number of Speeds: 5
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Torsion
Rear Type: Torsion Beam
Rear Wheel Dependence: Independent
Tires
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Width: 205
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Width: 205
Wheels
Front Covers: Partial
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6
Rear Covers: Partial
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Driver Location: RHD
Local Body Type: Cab Chassis
Roof Type: Standard
Wheelbase Type: Long
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Plastic
External Dimensions
Kerb to Kerb Turning Circle (mm): 13700
Front Overhang (in): 33.1
Front Overhang (mm): 840
Front Track (in): 67.7
Front Track (mm): 1720
Kerb To Kerb Turning Circle (ft): 44.9
Overall Height (in): 83.7
Overall Height (mm): 2125
Overall Length (in): 221.3
Overall Length (mm): 5620
Overall Width (in): 78.7
Overall Width (mm): 1998
Rear Overhang (in): 35.6
Rear Overhang (mm): 905
Rear Track (in): 67.3
Rear Track (mm): 1710
Wall to Wall Turning Circle (ft): 46.9
Wall to Wall Turning Circle (mm): 14300
Wheelbase (in): 145.7
Wheelbase (mm): 3700
Headlight Control
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Conventional
Paint
Type: Gloss
Door Mirrors/Cameras
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Externally Adjustable
Wide Angle Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Externally Adjustable
Wide Angle Passenger Door Mirrors/Cameras: yes
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 1750
Front Axle Weight (lb): 3858
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Vehicle Weight (kg): 5500
Gross Vehicle Weight (lb): 12125
Payload Allowance (kg): 1835
Payload Allowance (lb): 4046
Published Kerb Weight (kg): 1685
Published Kerb Weight (lb): 3715
Rear Axle Weight (kg): 1850
Rear Axle Weight (lb): 4079
Audio Anti-Theft Protection
Type: Detachable Panel
Audio System
Cassette Player: yes
Radio Type: Am/Fm
Speakers
Number of Speakers: 4
Ashtray
Location: Front
Cigar Lighter
Location: Front Seats
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Front Seat Belts
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Location: Front Seats
Front Seats Number: 2
Front Seat
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bucket
Seat Upholstery
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Front Seats Type: Fixed
Door Pockets Bins
Location: Driver
Glove Compartment
Lid: yes
Lockable: yes
Air Conditioning
Fully Automated Climate Control: yes
Power Locks
Operation: key
