Fiat Ducato Base (2012) price & specs
Save $$$ with CarExpert*
From
$39,590â€
Base
Overview

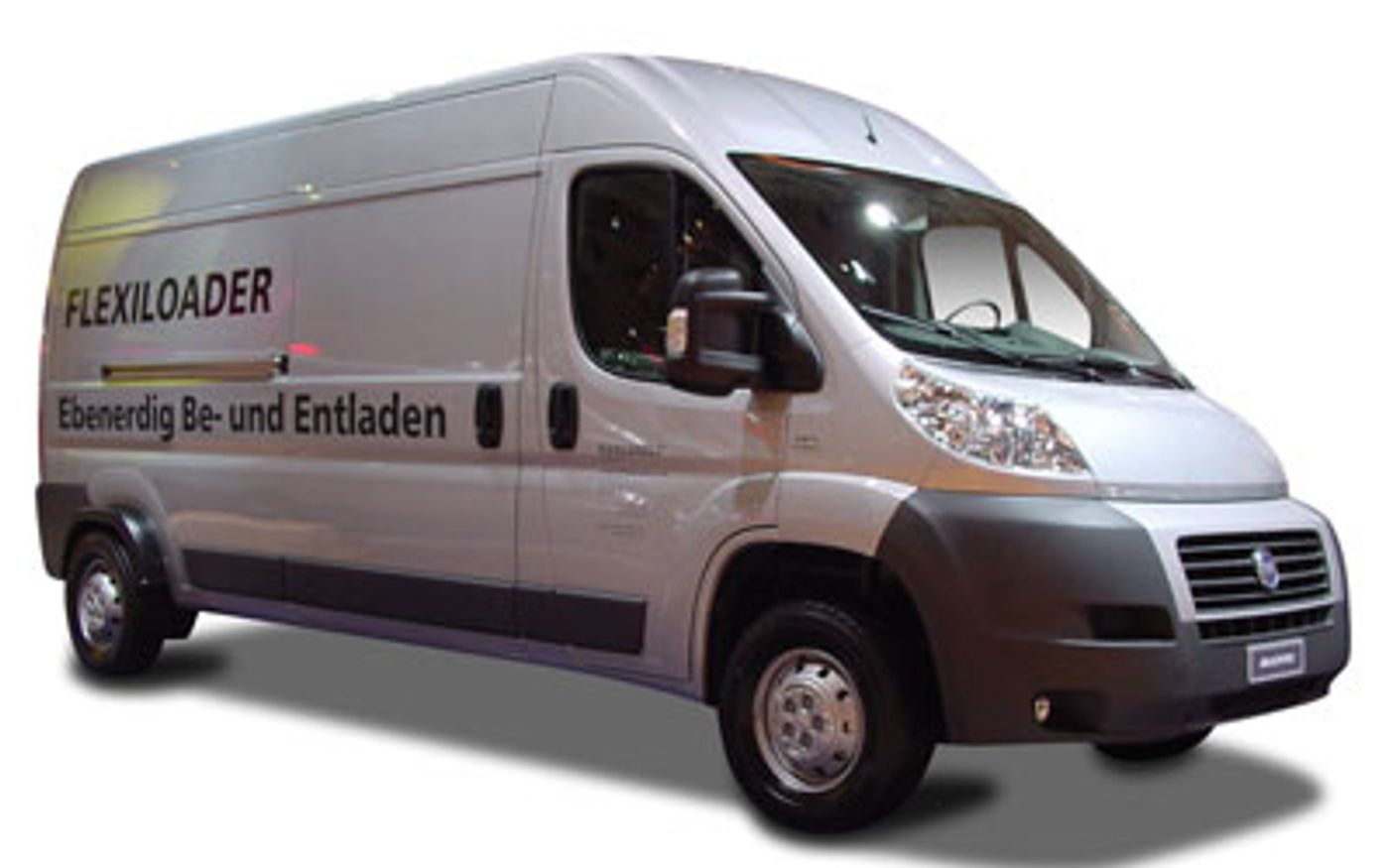

The 2012 Fiat Ducato Base is a front-wheel drive, 4-door Panel Van that was released to the Australian market on 7th April 2012. The Fiat Ducato is regarded as a Van Over 3.5t built in Italy with prices starting at $39,590 before on-road costs.
This Fiat Ducato is powered by a 2.3L 4-cylinder engine that has 96 kW of power (at 3600 rpm) and 320 Nm of torque (at 1800 rpm) via a Six-speed Manual transmission. It has a 90L fuel tank
It has a 36 month, 200,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Ducato compare?
Quickly see how the 2012 Fiat Ducato Base stacks up against its competition.
 Select any benchmark to see more details.
Price
$36,690 - $52,890
$35,990
$94,460
Warranty (Years)
3 years
3 years
Warranty (Distance)
200,000 km
100,000 km
Unlimited
Years on Sale
4 years
1 year
5 years
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,413 mm
2,050 mm
2,524 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,413 mm |
| Overall Width | 2,050 mm |
| Overall Height | 2,524 mm |
| Wheelbase | 3,450 mm |
| Turning Circle | 12,460 mm |
Looking for complete Fiat Ducato size & space specs?
Our Fiat Ducato Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Fiat Ducato Sales rolling 12-months#
Explore Fiat Ducato Features & Specs
Base
2.3L, 6-speed manual, 4-door Panel Van, Diesel, FWD
Save $$$ with CarExpert*
$39,590â€
Compressor
Compressor: Turbo
Emission Control Level
Standard Met: EU5
Engine
Bore Engine: 88.0
Engine (cc): 2287
Engine Configuration: In-Line
Engine (L): 2.3
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 94.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 23.8
Main Capacity (L): 90
Main Capacity Uk Gallons: 19.8
Main Type: Total
Power
Maximum Power (hp/PS): 130
Maximum Power (kW): 96
Maximum Torque (Nm): 320
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 1800
Drive
Driven Wheels: Front
Transmission
Code: Mlgu6
Description: Manual
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.0
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Local Body Type: Panel Van
Platform Code: U3
Roof Type: Semi-High
Wheelbase Type: Medium
Mud Flaps
Rear Mud Flaps Location: Rear
Step
Step Location: Rear
Rear Step Type: Platform
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 406.1
Cargo Volume (L): 11500
Height (in): 76.0
Height (mm): 1870
Length (in): 122.8
Length (mm): 3120
Loading Floor Height (in): 21.0
Loading Floor Height (mm): 534
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 56.0
Width Between Wheelhouses (mm): 1422
Width (in): 73.6
Width (mm): 1870
External Dimensions
Kerb to Kerb Turning Circle (mm): 12460
Front Overhang (in): 37.3
Front Overhang (mm): 948
Front Track (in): 71.3
Front Track (mm): 1810
Kerb To Kerb Turning Circle (ft): 40.9
Overall Height (in): 99.4
Overall Height (mm): 2524
Overall Length (in): 213.1
Overall Length (mm): 5413
Overall Width (in): 80.7
Overall Width (mm): 2050
Rear Overhang (in): 40.0
Rear Overhang (mm): 1015
Rear Track (in): 70.5
Rear Track (mm): 1790
Wheelbase (in): 135.8
Wheelbase (mm): 3450
Cargo Doors
Passenger Height (in): 69.1
Passenger Height (mm): 1755
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 49.2
Passenger Width (mm): 1250
Rear Height (in): 70.5
Rear Height (mm): 1790
Location: Rear
Rear Opening Angle: 270
Rear Operation: Double Hinged
Rear Width (in): 61.5
Rear Width (mm): 1562
Headlight Control
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: red
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 2100
Front Axle Weight (lb): 4630
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 1000
Gross Trailer Weight Unbraked (lb): 2205
Gross Vehicle Weight (kg): 4005
Gross Vehicle Weight (lb): 8830
Payload Allowance (kg): 2009
Payload Allowance (lb): 4429
Rear Axle Weight (kg): 2400
Rear Axle Weight (lb): 5291
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Bulkhead
Solid Bulkhead Height: Full
Type: Solid
Solid Bulkhead Width: Full
Solid Bulkhead Window: yes
Overall Bulkhead Size
Full Height: yes
Full Width: yes
Bluetooth
Includes Phone Connection: yes
Power Outlet 12V
Location (12V): Front
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Operation: Reel
Center Seat Position: Center
Center Type: 3-Point
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 3
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Lumbar Type: Manual
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bucket
Front Seat Center Armrest
Center Front Seat Armrest Folding: yes
Center Front Seat Armrest Integral Box: yes
Center Front Seat Armrest Single Twin: Single
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 22500
Distance (miles): 13981
