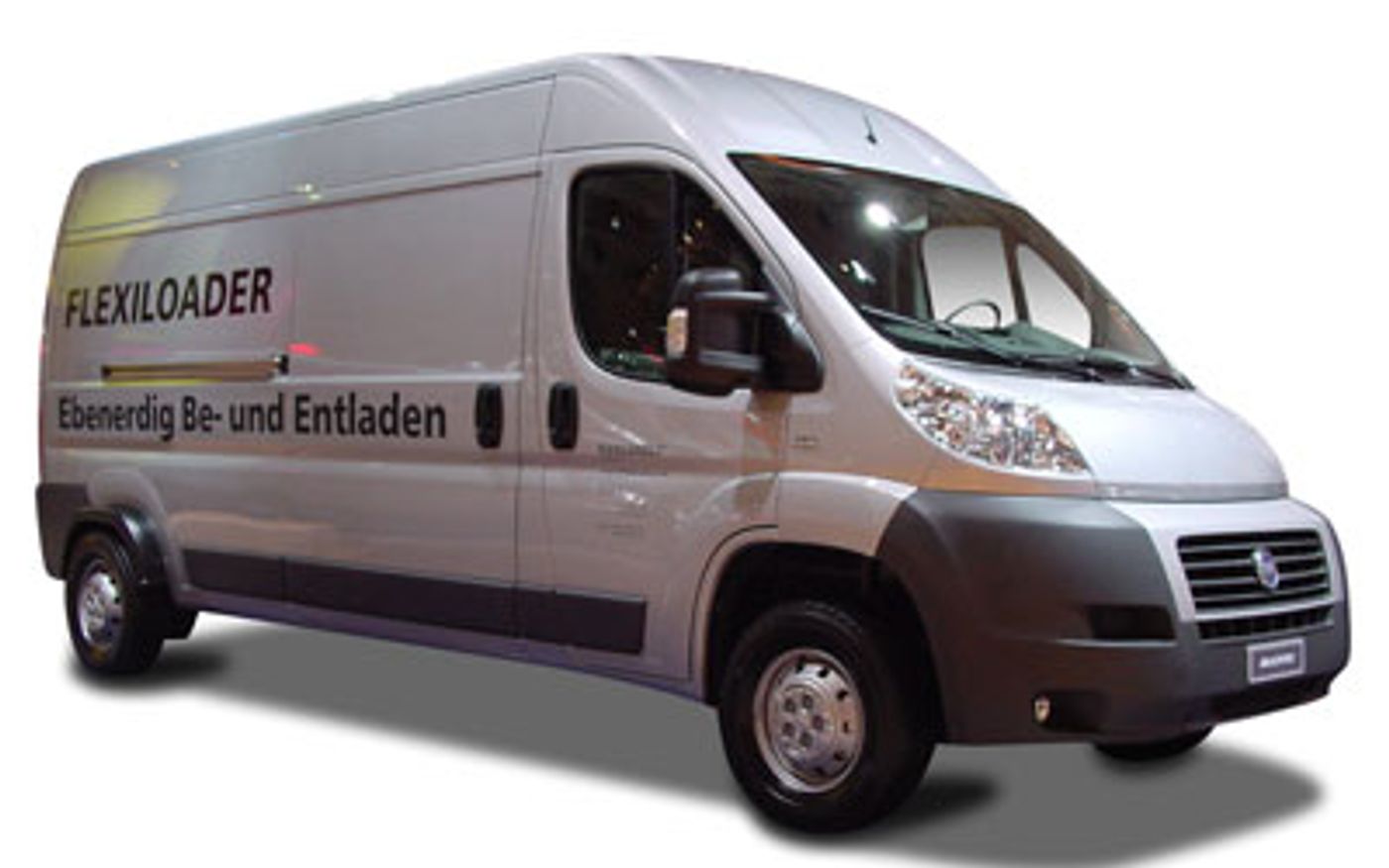

Fiat Ducato Base (2014) price & specs
Save $$$ with CarExpert*
From
$46,900â€
Base
Overview
The 2014 Fiat Ducato Base is a front-wheel drive, 4-door Panel Van that was released to the Australian market on 4th October 2015. The Fiat Ducato is regarded as a Van Over 3.5t built in Italy with prices starting at $46,900 before on-road costs.
This Fiat Ducato is powered by a 3.0L 4-cylinder engine that has 130 kW of power (at 3500 rpm) and 400 Nm of torque (at 1400 rpm) via a Six-speed Manual transmission. Fiat claims the Ducato Base uses 8.6L/100km of Diesel in the combined city and highway cycle while putting out 226g of CO2. It has a 90L fuel tank, meaning it should be able to travel 1047km per full tank
The Fiat Ducato measures 2539mm (100.0 inches) in height, 5413mm (213.1 inches) in length, 2050mm (80.7 inches) in width with a 3450mm (135.8 inches) wheelbase that brings about a total of 2175kg (4795.0 lbs) of unladen weight. The Ducato Base comes standard with 225/75 R16 front tyres and 225/75 R16 rear tyres. It requires a service every 12 months or 24,000 km, whichever comes first. It has a 36 month, 200,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Ducato compare?
Quickly see how the 2014 Fiat Ducato Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
57.27 - 64.2 kW/t
32.97 kW/t
66.67 kW/t
Fuel Efficiency
7.7 - 8.9 L/100km
7.7 L/100km
8.9 L/100km
Vehicle Range
1,011 - 1,169 km
1,011 km
1,265 km
Price
$38,000 - $52,000
$38,000
$103,400
Warranty (Years)
3 years
3 years
Warranty (Distance)
200,000 km
200,000 km
Unlimited
Years on Sale
4 years
1 year
5 years
Service Interval
12 months
12 months
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,413 mm
2,050 mm
2,539 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,413 mm |
| Overall Width | 2,050 mm |
| Overall Height | 2,539 mm |
| Wheelbase | 3,450 mm |
| Turning Circle | 12,460 mm |
| Load Capacity | 1,830 mm |
Looking for complete Fiat Ducato size & space specs?
Our Fiat Ducato Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Fiat Ducato Sales rolling 12-months#
Explore Fiat Ducato Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 226
Standard Met: EU5
Engine
Bore Engine: 95.8
Engine (cc): 2999
Engine Configuration: In-Line
Engine Code: F1ce3481e
Engine (L): 3.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 104.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 23.8
Main Capacity (L): 90
Main Capacity Uk Gallons: 19.8
Main Fuel Type: Diesel
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1047
ADR 81/02 Calculated Vehicle Range (miles): 651
ADR 81/02 Combined (km/L): 11.6
ADR 81/02 Combined (L/100km): 8.6
ADR 81/02 Combined (miles per UK gallon): 33
ADR 81/02 Combined (mpg): 27
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 8.6
Power
Maximum Power (hp/PS): 177
Maximum Power (kW): 130
Maximum Torque (Nm): 400
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 1400
Drive
Driven Wheels: Front
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Automatic Mode: yes
Description: Automated Manual Sequential Trans (Amt)
Manual Sequential: yes
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Diameter: 16
Front Wheels Tire Load Index: 116
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Speed Rating: R
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Diameter: 16
Rear Wheels Tire Load Index: 116
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Speed Rating: R
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.0
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Local Body Type: Panel Van
Platform Code: U3
Roof Type: Semi-High
Wheelbase Type: Medium
Mud Flaps
Rear Mud Flaps Location: Rear
Step
Step Location: Rear
Rear Step Type: Platform
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 406.1
Cargo Volume (L): 11500
Height (in): 76.1
Height (mm): 1870
Length (in): 122.8
Length (mm): 3120
Loading Floor Height (in): 21.7
Loading Floor Height (mm): 550
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 56.0
Width Between Wheelhouses (mm): 1422
Width (in): 73.6
Width (mm): 1870
External Dimensions
Kerb to Kerb Turning Circle (mm): 12460
Front Overhang (in): 37.3
Front Overhang (mm): 948
Front Track (in): 71.3
Front Track (mm): 1810
Kerb To Kerb Turning Circle (ft): 40.9
Overall Height (in): 100.0
Overall Height (mm): 2539
Overall Length (in): 213.1
Overall Length (mm): 5413
Overall Width (in): 80.7
Overall Width (mm): 2050
Rear Overhang (in): 40.0
Rear Overhang (mm): 1015
Rear Track (in): 70.5
Rear Track (mm): 1790
Wheelbase (in): 135.8
Wheelbase (mm): 3450
Cargo Doors
Driver Location: Driver
Driver Operation: Sliding
Passenger Height (in): 69.1
Passenger Height (mm): 1755
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 49.2
Passenger Width (mm): 1250
Rear Height (in): 70.5
Rear Height (mm): 1790
Location: Rear
Rear Opening Angle: 270
Rear Operation: Double Hinged
Rear Width (in): 61.5
Rear Width (mm): 1562
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Auto Highbeam: yes
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
LED Lights
Location: Day Time Running Lights
Paint
External Colour: red
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Weights
Front Axle Weight (kg): 2100
Front Axle Weight (lb): 4630
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 1000
Gross Trailer Weight Unbraked (lb): 2205
Gross Vehicle Weight (kg): 4005
Gross Vehicle Weight (lb): 8830
Payload Allowance (kg): 1915
Payload Allowance (lb): 4222
Published Kerb Weight (kg): 2175
Published Kerb Weight (lb): 4795
Rear Axle Weight (kg): 2400
Rear Axle Weight (lb): 5291
Tare Weight (kg): 2090
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Bulkhead
Solid Bulkhead Height: Full
Type: Solid
Solid Bulkhead Width: Full
Solid Bulkhead Window: yes
Overall Bulkhead Size
Full Height: yes
Full Width: yes
Bluetooth
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Sensor
Power Outlet 12V
Location (12V): Front
Display Screen
Location: ?
Number of Screens: 1
Screen Size (in): 5.0
Touch Screen: yes
Airbags
Number of Airbags: 2
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 24000
Distance (miles): 14913
Period (Months): 12
