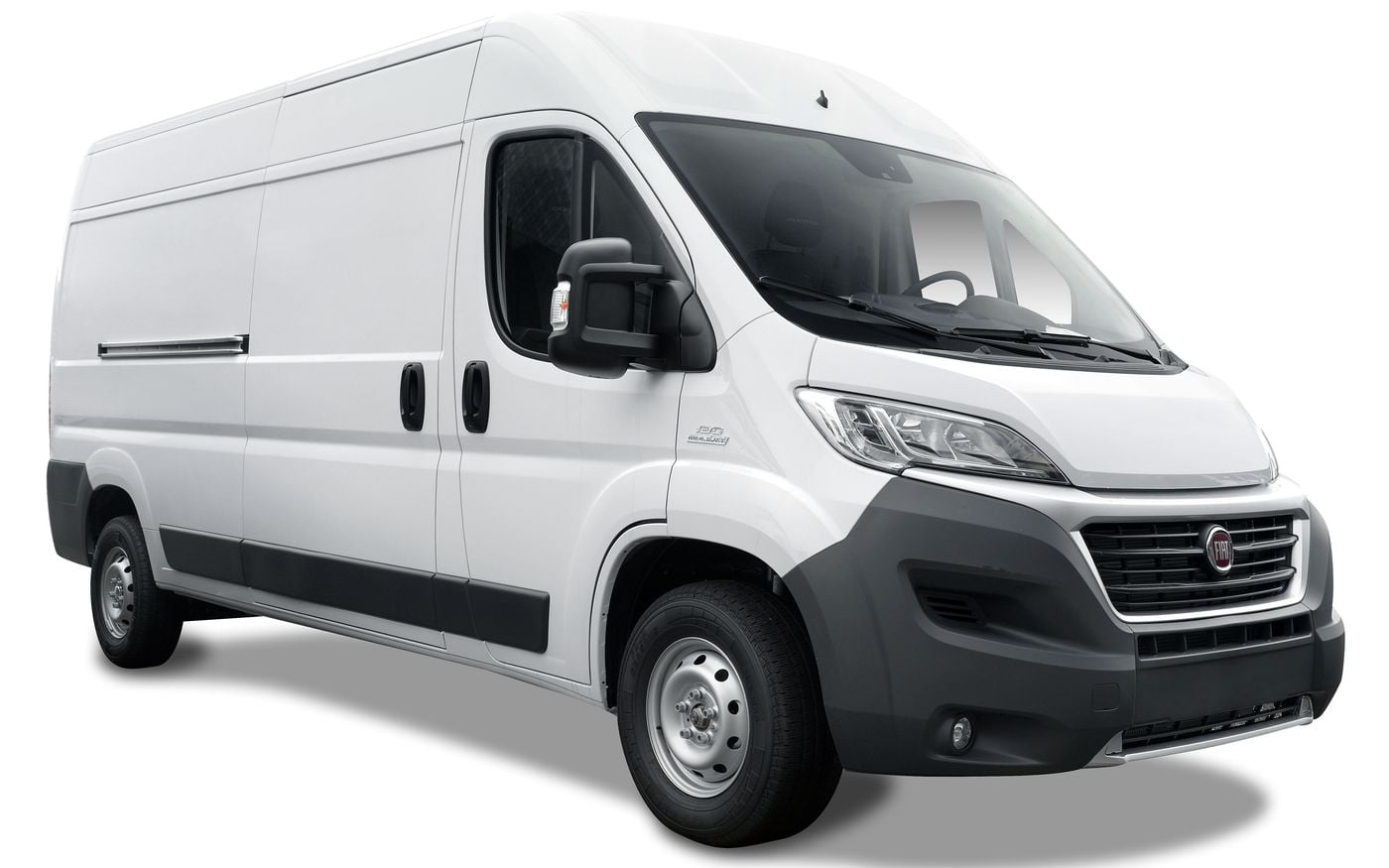

Fiat Ducato Base (2022) price & specs
Save $$$ with CarExpert*
From
$54,150â€
Base
Overview
The 2022 Fiat Ducato Base is a front-wheel drive, 4-door Panel Van that was released to the Australian market on 1st June 2022 classified as a X295. The Fiat Ducato is regarded as a Van Over 3.5t built in Italy with prices starting at $54,150 before on-road costs.
This Fiat Ducato is powered by a 2.2L 4-cylinder engine that has 130 kW of power (at 3500 rpm) and 450 Nm of torque (at 1500 rpm) via a Nine-speed Automatic transmission. It has a 90L fuel tank
The Fiat Ducato measures 2539mm (100.0 inches) in height, 5413mm (213.1 inches) in length, 2050mm (80.7 inches) in width with a 3450mm (135.8 inches) wheelbase that brings about a total of 2060kg (4541.5 lbs) of unladen weight. The Ducato Base comes standard with 215/75 R16 front tyres and 215/75 R16 rear tyres. It requires a service every 12 months or 48,000 km, whichever comes first. It has a 36 month, 200,000 km warranty.
The 2022 Fiat Ducato Base has a 150mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Ducato compare?
Quickly see how the 2022 Fiat Ducato Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
60.32 - 65.33 kW/t
38.22 kW/t
68.24 kW/t
Price
$52,050 - $60,700
$47,090
$99,962
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
200,000 km
100,000 km
Unlimited
Years on Sale
4 years
1 year
5 years
Service Interval
12 months
12 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,500 - 4,250 kg
3,500 kg
7,000 kg
Braked Towing Capacity
2,250 - 2,500 kg
1,700 kg
3,500 kg
Ground Clearance Unladen
150 mm
143 mm
231 mm
Payload Capacity
1,510 - 2,190 kg
911 kg
4,032 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,413 mm
2,050 mm
2,539 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,413 mm |
| Overall Width | 2,050 mm |
| Overall Height | 2,539 mm |
| Wheelbase | 3,450 mm |
| Turning Circle | 12,460 mm |
| Load Capacity | 2,190 mm |
Looking for complete Fiat Ducato size & space specs?
Our Fiat Ducato Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Fiat Ducato Sales rolling 12-months#
Explore Fiat Ducato Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Mobile Integration
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
USB Charging Port
Location: Front
Number of Ports in Front: 2
Voice Activating System
Virtual Assistant: Other
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
Standard Met: Eu6 D
Engine
Bore Engine: 83.8
Engine (cc): 2184
Engine Configuration: In-Line
Engine Code: 46348913
Engine (L): 2.2
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 99.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 23.8
Main Capacity (L): 90
Main Capacity Uk Gallons: 19.8
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 7.00
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 3.50
Fuel Consumption
ADR 81/02 Standard: Adr 81/02
Power
Maximum Power (hp/PS): 177
Maximum Power (kW): 130
Maximum Torque (Nm): 450
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Front
Transmission
Code: 948te
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 9
Shift Lever Location: Dash
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 116
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Speed Rating: R
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 116
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Speed Rating: R
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.0
Black Trim
Around Side Windows: yes
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Local Body Type: Panel Van
Platform Code: U3
Roof Type: Semi-High
Wheelbase Type: Medium
Mud Flaps
Rear Mud Flaps Location: Rear
Step
Step Location: Rear
Rear Step Type: Platform
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 406.1
Cargo Volume (L): 11500
Height (in): 76.1
Height (mm): 1870
Length (in): 122.8
Length (mm): 3120
Loading Floor Height (in): 21.7
Loading Floor Height (mm): 550
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 56.0
Width Between Wheelhouses (mm): 1422
Width (in): 73.6
Width (mm): 1870
External Dimensions
Kerb to Kerb Turning Circle (mm): 12460
Front Overhang (in): 37.3
Front Overhang (mm): 948
Front Track (in): 71.3
Front Track (mm): 1810
Ground Clearance Unladen (in): 5.9
Ground Clearance Unladen (mm): 150
Kerb To Kerb Turning Circle (ft): 40.9
Overall Height (in): 100.0
Overall Height (mm): 2539
Overall Length (in): 213.1
Overall Length (mm): 5413
Overall Width (in): 80.7
Overall Width (mm): 2050
Rear Overhang (in): 40.0
Rear Overhang (mm): 1015
Rear Track (in): 70.5
Rear Track (mm): 1790
Wheelbase (in): 135.8
Wheelbase (mm): 3450
Cargo Doors
Driver Location: Driver
Driver Operation: Sliding
Passenger Height (in): 69.1
Passenger Height (mm): 1755
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 49.2
Passenger Width (mm): 1250
Rear Height (in): 70.5
Rear Height (mm): 1790
Location: Rear
Rear Opening Angle: 270
Rear Operation: Double Hinged
Rear Width (in): 61.5
Rear Width (mm): 1562
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
LED Lights
Location: Brake Lights
Cornering LED Lights Location: Cornering Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Passenger
Passenger Type: Fixed
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 4250
Gross Vehicle Weight (lb): 9370
Payload Allowance (kg): 2190
Payload Allowance (lb): 4828
Payload Inc Driver (kg): 2190
Payload Inc Driver (lb): 4828
Published Kerb Weight (kg): 2060
Published Kerb Weight (lb): 4542
Tare Weight (kg): 1992
Trailer Noseweight (kg): 100
Audio System
Colour Screen: yes
Digital Radio: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Bulkhead
Solid Bulkhead Height: Full
Type: Solid
Solid Bulkhead Width: Full
Solid Bulkhead Window: yes
Overall Bulkhead Size
Full Height: yes
Full Width: yes
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Load Area Side Covering
Exposed Metal: Partial
Type: Plastic/Rubber
Airbags
Number of Airbags: 2
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Overtaking Sensor
Manufacturer Code: Blind Spot Assist
Rear Cross Traffic Collision Avoidance
Type: Sensor & Camera
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Fore/Aft Adjustment: yes
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining: yes
Driver Front Seat Reclining Type: Manual
Driver Front Seat Seat Suspension: Hydraulic
Driver Front Seat Type: Bucket
Passenger Front Seat Fore/Aft Adjustment: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining: yes
Passenger Front Seat Type: Bench
Front Seat Center Armrest
Center Front Seat Armrest Folding: yes
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 48000
Distance (miles): 29826
Period (Months): 12
