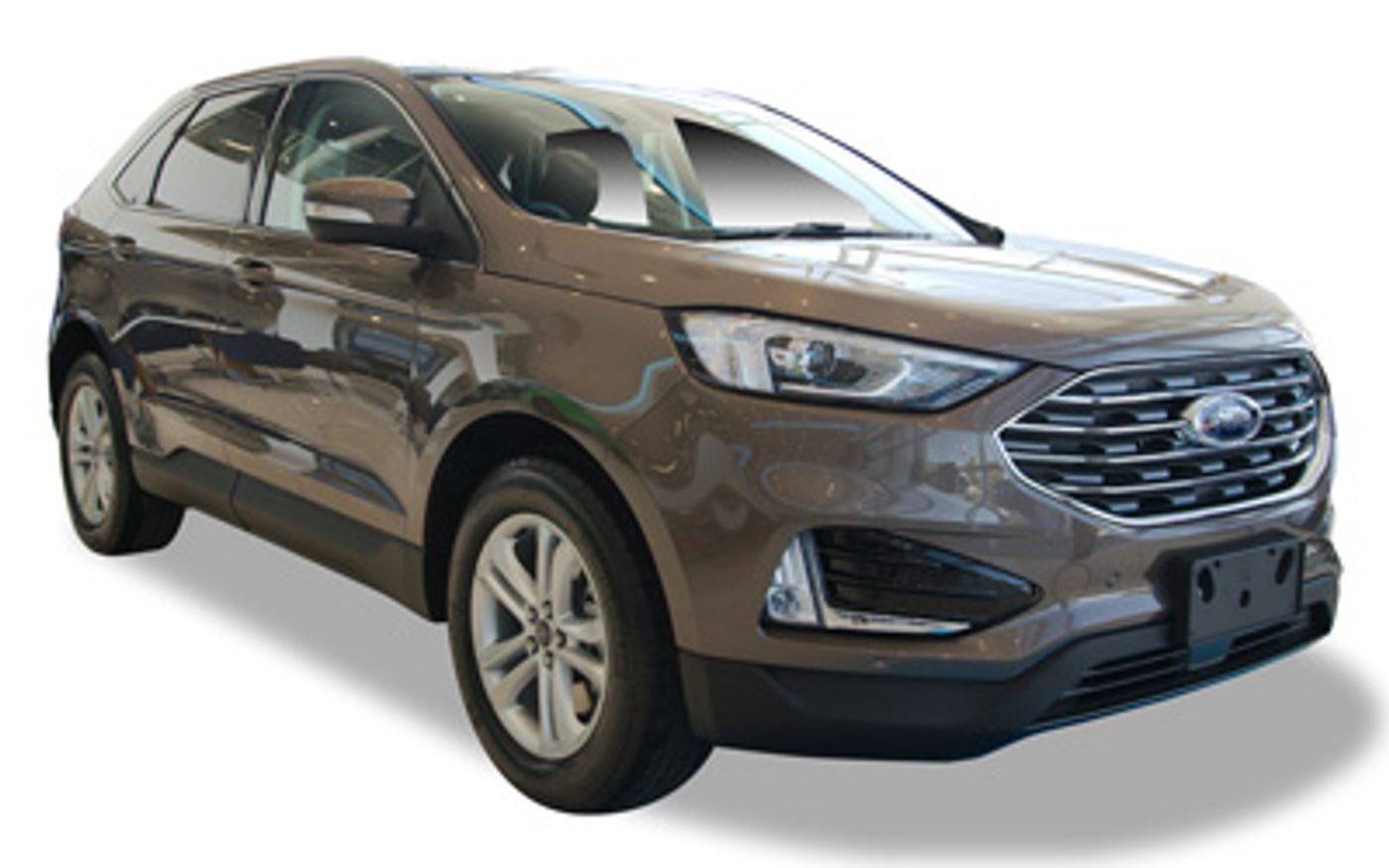

Ford Endura Trend (2019) price & specs
Save $$$ with CarExpert*
From
$44,990â€
Trend
Overview
The 2019 Ford Endura Trend is a front-wheel drive, 5-door SUV that was released to the Australian market on 2nd January 2019 classified as a CA. The Ford Endura is regarded as a large SUV built in Canada with prices starting at $44,990 before on-road costs.
This Ford Endura is powered by a 2.0L 4-cylinder engine that has 140 kW of power (at 3500 rpm) and 400 Nm of torque (at 2000 rpm) via an Eight-speed Automatic transmission. Ford claims the Endura Trend uses 6.7L/100km of Diesel in the combined city and highway cycle while putting out 175g of CO2. It has a 64L fuel tank, meaning it should be able to travel 955km per full tank
The Ford Endura measures 1733mm (68.2 inches) in height, 4834mm (190.3 inches) in length, 1928mm (75.9 inches) in width with a 2849mm (112.2 inches) wheelbase that brings about a total of 1976kg (4356.3 lbs) of unladen weight. The Endura Trend comes standard with 245/60 R18 front tyres and 245/60 R18 rear tyres. It requires a service every 12 months or 20,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2019 Ford Endura Trend has a 185mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Endura compare?
Quickly see how the 2019 Ford Endura Trend stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
67.05 - 71.47 kW/t
52.95 kW/t
115.85 kW/t
Boot Space
602 litres
131 litres
1,069 litres
Fuel Efficiency
6.7 L/100km
5.7 L/100km
10.9 L/100km
Vehicle Range
955 km
606 km
1,263 km
Price
$44,990 - $67,990
$35,990
$84,119
Warranty (Years)
5 years
3 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Service Interval
12 months
3 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,605 - 2,665 kg
2,100 kg
3,300 kg
Braked Towing Capacity
2,000 kg
1,497 kg
3,500 kg
Ground Clearance Unladen
185 - 193 mm
180 mm
260 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,834 mm
1,928 mm
1,733 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,834 mm |
| Overall Width | 1,928 mm |
| Overall Height | 1,733 mm |
| Wheelbase | 2,849 mm |
| Turning Circle | 11,900 mm |
| Load Capacity | 629 mm |
Looking for complete Ford Endura size & space specs?
Our Ford Endura Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Ford Endura Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Driver Modes
Engine Mapping: yes
Entertainment Display Screen
Back of Front Seats DVD: yes
Location: Back Of Front Seats
Media Control
Touch Screen: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Programmable Settings: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Turbo
Number of Compressors: 2
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 175
Standard Met: EU5
Engine
Bore Engine: 85.0
Engine (cc): 1997
Engine Configuration: In-Line
Engine Code: En T9
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 88.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 16.9
Main Capacity (L): 64
Main Capacity Uk Gallons: 14.1
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 8.0
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 10.1
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 955
ADR 81/02 Calculated Vehicle Range (miles): 593
ADR 81/02 Combined (km/L): 14.9
ADR 81/02 Combined (L/100km): 6.7
ADR 81/02 Combined (miles per UK gallon): 42
ADR 81/02 Combined (mpg): 35
ADR 81/02 Country Highway (km/L): 17.5
ADR 81/02 Country Highway (L/100km): 5.7
ADR 81/02 Country Highway (miles per UK gallon): 50
ADR 81/02 Country Highway (mpg): 41
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 11.9
ADR 81/02 Urban (L/100km): 8.4
ADR 81/02 Urban (miles per UK gallon): 34
ADR 81/02 Urban (mpg): 28
Fuel Economy
ADR 81/02 (L/100km): 6.7
Power
Maximum Power (hp/PS): 190
Maximum Power (kW): 140
Maximum Torque (Nm): 400
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 2000
Drive
Driven Wheels: Front
Limited Slip Differential
Location: Front
Front Type: Electronic
Transmission
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Variable Rack: yes
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 105
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 245
Rear Wheels Tire Load Index: 105
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: V
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.0
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: C1+Eucd
Wheelbase Type: Short
Spoiler
Location: Roof
Cargo Capacity
Measurement Standard: ISO
Rear Seat Down (cu ft): 65.2
Rear Seat Down (L): 1847
Rear Seat Up to Lower Window (cu ft): 21.3
Rear Seat Up to Lower Window (L): 602
External Dimensions
Kerb to Kerb Turning Circle (mm): 11900
Front Track (in): 65.2
Front Track (mm): 1655
Ground Clearance Unladen (in): 7.3
Ground Clearance Unladen (mm): 185
Kerb To Kerb Turning Circle (ft): 39.0
Overall Height (in): 68.2
Overall Height (mm): 1733
Overall Length (in): 190.3
Overall Length (mm): 4834
Overall Width (in): 75.9
Overall Width (mm): 1928
Rear Track (in): 65.5
Rear Track (mm): 1664
Wheelbase (in): 112.2
Wheelbase (mm): 2849
Internal Dimensions
Front Headroom (in): 40.2
Front Headroom (mm): 1020
Rear Headroom (in): 40.3
Rear Headroom (mm): 1023
Front Hip Room (in): 55.9
Front Hip Room (mm): 1420
Rear Hip Room (in): 57.5
Rear Hip Room (mm): 1461
Front Leg Room (in): 42.6
Front Leg Room (mm): 1081
Rear Leg Room (in): 40.6
Rear Leg Room (mm): 1030
Front Shoulder Room (in): 60.3
Front Shoulder Room (mm): 1531
Rear Shoulder Room (in): 60.5
Rear Shoulder Room (mm): 1536
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Directional Headlights: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Gray
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Sunshade: yes
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2605
Gross Vehicle Weight (lb): 5743
Published Kerb Weight (kg): 1976
Published Kerb Weight (lb): 4356
Tare Weight (kg): 1930
Audio System
Audio Player Reads MP3: yes
Colour Screen: yes
Digital Radio: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 9
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Centre Floor Console: Piano Black
Doors: Piano Black
Gear Selector: Alloy Look
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Date Tested: 20160101
ANCAP Overall: 5.00
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Standard: Ancap
ANCAP Version Tested: Edge 2.0 St-Line Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Bucket
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Lumbar Type: Manual
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Heater Type: Combustion
Touch Screen Controls: yes
Power Locks
Includes Power Windows: yes
Operation: Card Key
Intermediate Service
Distance (km): 20000
Distance (miles): 12427
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
