St 170
2L, 6-speed manual, 3-door Hatchback, Petrol, FWD
Save $$$ with CarExpert*
$37,000â€

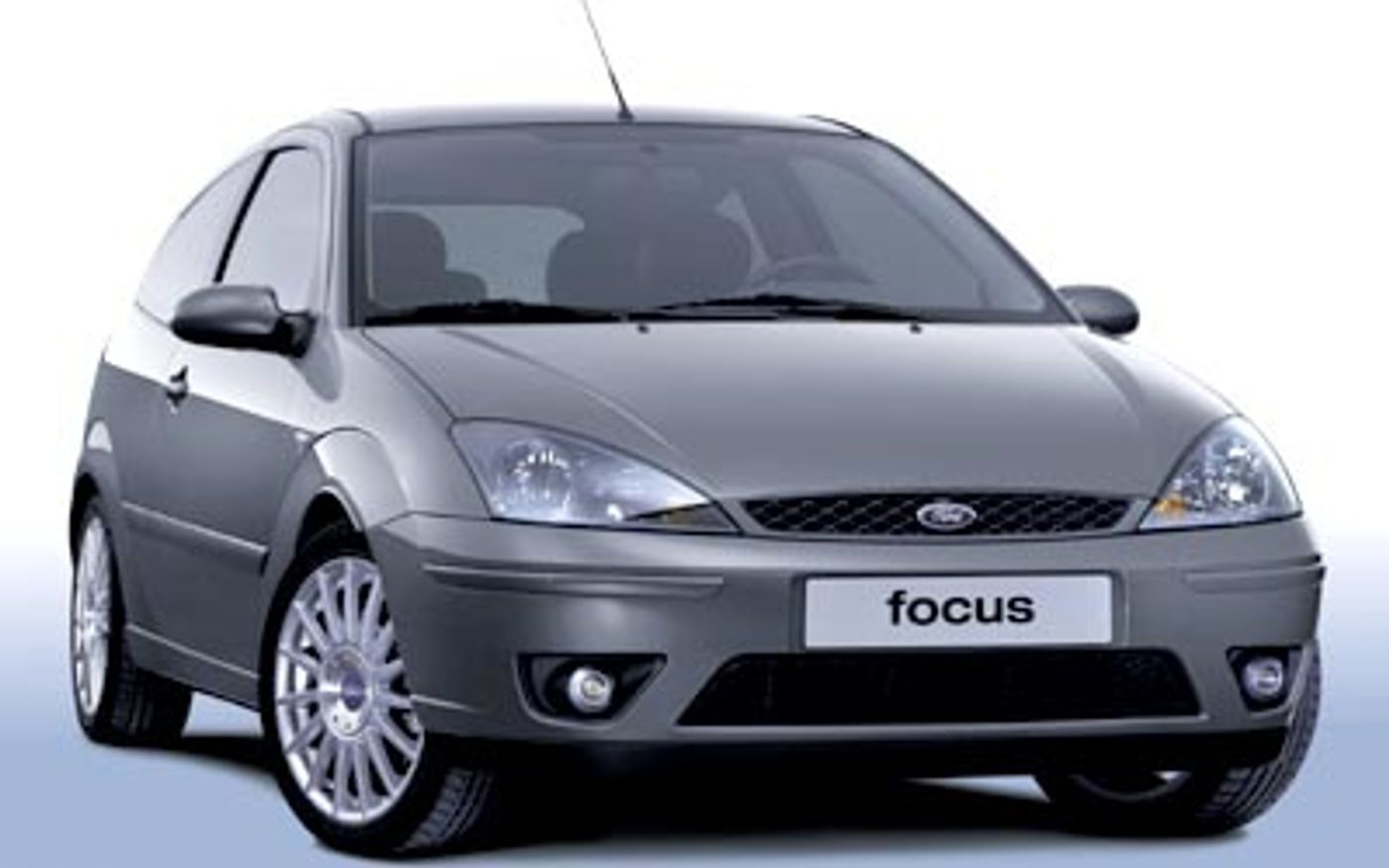

Ford Focus St 170 (2002) price & specs
Save $$$ with CarExpert*
From
$37,000â€
St 170
Overview
The 2002 Ford Focus St 170 is a front-wheel drive, 3-door Hatchback that was released to the Australian market on 4th January 1970. The Ford Focus is regarded as a small car built in Germany with prices starting at $37,000 before on-road costs.
This Ford Focus is powered by a 2L 4-cylinder engine that has 127 kW of power (at 7000 rpm) and 196 Nm of torque (at 5500 rpm) via a Six-speed Manual transmission. Ford claims the Focus St 170 uses 8.8L/100km of Premium Unleaded in the combined city and highway cycle while putting out 212g of CO2. It has a 55L fuel tank, meaning it should be able to travel 625km per full tank
The Ford Focus measures 1430mm (56.3 inches) in height, 4152mm (163.5 inches) in length, 1699mm (66.9 inches) in width with a 2615mm (103.0 inches) wheelbase that brings about a total of 1283kg (2828.5 lbs) of unladen weight. The Focus St 170 comes standard with 215/45 R17 front tyres and 215/45 R17 rear tyres. It has a 36 month, 100,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Focus compare?
Quickly see how the 2002 Ford Focus St 170 stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
67.68 - 98.99 kW/t
67.68 kW/t
140.29 kW/t
Boot Space
290 - 490 litres
271 litres
490 litres
Fuel Efficiency
7.6 - 9.5 L/100km
7.6 L/100km
9.5 L/100km
Price
$19,980 - $37,000
$19,980
$55,130
Warranty (Years)
3 years
3 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,152 mm
1,699 mm
1,430 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,152 mm |
| Overall Width | 1,699 mm |
| Overall Height | 1,430 mm |
| Wheelbase | 2,615 mm |
| Turning Circle | 10,900 mm |
| Load Capacity | 357 mm |
Looking for complete Ford Focus size & space specs?
Our Ford Focus Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Ford Focus Sales rolling 12-months#
Explore Ford Focus Features & Specs
Emission Control Level
CO2 Level (Combined): 212
Engine
Bore Engine: 84.8
Engine (cc): 1988
Compression Ratio: 10.2
Engine Configuration: In-Line
Engine Code: Duratec
Engine (L): 2
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 88
Valve Gear Type: Double Overhead Cam
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 14.5
Main Capacity (L): 55
Main Fuel Type: Premium Unleaded
Main Type: Total
Fuel Consumption
ADR 81/02 Combined (L/100km): 8.8
ADR 81/02 Combined (mpg): 27
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 8.8
Performance
Acceleration 0 To 100 km/h: 8.2
Maximum Speed (km/h): 216
Maximum Speed (mph): 134
Power
Maximum Power (hp/PS): 173
Maximum Power (kW): 127
Maximum Torque (Nm): 196
Measurement Standard: DIN
Rpm For Maximum Power Low: 7000
Rpm For Maximum Torque Low: 5500
Drive
Driven Wheels: Front
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Number of Speeds: 6
Shift Lever Location: Floor
Type: Manual
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: W
Front Wheels Tire Width: 215
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: W
Rear Wheels Tire Width: 215
Wheels
Front Covers: Partial
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7
Rear Covers: Partial
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7
Body Style
Body Type: Hatchback
Driver Location: RHD
Local Body Type: Hatchback
Non-Corrosive Body
Non-Corrosive Panel Location: Full
Non-Corrosive Panel Type: Galvanised
Spoiler
Location: Roof
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Capacity
Rear Seat Down (cu ft): 42.6
Rear Seat Down (L): 1205
Rear Seat Up to Lower Window (cu ft): 12.4
Rear Seat Up to Lower Window (L): 350
External Dimensions
Kerb to Kerb Turning Circle (mm): 10900
Front Track (in): 58.8
Front Track (mm): 1494
Kerb To Kerb Turning Circle (ft): 35.8
Overall Height (in): 56.3
Overall Height (mm): 1430
Overall Length (in): 163.5
Overall Length (mm): 4152
Overall Width (in): 66.9
Overall Width (mm): 1699
Rear Track (in): 58.5
Rear Track (mm): 1487
Wheelbase (in): 103
Wheelbase (mm): 2615
Internal Dimensions
Front Headroom (in): 39.2
Front Headroom (mm): 995
Rear Headroom (in): 38.7
Rear Headroom (mm): 982
Front Leg Room (in): 43.1
Front Leg Room (mm): 1095
Rear Leg Room (in): 34.7
Rear Leg Room (mm): 882
Front Shoulder Room (in): 53.5
Front Shoulder Room (mm): 1358
Rear Shoulder Room (in): 53.5
Rear Shoulder Room (mm): 1358
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: Blue
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Number of Front Express Power Windows: 1
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 0
Gross Trailer Weight Braked (lb): 0
Gross Trailer Weight Unbraked (kg): 0
Gross Trailer Weight Unbraked (lb): 0
Gross Vehicle Weight (kg): 1640
Gross Vehicle Weight (lb): 3616
Published Kerb Weight (kg): 1283
Published Kerb Weight (lb): 2829
Antenna
Type: Roof
Audio System
Disc Autochanger: yes
Autochanger Disc Capacity: 6
Radio Type: Am/Fm
Disc Player
Dashboard Capacity: 6
Location: Dashboard
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Load Restraint
Type: net
Cigar Lighter
Location: Front Seats
Power Outlet 12V
Location (12V): Rear
Reading Lights
Location: Front
Remote Trunk Hatch Release
Operation: Electric
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Luxury Trim
Gear Selector: Alloy & Leather
Instrument Panel: Alloy Look
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 2
Rear Seats Height Adjustable: yes
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Side Airbag
Location: Front
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Number of Electrical Adjustments: 1
Driver Front Seat Type: Sports
Location: Passenger
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Cloth
Seating
Capacity: 5
Cup Holders
Location: Front Seats
Front Seats Type: Fixed
Seat Back Storage
Location: Front
Ventilation System
Micro Filter: yes
Anti-Theft Protection
Interior Monitoring: yes
Peripheral: yes
Power Locks
Operation: Remote
