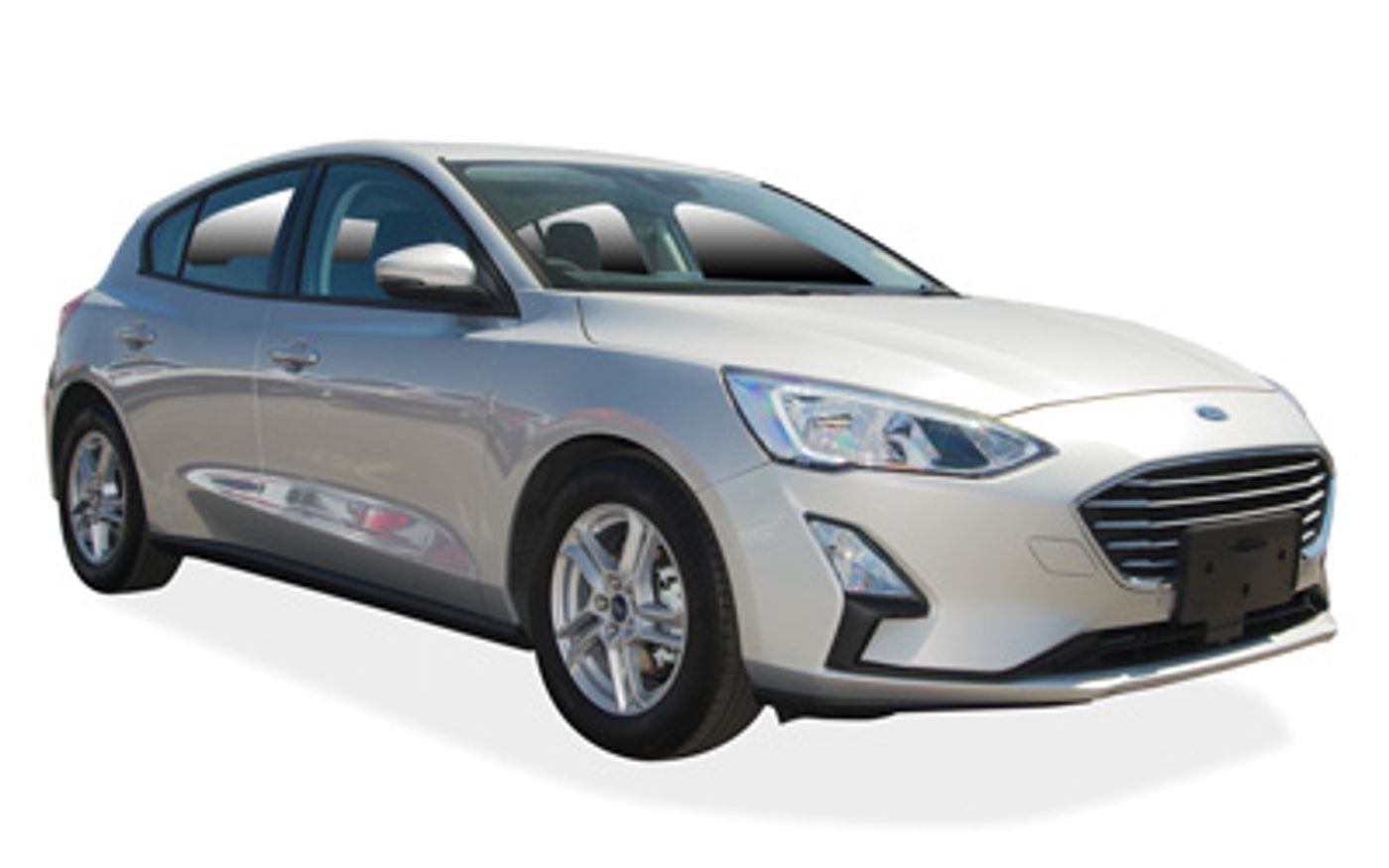

Ford Focus Active (2020) price & specs
Save $$$ with CarExpert*
From
$30,490â€
Active
Overview
The 2020 Ford Focus Active is a front-wheel drive, 5-door Hatchback that was released to the Australian market on 6th February 2020 classified as a SA. The Ford Focus is regarded as a small car built in Germany with prices starting at $30,490 before on-road costs.
This Ford Focus is powered by a 1.5L 3-cylinder engine that has 134 kW of power (at 1600 rpm) and 240 Nm of torque (at 1750 rpm) via an Eight-speed Automatic transmission. Ford claims the Focus Active uses 6.4L/100km of Premium Unleaded in the combined city and highway cycle while putting out 148g of CO2. It has a 52L fuel tank, meaning it should be able to travel 813km per full tank
The Ford Focus measures 1483mm (58.4 inches) in height, 4397mm (173.1 inches) in length, 1825mm (71.9 inches) in width with a 2700mm (106.3 inches) wheelbase that brings about a total of 1348kg (2971.8 lbs) of unladen weight. The Focus Active comes standard with 215/55 R17 front tyres and 215/55 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2020 Ford Focus Active has a 163mm ground clearance with a 1200kg braked and 700kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Focus compare?
Quickly see how the 2020 Ford Focus Active stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
96.54 - 132.65 kW/t
63.49 kW/t
168.45 kW/t
Boot Space
273 - 575 litres
208 litres
575 litres
Fuel Efficiency
6.4 - 8.6 L/100km
1.1 L/100km
8.8 L/100km
Vehicle Range
605 - 812 km
534 km
1,324 km
Price
$25,990 - $44,690
$19,990
$74,990
Warranty (Years)
5 years
3 years
7 years
Warranty (Distance)
Unlimited
150,000 km
Unlimited
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
1,905 - 1,980 kg
1,650 kg
1,980 kg
Braked Towing Capacity
1,000 - 1,400 kg
800 kg
1,600 kg
Ground Clearance Unladen
120 - 163 mm
102 mm
163 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,397 mm
1,825 mm
1,483 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,397 mm |
| Overall Width | 1,825 mm |
| Overall Height | 1,483 mm |
| Wheelbase | 2,700 mm |
| Turning Circle | 10,700 mm |
| Load Capacity | 557 mm |
Looking for complete Ford Focus size & space specs?
Our Ford Focus Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Ford Focus Sales rolling 12-months#
Explore Ford Focus Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Steering: yes
Media Control
Touch Screen: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Programmable Settings: yes
Type: Automatic
Telematics
Advanced Auto Collision Notification: yes
Connection Type: Via Own Phone
Tracker System: yes
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Voice Activating System
Includes Air Conditioning: yes
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Turbo
Number of Compressors: 1
Cylinder Shutdown
Number of Cylinders: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 148
Standard Met: EU5
Engine
Bore Engine: 84.0
Engine (cc): 1497
Engine Configuration: In-Line
Engine Code: En Yz
Engine (L): 1.5
Number of Cylinders: 3
Number of Valves per Cylinder: 4
Stroke Engine: 90.0
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Gasoline Direct Injection & Multi-Point
Fuel Tanks
Main Capacity Gal: 13.7
Main Capacity (L): 52
Main Capacity Uk Gallons: 11.4
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 8.0
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 4.2
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 812
ADR 81/02 Calculated Vehicle Range (miles): 505
ADR 81/02 Combined (km/L): 15.6
ADR 81/02 Combined (L/100km): 6.4
ADR 81/02 Combined (miles per UK gallon): 44
ADR 81/02 Combined (mpg): 37
ADR 81/02 Country Highway (km/L): 18.2
ADR 81/02 Country Highway (L/100km): 5.5
ADR 81/02 Country Highway (miles per UK gallon): 51
ADR 81/02 Country Highway (mpg): 43
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 12.3
ADR 81/02 Urban (L/100km): 8.1
ADR 81/02 Urban (miles per UK gallon): 35
ADR 81/02 Urban (mpg): 29
Fuel Economy
ADR 81/02 (L/100km): 6.4
Power
Maximum Power (hp/PS): 182
Maximum Power (kW): 134
Maximum Torque (Nm): 240
Measurement Standard: ISO
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 1600
Rpm For Maximum Torque Low: 1750
Drive
Driven Wheels: Front
Limited Slip Differential
Location: Front
Front Type: Electronic
Transmission
Code: Tr E7
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Torsion Beam
Rear Wheel Dependence: Semi-Independent
Tires
Front Wheels Tire Load Index: 91
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 91
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: V
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Front Coloured: yes
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Front Wheels Two Tone: yes
Rear Coloured: yes
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Rear Two Tone: yes
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Platform Code: C2
Wheelbase Type: Short
Spoiler
Location: Roof
Cargo Capacity
Measurement Standard: ISO
Rear Seat Down (cu ft): 46.6
Rear Seat Down (L): 1320
Rear Seat Up to Lower Window (cu ft): 12.0
Rear Seat Up to Lower Window (L): 341
External Dimensions
Kerb to Kerb Turning Circle (mm): 10700
Front Track (in): 62.3
Front Track (mm): 1582
Ground Clearance Unladen (in): 6.4
Ground Clearance Unladen (mm): 163
Kerb To Kerb Turning Circle (ft): 35.1
Overall Height (in): 58.4
Overall Height (mm): 1483
Overall Length (in): 173.1
Overall Length (mm): 4397
Overall Width (in): 71.9
Overall Width (mm): 1825
Rear Track (in): 62.0
Rear Track (mm): 1576
Wheelbase (in): 106.3
Wheelbase (mm): 2700
Internal Dimensions
Front Headroom (in): 38.9
Front Headroom (mm): 989
Rear Headroom (in): 38.0
Rear Headroom (mm): 965
Front Leg Room (in): 42.1
Front Leg Room (mm): 1069
Rear Leg Room (in): 36.1
Rear Leg Room (mm): 918
Front Shoulder Room (in): 55.9
Front Shoulder Room (mm): 1421
Rear Shoulder Room (in): 54.9
Rear Shoulder Room (mm): 1395
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Paint
External Colour: Blue
Two Tone: yes
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Toned
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Toned
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1200
Gross Trailer Weight Braked (lb): 2646
Gross Trailer Weight Unbraked (kg): 700
Gross Trailer Weight Unbraked (lb): 1543
Gross Vehicle Weight (kg): 1905
Gross Vehicle Weight (lb): 4200
Published Kerb Weight (kg): 1348
Published Kerb Weight (lb): 2972
Tare Weight (kg): 1317
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Luxury Trim
Doors: Alloy Look
Gear Selector: Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 6
Autonomous Drive
Level: 1 - Driver Assistance
Crash Test Results
ANCAP Date Tested: 20181205
ANCAP Overall: 5.00
ANCAP Standard: Ancap
ANCAP Version Tested: 1.0 Trend Hatch Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Lane Departure Warning
Activates Steering: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Sports
Location: Passenger
Passenger Front Seat Lumbar Type: Manual
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Heater Type: Combustion
Power Locks
Includes Power Windows: yes
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
