LX
2.0L, 6-speed manual, 5-door Station Wagon, Diesel, FWD
Save $$$ with CarExpert*
$37,340†

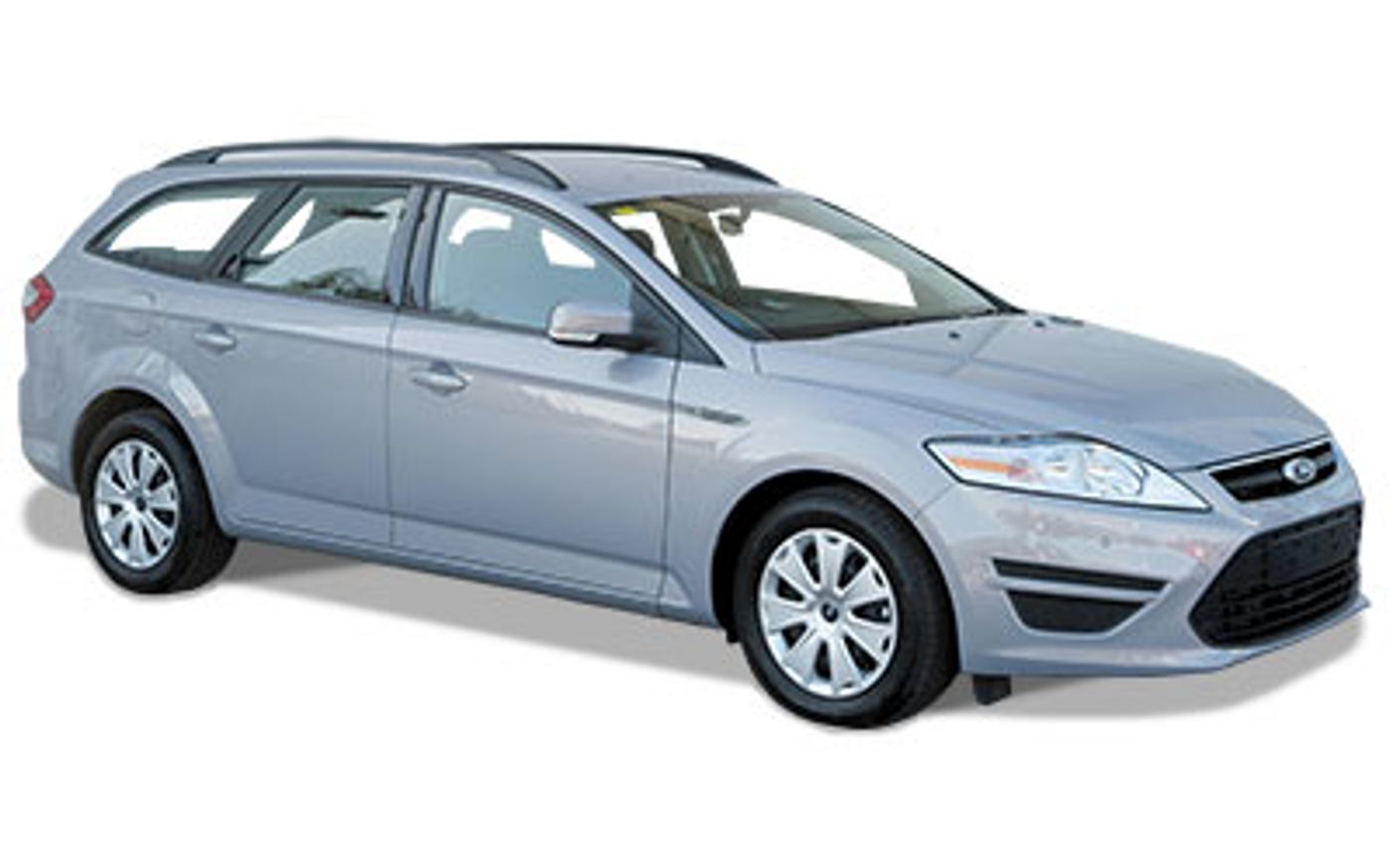

Ford Mondeo LX (2011) price & specs
Save $$$ with CarExpert*
From
$37,340†
Overview
The 2011 Ford Mondeo LX is a front-wheel drive, 5-door Station Wagon that was released to the Australian market on 4th January 1970 classified as a MC. The Ford Mondeo is regarded as a medium-sized car built in Spain with prices starting at $37,340 before on-road costs.
This Ford Mondeo is powered by a 2.0L 4-cylinder engine that has 120 kW of power (at 4000 rpm) and 340 Nm of torque (at 1750 rpm) via a Six-speed Manual transmission. Ford claims the Mondeo LX uses 6.2L/100km of Diesel in the combined city and highway cycle while putting out 165g of CO2. It has a 70L fuel tank, meaning it should be able to travel 1129km per full tank
The Ford Mondeo measures 1548mm (60.9 inches) in height, 4837mm (190.4 inches) in length, 1886mm (74.3 inches) in width with a 2850mm (112.2 inches) wheelbase that brings about a total of 1612kg (3553.8 lbs) of unladen weight. The Mondeo LX comes standard with 215/55 R16 front tyres and 215/55 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
The 2011 Ford Mondeo LX has a 110mm ground clearance with a 1600kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Mondeo compare?
Quickly see how the 2011 Ford Mondeo LX stacks up against its competition.
Select any benchmark to see more details.
Power to Weight
72.77 - 94.24 kW/t
50.07 kW/t
126.54 kW/t
Boot Space
528 - 1,005 litres
450 litres
1,005 litres
Fuel Efficiency
5.9 - 9.5 L/100km
4.9 L/100km
10.3 L/100km
Vehicle Range
737 - 1,186 km
631 km
1,228 km
Price
$30,990 - $48,490
$24,990
$57,990
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Service Interval
12 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,165 - 2,335 kg
1,975 kg
2,335 kg
Braked Towing Capacity
1,200 - 1,600 kg
1,200 kg
1,800 kg
Ground Clearance Unladen
110 mm
110 mm
179 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,837 mm
1,886 mm
1,548 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,837 mm |
| Overall Width | 1,886 mm |
| Overall Height | 1,548 mm |
| Wheelbase | 2,850 mm |
| Turning Circle | 11,450 mm |
| Load Capacity | 723 mm |
Looking for complete Ford Mondeo size & space specs?
Our Ford Mondeo Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Ford Mondeo Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 5.0
Australia Greenhouse Rating: 7.0
Australia Overall Emission Control Level Rating: 3.5
CO2 Level (Combined): 165
Standard Met: EU5
Engine
Bore Engine: 85.0
Engine (cc): 1997
Engine Configuration: In-Line
Engine Code: Duratorq
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 88.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 18.5
Main Capacity (L): 70
Main Capacity Uk Gallons: 15.4
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Range for Remaining Fuel: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1129
ADR 81/02 Calculated Vehicle Range (miles): 702
ADR 81/02 Combined (km/L): 16.1
ADR 81/02 Combined (L/100km): 6.2
ADR 81/02 Combined (miles per UK gallon): 46
ADR 81/02 Combined (mpg): 38
ADR 81/02 Country Highway (km/L): 18.5
ADR 81/02 Country Highway (L/100km): 5.4
ADR 81/02 Country Highway (miles per UK gallon): 52
ADR 81/02 Country Highway (mpg): 44
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 13.0
ADR 81/02 Urban (L/100km): 7.7
ADR 81/02 Urban (miles per UK gallon): 37
ADR 81/02 Urban (mpg): 31
Fuel Economy
ADR 81/02 (L/100km): 6.2
Power
Maximum Power (hp/PS): 163
Maximum Power (kW): 120
Maximum Torque (Nm): 340
Measurement Standard: ISO
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 1750
Drive
Driven Wheels: Front
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Automatic Mode: yes
Description: Dual Clutch Sequential Trans (Dct)
Manual Sequential: yes
Number of Speeds: 6
Shift Lever Location: Floor
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Suspension Levelling
Location: Rear
Rear Operation: Automatic
Tires
Front Wheels Tire Load Index: 91
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 91
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Station Wagon
Local Body Type: Station Wagon
Platform Code: C1+ Eucd
Wheelbase Type: Short
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Capacity
Measurement Standard: SAE
Rear Seat Down (cu ft): 76.4
Rear Seat Down (L): 2163
Rear Seat Up to Lower Window (cu ft): 35.5
Rear Seat Up to Lower Window (L): 1005
External Dimensions
Kerb to Kerb Turning Circle (mm): 11450
Front Track (in): 62.2
Front Track (mm): 1579
Ground Clearance Unladen (in): 4.3
Ground Clearance Unladen (mm): 110
Kerb To Kerb Turning Circle (ft): 37.6
Overall Height (in): 60.9
Overall Height (mm): 1548
Overall Length (in): 190.4
Overall Length (mm): 4837
Overall Width (in): 74.3
Overall Width (mm): 1886
Rear Track (in): 62.8
Rear Track (mm): 1595
Wheelbase (in): 112.2
Wheelbase (mm): 2850
Internal Dimensions
Front Headroom (in): 39.2
Front Headroom (mm): 996
Rear Headroom (in): 39.5
Rear Headroom (mm): 1004
Front Leg Room (in): 44.3
Front Leg Room (mm): 1126
Rear Leg Room (in): 37.4
Rear Leg Room (mm): 950
Front Shoulder Room (in): 57.0
Front Shoulder Room (mm): 1448
Rear Shoulder Room (in): 55.9
Rear Shoulder Room (mm): 1421
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 1600
Gross Trailer Weight Braked (lb): 3527
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2335
Gross Vehicle Weight (lb): 5148
Published Kerb Weight (kg): 1612
Published Kerb Weight (lb): 3554
Tare Weight (kg): 1561
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 8
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Bluetooth
Includes Phone Connection: yes
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor
Power Outlet 12V
Location (12V): Rear
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Voice Activating System
Includes Air Conditioning: yes
Includes Audio Player: yes
Includes Phone: yes
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Gear Selector: Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 7
Crash Test Results
ANCAP Overall: 5.00
ANCAP Pedestrian: 2
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Lumbar Type: Manual
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
