Ford Mondeo Trend (2017) price & specs
Save $$$ with CarExpert*
From
$42,840â€
Trend
Overview

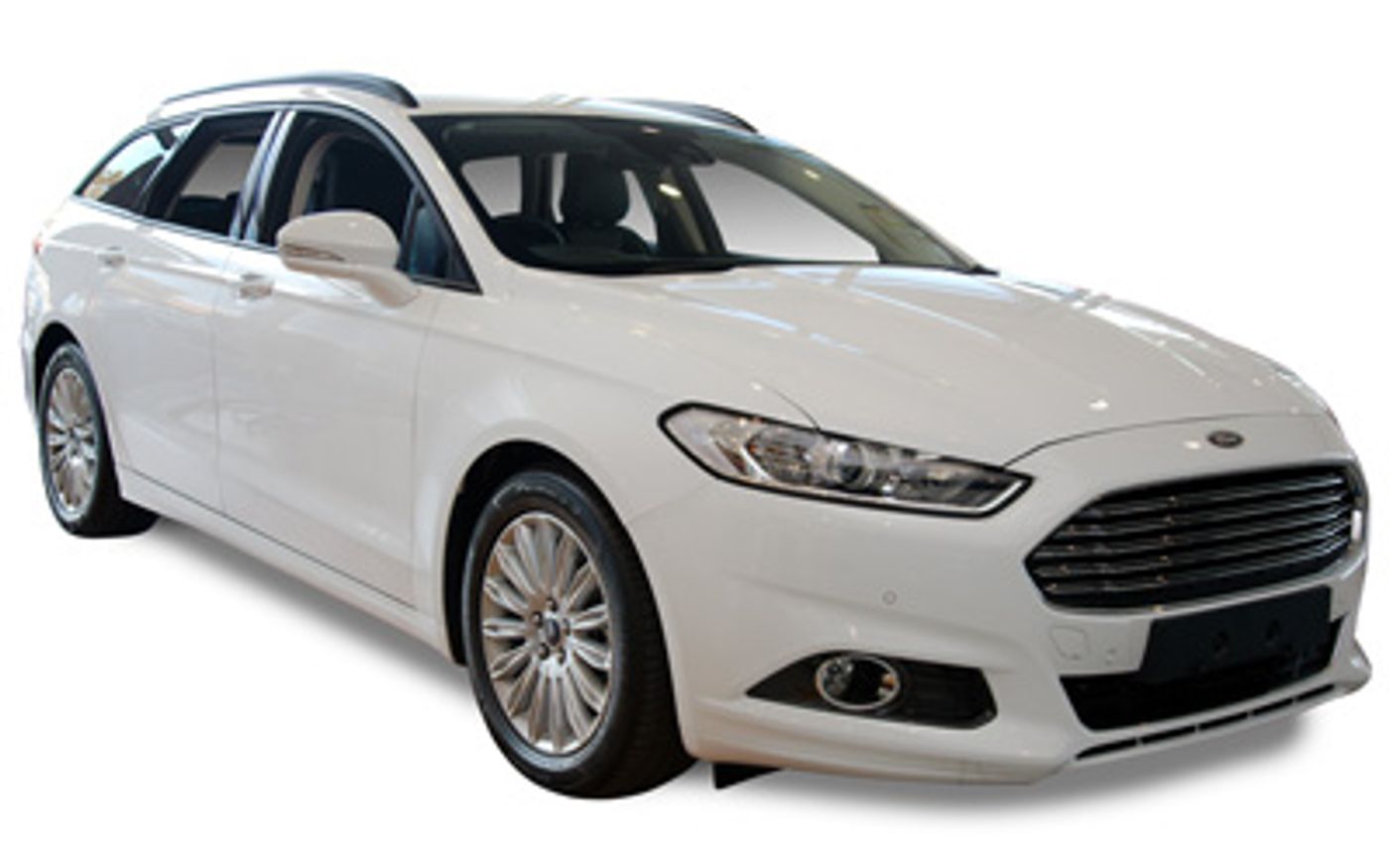

The 2017 Ford Mondeo Trend is a front-wheel drive, 5-door Station Wagon that was released to the Australian market on 4th January 1970 classified as a MD. The Ford Mondeo is regarded as a medium-sized car built in Spain with prices starting at $42,840 before on-road costs.
This Ford Mondeo is powered by a 2.0L 4-cylinder engine that has 132 kW of power (at 3500 rpm) and 400 Nm of torque (at 2000 rpm) via a Six-speed Manual transmission. Ford claims the Mondeo Trend uses 5.3L/100km of Diesel in the combined city and highway cycle while putting out 139g of CO2. It has a 63L fuel tank, meaning it should be able to travel 1189km per full tank
The Ford Mondeo measures 1501mm (59.1 inches) in height, 4867mm (191.6 inches) in length, 1852mm (72.9 inches) in width with a 2850mm (112.2 inches) wheelbase that brings about a total of 1730kg (3814.0 lbs) of unladen weight. The Mondeo Trend comes standard with 235/45 R18 front tyres and 235/45 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
The 2017 Ford Mondeo Trend has a 128mm ground clearance with a 1600kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Mondeo compare?
Quickly see how the 2017 Ford Mondeo Trend stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
74.07 - 108.66 kW/t
67.44 kW/t
125.53 kW/t
Fuel Efficiency
5.1 - 8.5 L/100km
4.7 L/100km
9.9 L/100km
Vehicle Range
741 - 1,235 km
606 km
1,375 km
Price
$33,190 - $49,840
$22,990
$59,990
Warranty (Years)
3 years
3 years
7 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,140 - 2,320 kg
1,805 kg
2,320 kg
Braked Towing Capacity
1,200 - 1,600 kg
1,200 kg
2,200 kg
Ground Clearance Unladen
128 mm
125 mm
171 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,867 mm
1,852 mm
1,501 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,867 mm |
| Overall Width | 1,852 mm |
| Overall Height | 1,501 mm |
| Wheelbase | 2,850 mm |
| Turning Circle | 11,600 mm |
| Load Capacity | 580 mm |
Looking for complete Ford Mondeo size & space specs?
Our Ford Mondeo Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Ford Mondeo Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Entertainment Display Screen
Location: Front
Front Screen Size (in): 8.0
Front Touch Screen: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Programmable Settings: yes
Type: Automatic
Telematics
Connection Type: Via Own Phone
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Air Conditioning: yes
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 139
Standard Met: EU6
Engine
Bore Engine: 85.0
Engine (cc): 1997
Engine Configuration: In-Line
Engine Code: En T7
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 88.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 16.6
Main Capacity (L): 63
Main Capacity Uk Gallons: 13.9
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Range for Remaining Fuel: yes
Display Screen
Screen Size (in): 8.0
Touch Screen: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1189
ADR 81/02 Calculated Vehicle Range (miles): 739
ADR 81/02 Combined (km/L): 18.9
ADR 81/02 Combined (L/100km): 5.3
ADR 81/02 Combined (miles per UK gallon): 53
ADR 81/02 Combined (mpg): 44
ADR 81/02 Country Highway (km/L): 20.4
ADR 81/02 Country Highway (L/100km): 4.9
ADR 81/02 Country Highway (miles per UK gallon): 58
ADR 81/02 Country Highway (mpg): 48
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 16.7
ADR 81/02 Urban (L/100km): 6.0
ADR 81/02 Urban (miles per UK gallon): 47
ADR 81/02 Urban (mpg): 39
Fuel Economy
ADR 81/02 (L/100km): 5.3
Power
Maximum Power (hp/PS): 180
Maximum Power (kW): 132
Maximum Torque (Nm): 400
Measurement Standard: ISO
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 2000
Drive
Driven Wheels: Front
Transmission
Automatic Mode: yes
Code: Mps6 Powershift
Description: Dual Clutch Sequential Trans (Dct)
Gear Change Paddles: yes
Manual Sequential: yes
Number of Speeds: 6
Shift Lever Location: Steering Wheel
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Suspension Levelling
Location: Rear
Rear Operation: Automatic
Tires
Front Wheels Tire Load Index: 98
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Load Index: 98
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.0
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.0
Body Style
Body Type: Station Wagon
Local Body Type: Station Wagon
Platform Code: C1+Eucd
Wheelbase Type: Short
Cargo Capacity
Measurement Standard: ISO
Rear Seat Down (cu ft): 56.7
Rear Seat Down (L): 1605
External Dimensions
Kerb to Kerb Turning Circle (mm): 11600
Front Track (in): 63.0
Front Track (mm): 1599
Ground Clearance Unladen (in): 5.0
Ground Clearance Unladen (mm): 128
Kerb To Kerb Turning Circle (ft): 38.1
Overall Height (in): 59.1
Overall Height (mm): 1501
Overall Length (in): 191.6
Overall Length (mm): 4867
Overall Width (in): 72.9
Overall Width (mm): 1852
Rear Track (in): 62.8
Rear Track (mm): 1595
Wheelbase (in): 112.2
Wheelbase (mm): 2850
Internal Dimensions
Front Headroom (in): 38.9
Front Headroom (mm): 988
Rear Headroom (in): 39.1
Rear Headroom (mm): 992
Front Hip Room (in): 55.0
Front Hip Room (mm): 1396
Rear Hip Room (in): 54.4
Rear Hip Room (mm): 1381
Front Leg Room (in): 44.4
Front Leg Room (mm): 1128
Rear Leg Room (in): 38.3
Rear Leg Room (mm): 972
Front Shoulder Room (in): 57.8
Front Shoulder Room (mm): 1469
Rear Shoulder Room (in): 55.5
Rear Shoulder Room (mm): 1410
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1600
Gross Trailer Weight Braked (lb): 3527
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2310
Gross Vehicle Weight (lb): 5093
Published Kerb Weight (kg): 1730
Published Kerb Weight (lb): 3814
Tare Weight (kg): 1679
Audio System
Brand Name: Sony
CD Player Reads MP3: yes
Colour Screen: yes
Digital Media Card: yes
Digital Radio: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 9
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Centre Floor Console: Piano Black
Doors: Alloy Look
Gear Selector: Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 9
Crash Test Results
ANCAP Overall: 5.00
ANCAP Pedestrian: Acceptable
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Sports
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Lumbar Type: Electric
Passenger Front Seat Number of Electrical Adjustments: 5
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
