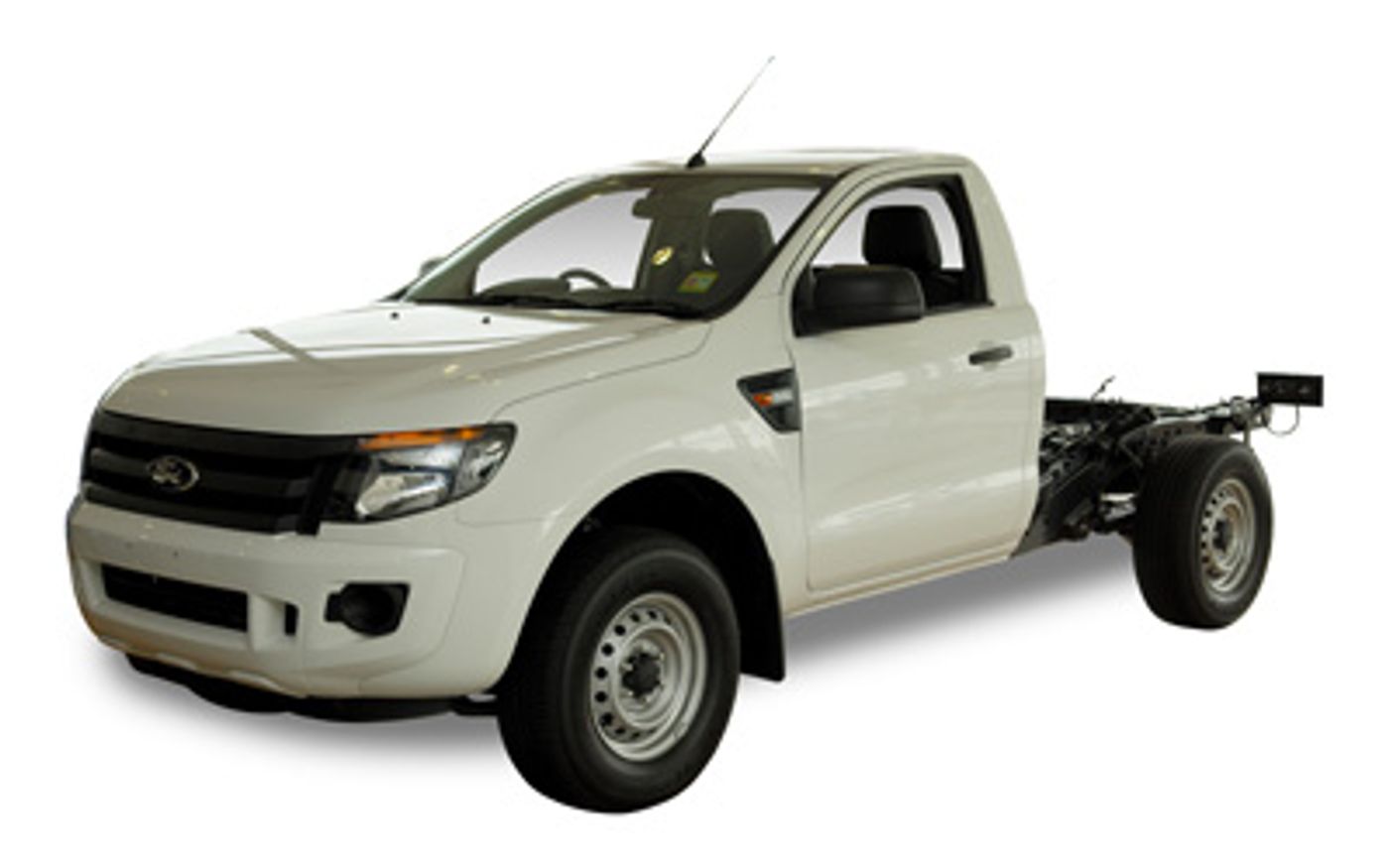

Ford Ranger XL (2011) price & specs
Save $$$ with CarExpert*
From
$23,740â€
Overview
The 2011 Ford Ranger XL is a rear-wheel drive, 2-door Cab Chassis that was released to the Australian market on 4th January 1970 classified as a PX. The Ford Ranger is regarded as a Pickup built in Thailand with prices starting at $23,740 before on-road costs.
This Ford Ranger is powered by a 2.2L 4-cylinder engine that has 110 kW of power (at 3700 rpm) and 375 Nm of torque (at 1500 rpm) via a Six-speed Manual transmission. Ford claims the Ranger XL uses 7.6L/100km of Diesel in the combined city and highway cycle while putting out 203g of CO2. It has a 80L fuel tank, meaning it should be able to travel 1053km per full tank
The Ford Ranger measures 1703mm (67.0 inches) in height, 5110mm (201.2 inches) in length, 1850mm (72.8 inches) in width with a 3220mm (126.8 inches) wheelbase that brings about a total of 1619kg (3569.3 lbs) of unladen weight. The Ranger XL comes standard with 215/70 R16 front tyres and 215/70 R16 rear tyres. It has a 36 month, 100,000 km warranty.
The 2011 Ford Ranger XL has a 201mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Ranger compare?
Quickly see how the 2011 Ford Ranger XL stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
53.61 - 82.1 kW/t
41.98 kW/t
114.01 kW/t
Fuel Efficiency
7.6 - 10.6 L/100km
7.6 L/100km
13.1 L/100km
Vehicle Range
755 - 1,053 km
580 km
1,053 km
Price
$19,740 - $59,390
$18,990
$59,390
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
1 - 4 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,925 - 3,200 kg
2,710 kg
3,500 kg
Gross Comb. Mass
5,125 - 6,000 kg
4,430 kg
6,000 kg
Braked Towing Capacity
2,200 - 3,500 kg
1,800 kg
3,500 kg
Ground Clearance Unladen
201 - 237 mm
190 mm
314 mm
Payload Capacity
982 - 1,528 kg
835 kg
1,777 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,110 mm
1,850 mm
1,703 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,110 mm |
| Overall Width | 1,850 mm |
| Overall Height | 1,703 mm |
| Wheelbase | 3,220 mm |
| Turning Circle | 12,000 mm |
| Load Capacity | 1,306 mm |
Looking for complete Ford Ranger size & space specs?
Our Ford Ranger Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Ford Ranger Sales rolling 12-months#
Explore Ford Ranger Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 3.0
Australia Greenhouse Rating: 6.0
Australia Overall Emission Control Level Rating: 2.5
CO2 Level (Combined): 203
Engine
Bore Engine: 86.0
Engine (cc): 2198
Engine Configuration: In-Line
Engine (L): 2.2
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 94.6
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1053
ADR 81/02 Calculated Vehicle Range (miles): 654
ADR 81/02 Combined (km/L): 13.2
ADR 81/02 Combined (L/100km): 7.6
ADR 81/02 Combined (miles per UK gallon): 37
ADR 81/02 Combined (mpg): 31
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 7.6
Power
Maximum Power (hp/PS): 150
Maximum Power (kW): 110
Maximum Torque (Nm): 375
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3700
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Rear
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Manual
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 99
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 99
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Local Body Type: Cab Chassis
Roof Type: Standard
Wheelbase Type: Medium
Mud Flaps
Front Mud Flaps Location: Front
Bumpers
Front Bumper Colour: Painted
Location: Front
External Dimensions
Kerb to Kerb Turning Circle (mm): 12000
Front Overhang (in): 35.6
Front Overhang (mm): 905
Front Track (in): 62.6
Front Track (mm): 1590
Ground Clearance Unladen (in): 7.9
Ground Clearance Unladen (mm): 201
Kerb To Kerb Turning Circle (ft): 39.4
Overall Height (in): 67.0
Overall Height (mm): 1703
Overall Length (in): 201.2
Overall Length (mm): 5110
Overall Width (in): 72.8
Overall Width (mm): 1850
Rear Overhang (in): 38.8
Rear Overhang (mm): 985
Rear Track (in): 62.6
Rear Track (mm): 1590
Wheelbase (in): 126.8
Wheelbase (mm): 3220
Headlight Control
Dusk Sensor: yes
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: red
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1325
Front Axle Weight (lb): 2921
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5425
Gross Train Weight (lb): 11960
Gross Vehicle Weight (kg): 2925
Gross Vehicle Weight (lb): 6449
Payload Allowance (kg): 1306
Payload Allowance (lb): 2879
Published Kerb Weight (kg): 1619
Published Kerb Weight (lb): 3569
Rear Axle Weight (kg): 1755
Rear Axle Weight (lb): 3869
Tare Weight (kg): 1560
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Bluetooth
Includes Phone Connection: yes
Power Outlet 12V
Location (12V): Front
Display Screen
Location: ?
Crash Test Results
ANCAP Overall: 4.00
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Fore/Aft Adjustment: yes
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining: yes
Driver Front Seat Type: Bucket
Passenger Front Seat Fore/Aft Adjustment: yes
Location: Passenger
Passenger Front Seat Reclining: yes
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
