Overview

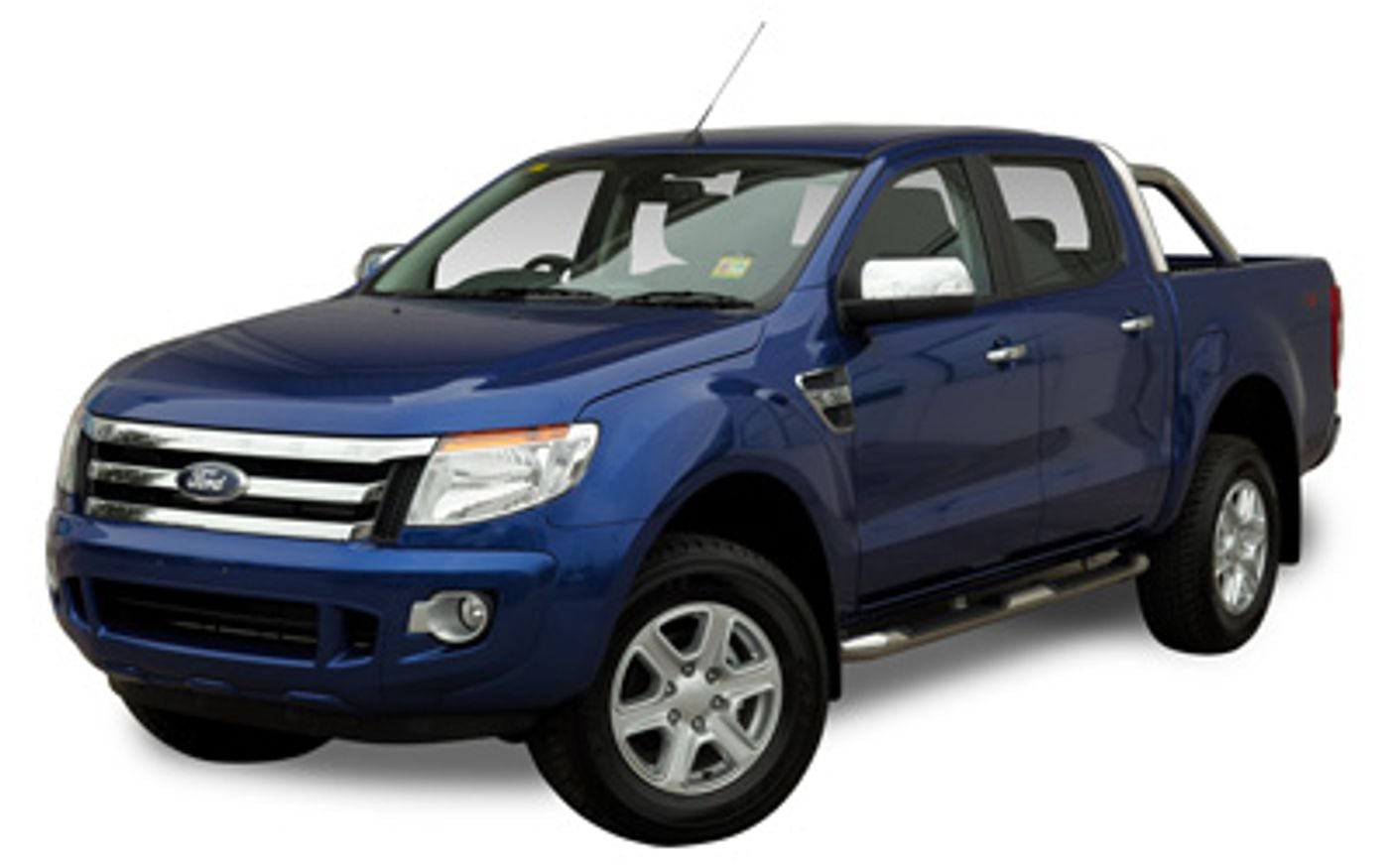

The 2014 Ford Ranger Xl Plus is a four-wheel drive, 4-door Utility that was released to the Australian market on 5th December 2012 classified as a PX. The Ford Ranger is regarded as a Pickup built in Thailand with prices starting at $52,760 before on-road costs.
This Ford Ranger is powered by a 3.2L 5-cylinder engine that has 147 kW of power (at 3000 rpm) and 470 Nm of torque (at 1500 rpm) via a Six-speed Automatic transmission. Ford claims the Ranger Xl Plus uses 9.2L/100km of Diesel in the combined city and highway cycle while putting out 246g of CO2. It has a 80L fuel tank, meaning it should be able to travel 870km per full tank
The Ford Ranger measures 1815mm (71.5 inches) in height, 5359mm (211.0 inches) in length, 1850mm (72.8 inches) in width with a 3220mm (126.8 inches) wheelbase that brings about a total of 2086kg (4598.8 lbs) of unladen weight. The Ranger Xl Plus comes standard with 265/65 R17 front tyres and 265/65 R17 rear tyres. It has a 36 month, 100,000 km warranty.
The 2014 Ford Ranger Xl Plus has a 232mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
Pros
- Punchy and refined V6 diesel
- Surprisingly fuel efficient
- Benchmark driving experience
Cons
- Lacking some wow factor
- Expensive compared with more enticing Sport grade
- No wireless phone charger
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Towing & Off-Road Capability
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | In-Line |
|---|---|
| Size (cc) | 3198 |
| Size (L) | 3.2L |
| Cylinders | 5 |
| Camshaft | - |
| Valves/Ports per Cylinder | - |
| Power | 147kW |
| Power RPM | 3000 |
| Torque | 470Nm |
| Torque RPM | 1500 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | - |
| Suspension Rear | - |
| Steering Mechanism | Plastic |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 9.2 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 80 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 246 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | - |
|---|---|
| Brake Rear | - |
| Tyre Front | 265/65 R17 |
| Tyre Rear | 265/65 R17 |
| Front Rim Size | - |
| Rear Rim Size | - |
| Vehicle Height (mm) | 1815 |
|---|---|
| Vehicle Length (mm) | 5359 |
| Vehicle Width (mm) | 1850 |
| Ground Clearance (mm) | 232 |
| Wheelbase (mm) | 3220 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 2086 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 3200 |
| Track Front (mm) | 1560 |
| Track Rear (mm) | 1560 |
| Towing Capacity Brake (kg) | 3500 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Thailand |
|---|---|
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 15000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2016-05-18 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
