Xl Plus
3.2L, 6-speed auto, 4-door Cab Chassis, Diesel, 4x4
Save $$$ with CarExpert*
$51,760â€
Ford Ranger Xl Plus (2014) price & specs
Save $$$ with CarExpert*
From
$51,760â€
Xl Plus
Overview

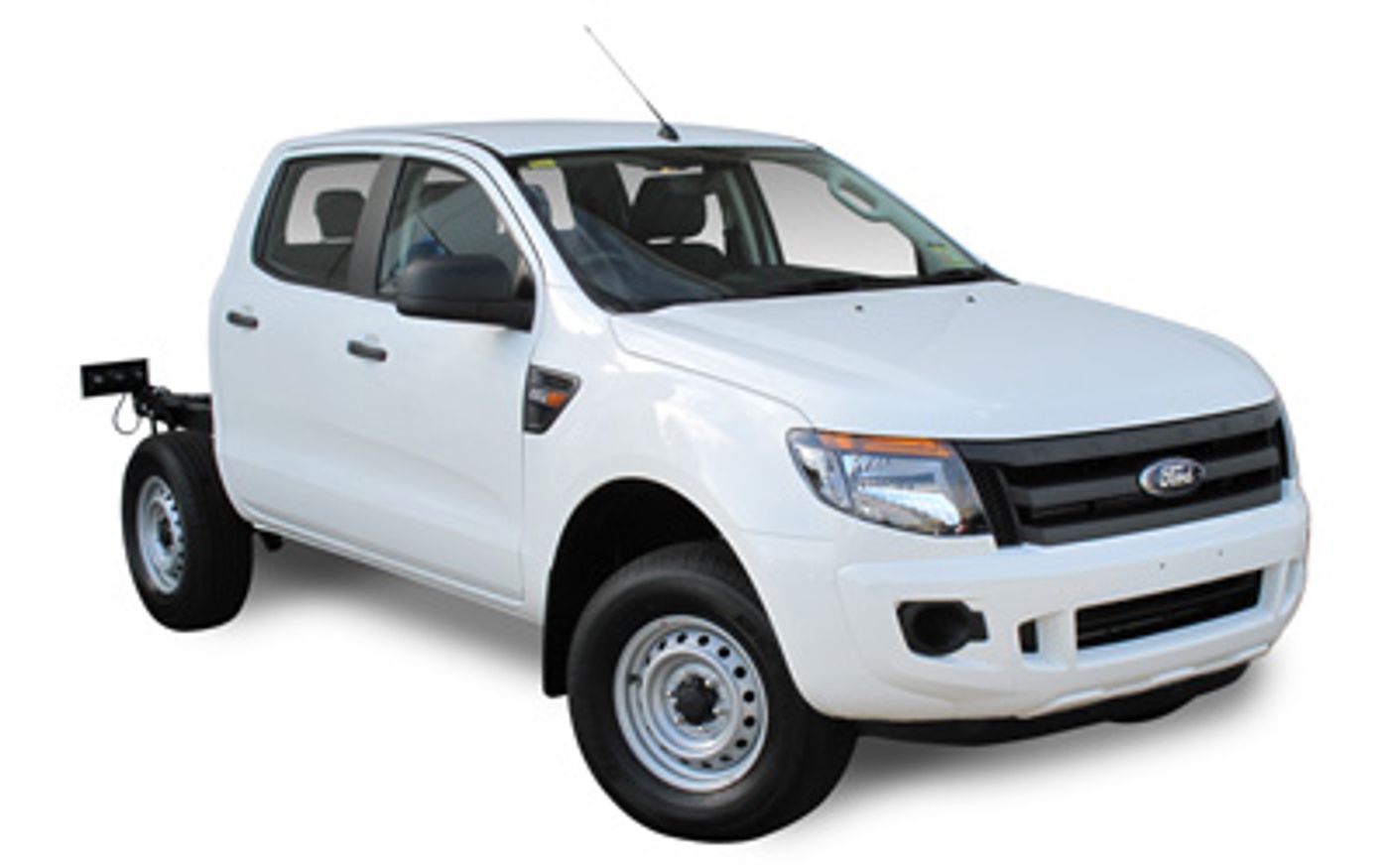

The 2014 Ford Ranger Xl Plus is a four-wheel drive, 4-door Cab Chassis that was released to the Australian market on 5th December 2012 classified as a PX. The Ford Ranger is regarded as a Pickup built in Thailand with prices starting at $51,760 before on-road costs.
This Ford Ranger is powered by a 3.2L 5-cylinder engine that has 147 kW of power (at 3000 rpm) and 470 Nm of torque (at 1500 rpm) via a Six-speed Automatic transmission. Ford claims the Ranger Xl Plus uses 9.2L/100km of Diesel in the combined city and highway cycle while putting out 246g of CO2. It has a 80L fuel tank, meaning it should be able to travel 870km per full tank
The Ford Ranger measures 1815mm (71.5 inches) in height, 5359mm (211.0 inches) in length, 1850mm (72.8 inches) in width with a 3220mm (126.8 inches) wheelbase that brings about a total of 1955kg (4310.0 lbs) of unladen weight. The Ranger Xl Plus comes standard with 265/65 R17 front tyres and 265/65 R17 rear tyres. It has a 36 month, 100,000 km warranty.
The 2014 Ford Ranger Xl Plus has a 232mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Ranger compare?
Quickly see how the 2014 Ford Ranger Xl Plus stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
53.61 - 81.89 kW/t
42 kW/t
109.38 kW/t
Fuel Efficiency
7.6 - 9.6 L/100km
7.3 L/100km
13 L/100km
Vehicle Range
833 - 1,053 km
585 km
1,096 km
Price
$24,390 - $59,390
$18,990
$62,990
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
1 - 4 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,925 - 3,200 kg
2,710 kg
3,500 kg
Gross Comb. Mass
5,425 - 6,000 kg
4,480 kg
6,000 kg
Braked Towing Capacity
2,500 - 3,500 kg
1,800 kg
3,500 kg
Ground Clearance Unladen
201 - 237 mm
190 mm
314 mm
Payload Capacity
982 - 1,528 kg
726 kg
1,648 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,359 mm
1,850 mm
1,815 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,359 mm |
| Overall Width | 1,850 mm |
| Overall Height | 1,815 mm |
| Wheelbase | 3,220 mm |
| Turning Circle | 12,700 mm |
| Load Capacity | 1,245 mm |
Looking for complete Ford Ranger size & space specs?
Our Ford Ranger Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Ford Ranger Sales rolling 12-months#
Explore Ford Ranger Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 3.0
Australia Greenhouse Rating: 5.0
Australia Overall Emission Control Level Rating: 2.5
CO2 Level (Combined): 246
Standard Met: EU4
Engine
Bore Engine: 89.9
Engine (cc): 3198
Engine Configuration: In-Line
Engine (L): 3.2
Number of Cylinders: 5
Number of Valves per Cylinder: 4
Stroke Engine: 100.7
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 870
ADR 81/02 Calculated Vehicle Range (miles): 541
ADR 81/02 Combined (km/L): 10.9
ADR 81/02 Combined (L/100km): 9.2
ADR 81/02 Combined (miles per UK gallon): 31
ADR 81/02 Combined (mpg): 26
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 9.2
Power
Maximum Power (hp/PS): 200
Maximum Power (kW): 147
Maximum Torque (Nm): 470
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3000
Rpm For Maximum Torque Low: 1500
Differential Lock
Location: Rear
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Part-Time
Selection: Manual
Transmission
Description: Automatic With Manual Mode
Low High Gear Ranges: yes
Manual Mode: yes
Number of Speeds: 6
Type: Automatic
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 112
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Type: All Terrain
Front Wheels Tire Width: 265
Rear Wheels Tire Load Index: 112
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Type: All Terrain
Rear Wheels Tire Width: 265
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 7.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 7.5
Body Style
Body Type: Cab Chassis
Cab Type: Double Cab
Local Body Type: Cab Chassis
Platform Code: Gcpp
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Step
Step Location: Side
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
External Dimensions
Kerb to Kerb Turning Circle (mm): 12700
Front Overhang (in): 35.6
Front Overhang (mm): 905
Front Track (in): 61.4
Front Track (mm): 1560
Ground Clearance Unladen (in): 9.1
Ground Clearance Unladen (mm): 232
Kerb To Kerb Turning Circle (ft): 41.7
Overall Height (in): 71.5
Overall Height (mm): 1815
Overall Length (in): 211.0
Overall Length (mm): 5359
Overall Width (in): 72.8
Overall Width (mm): 1850
Rear Overhang (in): 48.6
Rear Overhang (mm): 1234
Rear Track (in): 61.4
Rear Track (mm): 1560
Wheelbase (in): 126.8
Wheelbase (mm): 3220
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Dusk Sensor: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear Side Windows
Location: Driver
Driver Type: Wind-Up
Location: Passenger
Passenger Type: Wind-Up
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1480
Front Axle Weight (lb): 3263
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 6000
Gross Train Weight (lb): 13228
Gross Vehicle Weight (kg): 3200
Gross Vehicle Weight (lb): 7055
Payload Allowance (kg): 1245
Payload Allowance (lb): 2745
Published Kerb Weight (kg): 1955
Published Kerb Weight (lb): 4310
Rear Axle Weight (kg): 1850
Rear Axle Weight (lb): 4079
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Bluetooth
Includes Phone Connection: yes
Power Outlet 12V
Location (12V): Front
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Luxury Trim
Doors: Alloy Look
Instrument Panel: Alloy Look
Crash Test Results
ANCAP Overall: 5.00
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
