Overview

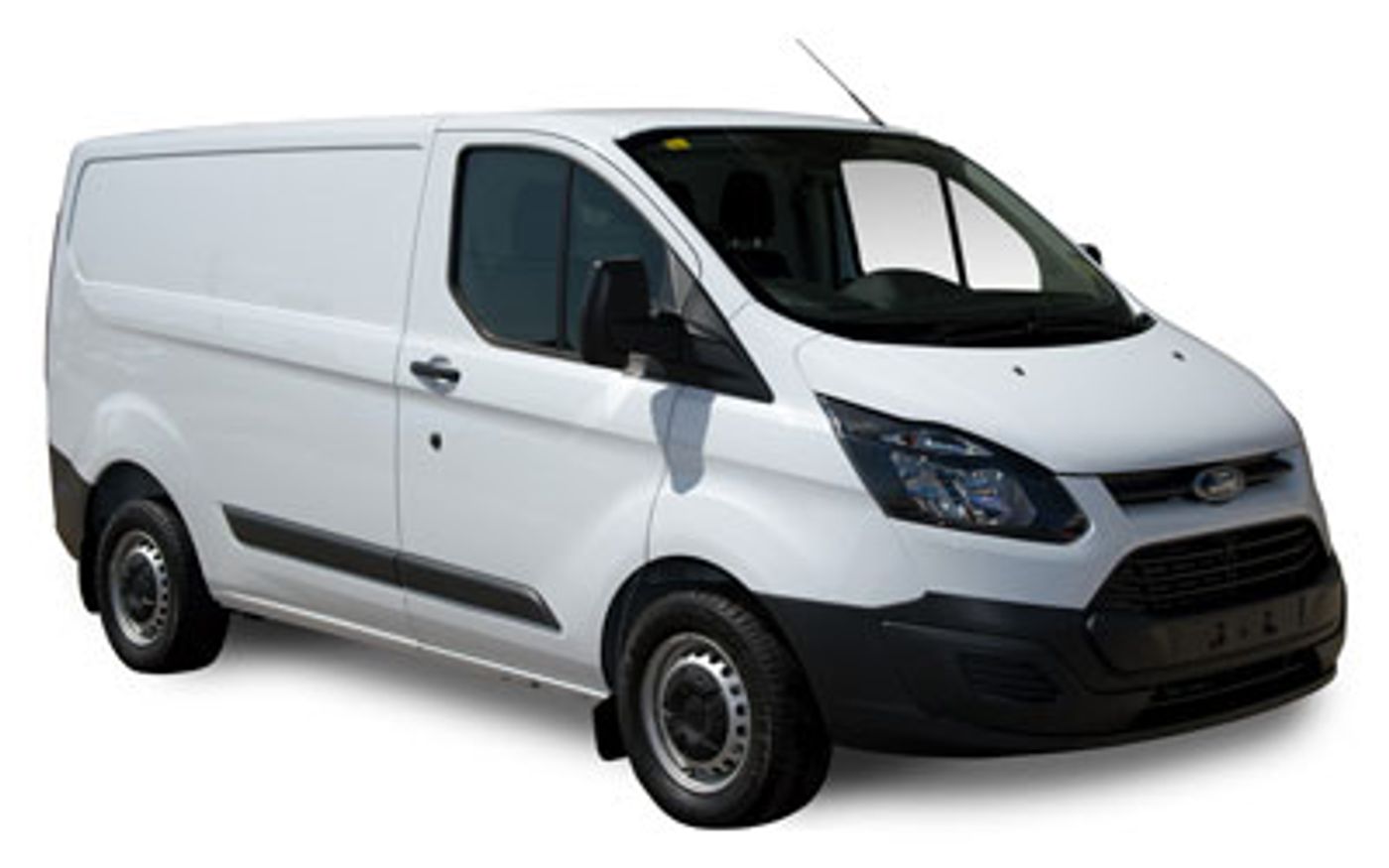

The 2014 Ford Transit Custom Base is a front-wheel drive, 4-door Panel Van that was released to the Australian market on 4th January 1970 classified as a VN. The Ford Transit Custom is regarded as a Van Under 3.5t built in Turkey with prices starting at $39,490 before on-road costs.
This Ford Transit Custom is powered by a 2.2L 4-cylinder engine that has 92 kW of power (at 3500 rpm) and 350 Nm of torque (at 1450 rpm) via a Six-speed Manual transmission. Ford claims the Transit Custom Base uses 7.3L/100km of Diesel in the combined city and highway cycle while putting out 191g of CO2. It has a 95L fuel tank, meaning it should be able to travel 1301km per full tank
The Ford Transit Custom measures 2002mm (78.8 inches) in height, 5339mm (210.2 inches) in length, 1986mm (78.2 inches) in width with a 3300mm (129.9 inches) wheelbase that brings about a total of 1965kg (4332.1 lbs) of unladen weight. The Transit Custom Base comes standard with 215/65 R16 front tyres and 215/65 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | In-Line |
|---|---|
| Size (cc) | 2198 |
| Size (L) | 2.2L |
| Cylinders | 4 |
| Camshaft | - |
| Valves/Ports per Cylinder | - |
| Power | 92kW |
| Power RPM | 3500 |
| Torque | 350Nm |
| Torque RPM | 1450 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | - |
| Suspension Rear | - |
| Steering Mechanism | Leather Covered |
| Drive | front |
| Fuel Combined (L/100km) | 7.3 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 95 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 191 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | - |
|---|---|
| Brake Rear | - |
| Tyre Front | 215/65 R16 |
| Tyre Rear | 215/65 R16 |
| Front Rim Size | - |
| Rear Rim Size | - |
| Vehicle Height (mm) | 2002 |
|---|---|
| Vehicle Length (mm) | 5339 |
| Vehicle Width (mm) | 1986 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 3300 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 1965 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 3325 |
| Track Front (mm) | 1736 |
| Track Rear (mm) | 1720 |
| Towing Capacity Brake (kg) | 2800 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Turkey |
|---|---|
| Number of Doors | 4 |
| Seats | 3 |
| Service Interval KMs | 15000 |
| Service Interval Months | 12 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2016-07-31 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
