Base
2.0L, 6-speed manual, 4-door Panel Van, Diesel, FWD
Save $$$ with CarExpert*
$46,290â€

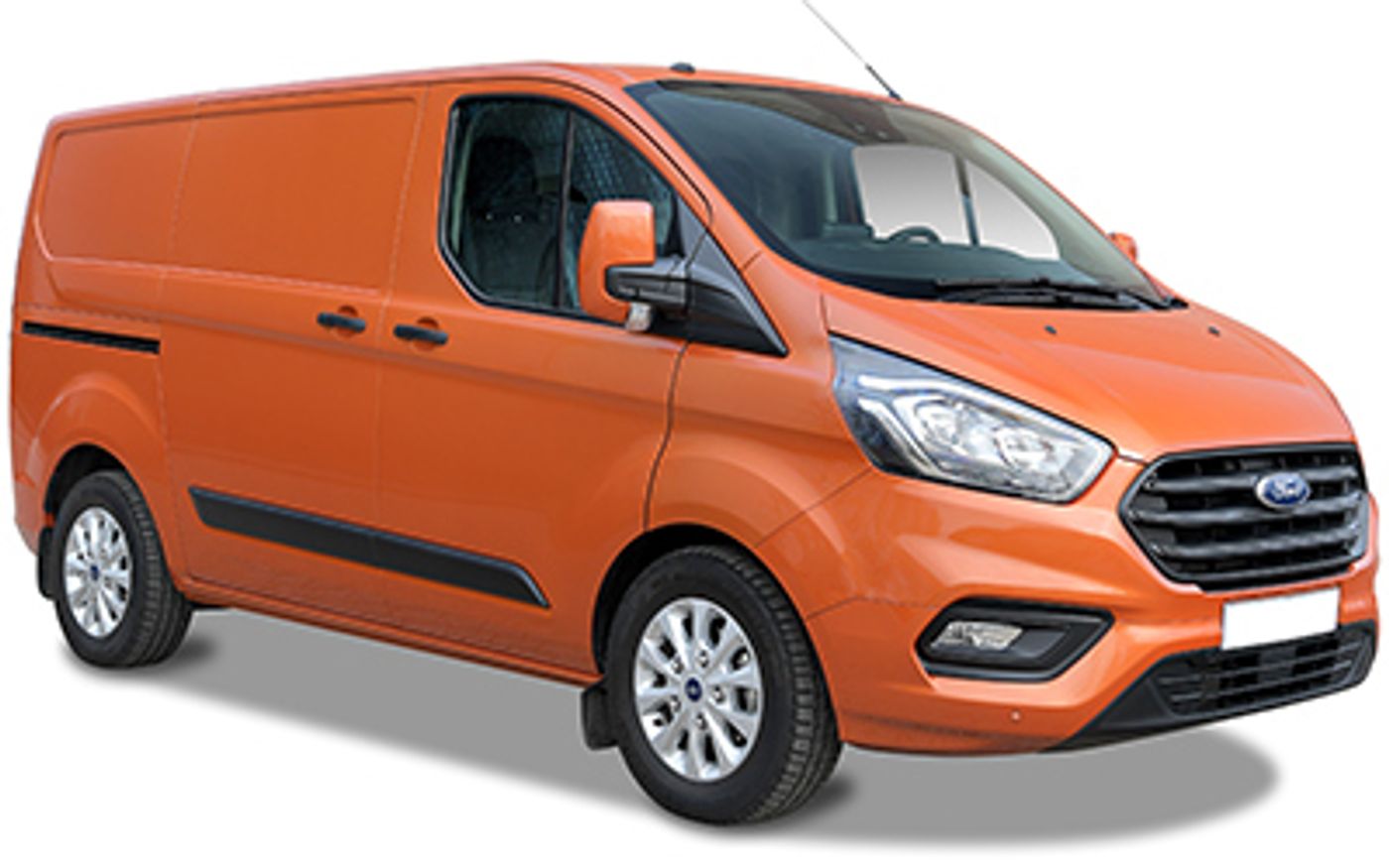

Ford Transit Custom Base (2020) price & specs
Save $$$ with CarExpert*
From
$46,290â€
Base
Overview
The 2020 Ford Transit Custom Base is a front-wheel drive, 4-door Panel Van that was released to the Australian market on 5th May 2020. The Ford Transit Custom is regarded as a Van Under 3.5t built in Turkey with prices starting at $46,290 before on-road costs.
This Ford Transit Custom is powered by a 2.0L 4-cylinder engine that has 125 kW of power (at 3500 rpm) and 390 Nm of torque (at 1500 rpm) via a Six-speed Manual transmission. Ford claims the Transit Custom Base uses 6.6L/100km of Diesel in the combined city and highway cycle while putting out 171g of CO2. It has a 72L fuel tank, meaning it should be able to travel 1091km per full tank
The Ford Transit Custom measures 2343mm (92.2 inches) in height, 5340mm (210.2 inches) in length, 2080mm (81.9 inches) in width with a 3300mm (129.9 inches) wheelbase that brings about a total of 2041kg (4499.6 lbs) of unladen weight. The Transit Custom Base comes standard with 215/65 R16 front tyres and 215/65 R16 rear tyres. It requires a service every 12 months or 30,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Transit Custom compare?
Quickly see how the 2020 Ford Transit Custom Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
55.53 - 66.21 kW/t
39.13 kW/t
97.64 kW/t
Fuel Efficiency
6.5 - 7.3 L/100km
5 L/100km
12.4 L/100km
Vehicle Range
986 - 1,108 km
565 km
1,290 km
Price
$42,790 - $54,090
$25,490
$64,200
Warranty (Years)
5 years
3 years
5 years
Warranty (Distance)
Unlimited
160,000 km
Unlimited
Years on Sale
1 - 3 years
1 year
6 years
Service Interval
12 months
6 months
12 months
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,340 mm
2,080 mm
2,343 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,340 mm |
| Overall Width | 2,080 mm |
| Overall Height | 2,343 mm |
| Wheelbase | 3,300 mm |
| Turning Circle | 12,200 mm |
| Load Capacity | 1,359 mm |
Looking for complete Ford Transit Custom size & space specs?
Our Ford Transit Custom Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Ford Transit Custom Sales rolling 12-months#
Explore Ford Transit Custom Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Speed Limiter: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Smart Card/Smart Key
Includes Programmable Settings: yes
Type: Manual
Telematics
Tracker System: yes
Compressor
Compressor: Turbo
Number of Compressors: 1
Emission Control Level
CO2 Level (Combined): 171
Standard Met: Eu6.2 (C And D-Temp)
Engine
Bore Engine: 84.0
Engine (cc): 1995
Engine Configuration: In-Line
Engine Code: En-Cy
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 90.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 19.0
Main Capacity (L): 72
Main Capacity Uk Gallons: 15.8
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1091
ADR 81/02 Calculated Vehicle Range (miles): 678
ADR 81/02 Combined (km/L): 15.2
ADR 81/02 Combined (L/100km): 6.6
ADR 81/02 Combined (miles per UK gallon): 43
ADR 81/02 Combined (mpg): 36
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 6.6
Power
Maximum Power (hp/PS): 170
Maximum Power (kW): 125
Maximum Torque (Nm): 390
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Front
Transmission
Description: Manual
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 109
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 109
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Local Body Type: Panel Van
Platform Code: V36x
Roof Type: High
Wheelbase Type: Long
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 293.1
Cargo Volume (L): 8300
Height (in): 70.0
Height (mm): 1775
Length (in): 115.0
Length (mm): 2922
Loading Floor Height (in): 22.0
Loading Floor Height (mm): 559
Standard Measurement: SAE
Width Between Wheelhouses (in): 54.7
Width Between Wheelhouses (mm): 1390
Width (in): 69.9
Width (mm): 1775
External Dimensions
Kerb to Kerb Turning Circle (mm): 12200
Front Overhang (in): 39.8
Front Overhang (mm): 1012
Front Track (in): 68.3
Front Track (mm): 1736
Kerb To Kerb Turning Circle (ft): 40.0
Overall Height (in): 92.2
Overall Height (mm): 2343
Overall Length (in): 210.2
Overall Length (mm): 5340
Overall Width (in): 81.9
Overall Width (mm): 2080
Rear Overhang (in): 40.5
Rear Overhang (mm): 1028
Rear Track (in): 67.7
Rear Track (mm): 1720
Wheelbase (in): 129.9
Wheelbase (mm): 3300
Cargo Doors
Driver Height (in): 52.0
Driver Height (mm): 1320
Driver Internal Handles: yes
Driver Location: Driver
Driver Opening Angle: 0
Driver Operation: Sliding
Driver Width (in): 40.6
Driver Width (mm): 1030
Passenger Height (in): 52.1
Passenger Height (mm): 1324
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 40.6
Passenger Width (mm): 1030
Rear Height (in): 67.2
Rear Height (mm): 1706
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Rear Width (in): 55.3
Rear Width (mm): 1404
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Front Axle Weight (kg): 1292
Front Axle Weight (lb): 2848
Gross Trailer Weight Braked (kg): 2800
Gross Trailer Weight Braked (lb): 6173
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5365
Gross Train Weight (lb): 11828
Gross Vehicle Weight (kg): 3400
Gross Vehicle Weight (lb): 7496
Payload Allowance (kg): 1359
Payload Allowance (lb): 2996
Published Kerb Weight (kg): 2041
Published Kerb Weight (lb): 4500
Rear Axle Weight (kg): 778
Rear Axle Weight (lb): 1715
Tare Weight (kg): 1988
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Bulkhead
Solid Bulkhead Height: Full
Type: Solid
Solid Bulkhead Width: Full
Solid Bulkhead Window: yes
Overall Bulkhead Size
Full Height: yes
Full Width: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 8.0
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 4.2
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Date Tested: 20120101
ANCAP Overall: 5.00
ANCAP Rear Crash Protect Head Restraint Rating: Marginal
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Manufacturer Name: Blind Spot Information System (Blis)
Rear Cross Traffic Collision Avoidance
Type: Sensor
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Automatic Locking: yes
Operation: Remote
Intermediate Service
Distance (km): 30000
Distance (miles): 18641
Period (Months): 12
