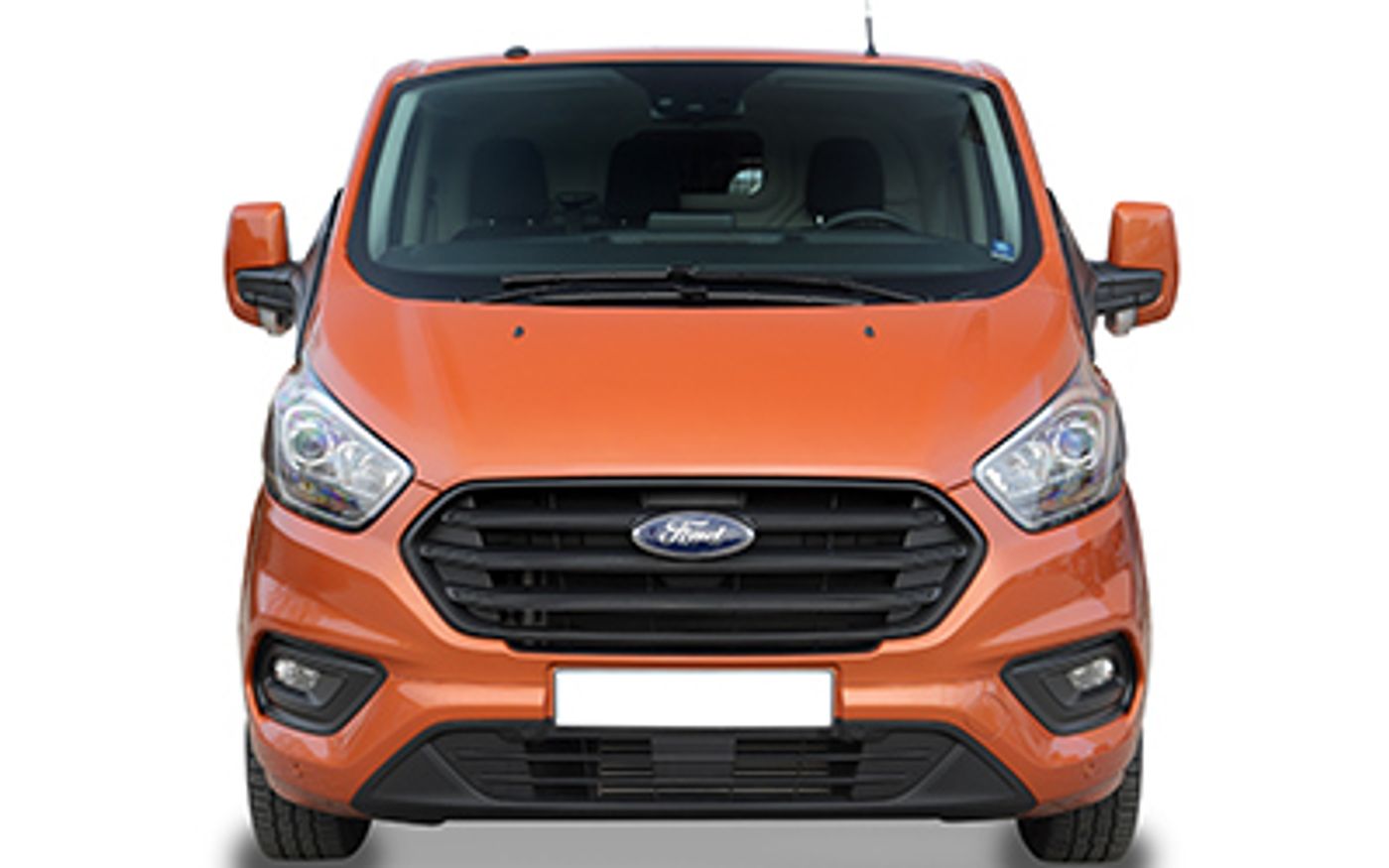

Ford Transit Custom Sport (2021) price & specs
Save $$$ with CarExpert*
From
$54,590â€
Sport
Overview
The 2021 Ford Transit Custom Sport is a front-wheel drive, 5-door Combi that was released to the Australian market on 1st March 2021. The Ford Transit Custom is regarded as a Van Under 3.5t built in Turkey with prices starting at $54,590 before on-road costs.
This Ford Transit Custom is powered by a 2.0L 4-cylinder engine that has 136 kW of power (at 3500 rpm) and 405 Nm of torque (at 1500 rpm) via a Six-speed Automatic transmission. Ford claims the Transit Custom Sport uses 7.3L/100km of Diesel in the combined city and highway cycle while putting out 190g of CO2. It has a 72L fuel tank, meaning it should be able to travel 986km per full tank
The Ford Transit Custom measures 2002mm (78.8 inches) in height, 5340mm (210.2 inches) in length, 2080mm (81.9 inches) in width with a 3300mm (129.9 inches) wheelbase that brings about a total of 2231kg (4918.5 lbs) of unladen weight. The Transit Custom Sport comes standard with 215/60 R17 front tyres and 215/60 R17 rear tyres. It requires a service every 12 months or 30,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Transit Custom compare?
Quickly see how the 2021 Ford Transit Custom Sport stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
55.53 - 66.21 kW/t
27.76 kW/t
81.55 kW/t
Fuel Efficiency
6.5 - 7.3 L/100km
4.9 L/100km
11.1 L/100km
Vehicle Range
986 - 1,108 km
649 km
1,290 km
Price
$42,790 - $55,390
$25,990
$70,606
Warranty (Years)
5 years
3 years
10 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
1 - 3 years
1 year
6 years
Service Interval
12 months
6 months
24 months
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,340 mm
2,080 mm
inc mirror: 2,272 mm
inc mirror: 2,272 mm
2,002 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,340 mm |
| Overall Width | 2,080 mm |
| Overall Width (Inc Mirror) | 2,272 mm |
| Overall Height | 2,002 mm |
| Wheelbase | 3,300 mm |
| Turning Circle | 12,200 mm |
| Load Capacity | 969 mm |
Looking for complete Ford Transit Custom size & space specs?
Our Ford Transit Custom Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Ford Transit Custom Sales rolling 12-months#
Explore Ford Transit Custom Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Remote Services
Beep Flash: yes
Find My Car: yes
Remote Lock Unlock: yes
Send Destination To Car: yes
Vehicle Start: yes
Smart Card/Smart Key
Includes Programmable Settings: yes
Type: Manual
USB Charging Port
Location: Front
Number of Ports in Front: 2
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 190
Standard Met: Eu6.2 (C And D-Temp)
Engine
Bore Engine: 84.0
Engine (cc): 1995
Engine Configuration: In-Line
Engine Code: En-Cy
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 90.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 19.0
Main Capacity (L): 72
Main Capacity Uk Gallons: 15.8
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 8.0
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 4.2
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 986
ADR 81/02 Calculated Vehicle Range (miles): 613
ADR 81/02 Combined (km/L): 13.7
ADR 81/02 Combined (L/100km): 7.3
ADR 81/02 Combined (miles per UK gallon): 39
ADR 81/02 Combined (mpg): 32
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 7.3
Power
Maximum Power (hp/PS): 185
Maximum Power (kW): 136
Maximum Torque (Nm): 405
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Front
Transmission
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Dash
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Front Wheels Two Tone: yes
Location: 1
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Rear Two Tone: yes
Body Style
Body Type: Combi
Cab Type: Double Cab
Local Body Type: Combi
Platform Code: V36x
Roof Type: Standard
Wheelbase Type: Long
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 241.2
Cargo Volume (L): 6830
Height (in): 55.4
Height (mm): 1775
Length (in): 115.0
Length (mm): 2922
Loading Floor Height (in): 22.0
Loading Floor Height (mm): 559
Standard Measurement: SAE
Width Between Wheelhouses (in): 54.7
Width Between Wheelhouses (mm): 1390
Width (in): 69.9
Width (mm): 1775
External Dimensions
Kerb to Kerb Turning Circle (mm): 12200
Front Overhang (in): 39.8
Front Overhang (mm): 1012
Front Track (in): 68.3
Front Track (mm): 1736
Kerb To Kerb Turning Circle (ft): 40.0
Overall Height (in): 78.8
Overall Height (mm): 2002
Overall Length (in): 210.2
Overall Length (mm): 5340
Overall Width Folded Mirror (in): 81.9
Overall Width Folded Mirror (mm): 2080
Overall Width (in): 81.9
Overall Width Inc Mirror (in): 89.4
Overall Width Inc Mirror (mm): 2272
Overall Width (mm): 2080
Rear Overhang (in): 40.5
Rear Overhang (mm): 1028
Rear Track (in): 67.7
Rear Track (mm): 1720
Wheelbase (in): 129.9
Wheelbase (mm): 3300
Cargo Doors
Driver Location: Driver
Driver Operation: Sliding
Passenger Height (in): 52.1
Passenger Height (mm): 1324
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 40.6
Passenger Width (mm): 1030
Rear Height (in): 53.0
Rear Height (mm): 1347
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Rear Width (in): 55.3
Rear Width (mm): 1404
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Sliding
Location: Rear Passenger
Rear Passenger Door Type: Sliding
Headlight Control
Auto Highbeam: yes
Directional Headlights: yes
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Bi-Xenon
Low Beam Bulb Type: Bi-Xenon
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Front Axle Weight (kg): 1379
Front Axle Weight (lb): 3040
Gross Trailer Weight Braked (kg): 1800
Gross Trailer Weight Braked (lb): 3968
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 4200
Gross Train Weight (lb): 9259
Gross Vehicle Weight (kg): 3200
Gross Vehicle Weight (lb): 7055
Payload Allowance (kg): 969
Payload Allowance (lb): 2136
Published Kerb Weight (kg): 2231
Published Kerb Weight (lb): 4919
Rear Axle Weight (kg): 852
Rear Axle Weight (lb): 1878
Tare Weight (kg): 2178
Audio System
Audio Player Reads MP3: yes
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 2
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Bulkhead
Solid Bulkhead Height: Full
Type: Solid
Solid Bulkhead Width: Full
Solid Bulkhead Window: yes
Overall Bulkhead Size
Full Height: yes
Full Width: yes
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number of Airbags: 6
Autonomous Drive
Level: 1 - Driver Assistance
Traffic Sign Response: yes
Crash Test Results
ANCAP Adult Occupant Score: 84.00
ANCAP Child Occupant Score: 90.00
ANCAP Date Tested: 20120101
ANCAP Overall: 5.00
ANCAP Pedestrian Score: 48.00
ANCAP Rating Year: 2012
ANCAP Rear Crash Protect Head Restraint Rating: Marginal
ANCAP Safety Assist Score: 71.00
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Lane Departure Warning
Activates Steering: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Bucket
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Ventilation System
Touch Screen Controls: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 30000
Distance (miles): 18641
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
