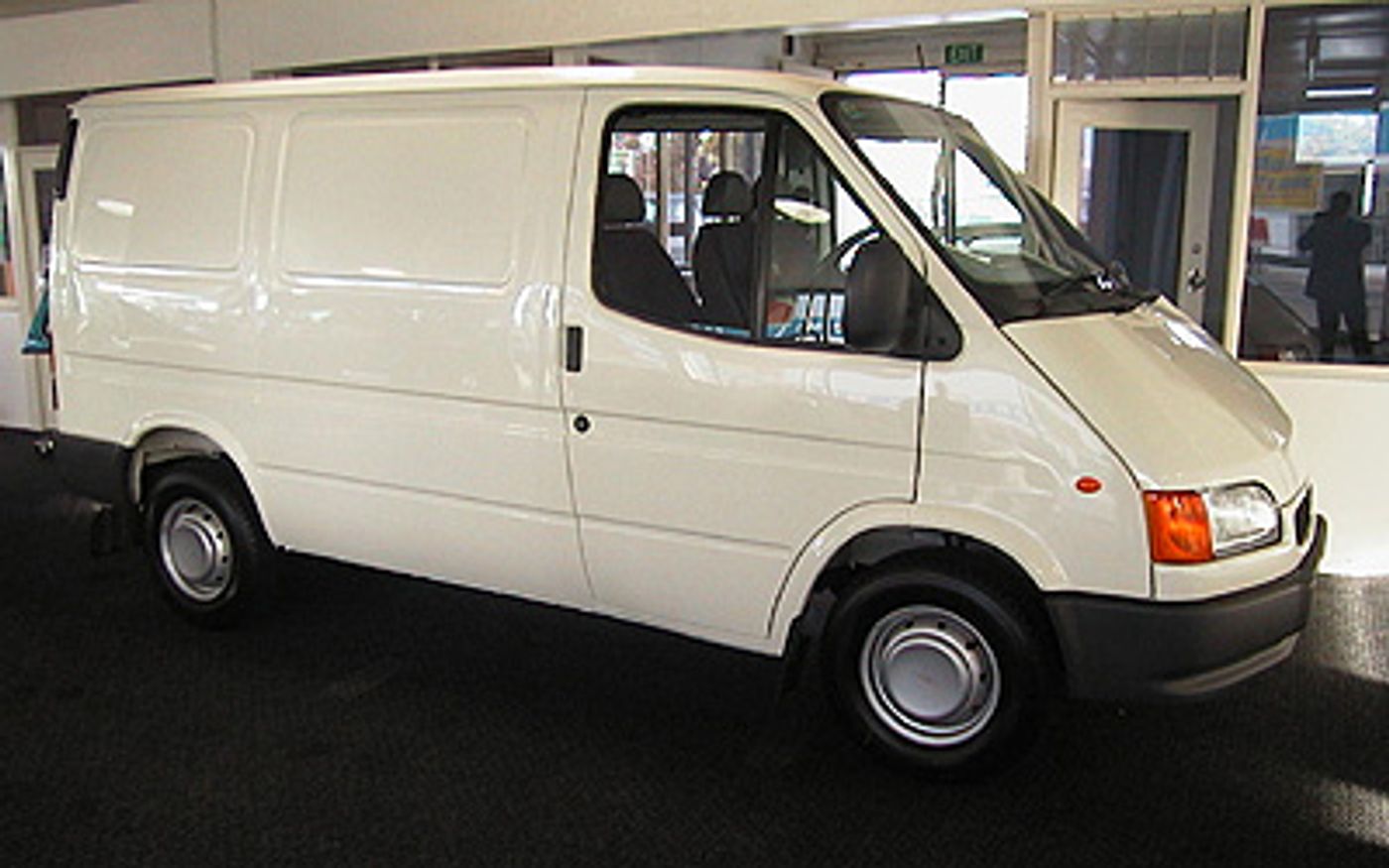

Ford Transit Base (1997) price & specs
Save $$$ with CarExpert*
From
$30,490â€
Base
Overview
The 1997 Ford Transit Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 4th January 1970. with prices starting at $30,490 before on-road costs.
This Ford Transit is powered by a 2.5L 4-cylinder engine that has 74 kW of power (at 4000 rpm) and 220 Nm of torque (at 2100 rpm) via a Five-speed Manual transmission. It has a 68L fuel tank
The Ford Transit measures 2043mm (80.4 inches) in height, 4616mm (181.7 inches) in length, 1974mm (77.7 inches) in width with a 2835mm (111.6 inches) wheelbase that brings about a total of 1675kg (3692.7 lbs) of unladen weight. The Transit Base comes standard with 215/70 R15 front tyres and 215/70 R15 rear tyres. It has a 36 month, 100,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Transit compare?
Quickly see how the 1997 Ford Transit Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
33.16 - 57.05 kW/t
33.16 kW/t
57.05 kW/t
Price
$25,690 - $37,640
$25,690
$45,974
Warranty (Years)
3 years
2 years
3 years
Warranty (Distance)
100,000 km
100,000 km
Years on Sale
6 - 7 years
1 year
5 years
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,616 mm
1,974 mm
2,043 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,616 mm |
| Overall Width | 1,974 mm |
| Overall Height | 2,043 mm |
| Wheelbase | 2,835 mm |
| Turning Circle | 11,300 mm |
| Load Capacity | 1,525 mm |
Looking for complete Ford Transit size & space specs?
Our Ford Transit Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Ford Transit Features & Specs
Catalytic Converter
Type: Diesel
Compressor
Compressor: Turbo
Engine
Bore Engine: 93.7
Engine (cc): 2496
Compression Ratio: 18.3
Engine Configuration: In-Line
Engine (L): 2.5
Engine Location: Front
Number of Cylinders: 4
Number of Valves per Cylinder: 2
Engine Orientation: Longitudinal
Stroke Engine: 90.6
Valve Gear Type: Overhead Valve
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Ignition Type: Diesel
Injection Carburetion: Diesel Direct Injection
Fuel Tanks
Main Capacity Gal: 18
Main Capacity (L): 68
Main Type: Total
Clock
Type: Analogue
Instrument Cluster
Type: Analogue
Odometer
Number of Odometers: 1
Oil Pressure
Type: Warning Light
Water Temperature
Type: Gauge
Power
Maximum Power (hp/PS): 101
Maximum Power (kW): 74
Maximum Torque (Nm): 220
Measurement Standard: SAE
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 2100
Drive
Driven Wheels: Rear
Transmission
Number of Speeds: 5
Type: Manual
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Speed Rating: S
Front Wheels Tire Width: 215
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Speed Rating: S
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 15
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6
Location: Rear
Rear Rim Diameter (In): 15
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Local Body Type: Panel Van
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Plastic
Rear Bumper Colour: Black
Location: Rear
Rear Bumper Material: Plastic
Cargo Area Dimensions
Cargo Volume (cu ft): 211.9
Cargo Volume (L): 6000
Height (in): 52.3
Height (mm): 1719
Length (in): 96.8
Length (mm): 2458
Loading Floor Height (in): 27
Loading Floor Height (mm): 687
Standard Measurement: SAE
Width Between Wheelhouses (in): 54.1
Width Between Wheelhouses (mm): 1374
Width (in): 67.7
Width (mm): 1719
External Dimensions
Kerb to Kerb Turning Circle (mm): 11300
Front Overhang (in): 35.2
Front Overhang (mm): 895
Front Track (in): 66.6
Front Track (mm): 1692
Kerb To Kerb Turning Circle (ft): 37.1
Overall Height (in): 80.4
Overall Height (mm): 2043
Overall Length (in): 181.7
Overall Length (mm): 4616
Overall Width (in): 77.7
Overall Width (mm): 1974
Rear Overhang (in): 34.9
Rear Overhang (mm): 886
Rear Track (in): 66.9
Rear Track (mm): 1700
Wheelbase (in): 111.6
Wheelbase (mm): 2835
Cargo Doors
Driver Height (in): 49.3
Driver Height (mm): 1252
Driver Internal Handles: yes
Driver Location: Driver
Driver Operation: Sliding
Driver Width (in): 40.6
Driver Width (mm): 1030
Passenger Height (in): 49.3
Passenger Height (mm): 1252
Passenger Internal Handles: yes
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 40.6
Passenger Width (mm): 1030
Rear Height (in): 49.8
Rear Height (mm): 1264
Rear Internal Handles: yes
Location: Rear
Rear Operation: Double Hinged
Rear Width (in): 60.6
Rear Width (mm): 1540
Headlights
Low Beam Bulb Type: Halogen
Configuration: Single
Lens Type: Conventional
Paint
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Externally Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Externally Adjustable
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Number of Windshield Wiper Speeds: 2
Weights
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Vehicle Weight (kg): 3200
Gross Vehicle Weight (lb): 7055
Payload Allowance (kg): 1210
Payload Allowance (lb): 2668
Published Kerb Weight (kg): 1675
Published Kerb Weight (lb): 3693
Audio System
Cassette Player: yes
Radio Type: Am/Fm
Speakers
Number of Speakers: 2
Load Restraint
Type: Hooks
Ashtray
Location: Front
Cigar Lighter
Illuminated Front Seat Lighter: yes
Location: Front Seats
Courtesy Lights
Number of Door Switches: 2
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Load Area Side Covering
Exposed Metal: Partial
Type: Plastic/Rubber
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Operation: Reel
Center Seat Position: Center
Center Type: 3-Point
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Location: Front Seats
Front Seat
Location: Centre
Center Front Seat Reclining: yes
Center Front Seat Type: Split Bench
Driver Front Seat Fore/Aft Adjustment: yes
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Reclining: yes
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reclining: yes
Passenger Front Seat Type: Split Bench
Seat Upholstery
Additional Seat Material: Vinyl
Main Seat Material: Cloth
Seating
Capacity: 3
Cup Holders
Location: Front Seats
Door Pockets Bins
Location: Driver
Location: Passenger
Glove Compartment
Lid: yes
Air Conditioning
CFC Free Liquid Aircon: yes
Ventilation System
Number of Fan Speeds: 3
Power Locks
Operation: key
