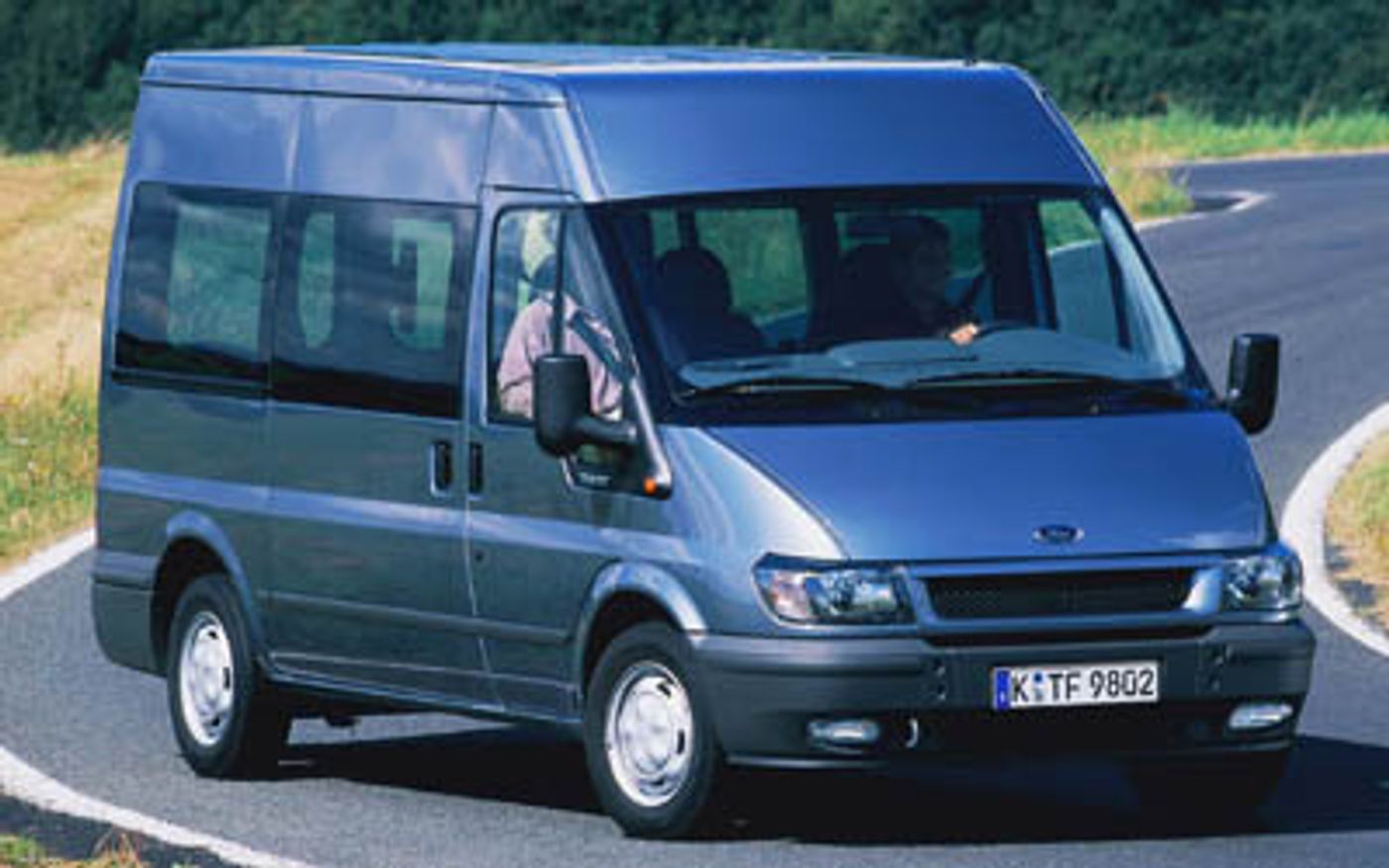

Ford Transit Base (2004) price & specs
Save $$$ with CarExpert*
From
$47,770â€
Base
Overview
The 2004 Ford Transit Base is a rear-wheel drive, 4-door Bus that was released to the Australian market on 4th January 1970 classified as a VJ. The Ford Transit is regarded as a people mover built in Great Britain with prices starting at $47,770 before on-road costs.
This Ford Transit is powered by a 2.4L 4-cylinder engine that has 92 kW of power (at 4000 rpm) and 285 Nm of torque (at 2300 rpm) via a Five-speed Manual transmission. It has a 80L fuel tank
The Ford Transit measures 2363mm (93.0 inches) in height, 5651mm (222.5 inches) in length, 1974mm (77.7 inches) in width with a 3750mm (147.6 inches) wheelbase that brings about a total of 2163kg (4768.6 lbs) of unladen weight. The Transit Base comes standard with 215/75 R16 front tyres and 215/75 R16 rear tyres. It has a 36 month, 100,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Transit compare?
Quickly see how the 2004 Ford Transit Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
39.3 - 48.36 kW/t
39.3 kW/t
48.36 kW/t
Price
$42,230 - $47,770
$42,230
$47,770
Warranty (Years)
3 years
3 years
Warranty (Distance)
100,000 km
100,000 km
Years on Sale
6 years
6 years
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,651 mm
1,974 mm
2,363 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,651 mm |
| Overall Width | 1,974 mm |
| Overall Height | 2,363 mm |
| Wheelbase | 3,750 mm |
| Turning Circle | 13,300 mm |
| Load Capacity | 1,387 mm |
Looking for complete Ford Transit size & space specs?
Our Ford Transit Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Ford Transit Features & Specs
Compressor
Compressor: Turbo
Engine
Bore Engine: 89.9
Engine (cc): 2402
Compression Ratio: 19
Engine Configuration: In-Line
Engine (L): 2.4
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 94.6
Valve Gear Type: Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Direct Injection
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Fuel Type: Diesel
Main Type: Total
Fuel Consumption
ADR 81/02 Standard: Adr 81/02
AS 2877 Standard: As 2877
Power
Maximum Power (hp/PS): 125
Maximum Power (kW): 92
Maximum Torque (Nm): 285
Measurement Standard: EEC
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 2300
Drive
Driven Wheels: Rear
Transmission
Automatic Clutch Manual: yes
Automatic Mode: yes
Code: Smartshift
Description: Automated Manual Sequential Trans (Amt)
Manual Sequential: yes
Number of Speeds: 5
Type: Manual
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Extra Load: ?
Location: Front
Front Wheels Tire Official Brochure Tire Size: yes
Front Wheels Tire Profile: 75
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Extra Load: ?
Rear Wheels Tire Location: Rear
Rear Wheels Tire Official Brochure Tire Size: yes
Rear Wheels Tire Profile: 75
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Front Covers: Partial
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Rear Covers: Partial
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: bus
Cab Type: Single Cab
Driver Location: RHD
Local Body Type: bus
Roof Type: Semi-High
Wheelbase Type: Long
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Step
Step Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Plastic
Rear Bumper Colour: Black
Location: Rear
Rear Bumper Material: Plastic
Cargo Area Dimensions
Cargo Volume (cu ft): 347.9
Cargo Volume (L): 9850
Height (in): 64.8
Height (mm): 1762
Length (in): 133.8
Length (mm): 3399
Loading Floor Height (in): 26.3
Loading Floor Height (mm): 668
Standard Measurement: SAE
Width Between Wheelhouses (in): 54.7
Width Between Wheelhouses (mm): 1390
Width (in): 69.4
Width (mm): 1762
External Dimensions
Kerb to Kerb Turning Circle (mm): 13300
Front Overhang (in): 35.6
Front Overhang (mm): 904
Front Track (in): 66.9
Front Track (mm): 1700
Kerb To Kerb Turning Circle (ft): 43.6
Overall Height (in): 93
Overall Height (mm): 2363
Overall Length (in): 222.5
Overall Length (mm): 5651
Overall Width (in): 77.7
Overall Width (mm): 1974
Rear Overhang (in): 39.3
Rear Overhang (mm): 997
Rear Track (in): 66.9
Rear Track (mm): 1700
Wheelbase (in): 147.6
Wheelbase (mm): 3750
Cargo Doors
Passenger Height (in): 57.7
Passenger Height (mm): 1465
Passenger Internal Handles: yes
Location: Passenger
Passenger Opening Angle: 0
Passenger Operation: Sliding
Passenger Width (in): 50.2
Passenger Width (mm): 1275
Rear Height (in): 61.7
Rear Height (mm): 1566
Rear Internal Handles: yes
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Rear Width (in): 60.6
Rear Width (mm): 1540
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Sliding
Headlight Control
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: Yellow
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Wide Angle Driver Door Mirrors/Cameras: yes
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Wide Angle Passenger Door Mirrors/Cameras: yes
Fourth Row Windows
Window Location: Driver
Driver Fourth Row Window Type: Hinged
Window Location: Passenger
Passenger Fourth Row Window Type: Hinged
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Driver
Driver Type: Sliding
Location: Passenger
Passenger Type: Sliding
Third Row Windows
Location: Driver
Driver Type: Fixed
Location: Passenger
Passenger Type: Fixed
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 1542
Front Axle Weight (lb): 3400
Gross Trailer Weight Braked (kg): 2050
Gross Trailer Weight Braked (lb): 4519
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5250
Gross Train Weight (lb): 11574
Gross Vehicle Weight (kg): 3550
Gross Vehicle Weight (lb): 7826
Payload Allowance (kg): 1358
Payload Allowance (lb): 2994
Published Kerb Weight (kg): 2163
Published Kerb Weight (lb): 4769
Rear Axle Weight (kg): 2008
Rear Axle Weight (lb): 4427
Audio Anti-Theft Protection
Type: Detachable Panel
Type: Code
Audio System
In-Dash CD: yes
Radio Type: Am/Fm
Speakers
Number of Speakers: 2
Cigar Lighter
Location: Front Seats
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Crash Test Results
ANCAP Standard: Ancap
Fourth Row Seat Belts
Center Seat Position: Centre
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Operation: Reel
Center Pre Tensioners: yes
Center Seat Position: Center
Center Type: 3-Point
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Location: 3rd Row Seats
3rd Row Seats Number: 3
Location: 4th Row Seats
4th Row Seats Number: 4
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 3
Rear Seats Location: Rear Seats
Rear Seats Number: 2
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Third Row Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Fourth Row Seats
Seating Capacity: 4
Type: Bench
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 12
Cup Holders
Location: Front Seats
Front Seats Type: Pop Out
Door Pockets Bins
Location: Driver
Location: Passenger
Air Conditioning
Rear Outlet: yes
Power Locks
Includes Trunk Hatch: yes
Operation: Remote
