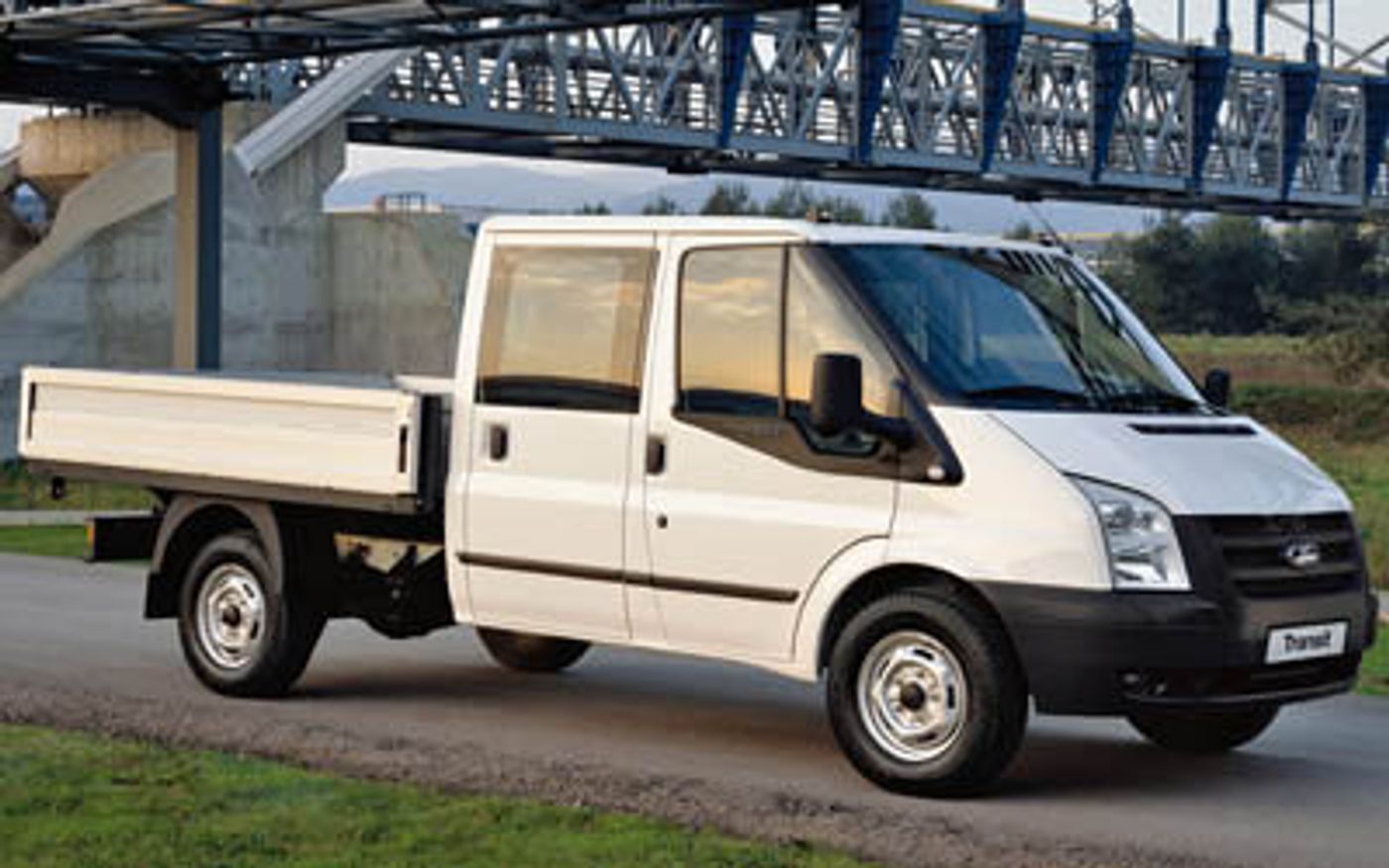

Ford Transit Base (2006) price & specs
Save $$$ with CarExpert*
From
$43,290â€
Base
Overview
The 2006 Ford Transit Base is a rear-wheel drive, 4-door Cab Chassis that was released to the Australian market on 4th January 1970 classified as a VM. The Ford Transit is regarded as a Van Over 3.5t built in Great Britain with prices starting at $43,290 before on-road costs.
This Ford Transit is powered by a 2.4L 4-cylinder engine that has 103 kW of power (at 3500 rpm) and 375 Nm of torque (at 2000 rpm) via a Six-speed Manual transmission. It has a 80L fuel tank
The Ford Transit measures 2030mm (79.9 inches) in height, 6319mm (248.8 inches) in length, 1974mm (77.7 inches) in width with a 3954mm (155.7 inches) wheelbase that brings about a total of 2012kg (4435.7 lbs) of unladen weight. The Transit Base comes standard with 195/75 R16 front tyres and 195/75 R16 rear tyres. It has a 36 month, 100,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Transit compare?
Quickly see how the 2006 Ford Transit Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
45.28 - 57.71 kW/t
31.78 kW/t
67.16 kW/t
Fuel Efficiency
8.2 - 11.9 L/100km
8.2 L/100km
11.9 L/100km
Price
$32,990 - $43,990
$32,990
$67,780
Warranty (Years)
3 years
3 years
Warranty (Distance)
100,000 km
100,000 km
200,000 km
Years on Sale
6 - 7 years
1 year
5 years
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
6,319 mm
1,974 mm
2,030 mm
| Specification | Measurement |
|---|---|
| Overall Length | 6,319 mm |
| Overall Width | 1,974 mm |
| Overall Height | 2,030 mm |
| Wheelbase | 3,954 mm |
| Turning Circle | 13,900 mm |
| Load Capacity | 2,238 mm |
Looking for complete Ford Transit size & space specs?
Our Ford Transit Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Ford Transit Features & Specs
Compressor
Compressor: Turbo
Engine
Bore Engine: 89.9
Engine (cc): 2402
Compression Ratio: 19
Engine Configuration: In-Line
Engine (L): 2.4
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 94.6
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Fuel Type: Diesel
Main Type: Total
Fuel Consumption
ADR 81/02 Standard: Adr 81/02
Power
Maximum Power (hp/PS): 140
Maximum Power (kW): 103
Maximum Torque (Nm): 375
Measurement Standard: EEC
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 2000
Drive
Driven Wheels: Rear
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Manual
Number of Speeds: 6
Type: Manual
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Extra Load: ?
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 195
Rear Wheels Tire Extra Load: ?
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 195
Wheels
Front Covers: Partial
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 5
Rear Axle Location: 1
Rear Axle Dual Wheel: yes
Rear Covers: Partial
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 5
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Driver Location: RHD
Local Body Type: Cab Chassis
Roof Type: low
Wheelbase Type: Extra Long
Bumpers
Front Bumper Colour: Black
Location: Front
External Dimensions
Kerb to Kerb Turning Circle (mm): 13900
Front Overhang (in): 36.7
Front Overhang (mm): 933
Kerb To Kerb Turning Circle (ft): 45.6
Overall Height (in): 79.9
Overall Height (mm): 2030
Overall Length (in): 248.8
Overall Length (mm): 6319
Overall Width (in): 77.7
Overall Width (mm): 1974
Rear Overhang (in): 56.4
Rear Overhang (mm): 1432
Wheelbase (in): 155.7
Wheelbase (mm): 3954
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: Yellow
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Driver
Driver Type: Fixed
Location: Passenger
Passenger Type: Fixed
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1850
Front Axle Weight (lb): 4079
Gross Trailer Weight Braked (kg): 2450
Gross Trailer Weight Braked (lb): 5401
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 6500
Gross Train Weight (lb): 14330
Gross Vehicle Weight (kg): 4250
Gross Vehicle Weight (lb): 9370
Payload Allowance (kg): 2238
Payload Allowance (lb): 4934
Published Kerb Weight (kg): 2012
Published Kerb Weight (lb): 4436
Rear Axle Weight (kg): 2950
Rear Axle Weight (lb): 6504
Antenna
Type: Roof
Audio System
In-Dash CD: yes
Radio Type: Am/Fm
Disc Player
Capacity: 6
Cigar Lighter
Location: Front Seats
Power Outlet 12V
Location (12V): Front
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Crash Test Results
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Operation: Reel
Center Seat Position: Center
Center Type: 3-Point
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 3
Side Airbag
Location: Front
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 7
Configuration: 3+4
Cup Holders
Location: Front Seats
Front Seats Type: Fixed
Power Locks
Includes Trunk Hatch: yes
Operation: Remote
