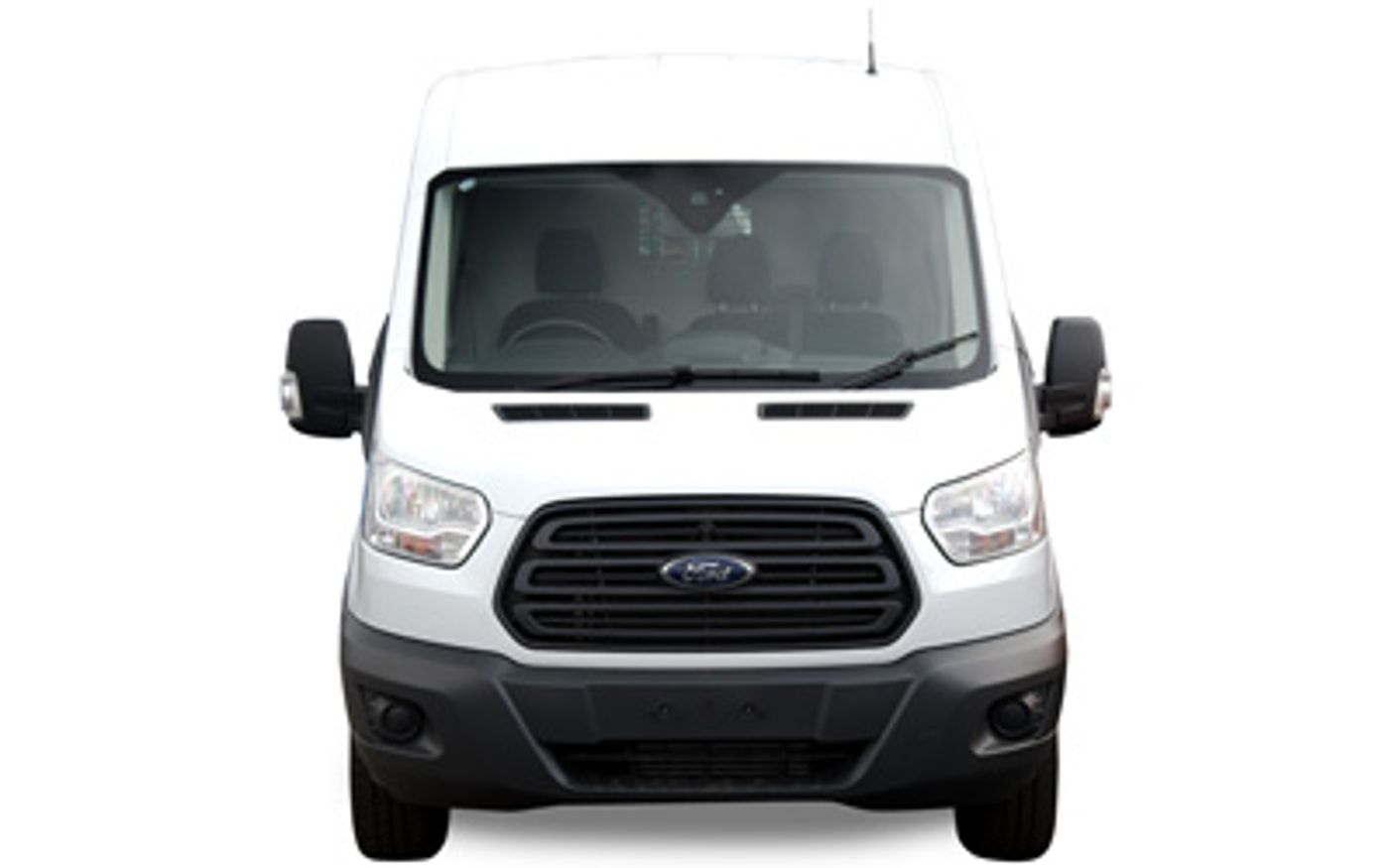

Ford Transit Base (2017) price & specs
Save $$$ with CarExpert*
From
$49,180â€
Base
Overview
The 2017 Ford Transit Base is a rear-wheel drive, 2-door Cab Chassis that was released to the Australian market on 4th January 1970 classified as a VO. The Ford Transit is regarded as a Van Over 3.5t built in Turkey with prices starting at $49,180 before on-road costs.
This Ford Transit is powered by a 2.2L 4-cylinder engine that has 114 kW of power (at 3500 rpm) and 385 Nm of torque (at 1600 rpm) via a Six-speed Manual transmission. It has a 100L fuel tank
The Ford Transit measures 2207mm (86.9 inches) in height, 6579mm (259.0 inches) in length, 2094mm (82.4 inches) in width with a 3954mm (155.7 inches) wheelbase that brings about a total of 2100kg (4629.7 lbs) of unladen weight. The Transit Base comes standard with 195/75 R16 front tyres and 195/75 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Transit compare?
Quickly see how the 2017 Ford Transit Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
42.74 - 54.29 kW/t
38.4 kW/t
61.91 kW/t
Price
$47,680 - $54,180
$47,680
$110,943
Warranty (Years)
3 - 5 years
3 years
5 years
Warranty (Distance)
100,000 km - Unlimited
100,000 km
Unlimited
Years on Sale
6 - 7 years
1 year
5 years
Service Interval
12 months
12 months
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
6,579 mm
2,094 mm
2,207 mm
| Specification | Measurement |
|---|---|
| Overall Length | 6,579 mm |
| Overall Width | 2,094 mm |
| Overall Height | 2,207 mm |
| Wheelbase | 3,954 mm |
| Turning Circle | 13,300 mm |
| Load Capacity | 2,390 mm |
Looking for complete Ford Transit size & space specs?
Our Ford Transit Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Ford Transit Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Speed Limiter: yes
Power Outlet 12V
Location (12V): Front
Compressor
Compressor: Turbo
Emission Control Level
Standard Met: EU5
Engine
Bore Engine: 86.0
Engine (cc): 2198
Engine Configuration: In-Line
Engine (L): 2.2
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 94.6
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 26.4
Main Capacity (L): 100
Main Capacity Uk Gallons: 22.0
Main Type: Total
Fuel Consumption
ADR 81/02 Standard: Adr 81/02
Power
Maximum Power (hp/PS): 155
Maximum Power (kW): 114
Maximum Torque (Nm): 385
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 1600
Drive
Driven Wheels: Rear
Transmission
Description: Manual
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 195
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 195
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.0
Location: 1
Rear Axle 1 Dual Wheel: yes
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.0
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Local Body Type: Cab Chassis
Platform Code: V36x
Roof Type: low
Wheelbase Type: Extra Long
Mud Flaps
Front Mud Flaps Location: Front
Bumpers
Front Bumper Colour: Black
Location: Front
External Dimensions
Kerb to Kerb Turning Circle (mm): 13300
Front Overhang (in): 40.3
Front Overhang (mm): 1023
Front Track (in): 68.5
Front Track (mm): 1740
Kerb To Kerb Turning Circle (ft): 43.6
Overall Height (in): 86.9
Overall Height (mm): 2207
Overall Length (in): 259.0
Overall Length (mm): 6579
Overall Width (in): 82.4
Overall Width (mm): 2094
Rear Overhang (in): 63.1
Rear Overhang (mm): 1602
Rear Track (in): 65.7
Rear Track (mm): 1670
Wheelbase (in): 155.7
Wheelbase (mm): 3954
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: Silver
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1850
Front Axle Weight (lb): 4079
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 7000
Gross Train Weight (lb): 15432
Gross Vehicle Weight (kg): 4490
Gross Vehicle Weight (lb): 9899
Payload Allowance (kg): 2390
Payload Allowance (lb): 5269
Published Kerb Weight (kg): 2100
Published Kerb Weight (lb): 4630
Rear Axle Weight (kg): 3100
Rear Axle Weight (lb): 6834
Audio System
Digital Radio: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number of Airbags: 6
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
