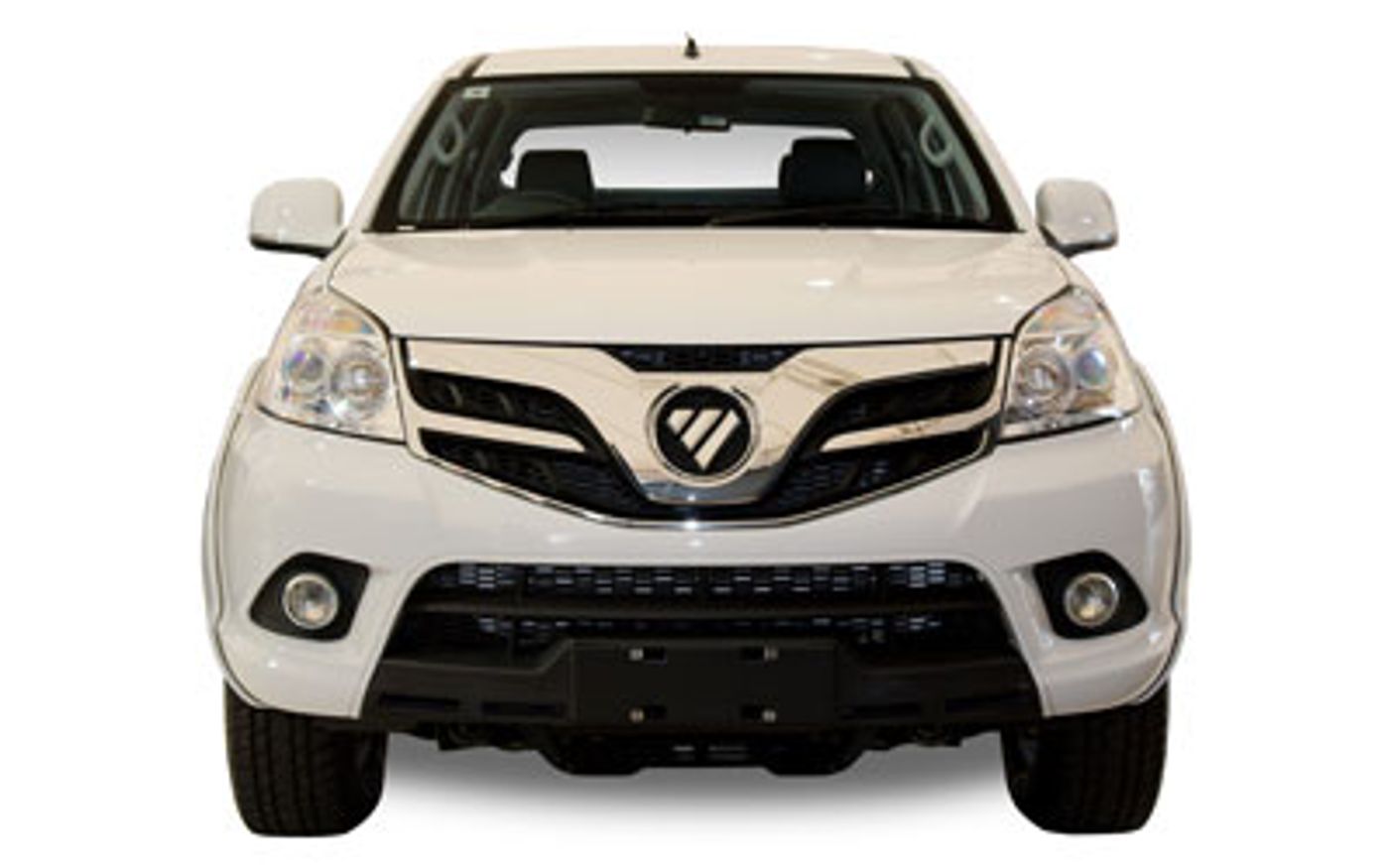

    Foton Tunland TH (2013) price & specs

    Better deals with CarExpert
    From
    $25,740†
    driveaway
    2.8L Diesel2D Cab Chassis5 SP MANUALRWD
    Hero image of a new Foton Tunland TH (2013) price & specs available with CarExpert deals.

    TH

    Find a deal

    Overview

    The 2013 Foton Tunland TH is a rear-wheel drive, 2-door Cab Chassis that was released to the Australian market on 1st November 2013. The Foton Tunland is regarded as an ute built in China with prices starting at $25,740 before on-road costs.

    This Foton Tunland is powered by a 2.8L 4-cylinder engine that has 96 kW of power (at 3600 rpm) and 280 Nm of torque (at 1400 rpm) via a Five-speed Manual transmission. Foton claims the Tunland TH uses 8.0L/100km of Diesel in the combined city and highway cycle while putting out 212g of CO2. It has a 76L fuel tank, meaning it should be able to travel 950km per full tank

    The Foton Tunland measures 1935mm (76.2 inches) in height, 5435mm (214.0 inches) in length, 1915mm (75.4 inches) in width with a 3115mm (122.6 inches) wheelbase that brings about a total of 1645kg (3626.6 lbs) of unladen weight. The Tunland TH comes standard with 245/70 R16 front tyres and 245/70 R16 rear tyres. It has a 36 month, 100,000 km warranty.

    The 2013 Foton Tunland TH has a 212mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.

    Ready to take the next step?

    Our New Car Specialists can help you secure the best deal. No stress. No running around. No extra cost. Delivery included.

    Compare CarsFind my deal

    How does the Tunland compare?

    Quickly see how the 2013 Foton Tunland TH stacks up against its competition.
     Select any benchmark to see more details.

    Power to Weight
    58.36 - 69.16 kW/t
    42 kW/t
    79.25 kW/t
    Fuel Efficiency
    8 - 8.4 L/100km
    7.3 L/100km
    11.1 L/100km
    Price
    $24,990 - $32,990
    $21,990
    $49,190
    Warranty (Years)
    3 years
    3 years
    5 years
    Warranty (Distance)
    100,000 km
    100,000 km
    Unlimited

    Towing & Off-Road Capability

    Gross Vehicle Weight
    2,870 - 2,975 kg
    2,750 kg
    3,500 kg
    Gross Comb. Mass
    5,370 - 5,475 kg
    4,480 kg
    5,950 kg
    Braked Towing Capacity
    2,500 kg
    1,800 kg
    3,500 kg
    Ground Clearance Unladen
    212 mm
    192 mm
    314 mm
    Payload Capacity
    970 - 1,225 kg
    726 kg
    1,648 kg

    Ready to take the next step?

    Our New Car Specialists can help you secure the best deal. No stress. No running around. No extra cost. Delivery included.

    Compare CarsFind my deal

    Dimensions

    5,435 mm
    1,915 mm
    1,935 mm
    SpecificationMeasurement
    Overall Length5,435 mm
    Overall Width1,915 mm
    Overall Height1,935 mm
    Wheelbase3,115 mm
    Turning Circle12,500 mm
    Load Capacity1,225 mm

    Looking for complete Foton Tunland size & space specs?

    Our Foton Tunland Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.

    Explore Foton Tunland Features & Specs

    TH

    2.8L, 5-speed manual, 2-door Cab Chassis, Diesel, RWD

    Better deals with CarExpert
    $25,740†
    driveaway
    Find a deal

    Compressor

    Compressor: Turbo

    Emission Control Level

    CO2 Level (Combined): 212
    Standard Met: EU4

    Engine

    Bore Engine: 94.0
    Engine (cc): 2776
    Engine Configuration: In-Line
    Engine Code: Cummings Isf 2.8s416p
    Engine (L): 2.8
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 100.0
    Valve Gear Type: Overhead Cam

    Fuel

    Generic Primary Fuel Type: Diesel
    Minimum Fuel Type: Diesel
    Fuel Type: Diesel

    Fuel System

    Injection Carburetion: Diesel Common Rail

    Fuel Tanks

    Main Capacity Gal: 20.1
    Main Capacity (L): 76
    Main Capacity Uk Gallons: 16.7
    Main Type: Total

    Interested in buying a Foton Tunland TH?

    Better deals with CarExpert
    From
    $25,740†
    Find a deal

    Fuel Consumption

    ADR 81/02 Combined (km/L): 12.5
    ADR 81/02 Combined (L/100km): 8.0
    ADR 81/02 Combined (miles per UK gallon): 35
    ADR 81/02 Combined (mpg): 29
    ADR 81/02 Country Highway (km/L): 14.1
    ADR 81/02 Country Highway (L/100km): 7.1
    ADR 81/02 Country Highway (miles per UK gallon): 40
    ADR 81/02 Country Highway (mpg): 33
    ADR 81/02 Standard: Adr 81/02
    ADR 81/02 Urban (km/L): 10.5
    ADR 81/02 Urban (L/100km): 9.5
    ADR 81/02 Urban (miles per UK gallon): 30
    ADR 81/02 Urban (mpg): 25

    Fuel Economy

    ADR 81/02 (L/100km): 8.0

    Power

    Maximum Power (hp/PS): 131
    Maximum Power (kW): 96
    Maximum Torque (Nm): 280
    Primary or Secondary Fuel Power Figure: Primary
    Rpm For Maximum Power Low: 3600
    Rpm For Maximum Torque Low: 1400

    Drive

    Driven Wheels: Rear

    Limited Slip Differential

    Location: Rear
    Rear Type: Mechanical

    Transmission

    Description: Manual
    Number of Speeds: 5
    Type: Manual

    Disc Brakes

    Number of Disc Brakes: 2
    Number of Ventilated Disc Brakes: 2

    Power Steering

    Type: Hydraulic

    Steering Wheel

    Height Adjustment: yes
    Type: Leather Covered

    Suspension

    Location: Front
    Front Spring Type: Coil
    Front Stabilizer Bar: yes
    Front Type: Wishbone
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Leaf
    Rear Type: Beam
    Rear Wheel Dependence: Rigid

    Tires

    Location: Front
    Front Wheels Tire Profile: 70
    Front Wheels Tire Type: Mud & Snow
    Front Wheels Tire Width: 245
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 70
    Rear Wheels Tire Type: Mud & Snow
    Rear Wheels Tire Width: 245

    Wheels

    Location: Front
    Front Wheels Rim Diameter (In): 16
    Front Wheels Rim Type: Steel
    Front Wheels Rim Width (In): 7.0
    Location: 1
    Location: Rear
    Rear Rim Diameter (In): 16
    Rear Rim Type: Steel
    Rear Wheels Rim Width (In): 7.0

    Body Style

    Body Type: Cab Chassis
    Cab Type: Single Cab
    Local Body Type: Cab Chassis
    Roof Type: Standard
    Wheelbase Type: Long

    Bumpers

    Front Bumper Colour: Painted
    Location: Front

    External Dimensions

    Kerb to Kerb Turning Circle (mm): 12500
    Front Overhang (in): 36.4
    Front Overhang (mm): 925
    Front Track (in): 63.0
    Front Track (mm): 1600
    Ground Clearance Unladen (in): 8.3
    Ground Clearance Unladen (mm): 212
    Kerb To Kerb Turning Circle (ft): 41.0
    Overall Height (in): 76.2
    Overall Height (mm): 1935
    Overall Length (in): 214.0
    Overall Length (mm): 5435
    Overall Width (in): 75.4
    Overall Width (mm): 1915
    Rear Overhang (in): 38.2
    Rear Overhang (mm): 970
    Rear Track (in): 62.4
    Rear Track (mm): 1585
    Wheelbase (in): 122.6
    Wheelbase (mm): 3115

    Headlight Control

    Height Adjustment: Manual
    Internal Height Adjustment: yes

    Headlights

    Low Beam Bulb Type: Halogen

    Paint

    External Colour: White
    Type: Metallic

    Door Mirrors/Cameras

    Driver Door Mirrors/Cameras Colour: Painted
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Painted
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable

    Power Windows

    Front Electric Windows: Front

    Rear Side Windows

    Location: Driver
    Driver Type: Wind-Up
    Location: Passenger
    Passenger Type: Wind-Up

    Rear View Mirror Camera

    Auto Dimming: yes

    Windshield Wipers

    Intermittent Wipe Windshield Wipers: Variable

    Weights

    Gross Trailer Weight Braked (kg): 2500
    Gross Trailer Weight Braked (lb): 5512
    Gross Trailer Weight Unbraked (kg): 750
    Gross Trailer Weight Unbraked (lb): 1653
    Gross Train Weight (kg): 5370
    Gross Train Weight (lb): 11839
    Gross Vehicle Weight (kg): 2870
    Gross Vehicle Weight (lb): 6327
    Payload Allowance (kg): 1225
    Payload Allowance (lb): 2701
    Published Kerb Weight (kg): 1645
    Published Kerb Weight (lb): 3627
    Tare Weight (kg): 1589

    Audio System

    CD Player Reads MP3: yes
    In-Dash CD: yes
    Radio Type: Am/Fm

    External Connections

    Aux Jack (Front): yes
    USB (Front): yes

    Remote Audio Controls

    Type: Steering Wheel Mounted

    Speakers

    Number of Speakers: 2

    Bluetooth

    Includes Phone Connection: yes

    Power Outlet 12V

    Location (12V): Front

    Floor Covering

    Vehicle Cab Compartment: Textile

    Luxury Trim

    Centre Floor Console: Alloy Look
    Doors: Wood Or Woodlook
    Instrument Panel: Alloy Look

    Front Airbag

    Location: Driver
    Location: Passenger

    Front Seat Belts

    Driver Height Adjustable: yes
    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Passenger Height Adjustable: yes
    Passenger Pre Tensioners: yes
    Passenger Seat Position: Passenger

    Head Restraints

    Front Seats Location: Front Seats

    Front Seat

    Driver Front Seat Height Type: Manual
    Location: Driver
    Driver Front Seat Lumbar Type: Manual
    Driver Front Seat Reach Type: Manual
    Driver Front Seat Type: Bucket
    Location: Passenger
    Passenger Front Seat Reach Type: Manual
    Passenger Front Seat Type: Bucket

    Seat Upholstery

    Additional Seat Material: Cloth
    Main Seat Material: Cloth

    Seating

    Capacity: 2
    Configuration: 2+0

    Cup Holders

    Location: Front Seats

    Air Conditioning

    Type: Manual

    Power Locks

    Operation: Remote

    Intermediate Service

    Distance (km): 20000
    Distance (miles): 12427
