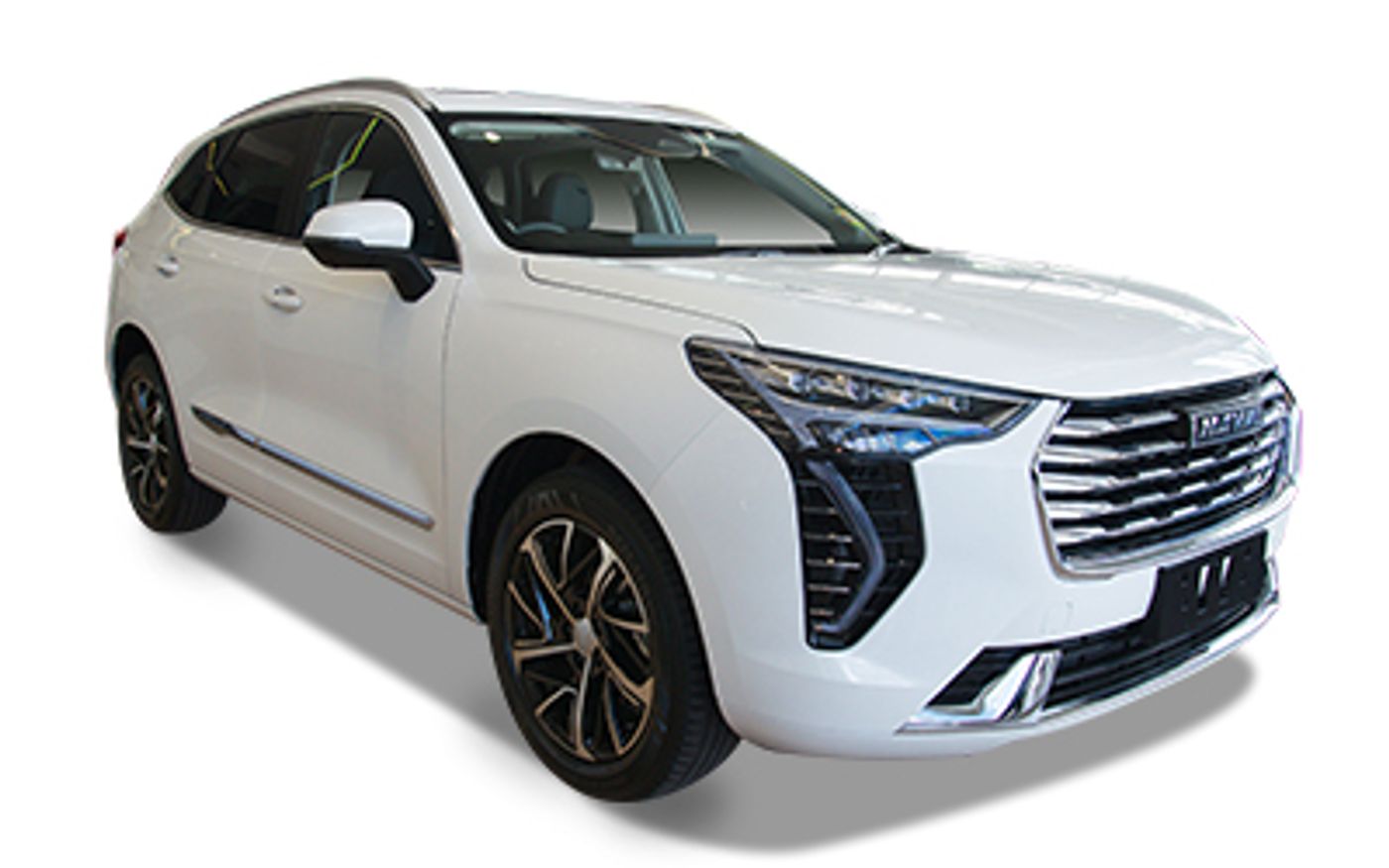

GWM Haval Jolion LUX (2023) price & specs
Save $$$ with CarExpert*
From
$29,790â€
LUX
Overview
The 2023 GWM Haval Jolion LUX is a front-wheel drive, 5-door SUV that was released to the Australian market on 5th June 2024 classified as a A01. The GWM Haval Jolion is regarded as a small SUV built in China with prices starting at $29,790 before on-road costs.
This GWM Haval Jolion is powered by a 1.5L 4-cylinder engine that has 110 kW of power (at 5600 rpm) and 220 Nm of torque (at 2000 rpm) via a Seven-speed Automatic transmission. GWM claims the Haval Jolion LUX uses 8.1L/100km of Unleaded in the combined city and highway cycle while putting out 186g of CO2. It has a 55L fuel tank, meaning it should be able to travel 679km per full tank
The GWM Haval Jolion measures 1574mm (62.0 inches) in height, 4472mm (176.1 inches) in length, 1841mm (72.5 inches) in width with a 2700mm (106.3 inches) wheelbase that brings about a total of 1370kg (3020.3 lbs) of unladen weight. The Haval Jolion LUX comes standard with 215/60 R17 front tyres and 215/60 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 84 month, unlimited km warranty.
The 2023 GWM Haval Jolion LUX has a 168mm ground clearance with a 1500kg braked and 710kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Haval Jolion compare?
Quickly see how the 2023 GWM Haval Jolion LUX stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
73.38 - 90.85 kW/t
61.39 kW/t
133.67 kW/t
Boot Space
337 - 430 litres
150 litres
615 litres
Fuel Efficiency
5 - 8.1 L/100km
1.5 L/100km
9.5 L/100km
Vehicle Range
679 - 1,100 km
224 km
3,733 km
Price
$27,290 - $39,490
$27,290
$145,600
Warranty (Years)
7 years
5 years
10 years
Warranty (Distance)
Unlimited
150,000 km
Unlimited
Service Interval
12 months
12 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
1,905 - 2,075 kg
1,835 kg
2,960 kg
Braked Towing Capacity
1,500 kg
480 kg
3,500 kg
Approach Angle
17.8 - 22°
17.5°
22°
Departure Angle
22 - 23.1°
18.7°
28°
Ground Clearance Unladen
165 - 168 mm
97 mm
230 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,472 mm
1,841 mm
1,574 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,472 mm |
| Overall Width | 1,841 mm |
| Overall Height | 1,574 mm |
| Wheelbase | 2,700 mm |
| Turning Circle | 11,500 mm |
| Load Capacity | 705 mm |
Looking for complete GWM Haval Jolion size & space specs?
Our GWM Haval Jolion Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
GWM Haval Jolion Sales rolling 12-months#
Explore GWM Haval Jolion Features & Specs
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Steering: yes
Traction Control: yes
Embedded Infotainment User Interface
UI Number of Months Online Services: Unlimited
Entertainment Display Screen
Location: Front
Front Screen Size (in): 10.25
Front Touch Screen: yes
Illuminated Entry System
Logo Projection: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
USB Charging Port
Location: Front
Number of Ports in Front: 3
Location: Rear
Number of Ports in Rear: 2
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Vehicle 360 View Camera
3D Enhanced View: yes
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 154
CO2 Level (Combined): 186
CO2 Level (Urban): 239
Standard Met: EU5
Engine
Engine (cc): 1497
Engine Configuration: In-Line
Engine Code: Gw4g15k
Engine (L): 1.5
Number of Cylinders: 4
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 14.5
Main Capacity (L): 55
Main Capacity Uk Gallons: 12.1
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 10.25
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 7.00
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 679
ADR 81/02 Calculated Vehicle Range (miles): 422
ADR 81/02 Combined (km/L): 12.3
ADR 81/02 Combined (L/100km): 8.1
ADR 81/02 Combined (miles per UK gallon): 35
ADR 81/02 Combined (mpg): 29
ADR 81/02 Country Highway (km/L): 14.9
ADR 81/02 Country Highway (L/100km): 6.7
ADR 81/02 Country Highway (miles per UK gallon): 42
ADR 81/02 Country Highway (mpg): 35
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 9.6
ADR 81/02 Urban (L/100km): 10.4
ADR 81/02 Urban (miles per UK gallon): 27
ADR 81/02 Urban (mpg): 23
Fuel Economy
ADR 81/02 (L/100km): 8.1
Performance
Maximum Speed (km/h): 180
Maximum Speed (mph): 112
Power
Maximum Power (hp/PS): 150
Maximum Power (kW): 110
Maximum Torque (Nm): 220
Measurement Standard: SAE
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5600
Rpm For Maximum Torque Low: 2000
Drive
Descent Control System: yes
Driven Wheels: Front
Transmission
Code: 7dct450
Description: Dual Clutch Sequential Trans (Dct)
Gear Change Paddles: yes
Manual Mode: yes
Manual Sequential: yes
Number of Speeds: 7
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Type: Alloy & Leather
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Torsion Beam
Rear Wheel Dependence: Semi-Independent
Tires
Front Wheels Tire Load Index: 96
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Mud & Snow
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 96
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Mud & Snow
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.5
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.5
Rear Two Tone: yes
Cargo Capacity
Frunk Capacity (cu ft): 0.0
Frunk Capacity (L): 0
Measurement Standard: Manufacturer’S Own
Rear Seat Down (cu ft): 40.0
Rear Seat Down (L): 1133
Rear Seat Up to Lower Window (cu ft): 15.2
Rear Seat Up to Lower Window (L): 430
External Dimensions
Kerb to Kerb Turning Circle (mm): 11500
Front Track (in): 62.1
Front Track (mm): 1577
Ground Clearance Unladen (in): 6.6
Ground Clearance Unladen (mm): 168
Kerb To Kerb Turning Circle (ft): 37.7
Overall Height (in): 62.0
Overall Height (mm): 1574
Overall Length (in): 176.1
Overall Length (mm): 4472
Overall Width (in): 72.5
Overall Width (mm): 1841
Rear Track (in): 62.9
Rear Track (mm): 1597
Wheelbase (in): 106.3
Wheelbase (mm): 2700
Ramp Angles
Approach Angle: 22.0
Departure Angle: 22.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: L.E.M.O.N.
Wheelbase Type: Short
Spoiler
Location: Roof
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Blue
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1500
Gross Trailer Weight Braked (lb): 3307
Gross Trailer Weight Unbraked (kg): 710
Gross Trailer Weight Unbraked (lb): 1565
Gross Vehicle Weight (kg): 2075
Gross Vehicle Weight (lb): 4575
Published Kerb Weight (kg): 1370
Published Kerb Weight (lb): 3020
Tare Weight (kg): 1336
Trailer Noseweight (kg): 150
Audio System
Colour Screen: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total 3rd Row USB Connections: 0
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Centre Floor Console: Carbon Fibre Look
Doors: Carbon Fibre Look
Gear Selector: Alloy Look
Instrument Panel: Carbon Fibre Look
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
Highway Assist: yes
Level: 2 - Partial Automation
Traffic Jam Assist: yes
Traffic Sign Response: yes
Crash Test Results
ANCAP Adult Occupant Score: 90.0
ANCAP Child Occupant Score: 84.0
ANCAP Date Tested: 20220901
ANCAP Overall: 5.0
ANCAP Pedestrian Score: 64.0
ANCAP Rating Year: 2022
ANCAP Safety Assist Score: 92.0
ANCAP Standard: Ancap
ANCAP Version Tested: Jolion Lux Rhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Overtaking Sensor
Active Without Turn Signal: yes
Buzzer: yes
Manufacturer Code: Blind Spot Monitoring (Bsm)
Rear Cross Traffic Collision Avoidance
Includes Braking: yes
Type: Sensor & Camera
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Number of Electrical Adjustments: 3
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Bucket
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Synthetic Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Engine Heater: yes
Touch Screen Controls: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
