Base
2.0L, 6-speed manual, 2-door Cab Chassis, Diesel, RWD
Save $$$ with CarExpert*
$18,990â€

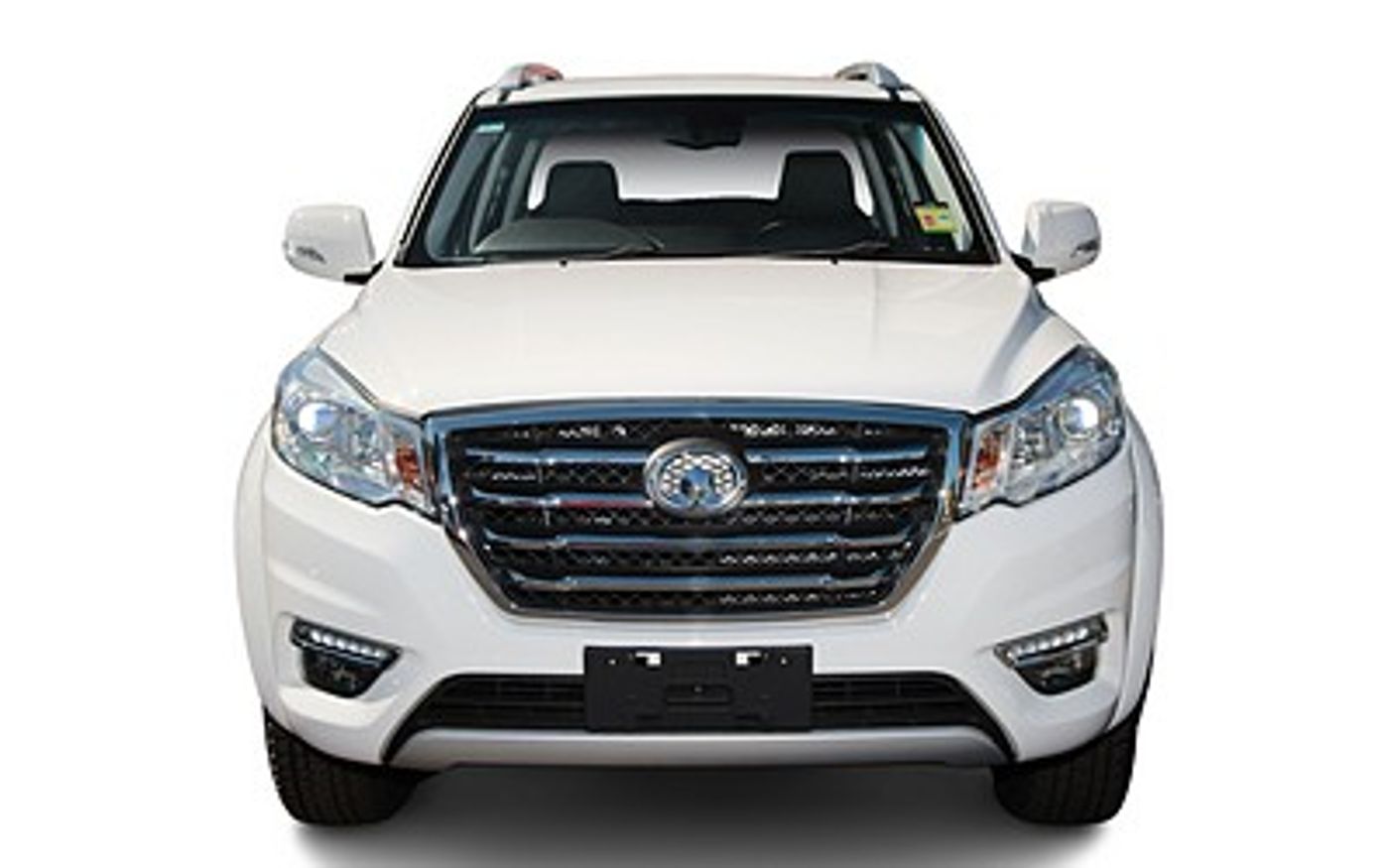

GWM Steed Base (2018) price & specs
Save $$$ with CarExpert*
From
$18,990â€
Base
Overview
The 2018 GWM Steed Base is a rear-wheel drive, 2-door Cab Chassis that was released to the Australian market on 6th August 2020. The GWM Steed is regarded as a Pickup built in China with prices starting at $18,990 before on-road costs.
This GWM Steed is powered by a 2.0L 4-cylinder engine that has 110 kW of power (at 4000 rpm) and 310 Nm of torque (at 1800 rpm) via a Six-speed Manual transmission. GWM claims the Steed Base uses 8.2L/100km of Diesel in the combined city and highway cycle while putting out 212g of CO2. It has a 70L fuel tank, meaning it should be able to travel 854km per full tank
The GWM Steed measures 1730mm (68.1 inches) in height, 5015mm (197.4 inches) in length, 1800mm (70.9 inches) in width with a 3050mm (120.1 inches) wheelbase that brings about a total of 1534kg (3381.9 lbs) of unladen weight. The Steed Base comes standard with 235/70 R16 front tyres and 235/70 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, 150,000 km warranty.
The 2018 GWM Steed Base has a 171mm ground clearance with a 1700kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Steed compare?
Quickly see how the 2018 GWM Steed Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
57.89 - 71.71 kW/t
53.79 kW/t
111.71 kW/t
Fuel Efficiency
8.2 - 12.7 L/100km
6.3 L/100km
12.7 L/100km
Vehicle Range
551 - 854 km
551 km
1,270 km
Price
$17,990 - $26,990
$17,990
$169,950
Warranty (Years)
3 - 5 years
3 years
7 years
Warranty (Distance)
100,000 - 150,000 km
100,000 km
Unlimited
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,732 - 2,920 kg
2,700 kg
5,309 kg
Gross Comb. Mass
4,480 - 4,585 kg
4,435 kg
11,479 kg
Braked Towing Capacity
1,700 - 2,000 kg
1,700 kg
6,942 kg
Approach Angle
25°
15.2°
35°
Departure Angle
21°
18°
29°
Ground Clearance Unladen
171 mm
171 mm
283 mm
Payload Capacity
1,010 - 1,263 kg
748 kg
1,713 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,015 mm
1,800 mm
1,730 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,015 mm |
| Overall Width | 1,800 mm |
| Overall Height | 1,730 mm |
| Wheelbase | 3,050 mm |
| Load Capacity | 1,246 mm |
Looking for complete GWM Steed size & space specs?
Our GWM Steed Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore GWM Steed Features & Specs
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 212
Standard Met: EU5
Engine
Bore Engine: 83.1
Engine (cc): 1996
Engine Configuration: In-Line
Engine Code: Gw4d20b
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 92.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 18.5
Main Capacity (L): 70
Main Capacity Uk Gallons: 15.4
Main Type: Total
Computer
Average Fuel Consumption: yes
Range for Remaining Fuel: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 854
ADR 81/02 Calculated Vehicle Range (miles): 531
ADR 81/02 Combined (km/L): 12.2
ADR 81/02 Combined (L/100km): 8.2
ADR 81/02 Combined (miles per UK gallon): 34
ADR 81/02 Combined (mpg): 29
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 8.2
Power
Maximum Power (hp/PS): 150
Maximum Power (kW): 110
Maximum Torque (Nm): 310
Measurement Standard: SAE
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 1800
Drive
Driven Wheels: Rear
Transmission
Description: Manual
Number of Speeds: 6
Shift Lever Location: Floor
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 106
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Speed Rating: S
Front Wheels Tire Type: Mud & Snow
Front Wheels Tire Width: 235
Rear Wheels Tire Load Index: 106
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Speed Rating: S
Rear Wheels Tire Type: Mud & Snow
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Local Body Type: Cab Chassis
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
External Dimensions
Front Overhang (in): 34.4
Front Overhang (mm): 875
Front Track (in): 59.6
Front Track (mm): 1515
Ground Clearance Unladen (in): 6.7
Ground Clearance Unladen (mm): 171
Overall Height (in): 68.1
Overall Height (mm): 1730
Overall Length (in): 197.4
Overall Length (mm): 5015
Overall Width (in): 70.9
Overall Width (mm): 1800
Rear Track (in): 60.0
Rear Track (mm): 1525
Wheelbase (in): 120.1
Wheelbase (mm): 3050
Ramp Angles
Approach Angle: 25.0
Departure Angle: 21.0
Bumpers
Front Bumper Colour: Painted
Location: Front
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 1700
Gross Trailer Weight Braked (lb): 3748
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 4480
Gross Train Weight (lb): 9877
Gross Vehicle Weight (kg): 2780
Gross Vehicle Weight (lb): 6129
Payload Allowance (kg): 1246
Payload Allowance (lb): 2747
Published Kerb Weight (kg): 1534
Published Kerb Weight (lb): 3382
Tare Weight (kg): 1483
Audio System
Audio Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Power Outlet 12V
Location (12V): Front
Floor Covering
Vehicle Cab Compartment: Textile
Luxury Trim
Doors: Alloy Look
Gear Selector: Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 2
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
