GWM Cannon Cannon (2021) price & specs
Save $$$ with CarExpert*
From
$37,990â€
Cannon
Overview

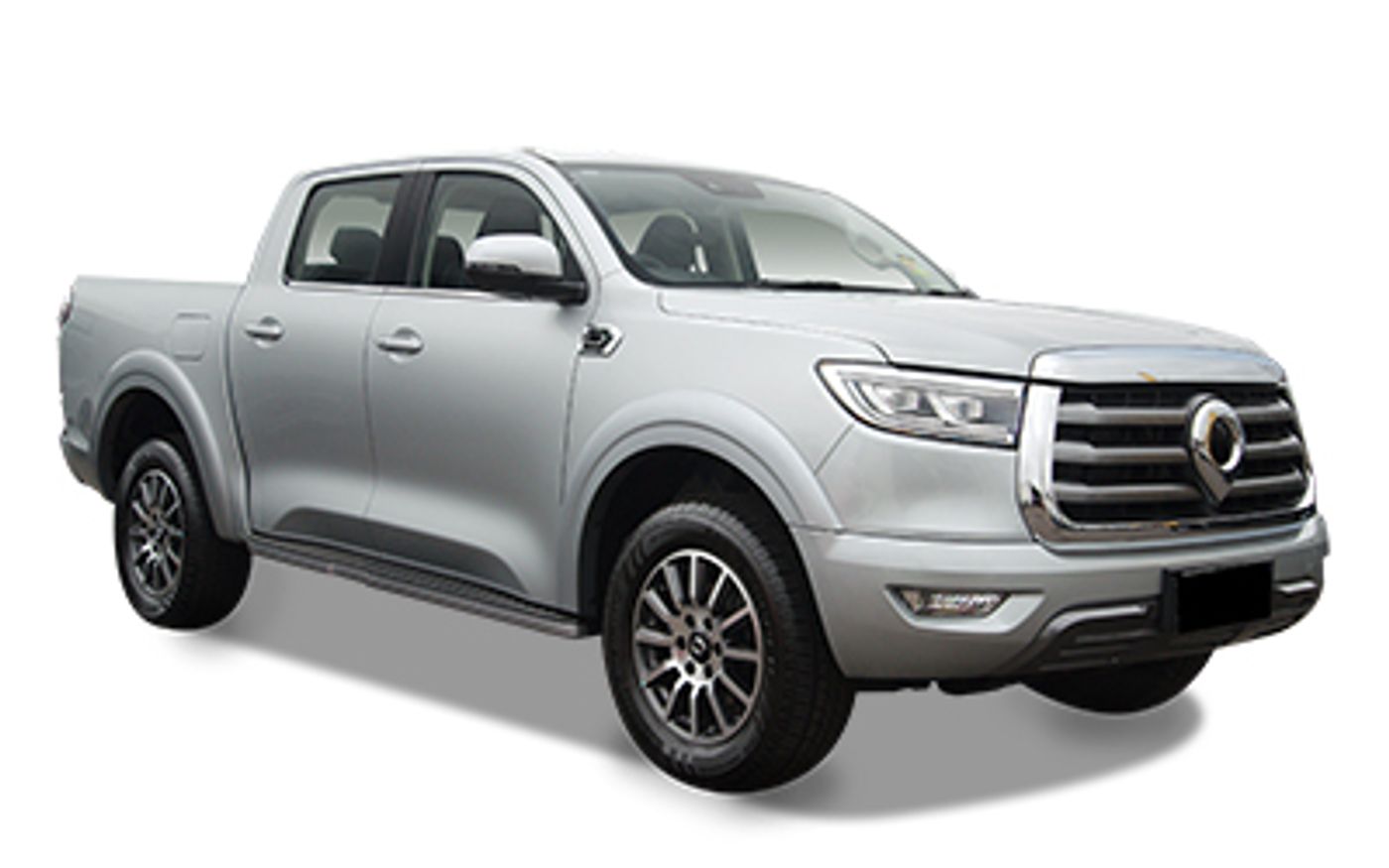

The 2021 GWM Cannon Cannon is a four-wheel drive, 4-door Utility that was released to the Australian market on 2nd February 2022 classified as a P71. The GWM Cannon is regarded as a Pickup built in China with prices starting at $37,990 before on-road costs.
This GWM Cannon is powered by a 2.0L 4-cylinder engine that has 120 kW of power (at 3600 rpm) and 400 Nm of torque (at 1500 rpm) via an Eight-speed Automatic transmission. GWM claims the Cannon Cannon uses 9.4L/100km of Diesel in the combined city and highway cycle while putting out 246g of CO2. It has a 78L fuel tank, meaning it should be able to travel 830km per full tank
The GWM Cannon measures 1886mm (74.3 inches) in height, 5410mm (213.0 inches) in length, 1934mm (76.1 inches) in width with a 3230mm (127.2 inches) wheelbase that brings about a total of 2076kg (4576.8 lbs) of unladen weight. The Cannon Cannon comes standard with 265/60 R18 front tyres and 265/60 R18 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 84 month, unlimited km warranty.
The 2021 GWM Cannon Cannon has a 194mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Cannon compare?
Quickly see how the 2021 GWM Cannon Cannon stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
57.25 - 63.16 kW/t
47.8 kW/t
126.77 kW/t
Fuel Efficiency
8.3 - 9.4 L/100km
6.5 L/100km
12.8 L/100km
Vehicle Range
778 - 940 km
658 km
1,231 km
Price
$33,490 - $44,490
$22,990
$143,950
Warranty (Years)
5 - 7 years
3 years
10 years
Warranty (Distance)
150,000 km - Unlimited
100,000 km
Unlimited
Years on Sale
1 - 6 years
1 year
4 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,920 - 3,150 kg
2,631 kg
3,450 kg
Gross Comb. Mass
5,555 kg
4,435 kg
7,713 kg
Braked Towing Capacity
2,000 - 3,000 kg
1,800 kg
4,500 kg
Approach Angle
25 - 27°
15.2°
40.7°
Departure Angle
21 - 25°
15°
29.2°
Ground Clearance Unladen
171 - 194 mm
171 mm
283 mm
Payload Capacity
1,020 - 1,054 kg
527 kg
1,550 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,410 mm
1,934 mm
1,886 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,410 mm |
| Overall Width | 1,934 mm |
| Overall Height | 1,886 mm |
| Wheelbase | 3,230 mm |
| Turning Circle | 13,100 mm |
| Load Capacity | 1,054 mm |
Looking for complete GWM Cannon size & space specs?
Our GWM Cannon Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
GWM Cannon Sales rolling 12-months#
Explore GWM Cannon Features & Specs
Cruise Control
Adaptive Cruise Control: yes
Driver Modes
Engine Mapping: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Parking Assistance
Rear Automatic Braking Whilst: yes
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
USB Charging Port
Location: Front
Number of Ports in Front: 3
Location: Rear
Number of Ports in Rear: 1
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 228
CO2 Level (Combined): 246
CO2 Level (Urban): 276
Standard Met: EU5
Engine
Bore Engine: 83.1
Engine (cc): 1996
Engine Configuration: In-Line
Engine Code: 4d20m
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 92.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel Tanks
Main Capacity Gal: 20.6
Main Capacity (L): 78
Main Capacity Uk Gallons: 17.2
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 9.00
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 3.50
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 830
ADR 81/02 Calculated Vehicle Range (miles): 516
ADR 81/02 Combined (km/L): 10.6
ADR 81/02 Combined (L/100km): 9.4
ADR 81/02 Combined (miles per UK gallon): 30
ADR 81/02 Combined (mpg): 25
ADR 81/02 Country Highway (km/L): 11.5
ADR 81/02 Country Highway (L/100km): 8.7
ADR 81/02 Country Highway (miles per UK gallon): 33
ADR 81/02 Country Highway (mpg): 27
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 9.6
ADR 81/02 Urban (L/100km): 10.4
ADR 81/02 Urban (miles per UK gallon): 27
ADR 81/02 Urban (mpg): 23
Fuel Economy
ADR 81/02 (L/100km): 9.4
Power
Maximum Power (hp/PS): 163
Maximum Power (kW): 120
Maximum Torque (Nm): 400
Measurement Standard: SAE
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 1500
Differential Lock
Location: Rear
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time/Disconnect
Selection: Automatic
Limited Slip Differential
Location: Centre
Transmission
Code: Zf 8hp
Description: Automatic
Low High Gear Ranges: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 110
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Mud & Snow
Front Wheels Tire Width: 265
Rear Wheels Tire Load Index: 110
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Mud & Snow
Rear Wheels Tire Width: 265
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Rear Two Tone: yes
Tray/Tub
Type: Straight Side
Cargo Area Dimensions
Height (in): 21.2
Height (mm): 1520
Length (in): 59.8
Length (mm): 1520
Standard Measurement: Manufacturer'S Own
Width (in): 59.8
Width (mm): 1520
External Dimensions
Kerb to Kerb Turning Circle (mm): 13100
Front Track (in): 62.2
Front Track (mm): 1580
Ground Clearance Unladen (in): 7.6
Ground Clearance Unladen (mm): 194
Kerb To Kerb Turning Circle (ft): 43.0
Overall Height (in): 74.3
Overall Height (mm): 1886
Overall Length (in): 213.0
Overall Length (mm): 5410
Overall Width (in): 76.1
Overall Width (mm): 1934
Rear Track (in): 62.2
Rear Track (mm): 1580
Wheelbase (in): 127.2
Wheelbase (mm): 3230
Ramp Angles
Approach Angle: 27.0
Departure Angle: 25.0
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Platform Code: Tank
Roof Type: Standard
Wheelbase Type: Short
Step
Step Location: Rear
Rear Step Type: Platform
Step Location: Side
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Doors
Location: Rear
Rear Opening Angle: 90
Rear Operation: Dropping Gate
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear Side Windows
Location: Driver
Driver Type: Wind-Up
Location: Passenger
Passenger Type: Wind-Up
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 3000
Gross Trailer Weight Braked (lb): 6614
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5555
Gross Train Weight (lb): 12247
Gross Vehicle Weight (kg): 3130
Gross Vehicle Weight (lb): 6901
Payload Allowance (kg): 1054
Payload Allowance (lb): 2324
Published Kerb Weight (kg): 2076
Published Kerb Weight (lb): 4577
Tare Weight (kg): 2025
Trailer Noseweight (kg): 300
Audio System
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
USB (Rear): yes
Total Front USB Connections: 1
Total Rear USB Connections: 1
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Luxury Trim
Centre Floor Console: Piano Black
Doors: Alloy Look
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
Highway Assist: yes
Lane Changing: yes
Level: 2 - Partial Automation
Traffic Sign Response: yes
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 2
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Includes Display: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Synthetic Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 12
