Vti-L Adas
1.8L, variable sp auto, 5-door SUV, Petrol, FWD
Save $$$ with CarExpert*
$34,340â€
Vti-L Adas
Overview

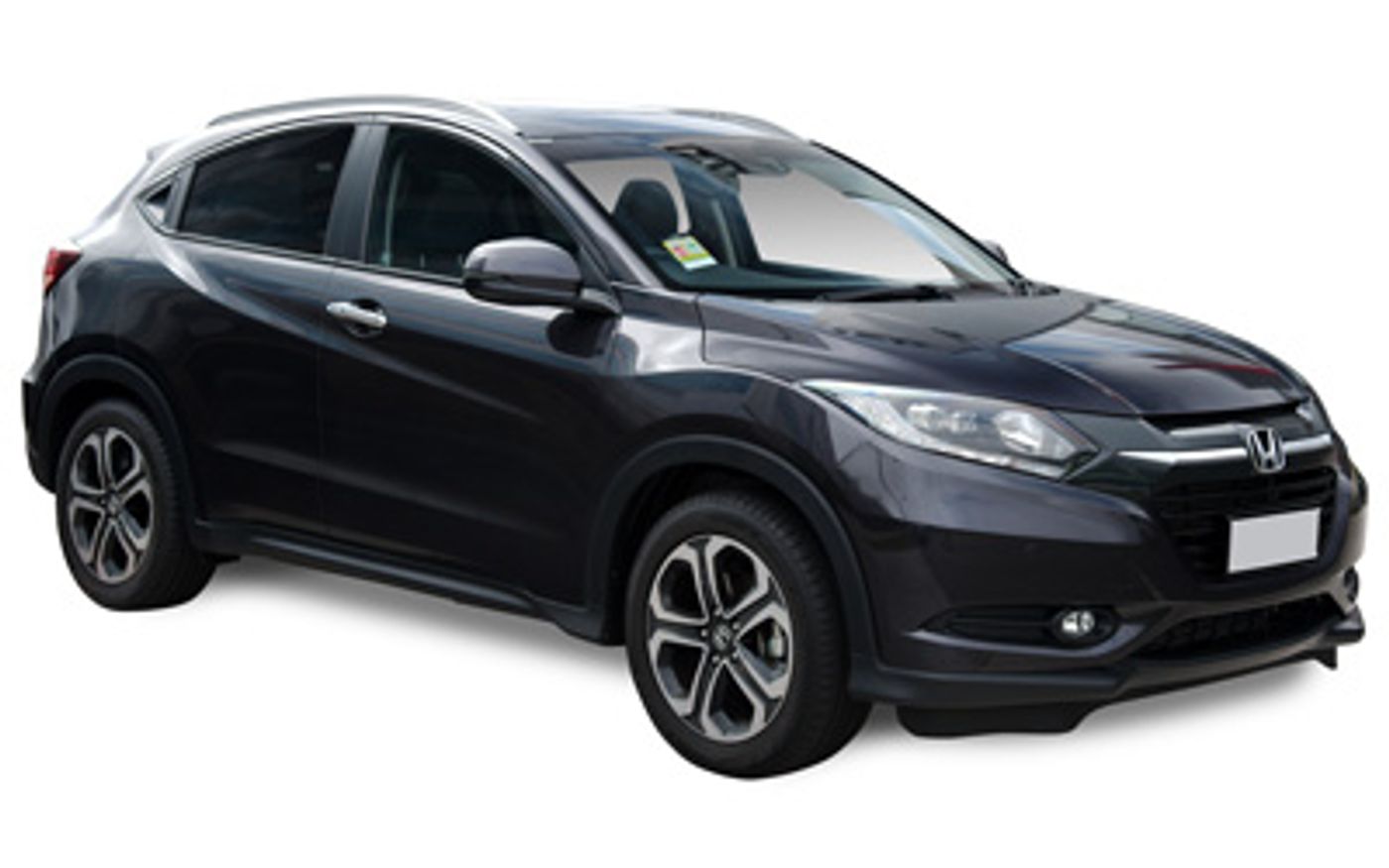

The 2017 Honda HR-V Vti-L Adas is a front-wheel drive, 5-door SUV that was released to the Australian market on 1st July 2017. The Honda HR-V is regarded as a small SUV built in Thailand with prices starting at $34,340 before on-road costs.
This Honda HR-V is powered by a 1.8L 4-cylinder engine that has 105 kW of power (at 6500 rpm) and 172 Nm of torque (at 4300 rpm) via a Variable SP AUTOMATIC transmission. Honda claims the HR-V Vti-L Adas uses 6.9L/100km of Unleaded in the combined city and highway cycle while putting out 160g of CO2. It has a 50L fuel tank, meaning it should be able to travel 725km per full tank
The Honda HR-V measures 1605mm (63.2 inches) in height, 4294mm (169.1 inches) in length, 1772mm (69.8 inches) in width with a 2610mm (102.8 inches) wheelbase that brings about a total of 1392kg (3068.8 lbs) of unladen weight. The HR-V Vti-L Adas comes standard with 215/55 R17 front tyres and 215/55 R17 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2017 Honda HR-V Vti-L Adas has a 170mm ground clearance with a 800kg braked and 500kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the HR-V compare?
Quickly see how the 2017 Honda HR-V Vti-L Adas stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
75.43 - 77.09 kW/t
55.36 kW/t
88.03 kW/t
Boot Space
437 litres
264 litres
437 litres
Fuel Efficiency
6.6 - 6.9 L/100km
4.7 L/100km
7.6 L/100km
Vehicle Range
725 - 758 km
641 km
1,000 km
Price
$24,990 - $34,340
$15,990
$40,290
Warranty (Years)
3 - 5 years
3 years
5 years
Warranty (Distance)
100,000 km - Unlimited
100,000 km
Unlimited
Years on Sale
2 years
3 years
7 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Braked Towing Capacity
800 kg
500 kg
1,400 kg
Ground Clearance Unladen
170 mm
160 mm
220 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,294 mm
1,772 mm
1,605 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,294 mm |
| Overall Width | 1,772 mm |
| Overall Height | 1,605 mm |
| Wheelbase | 2,610 mm |
Looking for complete Honda HR-V size & space specs?
Our Honda HR-V Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Honda HR-V Sales rolling 12-months#
Explore Honda HR-V Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Entertainment Display Screen
Location: Front
Front Screen Size (in): 7.0
Front Touch Screen: yes
Media Control
Touch Screen: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 160
Standard Met: EU5
Engine
Bore Engine: 81.0
Engine (cc): 1799
Engine Configuration: In-Line
Engine Code: R18z9
Engine (L): 1.8
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 87.3
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 13.2
Main Capacity (L): 50
Main Capacity Uk Gallons: 11.0
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 7.0
Dashboard Centre 1 Touch Screen: yes
Low Tire Pressure Indicator
Rim Mounted Sensor: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 725
ADR 81/02 Calculated Vehicle Range (miles): 450
ADR 81/02 Combined (km/L): 14.5
ADR 81/02 Combined (L/100km): 6.9
ADR 81/02 Combined (miles per UK gallon): 41
ADR 81/02 Combined (mpg): 34
ADR 81/02 Country Highway (km/L): 17.2
ADR 81/02 Country Highway (L/100km): 5.8
ADR 81/02 Country Highway (miles per UK gallon): 49
ADR 81/02 Country Highway (mpg): 41
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 11.5
ADR 81/02 Urban (L/100km): 8.7
ADR 81/02 Urban (miles per UK gallon): 33
ADR 81/02 Urban (mpg): 27
Fuel Economy
ADR 81/02 (L/100km): 6.9
Power
Maximum Power (hp/PS): 143
Maximum Power (kW): 105
Maximum Torque (Nm): 172
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6500
Rpm For Maximum Torque Low: 4300
Drive
Driven Wheels: Front
Transmission
Description: Continuously Variable With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: Variable
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Responsive Suspension
Type: Mechanical
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Torsion Beam
Rear Wheel Dependence: Semi-Independent
Tires
Front Wheels Tire Load Index: 94
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 94
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: V
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Rear Two Tone: yes
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: Gsp2
Wheelbase Type: Short
Spoiler
Location: Roof
Cargo Capacity
Rear Seat Down (cu ft): 51.6
Rear Seat Down (L): 1462
Rear Seat Up to Lower Window (cu ft): 15.4
Rear Seat Up to Lower Window (L): 437
External Dimensions
Front Track (in): 60.4
Front Track (mm): 1535
Ground Clearance Unladen (in): 6.7
Ground Clearance Unladen (mm): 170
Overall Height (in): 63.2
Overall Height (mm): 1605
Overall Length (in): 169.1
Overall Length (mm): 4294
Overall Width (in): 69.8
Overall Width (mm): 1772
Rear Track (in): 60.6
Rear Track (mm): 1540
Wheelbase (in): 102.8
Wheelbase (mm): 2610
Internal Dimensions
Front Headroom (in): 38.4
Front Headroom (mm): 975
Rear Headroom (in): 37.2
Rear Headroom (mm): 945
Front Hip Room (in): 53.1
Front Hip Room (mm): 1350
Rear Hip Room (in): 47.4
Rear Hip Room (mm): 1205
Front Leg Room (in): 41.1
Front Leg Room (mm): 1045
Rear Leg Room (in): 39.4
Rear Leg Room (mm): 1000
Front Shoulder Room (in): 56.9
Front Shoulder Room (mm): 1445
Rear Shoulder Room (in): 54.5
Rear Shoulder Room (mm): 1385
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: Low Beam
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 800
Gross Trailer Weight Braked (lb): 1764
Gross Trailer Weight Unbraked (kg): 500
Gross Trailer Weight Unbraked (lb): 1102
Published Kerb Weight (kg): 1392
Published Kerb Weight (lb): 3069
Tare Weight (kg): 1347
Audio System
Colour Screen: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Centre Floor Console: Piano Black
Doors: Synthetic Leather
Gear Selector: Leather
Instrument Panel: Piano Black
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Overall: 5.00
ANCAP Pedestrian: Acceptable
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Standard: Ancap
ANCAP Version Tested: Hr-V 1.8 Petrol
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Number of Electrical Adjustments: 4
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Bucket
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Heater Type: Combustion
Power Locks
Includes Power Windows: yes
Operation: Card Key
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
