Hyundai i20 Active (2011) price & specs
Save $$$ with CarExpert*
From
$15,490â€
Active
Overview

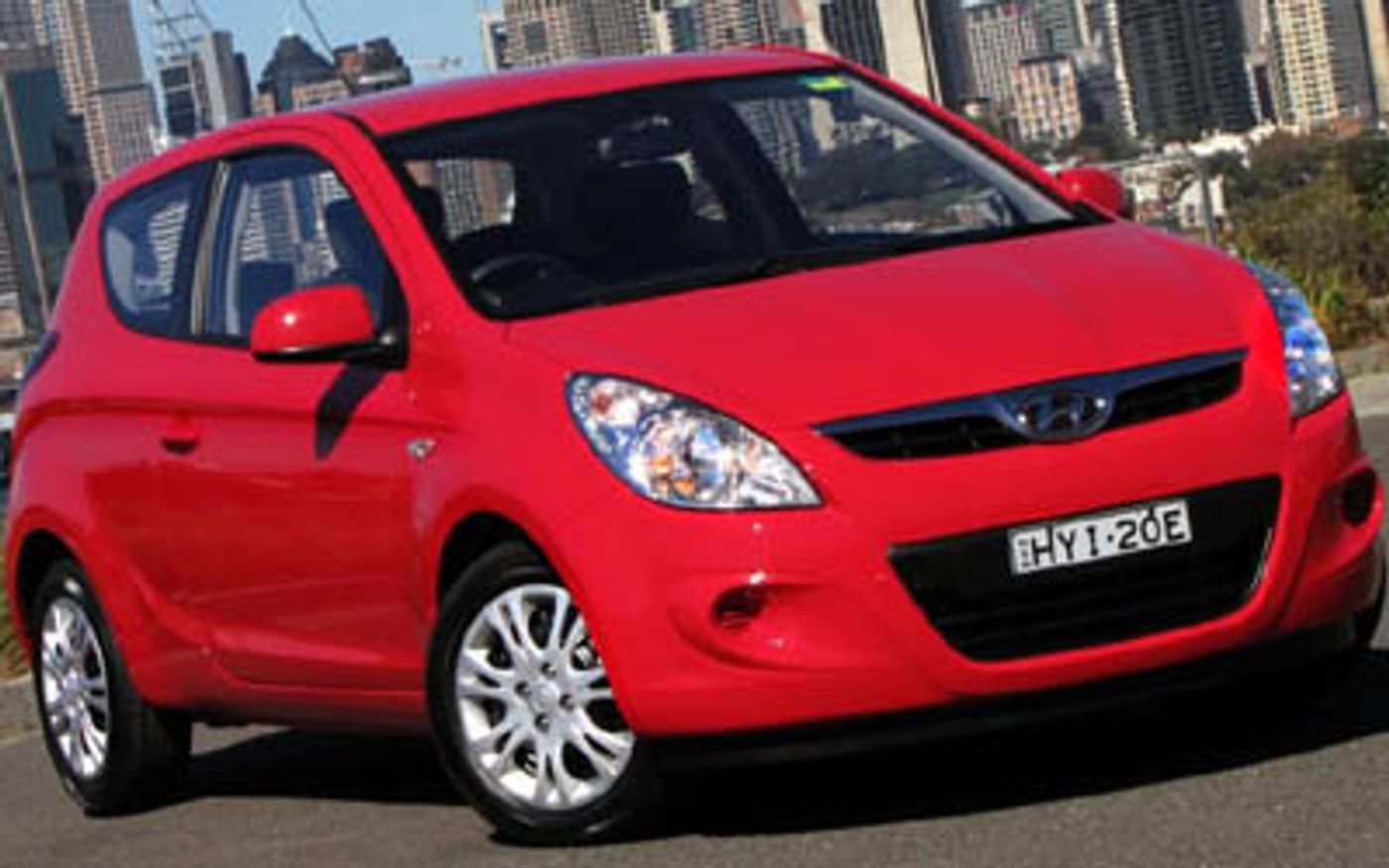

The 2011 Hyundai i20 Active is a front-wheel drive, 3-door Hatchback that was released to the Australian market on 1st October 2010. The Hyundai i20 is regarded as a Light Luxury built in India with prices starting at $15,490 before on-road costs.
This Hyundai i20 is powered by a 1.4L 4-cylinder engine that has 74 kW of power (at 5500 rpm) and 136 Nm of torque (at 4200 rpm) via a Five-speed Manual transmission. Hyundai claims the i20 Active uses 6.0L/100km of Unleaded in the combined city and highway cycle while putting out 142g of CO2. It has a 45L fuel tank, meaning it should be able to travel 750km per full tank
The Hyundai i20 measures 1490mm (58.7 inches) in height, 3940mm (155.1 inches) in length, 1710mm (67.3 inches) in width with a 2525mm (99.4 inches) wheelbase that brings about a total of 1117kg (2462.6 lbs) of unladen weight. The i20 Active comes standard with 185/60 R15 front tyres and 185/60 R15 rear tyres. It has a 60 month, unlimited km warranty.
The 2011 Hyundai i20 Active has a 150mm ground clearance with a 1000kg braked and 450kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the i20 compare?
Quickly see how the 2011 Hyundai i20 Active stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
64.63 - 81.32 kW/t
56.41 kW/t
135.96 kW/t
Boot Space
295 litres
160 litres
315 litres
Fuel Efficiency
6 - 6.5 L/100km
3.8 L/100km
6.9 L/100km
Vehicle Range
692 - 750 km
597 km
1,053 km
Price
$15,490 - $23,490
$15,490
$50,400
Warranty (Years)
5 years
2 years
5 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
2 years
2 years
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
1,565 - 1,585 kg
1,550 kg
1,640 kg
Braked Towing Capacity
800 - 1,100 kg
750 kg
1,200 kg
Ground Clearance Unladen
150 mm
150 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
3,940 mm
1,710 mm
1,490 mm
| Specification | Measurement |
|---|---|
| Overall Length | 3,940 mm |
| Overall Width | 1,710 mm |
| Overall Height | 1,490 mm |
| Wheelbase | 2,525 mm |
| Turning Circle | 10,400 mm |
| Load Capacity | 448 mm |
Looking for complete Hyundai i20 size & space specs?
Our Hyundai i20 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Hyundai i20 Sales rolling 12-months#
Explore Hyundai i20 Features & Specs
Emission Control Level
Australia Air Pollution Rating: 8.5
Australia Greenhouse Rating: 7.5
Australia Overall Emission Control Level Rating: 5.0
CO2 Level (Combined): 142
Standard Met: EU4
Engine
Bore Engine: 77.0
Engine (cc): 1396
Engine Configuration: In-Line
Engine (L): 1.4
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 75.0
Valve Gear Type: Double Overhead Cam
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 11.9
Main Capacity (L): 45
Main Capacity Uk Gallons: 9.9
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 750
ADR 81/02 Calculated Vehicle Range (miles): 466
ADR 81/02 Combined (km/L): 16.7
ADR 81/02 Combined (L/100km): 6.0
ADR 81/02 Combined (miles per UK gallon): 47
ADR 81/02 Combined (mpg): 39
ADR 81/02 Country Highway (km/L): 20.0
ADR 81/02 Country Highway (L/100km): 5.0
ADR 81/02 Country Highway (miles per UK gallon): 57
ADR 81/02 Country Highway (mpg): 47
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 13.2
ADR 81/02 Urban (L/100km): 7.6
ADR 81/02 Urban (miles per UK gallon): 37
ADR 81/02 Urban (mpg): 31
Fuel Economy
ADR 81/02 (L/100km): 6.0
Performance
Acceleration 0 To 100 km/h: 11.6
Maximum Speed (km/h): 180
Maximum Speed (mph): 112
Power
Maximum Power (hp/PS): 100
Maximum Power (kW): 74
Maximum Torque (Nm): 136
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5500
Rpm For Maximum Torque Low: 4200
Drive
Driven Wheels: Front
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Manual
Number of Speeds: 5
Shift Lever Location: Floor
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Torsion Beam
Rear Wheel Dependence: Semi-Independent
Tires
Front Wheels Tire Load Index: 84
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 185
Rear Wheels Tire Load Index: 84
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 185
Wheels
Location: Front
Front Wheels Rim Diameter (In): 15
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 5.5
Location: Rear
Rear Rim Diameter (In): 15
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 5.5
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Platform Code: B3
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Capacity
Rear Seat Down (cu ft): 37.4
Rear Seat Down (L): 1060
Rear Seat Up to Lower Window (cu ft): 10.4
Rear Seat Up to Lower Window (L): 295
External Dimensions
Kerb to Kerb Turning Circle (mm): 10400
Front Track (in): 59.1
Front Track (mm): 1500
Ground Clearance Unladen (in): 5.9
Ground Clearance Unladen (mm): 150
Kerb To Kerb Turning Circle (ft): 34.1
Overall Height (in): 58.7
Overall Height (mm): 1490
Overall Length (in): 155.1
Overall Length (mm): 3940
Overall Width (in): 67.3
Overall Width (mm): 1710
Rear Track (in): 59.2
Rear Track (mm): 1503
Wheelbase (in): 99.4
Wheelbase (mm): 2525
Internal Dimensions
Front Headroom (in): 39.6
Front Headroom (mm): 1005
Rear Headroom (in): 38.2
Rear Headroom (mm): 970
Front Hip Room (in): 51.0
Front Hip Room (mm): 1295
Rear Hip Room (in): 50.5
Rear Hip Room (mm): 1282
Front Leg Room (in): 42.3
Front Leg Room (mm): 1074
Front Shoulder Room (in): 53.1
Front Shoulder Room (mm): 1350
Rear Shoulder Room (in): 52.8
Rear Shoulder Room (mm): 1340
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 1000
Gross Trailer Weight Braked (lb): 2205
Gross Trailer Weight Unbraked (kg): 450
Gross Trailer Weight Unbraked (lb): 992
Gross Vehicle Weight (kg): 1565
Gross Vehicle Weight (lb): 3450
Published Kerb Weight (kg): 1117
Published Kerb Weight (lb): 2463
Tare Weight (kg): 1091
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Speakers
Number of Speakers: 4
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Power Outlet 12V
Location (12V): Front
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Luxury Trim
Gear Selector: Chrome
Instrument Panel: Alloy Look
Crash Test Results
ANCAP Date Tested: 20100713
ANCAP Overall: 5.00
ANCAP Pedestrian: 3
ANCAP Standard: Ancap
ANCAP Version Tested: 1.4 Gl Five-Door
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
