    Hyundai i30 SX (2011) price & specs

    Save $$$ with CarExpert*
    From
    $22,390†
    2.0L petrol5D Hatchback4 SP AUTOMATICFWD

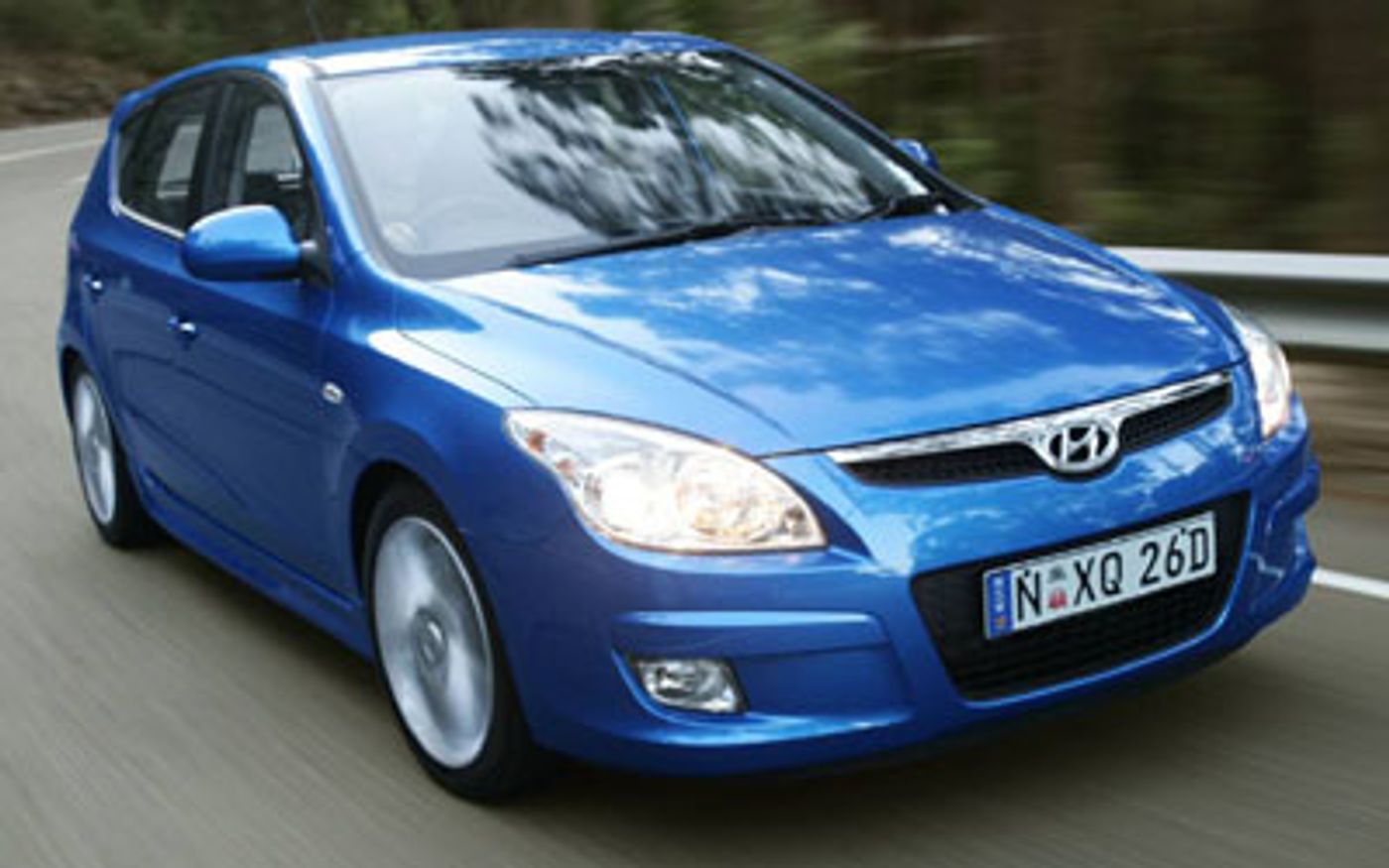

    Hero image of a new Hyundai i30 SX (2011) price & specs available with CarExpert deals.

    SX

    Find a deal

    Overview

    The 2011 Hyundai i30 SX is a front-wheel drive, 5-door Hatchback that was released to the Australian market on 4th January 1970 classified as a FD. The Hyundai i30 is regarded as a small car built in Korea with prices starting at $22,390 before on-road costs.

    This Hyundai i30 is powered by a 2.0L 4-cylinder engine that has 105 kW of power (at 6000 rpm) and 186 Nm of torque (at 4600 rpm) via a Four-speed Automatic transmission. Hyundai claims the i30 SX uses 7.6L/100km of Unleaded in the combined city and highway cycle while putting out 182g of CO2. It has a 53L fuel tank, meaning it should be able to travel 697km per full tank

    The Hyundai i30 measures 1480mm (58.3 inches) in height, 4245mm (167.1 inches) in length, 1775mm (69.9 inches) in width with a 2650mm (104.3 inches) wheelbase that brings about a total of 1377kg (3035.8 lbs) of unladen weight. The i30 SX comes standard with 195/65 R15 front tyres and 195/65 R15 rear tyres. It has a 60 month, unlimited km warranty.

    The 2011 Hyundai i30 SX has a 150mm ground clearance with a 1200kg braked and 500kg unbraked towing capacity.

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    How does the i30 compare?

    Quickly see how the 2011 Hyundai i30 SX stacks up against its competition.
     Select any benchmark to see more details.

    Power to Weight
    60.16 - 77.04 kW/t
    58.78 kW/t
    146.36 kW/t
    Boot Space
    340 litres
    301 litres
    550 litres
    Fuel Efficiency
    4.5 - 7.6 L/100km
    4.2 L/100km
    11.6 L/100km
    Vehicle Range
    697 - 1,178 km
    538 km
    1,429 km
    Price
    $19,390 - $28,590
    $19,390
    $65,990
    Warranty (Years)
    5 years
    3 years
    5 years
    Warranty (Distance)
    Unlimited
    100,000 km
    Unlimited
    Years on Sale
    2 - 6 years
    2 years
    6 years

    Towing & Off-Road Capability

    Gross Vehicle Weight
    1,740 - 1,860 kg
    1,631 kg
    2,050 kg
    Braked Towing Capacity
    1,100 - 1,200 kg
    450 kg
    1,750 kg
    Ground Clearance Unladen
    150 mm
    106 mm
    185 mm

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    Dimensions

    4,245 mm
    1,775 mm
    1,480 mm
    SpecificationMeasurement
    Overall Length4,245 mm
    Overall Width1,775 mm
    Overall Height1,480 mm
    Wheelbase2,650 mm
    Turning Circle10,340 mm
    Load Capacity443 mm

    Looking for complete Hyundai i30 size & space specs?

    Our Hyundai i30 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.

    Sales Data

    Hyundai i30 Sales rolling 12-months#

    Explore Hyundai i30 Features & Specs

    SX

    2.0L, 4-speed auto, 5-door Hatchback, Petrol, FWD

    Save $$$ with CarExpert*
    $22,390†
    Find a deal

    Cruise Control

    Steering Wheel Mounted Controls: yes

    Power Outlet 12V

    Location (12V): Front

    Vanity Mirror

    Driver Mirror Location: Driver
    Location: Passenger

    Emission Control Level

    Australia Air Pollution Rating: 5.0
    Australia Greenhouse Rating: 6.5
    Australia Overall Emission Control Level Rating: 3.5
    CO2 Level (Combined): 182
    Standard Met: EU4

    Engine

    Bore Engine: 82.0
    Engine (cc): 1975
    Engine Configuration: In-Line
    Engine (L): 2.0
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 93.5
    Valve Gear Type: Double Overhead Cam
    Variable Valve Timing Camshaft: yes

    Interested in buying a Hyundai i30 SX?

    Save $$$ with CarExpert*
    From
    $22,390†
    Find a deal

    Fuel

    Generic Primary Fuel Type: Petrol
    Minimum Fuel Octane Number: 91
    Minimum Fuel Type: Unleaded
    Fuel Type: Unleaded
    Octane Number: 91

    Fuel System

    Injection Carburetion: Multi-Point Injection

    Fuel Tanks

    Main Capacity Gal: 14.0
    Main Capacity (L): 53
    Main Capacity Uk Gallons: 11.7
    Main Fuel Type: Unleaded
    Main Type: Total

    Fuel Consumption

    ADR 81/02 Calculated Vehicle Range (km): 697
    ADR 81/02 Calculated Vehicle Range (miles): 433
    ADR 81/02 Combined (km/L): 13.2
    ADR 81/02 Combined (L/100km): 7.6
    ADR 81/02 Combined (miles per UK gallon): 37
    ADR 81/02 Combined (mpg): 31
    ADR 81/02 Country Highway (km/L): 16.4
    ADR 81/02 Country Highway (L/100km): 6.1
    ADR 81/02 Country Highway (miles per UK gallon): 46
    ADR 81/02 Country Highway (mpg): 39
    ADR 81/02 Standard: Adr 81/02
    ADR 81/02 Urban (km/L): 9.7
    ADR 81/02 Urban (L/100km): 10.3
    ADR 81/02 Urban (miles per UK gallon): 27
    ADR 81/02 Urban (mpg): 23

    Fuel Economy

    ADR 81/02 (L/100km): 7.6

    Performance

    Maximum Speed (km/h): 195
    Maximum Speed (mph): 121

    Power

    Maximum Power (hp/PS): 143
    Maximum Power (kW): 105
    Maximum Torque (Nm): 186
    Measurement Standard: EEC
    Rpm For Maximum Power Low: 6000
    Rpm For Maximum Torque Low: 4600

    Drive

    Driven Wheels: Front

    Electronic Traction Control

    Controlled By: Abs & Engine Management

    Transmission

    Description: Automatic
    Number of Speeds: 4
    Shift Lever Location: Floor
    Type: Automatic

    Disc Brakes

    Number of Disc Brakes: 4
    Number of Ventilated Disc Brakes: 2

    Steering Wheel

    Height Adjustment: yes
    Telescopic Adjustment: yes
    Type: Plastic

    Suspension

    Location: Front
    Front Spring Type: Coil
    Front Stabilizer Bar: yes
    Front Type: Strut
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Coil
    Rear Stabilizer Bar: yes
    Rear Type: Multi-Link
    Rear Wheel Dependence: Independent

    Tires

    Location: Front
    Front Wheels Tire Profile: 65
    Front Wheels Tire Type: Conventional/Summer
    Front Wheels Tire Width: 195
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 65
    Rear Wheels Tire Type: Conventional/Summer
    Rear Wheels Tire Width: 195

    Wheels

    Front Covers: Full
    Location: Front
    Front Wheels Rim Diameter (In): 15
    Front Wheels Rim Type: Steel
    Front Wheels Rim Width (In): 5.5
    Rear Covers: Full
    Location: Rear
    Rear Rim Diameter (In): 15
    Rear Rim Type: Steel
    Rear Wheels Rim Width (In): 5.5

    Body Style

    Body Type: Hatchback
    Local Body Type: Hatchback
    Platform Code: HD

    Bumpers

    Front Bumper Colour: Painted
    Location: Front
    Rear Bumper Colour: Painted
    Location: Rear

    Cargo Capacity

    Rear Seat Down (cu ft): 44.1
    Rear Seat Down (L): 1250
    Rear Seat Up to Lower Window (cu ft): 12.0
    Rear Seat Up to Lower Window (L): 340

    External Dimensions

    Kerb to Kerb Turning Circle (mm): 10340
    Front Track (in): 60.9
    Front Track (mm): 1546
    Ground Clearance Unladen (in): 5.9
    Ground Clearance Unladen (mm): 150
    Kerb To Kerb Turning Circle (ft): 33.9
    Overall Height (in): 58.3
    Overall Height (mm): 1480
    Overall Length (in): 167.1
    Overall Length (mm): 4245
    Overall Width (in): 69.9
    Overall Width (mm): 1775
    Rear Track (in): 60.8
    Rear Track (mm): 1544
    Wheelbase (in): 104.3
    Wheelbase (mm): 2650

    Internal Dimensions

    Front Headroom (in): 40.0
    Front Headroom (mm): 1015
    Rear Headroom (in): 38.6
    Rear Headroom (mm): 980
    Front Hip Room (in): 53.8
    Front Hip Room (mm): 1366
    Rear Hip Room (in): 53.2
    Rear Hip Room (mm): 1352
    Front Leg Room (in): 43.5
    Front Leg Room (mm): 1105
    Rear Leg Room (in): 35.0
    Rear Leg Room (mm): 890
    Front Shoulder Room (in): 55.3
    Front Shoulder Room (mm): 1405
    Rear Shoulder Room (in): 54.7
    Rear Shoulder Room (mm): 1390

    Doors

    Location: Driver
    Driver Door Type: Front Hinged
    Location: Passenger
    Passenger Door Type: Front Hinged
    Location: Rear Driver
    Rear Driver Door Type: Front Hinged
    Location: Rear Passenger
    Rear Passenger Door Type: Front Hinged

    Rear Door

    Type: Lifting Gate

    Headlights

    Low Beam Bulb Type: Halogen

    Paint

    External Colour: Black
    Type: Gloss

    Door Mirrors/Cameras

    Driver Door Mirrors/Cameras Colour: Painted
    Heated Driver Door Mirrors/Cameras: yes
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Painted
    Heated Passenger Door Mirrors/Cameras: yes
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable

    Power Windows

    Front Electric Windows: Front
    Rear Electric Windows: Rear

    Windshield Wipers

    Intermittent Wipe Windshield Wipers: Variable

    Weights

    Gross Trailer Weight Braked (kg): 1200
    Gross Trailer Weight Braked (lb): 2646
    Gross Trailer Weight Unbraked (kg): 500
    Gross Trailer Weight Unbraked (lb): 1102
    Gross Vehicle Weight (kg): 1820
    Gross Vehicle Weight (lb): 4012
    Published Kerb Weight (kg): 1377
    Published Kerb Weight (lb): 3036

    Audio System

    CD Player Reads MP3: yes
    In-Dash CD: yes
    Radio Type: Am/Fm

    External Connections

    Aux Jack (Front): yes
    iPod Connection (Front): yes
    USB (Front): yes

    Speakers

    Number of Speakers: 4

    Cargo Area Cover Rear Parcel Shelf

    Type: Rigid

    Front Airbag

    Location: Driver
    Location: Passenger

    Front Seat Belts

    Driver Height Adjustable: yes
    Driver Operation: Reel
    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Driver Type: 3-Point
    Passenger Height Adjustable: yes
    Passenger Operation: Reel
    Passenger Pre Tensioners: yes
    Passenger Seat Position: Passenger
    Passenger Type: 3-Point

    Head Restraints

    Front Seats Active: yes
    Front Seats Location: Front Seats
    Rear Seats Location: Rear Seats
    Rear Seats Number: 3

    Rear Seat Belts

    Center Operation: Reel
    Center Seat Position: Centre
    Center Type: 3-Point
    Driver Operation: Reel
    Driver Seat Position: Driver
    Driver Type: 3-Point
    Passenger Operation: Reel
    Passenger Seat Position: Passenger
    Passenger Type: 3-Point

    Side Airbag

    Location: Front

    Side Curtain Airbag

    Location: Front And Rear

    Front Seat

    Driver Front Seat Height Adjustment: yes
    Driver Front Seat Height Type: Manual
    Location: Driver
    Driver Front Seat Reach Type: Manual
    Driver Front Seat Reclining Type: Manual
    Driver Front Seat Type: Bucket
    Location: Passenger
    Passenger Front Seat Reach Type: Manual
    Passenger Front Seat Reclining Type: Manual
    Passenger Front Seat Type: Bucket

    Seat Upholstery

    Additional Seat Material: Cloth
    Main Seat Material: Cloth

    Seating

    Capacity: 5
    Configuration: 2+3

    Cup Holders

    Location: Front Seats
    Location: Rear Seats

    Air Conditioning

    Type: Manual

    Power Locks

    Includes Trunk Hatch: yes
    Operation: Remote

    Intermediate Service

    Distance (km): 15000
    Distance (miles): 9321
