Active
1.6L, 6-speed manual, 5-door Station Wagon, Diesel, FWD
Save $$$ with CarExpert*
$25,590â€
Hyundai i30 Active (2013) price & specs
Save $$$ with CarExpert*
From
$25,590â€
Active
Overview

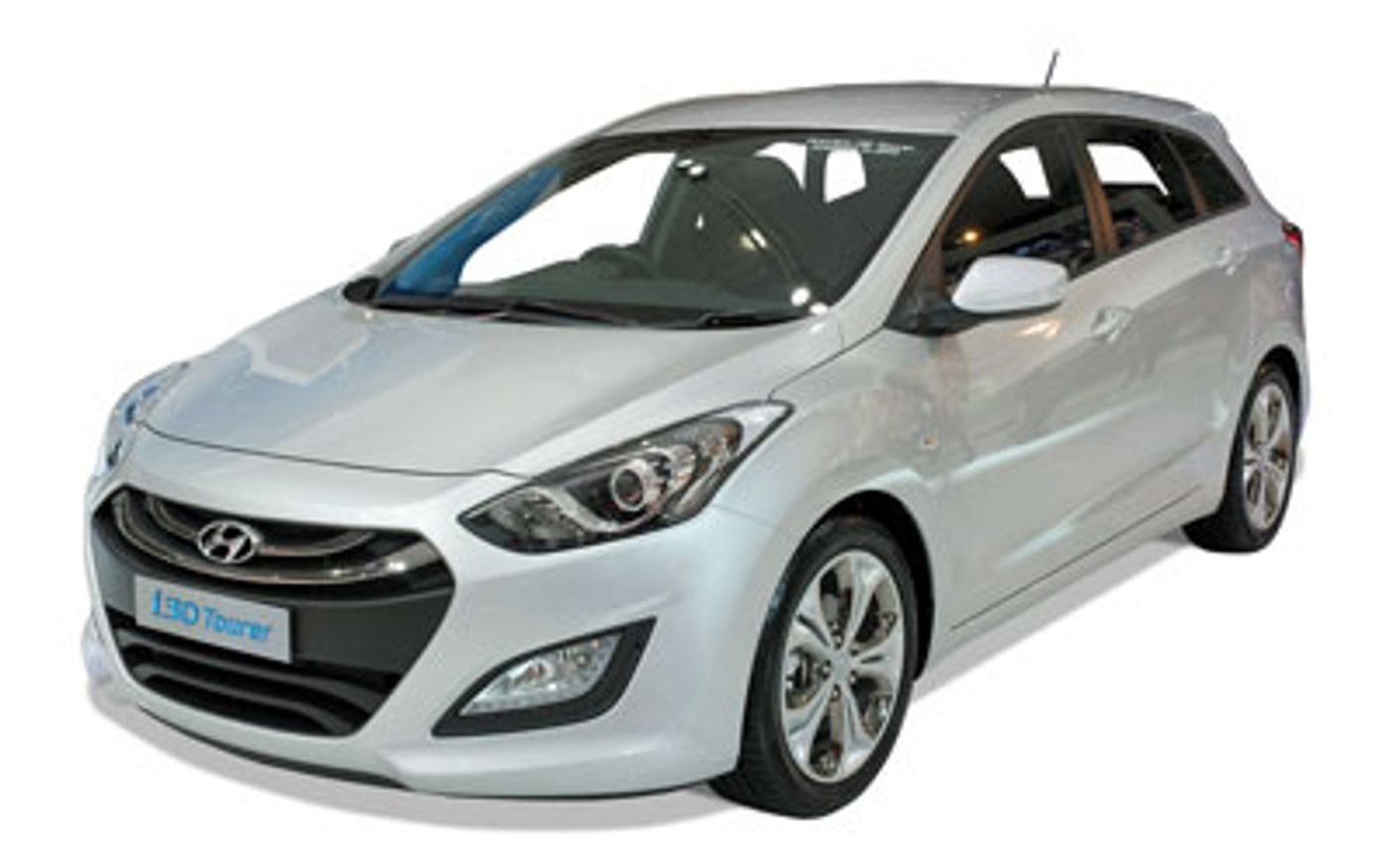

The 2013 Hyundai i30 Active is a front-wheel drive, 5-door Station Wagon that was released to the Australian market on 1st February 2013 classified as a GD. The Hyundai i30 is regarded as a small car built in Korea with prices starting at $25,590 before on-road costs.
This Hyundai i30 is powered by a 1.6L 4-cylinder engine that has 94 kW of power (at 4000 rpm) and 260 Nm of torque (at 1900 rpm) via a Six-speed Manual transmission. Hyundai claims the i30 Active uses 4.6L/100km of Diesel in the combined city and highway cycle while putting out 122g of CO2. It has a 53L fuel tank, meaning it should be able to travel 1152km per full tank
The Hyundai i30 measures 1500mm (59.1 inches) in height, 4485mm (176.6 inches) in length, 1780mm (70.1 inches) in width with a 2650mm (104.3 inches) wheelbase that brings about a total of 1326kg (2923.3 lbs) of unladen weight. The i30 Active comes standard with 205/55 R16 front tyres and 205/55 R16 rear tyres. It has a 60 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the i30 compare?
Quickly see how the 2013 Hyundai i30 Active stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
62.54 - 82.21 kW/t
58.11 kW/t
131.06 kW/t
Boot Space
378 - 528 litres
280 litres
550 litres
Fuel Efficiency
4.6 - 6.9 L/100km
4 L/100km
7.7 L/100km
Vehicle Range
768 - 1,152 km
667 km
1,364 km
Price
$19,990 - $33,440
$19,390
$46,490
Warranty (Years)
5 years
3 years
6 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
2 - 6 years
2 years
6 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
1,820 - 1,940 kg
1,670 kg
2,115 kg
Braked Towing Capacity
1,300 kg
800 kg
1,550 kg
Ground Clearance Unladen
140 mm
123 mm
160 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,485 mm
1,780 mm
1,500 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,485 mm |
| Overall Width | 1,780 mm |
| Overall Height | 1,500 mm |
| Wheelbase | 2,650 mm |
| Turning Circle | 10,600 mm |
| Load Capacity | 594 mm |
Looking for complete Hyundai i30 size & space specs?
Our Hyundai i30 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Hyundai i30 Sales rolling 12-months#
Explore Hyundai i30 Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 5.0
Australia Greenhouse Rating: 8.0
Australia Overall Emission Control Level Rating: 3.5
CO2 Level (Combined): 122
Engine
Bore Engine: 77.2
Engine (cc): 1582
Engine Configuration: In-Line
Engine (L): 1.6
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 84.5
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 14.0
Main Capacity (L): 53
Main Capacity Uk Gallons: 11.7
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1152
ADR 81/02 Calculated Vehicle Range (miles): 716
ADR 81/02 Combined (km/L): 21.7
ADR 81/02 Combined (L/100km): 4.6
ADR 81/02 Combined (miles per UK gallon): 61
ADR 81/02 Combined (mpg): 51
ADR 81/02 Country Highway (km/L): 25.6
ADR 81/02 Country Highway (L/100km): 3.9
ADR 81/02 Country Highway (miles per UK gallon): 72
ADR 81/02 Country Highway (mpg): 60
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 16.7
ADR 81/02 Urban (L/100km): 6.0
ADR 81/02 Urban (miles per UK gallon): 47
ADR 81/02 Urban (mpg): 39
Fuel Economy
ADR 81/02 (L/100km): 4.6
Power
Maximum Power (hp/PS): 128
Maximum Power (kW): 94
Maximum Torque (Nm): 260
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 1900
Drive
Driven Wheels: Front
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Manual
Number of Speeds: 6
Shift Lever Location: Floor
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.5
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Station Wagon
Local Body Type: Station Wagon
Platform Code: HD
Spoiler
Location: Roof
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 58.0
Rear Seat Down (L): 1642
Rear Seat Up to Lower Window (cu ft): 18.6
Rear Seat Up to Lower Window (L): 528
External Dimensions
Kerb to Kerb Turning Circle (mm): 10600
Front Track (in): 61.2
Front Track (mm): 1555
Ground Clearance Unladen (in): 5.5
Ground Clearance Unladen (mm): 140
Kerb To Kerb Turning Circle (ft): 34.8
Overall Height (in): 59.1
Overall Height (mm): 1500
Overall Length (in): 176.6
Overall Length (mm): 4485
Overall Width (in): 70.1
Overall Width (mm): 1780
Rear Track (in): 61.5
Rear Track (mm): 1563
Wheelbase (in): 104.3
Wheelbase (mm): 2650
Internal Dimensions
Front Headroom (in): 40.7
Front Headroom (mm): 1033
Rear Headroom (in): 39.6
Rear Headroom (mm): 1005
Front Hip Room (in): 54.1
Front Hip Room (mm): 1375
Rear Hip Room (in): 51.0
Rear Hip Room (mm): 1296
Front Leg Room (in): 42.0
Front Leg Room (mm): 1067
Rear Leg Room (in): 34.6
Rear Leg Room (mm): 880
Front Shoulder Room (in): 55.9
Front Shoulder Room (mm): 1420
Rear Shoulder Room (in): 54.9
Rear Shoulder Room (mm): 1395
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
LED Lights
Location: Day Time Running Lights
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Vehicle Weight (kg): 1920
Gross Vehicle Weight (lb): 4233
Published Kerb Weight (kg): 1326
Published Kerb Weight (lb): 2923
Tare Weight (kg): 1289
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Sensor
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Instrument Panel: Alloy Look
Crash Test Results
ANCAP Overall: 5.00
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
