Active
1.6L, 6-speed manual, 5-door Hatchback, Diesel, FWD
Save $$$ with CarExpert*
$23,590†

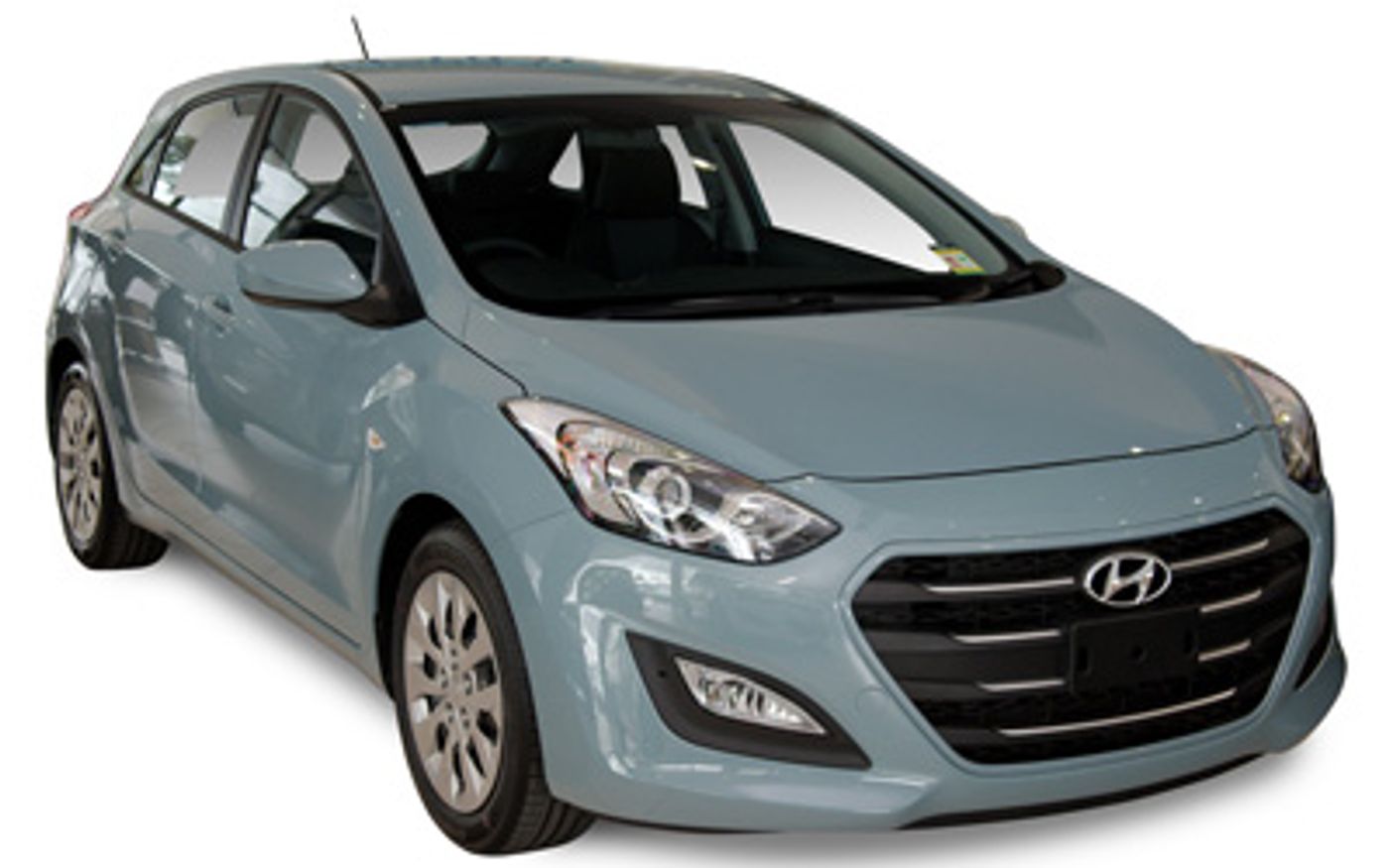

Hyundai i30 Active (2016) price & specs
Save $$$ with CarExpert*
From
$23,590†
Active
Overview
The 2016 Hyundai i30 Active is a front-wheel drive, 5-door Hatchback that was released to the Australian market on 5th November 2015 classified as a GD4. The Hyundai i30 is regarded as a small car built in Korea with prices starting at $23,590 before on-road costs.
This Hyundai i30 is powered by a 1.6L 4-cylinder engine that has 100 kW of power (at 4000 rpm) and 260 Nm of torque (at 1500 rpm) via a Six-speed Manual transmission. Hyundai claims the i30 Active uses 4.6L/100km of Diesel in the combined city and highway cycle while putting out 125g of CO2. It has a 50L fuel tank, meaning it should be able to travel 1087km per full tank
The Hyundai i30 measures 1470mm (57.9 inches) in height, 4300mm (169.3 inches) in length, 1780mm (70.1 inches) in width with a 2650mm (104.3 inches) wheelbase that brings about a total of 1310kg (2888.1 lbs) of unladen weight. The i30 Active comes standard with 205/55 R16 front tyres and 205/55 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2016 Hyundai i30 Active has a 140mm ground clearance with a 1300kg braked and 500kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the i30 compare?
Quickly see how the 2016 Hyundai i30 Active stacks up against its competition.
Select any benchmark to see more details.
Power to Weight
66.84 - 98.57 kW/t
63.9 kW/t
163.17 kW/t
Boot Space
378 - 528 litres
280 litres
657 litres
Fuel Efficiency
4.6 - 7.7 L/100km
3.4 L/100km
8.1 L/100km
Vehicle Range
649 - 1,104 km
642 km
1,265 km
Price
$20,990 - $34,490
$19,990
$50,990
Warranty (Years)
5 years
3 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
2 - 6 years
2 years
6 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
1,820 - 1,940 kg
1,770 kg
2,115 kg
Braked Towing Capacity
1,300 kg
800 kg
1,300 kg
Ground Clearance Unladen
140 mm
123 mm
163 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,300 mm
1,780 mm
1,470 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,300 mm |
| Overall Width | 1,780 mm |
| Overall Height | 1,470 mm |
| Wheelbase | 2,650 mm |
| Turning Circle | 10,600 mm |
| Load Capacity | 560 mm |
Looking for complete Hyundai i30 size & space specs?
Our Hyundai i30 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Hyundai i30 Sales rolling 12-months#
Explore Hyundai i30 Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 5.0
Australia Greenhouse Rating: 8.0
Australia Overall Emission Control Level Rating: 3.5
CO2 Level (Combined): 125
Standard Met: EU5
Engine
Bore Engine: 77.2
Engine (cc): 1582
Engine Configuration: In-Line
Engine Code: U-Ii 1.6 Crdi
Engine (L): 1.6
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 84.5
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 13.2
Main Capacity (L): 50
Main Capacity Uk Gallons: 11.0
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Number of Screens: 1
Screen Size (in): 7.0
Touch Screen: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1087
ADR 81/02 Calculated Vehicle Range (miles): 675
ADR 81/02 Combined (km/L): 21.7
ADR 81/02 Combined (L/100km): 4.6
ADR 81/02 Combined (miles per UK gallon): 61
ADR 81/02 Combined (mpg): 51
ADR 81/02 Country Highway (km/L): 24.4
ADR 81/02 Country Highway (L/100km): 4.1
ADR 81/02 Country Highway (miles per UK gallon): 69
ADR 81/02 Country Highway (mpg): 57
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 17.5
ADR 81/02 Urban (L/100km): 5.7
ADR 81/02 Urban (miles per UK gallon): 50
ADR 81/02 Urban (mpg): 41
Fuel Economy
ADR 81/02 (L/100km): 4.6
Power
Maximum Power (hp/PS): 136
Maximum Power (kW): 100
Maximum Torque (Nm): 260
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Front
Transmission
Description: Manual
Number of Speeds: 6
Shift Lever Location: Floor
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Torsion Beam
Rear Wheel Dependence: Semi-Independent
Tires
Front Wheels Tire Load Index: 91
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Load Index: 91
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Platform Code: HD
Wheelbase Type: Short
Spoiler
Location: Roof
Bumpers
Location: Front
Location: Rear
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 46.5
Rear Seat Down (L): 1316
Rear Seat Up to Lower Window (cu ft): 13.3
Rear Seat Up to Lower Window (L): 378
External Dimensions
Kerb to Kerb Turning Circle (mm): 10600
Front Track (in): 61.0
Front Track (mm): 1549
Ground Clearance Unladen (in): 5.5
Ground Clearance Unladen (mm): 140
Kerb To Kerb Turning Circle (ft): 34.8
Overall Height (in): 57.9
Overall Height (mm): 1470
Overall Length (in): 169.3
Overall Length (mm): 4300
Overall Width (in): 70.1
Overall Width (mm): 1780
Rear Track (in): 61.5
Rear Track (mm): 1562
Wheelbase (in): 104.3
Wheelbase (mm): 2650
Internal Dimensions
Front Headroom (in): 40.1
Front Headroom (mm): 1018
Rear Headroom (in): 37.9
Rear Headroom (mm): 963
Front Hip Room (in): 53.1
Front Hip Room (mm): 1349
Rear Hip Room (in): 51.0
Rear Hip Room (mm): 1296
Front Leg Room (in): 42.0
Front Leg Room (mm): 1067
Rear Leg Room (in): 34.6
Rear Leg Room (mm): 880
Front Shoulder Room (in): 55.9
Front Shoulder Room (mm): 1420
Rear Shoulder Room (in): 54.9
Rear Shoulder Room (mm): 1395
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
Paint
External Colour: Black
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 1300
Gross Trailer Weight Braked (lb): 2866
Gross Trailer Weight Unbraked (kg): 500
Gross Trailer Weight Unbraked (lb): 1102
Gross Vehicle Weight (kg): 1870
Gross Vehicle Weight (lb): 4123
Published Kerb Weight (kg): 1310
Published Kerb Weight (lb): 2888
Tare Weight (kg): 1276
Audio System
Colour Screen: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Phone: yes
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 7
Crash Test Results
ANCAP Overall: 5.00
ANCAP Pedestrian: Acceptable
ANCAP Standard: Ancap
ANCAP Version Tested: Hyundai I30 1.4mpi Gls, Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
