Overview

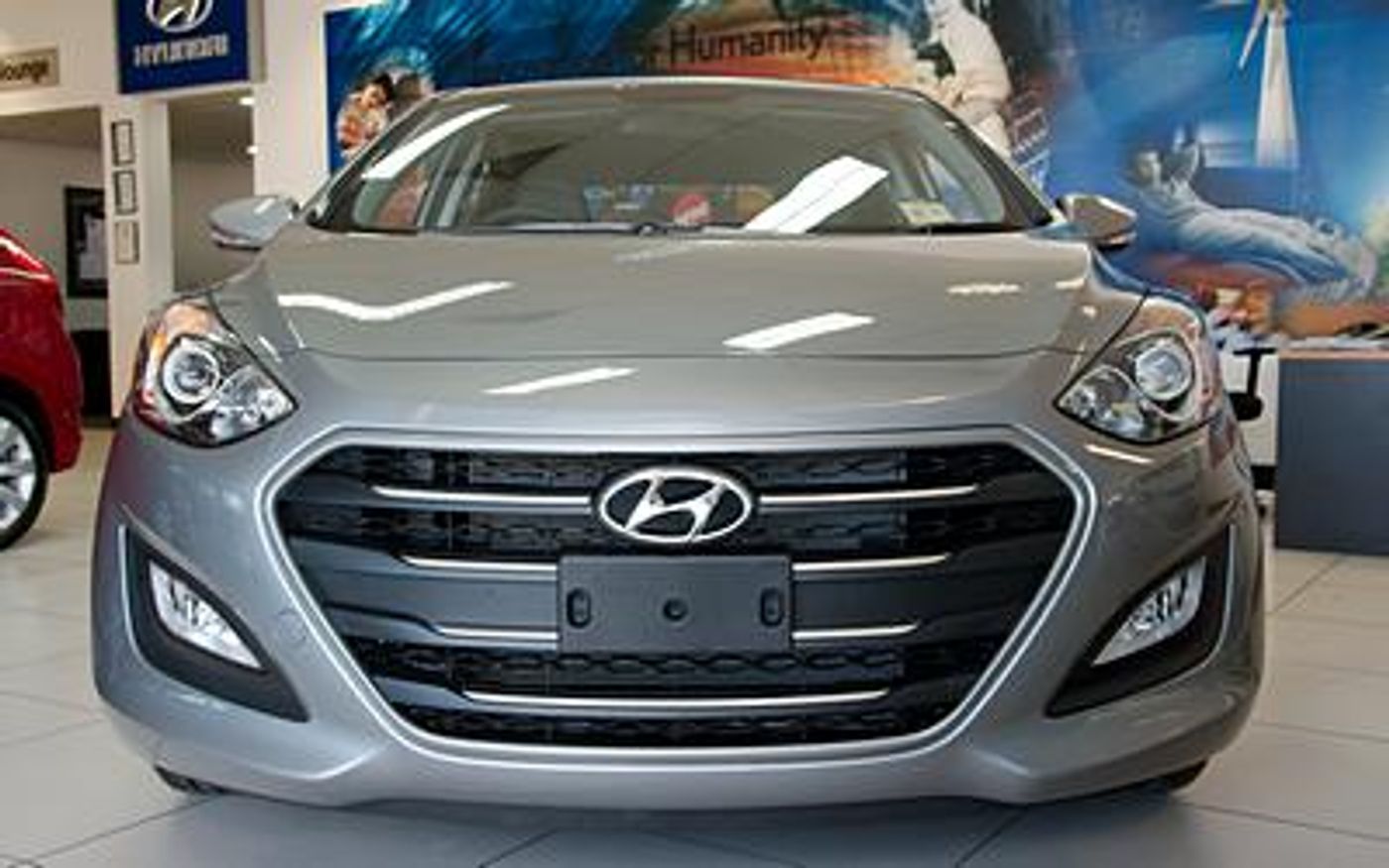

The 2016 Hyundai i30 Base is a front-wheel drive, 5-door Station Wagon that was released to the Australian market on 3rd June 2015 classified as a Gde3. The Hyundai i30 is regarded as a small car built in Korea with prices starting at $27,990 before on-road costs.
This Hyundai i30 is powered by a 1.6L 4-cylinder engine that has 98 kW of power (at 6300 rpm) and 163 Nm of torque (at 4850 rpm) via a 7 SP MANUAL transmission. Hyundai claims the i30 Base uses 6.0L/100km of Unleaded in the combined city and highway cycle while putting out 140g of CO2. It has a 53L fuel tank, meaning it should be able to travel 883km per full tank
The Hyundai i30 measures 1500mm (59.1 inches) in height, 4485mm (176.6 inches) in length, 1780mm (70.1 inches) in width with a 2650mm (104.3 inches) wheelbase that brings about a total of 1254kg (2764.6 lbs) of unladen weight. The i30 Base comes standard with 205/55 R16 front tyres and 205/55 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2016 Hyundai i30 Base has a 140mm ground clearance with a 1300kg braked and 500kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Towing & Off-Road Capability
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | In-Line |
|---|---|
| Size (cc) | 1591 |
| Size (L) | 1.6L |
| Cylinders | 4 |
| Camshaft | - |
| Valves/Ports per Cylinder | - |
| Power | 98kW |
| Power RPM | 6300 |
| Torque | 163Nm |
| Torque RPM | 4850 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 7 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | - |
| Suspension Rear | - |
| Steering Mechanism | Plastic |
| Drive | front |
| Fuel Combined (L/100km) | 6.0 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 53 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | 140 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | - |
|---|---|
| Brake Rear | - |
| Tyre Front | 205/55 R16 |
| Tyre Rear | 205/55 R16 |
| Front Rim Size | - |
| Rear Rim Size | - |
| Vehicle Height (mm) | 1500 |
|---|---|
| Vehicle Length (mm) | 4485 |
| Vehicle Width (mm) | 1780 |
| Ground Clearance (mm) | 140 |
| Wheelbase (mm) | 2650 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 1254 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1850 |
| Track Front (mm) | 1555 |
| Track Rear (mm) | 1563 |
| Towing Capacity Brake (kg) | 1300 |
| Towing Capacity Unbraked (kg) | 500 |
| Country Of Origin | Korea |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | 15000 |
| Service Interval Months | 12 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | - |
| Warranty Months | 60 |
| Discontinued Date | 2016-02-15 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
