Sr Premium
2.0L, 6-speed manual, 5-door Hatchback, Petrol, FWD
Save $$$ with CarExpert*
$31,250â€

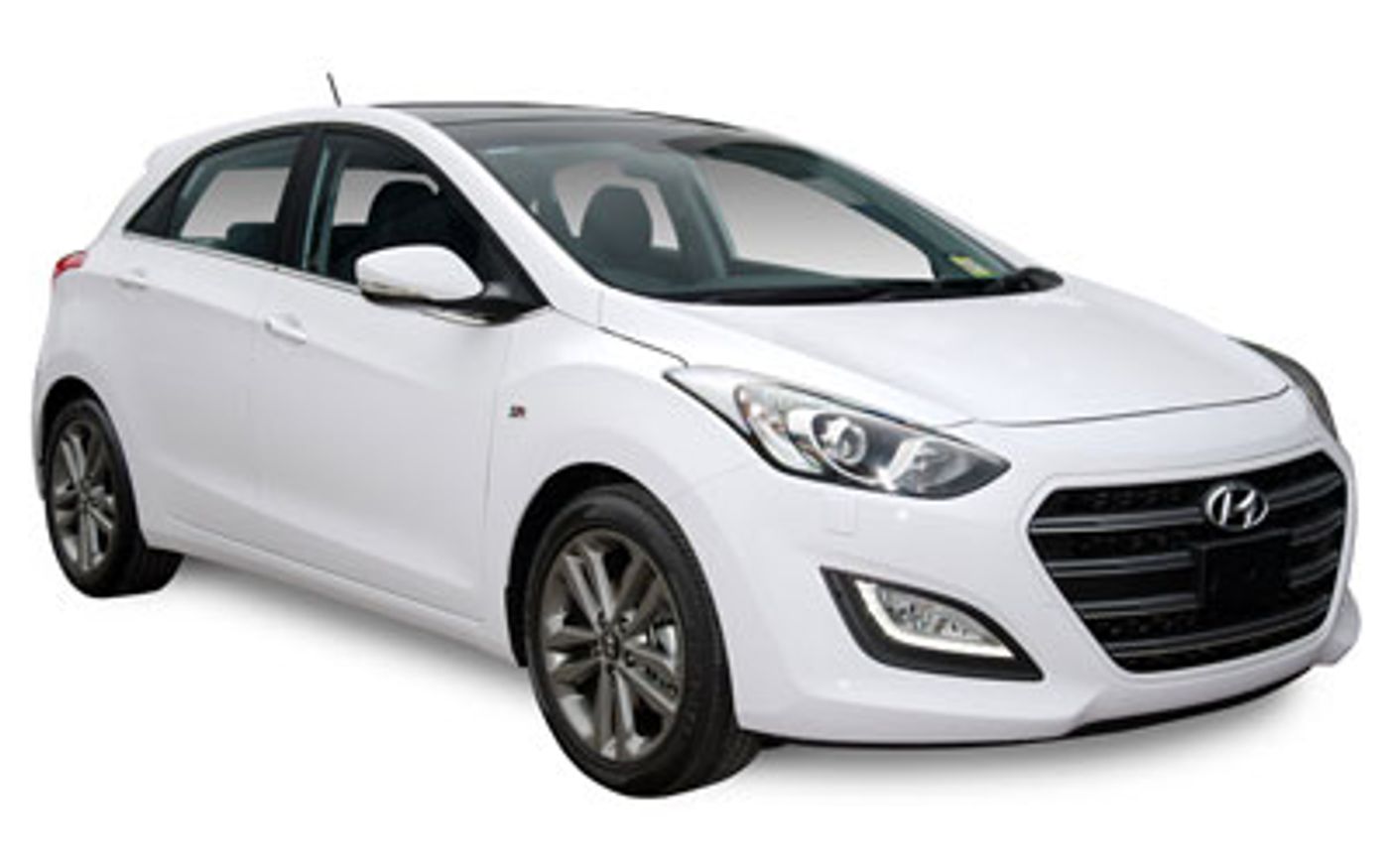

Hyundai i30 Sr Premium (2017) price & specs
Save $$$ with CarExpert*
From
$31,250â€
Sr Premium
Overview
The 2017 Hyundai i30 Sr Premium is a front-wheel drive, 5-door Hatchback that was released to the Australian market on 5th July 2016 classified as a GD5. The Hyundai i30 is regarded as a small car built in Korea with prices starting at $31,250 before on-road costs.
This Hyundai i30 is powered by a 2.0L 4-cylinder engine that has 124 kW of power (at 6500 rpm) and 201 Nm of torque (at 4700 rpm) via a Six-speed Manual transmission. Hyundai claims the i30 Sr Premium uses 7.3L/100km of Unleaded in the combined city and highway cycle while putting out 170g of CO2. It has a 50L fuel tank, meaning it should be able to travel 685km per full tank
The Hyundai i30 measures 1470mm (57.9 inches) in height, 4300mm (169.3 inches) in length, 1780mm (70.1 inches) in width with a 2650mm (104.3 inches) wheelbase that brings about a total of 1260kg (2777.8 lbs) of unladen weight. The i30 Sr Premium comes standard with 225/45 R17 front tyres and 225/45 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2017 Hyundai i30 Sr Premium has a 140mm ground clearance with a 1300kg braked and 500kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the i30 compare?
Quickly see how the 2017 Hyundai i30 Sr Premium stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
74.79 - 98.41 kW/t
72.55 kW/t
163.17 kW/t
Boot Space
378 litres
280 litres
657 litres
Fuel Efficiency
4.6 - 7.7 L/100km
4.1 L/100km
8.8 L/100km
Vehicle Range
649 - 1,087 km
534 km
1,224 km
Price
$21,450 - $35,190
$19,990
$56,990
Warranty (Years)
5 years
3 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
2 - 6 years
2 years
6 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
1,820 - 1,890 kg
1,705 kg
2,025 kg
Braked Towing Capacity
1,300 kg
800 kg
1,400 kg
Ground Clearance Unladen
140 mm
102 mm
155 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,300 mm
1,780 mm
1,470 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,300 mm |
| Overall Width | 1,780 mm |
| Overall Height | 1,470 mm |
| Wheelbase | 2,650 mm |
| Turning Circle | 10,600 mm |
| Load Capacity | 570 mm |
Looking for complete Hyundai i30 size & space specs?
Our Hyundai i30 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Hyundai i30 Sales rolling 12-months#
Explore Hyundai i30 Features & Specs
Emission Control Level
CO2 Level (Combined): 170
Standard Met: EU5
Engine
Bore Engine: 81.0
Engine (cc): 1999
Engine Configuration: In-Line
Engine Code: Nu 2.0 Gdi
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 97.0
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 13.2
Main Capacity (L): 50
Main Capacity Uk Gallons: 11.0
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Screen Size (in): 7.0
Touch Screen: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 685
ADR 81/02 Calculated Vehicle Range (miles): 426
ADR 81/02 Combined (km/L): 13.7
ADR 81/02 Combined (L/100km): 7.3
ADR 81/02 Combined (miles per UK gallon): 39
ADR 81/02 Combined (mpg): 32
ADR 81/02 Country Highway (km/L): 17.2
ADR 81/02 Country Highway (L/100km): 5.8
ADR 81/02 Country Highway (miles per UK gallon): 49
ADR 81/02 Country Highway (mpg): 41
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.2
ADR 81/02 Urban (L/100km): 9.8
ADR 81/02 Urban (miles per UK gallon): 29
ADR 81/02 Urban (mpg): 24
Fuel Economy
ADR 81/02 (L/100km): 7.3
Power
Maximum Power (hp/PS): 169
Maximum Power (kW): 124
Maximum Torque (Nm): 201
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6500
Rpm For Maximum Torque Low: 4700
Drive
Driven Wheels: Front
Transmission
Description: Manual
Number of Speeds: 6
Shift Lever Location: Floor
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Torsion Beam
Rear Wheel Dependence: Semi-Independent
Tires
Front Wheels Tire Load Index: 91
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Load Index: 91
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: V
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Rear Two Tone: yes
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Platform Code: HD
Wheelbase Type: Short
Spoiler
Location: Roof
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 46.5
Rear Seat Down (L): 1316
Rear Seat Up to Lower Window (cu ft): 13.3
Rear Seat Up to Lower Window (L): 378
External Dimensions
Kerb to Kerb Turning Circle (mm): 10600
Front Track (in): 61.0
Front Track (mm): 1549
Ground Clearance Unladen (in): 5.5
Ground Clearance Unladen (mm): 140
Kerb To Kerb Turning Circle (ft): 34.8
Overall Height (in): 57.9
Overall Height (mm): 1470
Overall Length (in): 169.3
Overall Length (mm): 4300
Overall Width (in): 70.1
Overall Width (mm): 1780
Rear Track (in): 61.5
Rear Track (mm): 1562
Wheelbase (in): 104.3
Wheelbase (mm): 2650
Internal Dimensions
Front Hip Room (in): 53.1
Front Hip Room (mm): 1349
Rear Hip Room (in): 51.0
Rear Hip Room (mm): 1296
Front Leg Room (in): 42.0
Front Leg Room (mm): 1067
Rear Leg Room (in): 34.6
Rear Leg Room (mm): 880
Front Shoulder Room (in): 55.9
Front Shoulder Room (mm): 1420
Rear Shoulder Room (in): 54.9
Rear Shoulder Room (mm): 1395
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Xenon
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: Rear Lights
Paint
External Colour: Black
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1300
Gross Trailer Weight Braked (lb): 2866
Gross Trailer Weight Unbraked (kg): 500
Gross Trailer Weight Unbraked (lb): 1102
Gross Vehicle Weight (kg): 1830
Gross Vehicle Weight (lb): 4034
Published Kerb Weight (kg): 1260
Published Kerb Weight (lb): 2778
Tare Weight (kg): 1230
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Luxury Trim
Centre Floor Console: Titanium Look
Doors: Titanium Look
Gear Selector: Leather
Instrument Panel: Titanium Look
Airbags
Number of Airbags: 7
Crash Test Results
ANCAP Overall: 5.00
ANCAP Pedestrian: Acceptable
ANCAP Standard: Ancap
ANCAP Version Tested: Hyundai I30 1.4mpi Gls, Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Sports
Driver Front Seat Ventilated: yes
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Sports
Passenger Front Seat Ventilated: yes
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
