    Hyundai iMax Base (2013) price & specs

    Save $$$ with CarExpert*
    From
    $39,990†
    2.5L Diesel5D MPV6 SP MANUALRWD

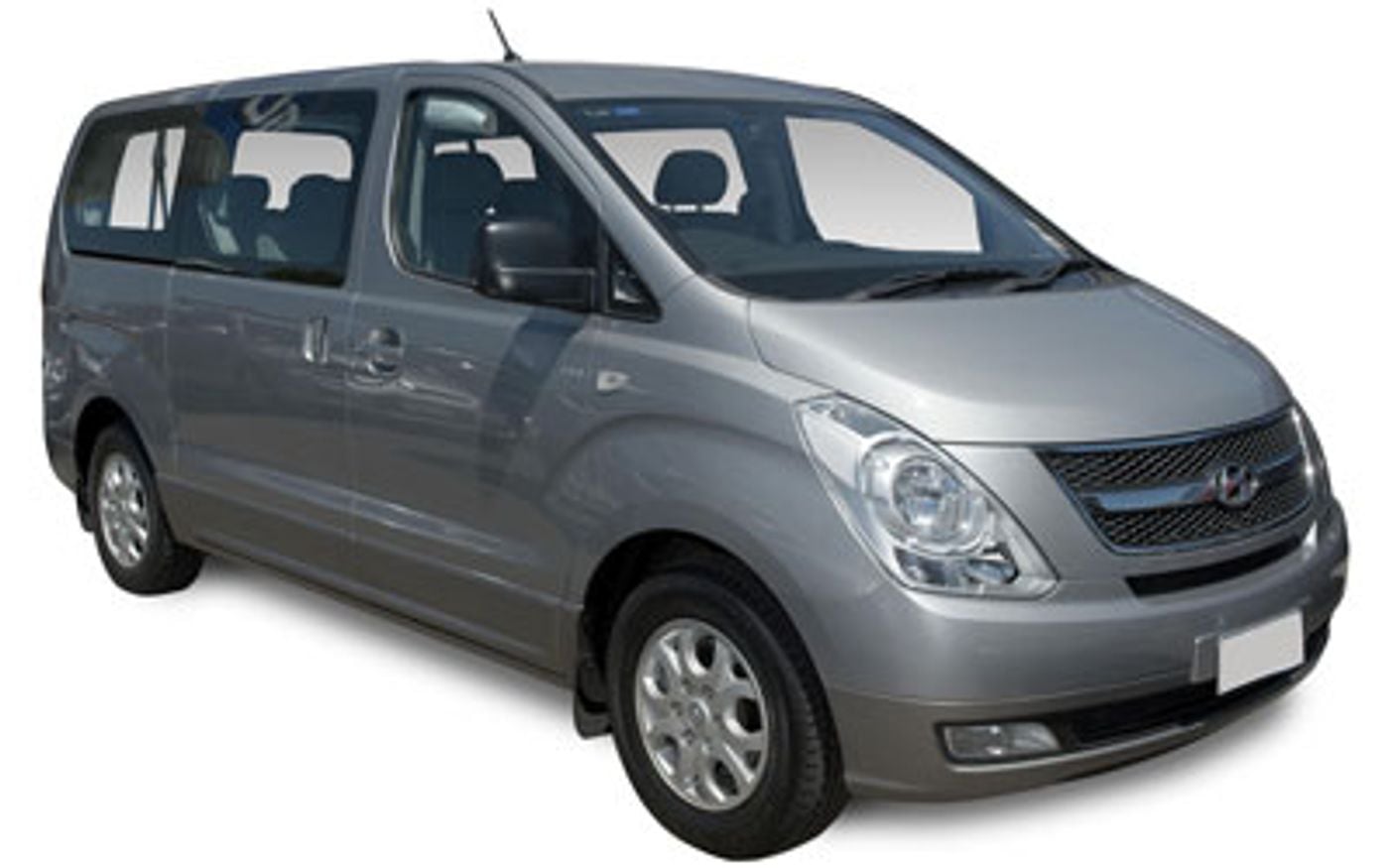

    Hero image of a new Hyundai iMax Base (2013) price & specs available with CarExpert deals.

    Base

    Find a deal

    Overview

    The 2013 Hyundai iMax Base is a rear-wheel drive, 5-door Mpv that was released to the Australian market on 2nd August 2012 classified as a TQ2. The Hyundai iMax is regarded as a Mpv built in Turkey with prices starting at $39,990 before on-road costs.

    This Hyundai iMax is powered by a 2.5L 4-cylinder engine that has 100 kW of power (at 3800 rpm) and 343 Nm of torque (at 1500 rpm) via a Six-speed Manual transmission. Hyundai claims the iMax Base uses 8.1L/100km of Diesel in the combined city and highway cycle while putting out 213g of CO2. It has a 75L fuel tank, meaning it should be able to travel 926km per full tank

    The Hyundai iMax measures 1925mm (75.8 inches) in height, 5125mm (201.8 inches) in length, 1920mm (75.6 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 2215kg (4883.2 lbs) of unladen weight. The iMax Base comes standard with 215/70 R16 front tyres and 215/70 R16 rear tyres. It has a 60 month, unlimited km warranty.

    The 2013 Hyundai iMax Base has a 190mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    How does the iMax compare?

    Quickly see how the 2013 Hyundai iMax Base stacks up against its competition.
     Select any benchmark to see more details.

    Power to Weight
    45.15 - 60.62 kW/t
    45.15 kW/t
    80.24 kW/t
    Fuel Efficiency
    8.1 - 10.6 L/100km
    5.8 L/100km
    10.6 L/100km
    Vehicle Range
    708 - 926 km
    640 km
    1,034 km
    Price
    $37,290 - $42,490
    $25,990
    $49,990
    Warranty (Years)
    5 years
    3 years
    5 years
    Warranty (Distance)
    Unlimited
    100,000 km
    Unlimited

    Towing & Off-Road Capability

    Gross Vehicle Weight
    2,930 - 3,030 kg
    2,050 kg
    3,030 kg
    Braked Towing Capacity
    1,500 - 2,000 kg
    1,000 kg
    2,000 kg
    Ground Clearance Unladen
    190 mm
    149 mm
    190 mm

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    Dimensions

    5,125 mm
    1,920 mm
    1,925 mm
    SpecificationMeasurement
    Overall Length5,125 mm
    Overall Width1,920 mm
    Overall Height1,925 mm
    Wheelbase3,200 mm
    Turning Circle11,220 mm
    Load Capacity815 mm

    Looking for complete Hyundai iMax size & space specs?

    Our Hyundai iMax Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.

    Explore Hyundai iMax Features & Specs

    Base

    2.5L, 6-speed manual, 5-door Mpv, Diesel, RWD

    Save $$$ with CarExpert*
    $39,990†
    Find a deal

    Compressor

    Compressor: Turbo

    Emission Control Level

    Australia Air Pollution Rating: 3.0
    Australia Greenhouse Rating: 6.0
    Australia Overall Emission Control Level Rating: 2.5
    CO2 Level (Combined): 213
    Standard Met: EU4

    Engine

    Bore Engine: 91.0
    Engine (cc): 2497
    Engine Configuration: In-Line
    Engine (L): 2.5
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 96.0
    Valve Gear Type: Double Overhead Cam

    Fuel

    Generic Primary Fuel Type: Diesel
    Minimum Fuel Type: Diesel
    Fuel Type: Diesel

    Fuel System

    Injection Carburetion: Diesel Common Rail

    Fuel Tanks

    Main Capacity Gal: 19.8
    Main Capacity (L): 75
    Main Capacity Uk Gallons: 16.5
    Main Type: Total

    Interested in buying a Hyundai iMax Base?

    Save $$$ with CarExpert*
    From
    $39,990†
    Find a deal

    Fuel Consumption

    ADR 81/02 Calculated Vehicle Range (km): 926
    ADR 81/02 Calculated Vehicle Range (miles): 575
    ADR 81/02 Combined (km/L): 12.3
    ADR 81/02 Combined (L/100km): 8.1
    ADR 81/02 Combined (miles per UK gallon): 35
    ADR 81/02 Combined (mpg): 29
    ADR 81/02 Country Highway (km/L): 14.7
    ADR 81/02 Country Highway (L/100km): 6.8
    ADR 81/02 Country Highway (miles per UK gallon): 42
    ADR 81/02 Country Highway (mpg): 35
    ADR 81/02 Standard: Adr 81/02
    ADR 81/02 Urban (km/L): 9.8
    ADR 81/02 Urban (L/100km): 10.2
    ADR 81/02 Urban (miles per UK gallon): 28
    ADR 81/02 Urban (mpg): 23

    Fuel Economy

    ADR 81/02 (L/100km): 8.1

    Power

    Maximum Power (hp/PS): 136
    Maximum Power (kW): 100
    Maximum Torque (Nm): 343
    Measurement Standard: EEC
    Primary or Secondary Fuel Power Figure: Primary
    Rpm For Maximum Power Low: 3800
    Rpm For Maximum Torque Low: 1500

    Drive

    Driven Wheels: Rear

    Electronic Traction Control

    Controlled By: Abs & Engine Management

    Transmission

    Description: Manual
    Number of Speeds: 6
    Shift Lever Location: Dash
    Type: Manual

    Disc Brakes

    Number of Disc Brakes: 4
    Number of Ventilated Disc Brakes: 4

    Steering Wheel

    Height Adjustment: yes
    Type: Plastic

    Suspension

    Location: Front
    Front Spring Type: Coil
    Front Stabilizer Bar: yes
    Front Type: Strut
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Coil
    Rear Stabilizer Bar: yes
    Rear Type: Beam
    Rear Wheel Dependence: Rigid

    Tires

    Front Wheels Tire Load Index: 108
    Location: Front
    Front Wheels Tire Profile: 70
    Front Wheels Tire Speed Rating: T
    Front Wheels Tire Type: Conventional/Summer
    Front Wheels Tire Width: 215
    Rear Wheels Tire Load Index: 108
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 70
    Rear Wheels Tire Speed Rating: T
    Rear Wheels Tire Type: Conventional/Summer
    Rear Wheels Tire Width: 215

    Wheels

    Location: Front
    Front Wheels Rim Diameter (In): 16
    Front Wheels Rim Type: Alloy
    Front Wheels Rim Width (In): 6.5
    Location: Rear
    Rear Rim Diameter (In): 16
    Rear Rim Type: Alloy
    Rear Wheels Rim Width (In): 6.5

    Body Style

    Body Type: MPV
    Local Body Type: MPV
    Platform Code: CK

    Mud Flaps

    Front Mud Flaps Location: Front
    Rear Mud Flaps Location: Rear

    Bumpers

    Front Bumper Colour: Painted
    Location: Front
    Rear Bumper Colour: Black
    Location: Rear

    Cargo Capacity

    Measurement Standard: VDA
    Rear Seat Down (cu ft): 29.7
    Rear Seat Down (L): 842

    External Dimensions

    Kerb to Kerb Turning Circle (mm): 11220
    Front Track (in): 66.3
    Front Track (mm): 1685
    Ground Clearance Unladen (in): 7.5
    Ground Clearance Unladen (mm): 190
    Kerb To Kerb Turning Circle (ft): 36.8
    Overall Height (in): 75.8
    Overall Height (mm): 1925
    Overall Length (in): 201.8
    Overall Length (mm): 5125
    Overall Width (in): 75.6
    Overall Width (mm): 1920
    Rear Track (in): 65.4
    Rear Track (mm): 1660
    Wheelbase (in): 126.0
    Wheelbase (mm): 3200

    Internal Dimensions

    Front Headroom (in): 40.0
    Front Headroom (mm): 1017
    Rear Headroom (in): 40.1
    Rear Headroom (mm): 1018
    Front Hip Room (in): 60.2
    Front Hip Room (mm): 1530
    Rear Hip Room (in): 65.0
    Rear Hip Room (mm): 1652
    Front Leg Room (in): 41.0
    Front Leg Room (mm): 1041
    Rear Leg Room (in): 39.2
    Rear Leg Room (mm): 995
    Front Shoulder Room (in): 63.4
    Front Shoulder Room (mm): 1610
    Rear Shoulder Room (in): 65.0
    Rear Shoulder Room (mm): 1650

    Doors

    Location: Driver
    Driver Door Type: Front Hinged
    Location: Passenger
    Passenger Door Type: Front Hinged
    Location: Rear Driver
    Rear Driver Door Type: Sliding
    Location: Rear Passenger
    Rear Passenger Door Type: Sliding

    Rear Door

    Type: Lifting Gate

    Headlights

    Low Beam Bulb Type: Halogen

    Paint

    External Colour: White
    Two Tone: yes
    Type: Gloss

    Door Mirrors/Cameras

    Driver Door Mirrors/Cameras Colour: Black
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Black
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable

    Power Windows

    Front Electric Windows: Front

    Windshield Wipers

    Intermittent Wipe Windshield Wipers: Variable

    Weights

    Gross Trailer Weight Braked (kg): 2000
    Gross Trailer Weight Braked (lb): 4409
    Gross Trailer Weight Unbraked (kg): 750
    Gross Trailer Weight Unbraked (lb): 1653
    Gross Vehicle Weight (kg): 3030
    Gross Vehicle Weight (lb): 6680
    Published Kerb Weight (kg): 2215
    Published Kerb Weight (lb): 4883
    Tare Weight (kg): 2160

    Audio System

    CD Player Reads MP3: yes
    In-Dash CD: yes
    Radio Type: Am/Fm

    External Connections

    Aux Jack (Front): yes
    iPod Connection (Front): yes
    USB (Front): yes

    Remote Audio Controls

    Type: Steering Wheel Mounted

    Speakers

    Number of Speakers: 4

    Bluetooth

    Includes Music Streaming: yes
    Includes Phone Connection: yes

    Parking Distance System

    Location: Rear
    Rear Type: Sensor

    Power Outlet 12V

    Location (12V): Front

    Vanity Mirror

    Driver Mirror Illuminated: yes
    Driver Mirror Location: Driver
    Passenger Mirror Illuminated: yes
    Location: Passenger

    Luxury Trim

    Centre Floor Console: Alloy Look
    Doors: Alloy Look
    Gear Selector: Alloy Look
    Instrument Panel: Alloy Look

    Crash Test Results

    ANCAP Date Tested: 20090721
    ANCAP Overall: 4.00
    ANCAP Pedestrian: 1
    ANCAP Standard: Ancap
    ANCAP Version Tested: 2.4 Manual

    Front Airbag

    Location: Driver
    Location: Passenger

    Front Seat Belts

    Driver Height Adjustable: yes
    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Passenger Height Adjustable: yes
    Passenger Pre Tensioners: yes
    Passenger Seat Position: Passenger

    Head Restraints

    Location: 3rd Row Seats
    3rd Row Seats Number: 3
    Front Seats Location: Front Seats
    Rear Seats Location: Rear Seats
    Rear Seats Number: 3

    Rear Seat Belts

    Center Operation: Reel
    Center Seat Position: Centre
    Center Type: 3-Point
    Driver Seat Position: Driver
    Passenger Seat Position: Passenger

    Third Row Seat Belts

    Center Operation: Reel
    Center Seat Position: Centre
    Center Type: 3-Point
    Driver Seat Position: Driver
    Passenger Seat Position: Passenger

    Front Seat

    Driver Front Seat Height Type: Manual
    Location: Driver
    Driver Front Seat Reach Type: Manual
    Driver Front Seat Reclining Type: Manual
    Driver Front Seat Type: Bucket
    Location: Passenger
    Passenger Front Seat Reach Type: Manual
    Passenger Front Seat Reclining Type: Manual
    Passenger Front Seat Type: Bucket

    Seat Upholstery

    Additional Seat Material: Upgraded Cloth/Velour
    Main Seat Material: Upgraded Cloth/Velour

    Seating

    Capacity: 8
    Configuration: 2+3+3

    Cup Holders

    Location: Front Seats
    Location: Rear Seats

    Air Conditioning

    Type: Manual

    Secondary Ventilation Controls

    Rear Seats Location: Rear Seats

    Power Locks

    Operation: Remote

    Intermediate Service

    Distance (km): 15000
    Distance (miles): 9321
