Overview

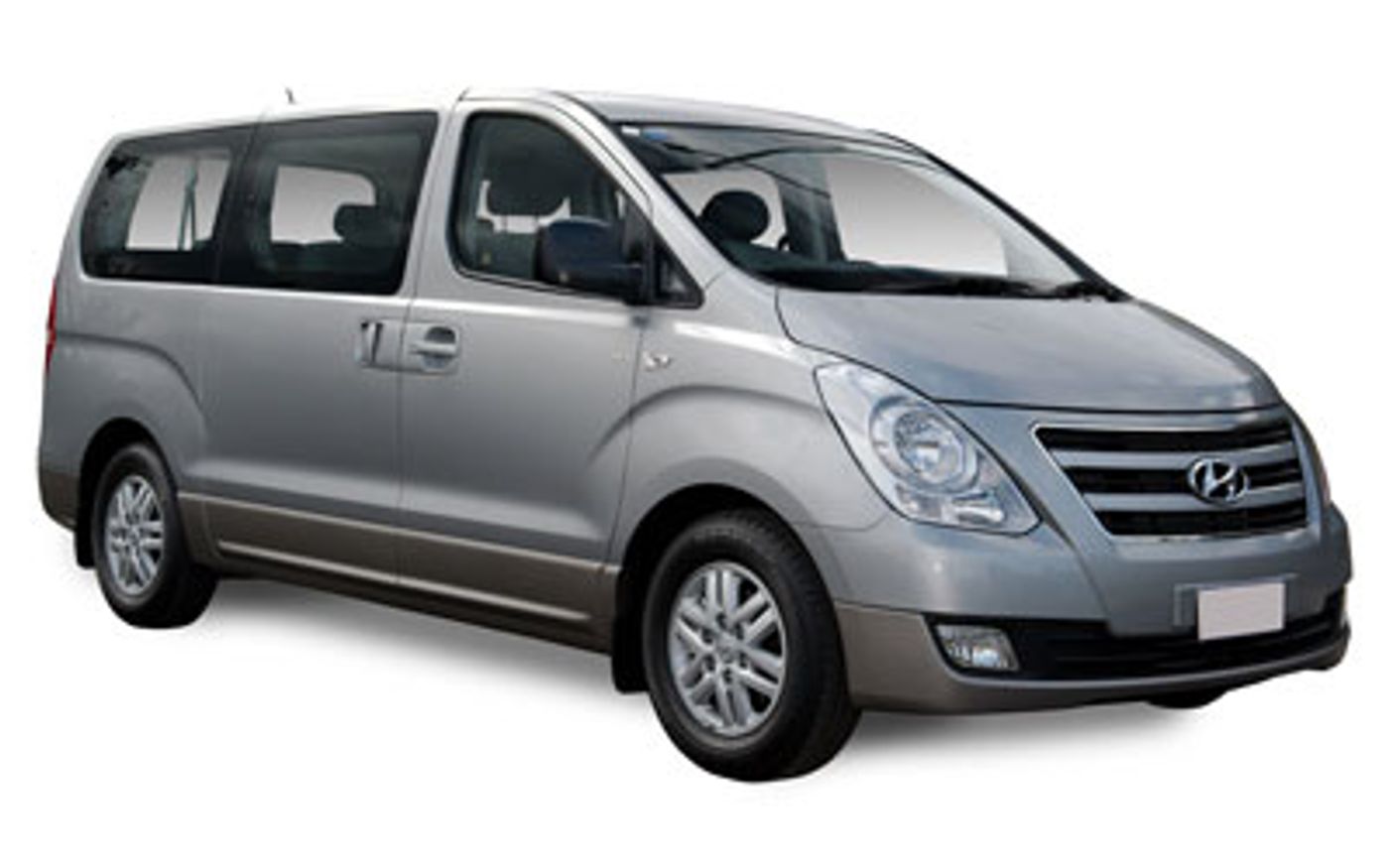

The 2017 Hyundai iMax Base is a rear-wheel drive, 5-door Mpv that was released to the Australian market on 2nd November 2016 classified as a TQ3. The Hyundai iMax is regarded as a Mpv built in Turkey with prices starting at $47,290 before on-road costs.
This Hyundai iMax is powered by a 2.5L 4-cylinder engine that has 125 kW of power (at 3600 rpm) and 441 Nm of torque (at 2000 rpm) via a Five-speed Automatic transmission. Hyundai claims the iMax Base uses 8.8L/100km of Diesel in the combined city and highway cycle while putting out 231g of CO2. It has a 75L fuel tank, meaning it should be able to travel 852km per full tank
The Hyundai iMax measures 1925mm (75.8 inches) in height, 5150mm (202.8 inches) in length, 1920mm (75.6 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 2230kg (4916.3 lbs) of unladen weight. The iMax Base comes standard with 215/70 R16 front tyres and 215/70 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2017 Hyundai iMax Base has a 190mm ground clearance with a 1500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Towing & Off-Road Capability
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | In-Line |
|---|---|
| Size (cc) | 2497 |
| Size (L) | 2.5L |
| Cylinders | 4 |
| Camshaft | - |
| Valves/Ports per Cylinder | - |
| Power | 125kW |
| Power RPM | 3600 |
| Torque | 441Nm |
| Torque RPM | 2000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | - |
| Suspension Rear | - |
| Steering Mechanism | Leather Covered |
| Drive | rear |
| Fuel Combined (L/100km) | 8.8 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 75 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 231 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | - |
|---|---|
| Brake Rear | - |
| Tyre Front | 215/70 R16 |
| Tyre Rear | 215/70 R16 |
| Front Rim Size | - |
| Rear Rim Size | - |
| Vehicle Height (mm) | 1925 |
|---|---|
| Vehicle Length (mm) | 5150 |
| Vehicle Width (mm) | 1920 |
| Ground Clearance (mm) | 190 |
| Wheelbase (mm) | 3200 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 2230 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 3030 |
| Track Front (mm) | 1685 |
| Track Rear (mm) | 1660 |
| Towing Capacity Brake (kg) | 1500 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Turkey |
|---|---|
| Number of Doors | 5 |
| Seats | 8 |
| Service Interval KMs | 15000 |
| Service Interval Months | 12 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | - |
| Warranty Months | 60 |
| Discontinued Date | 2017-02-28 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
