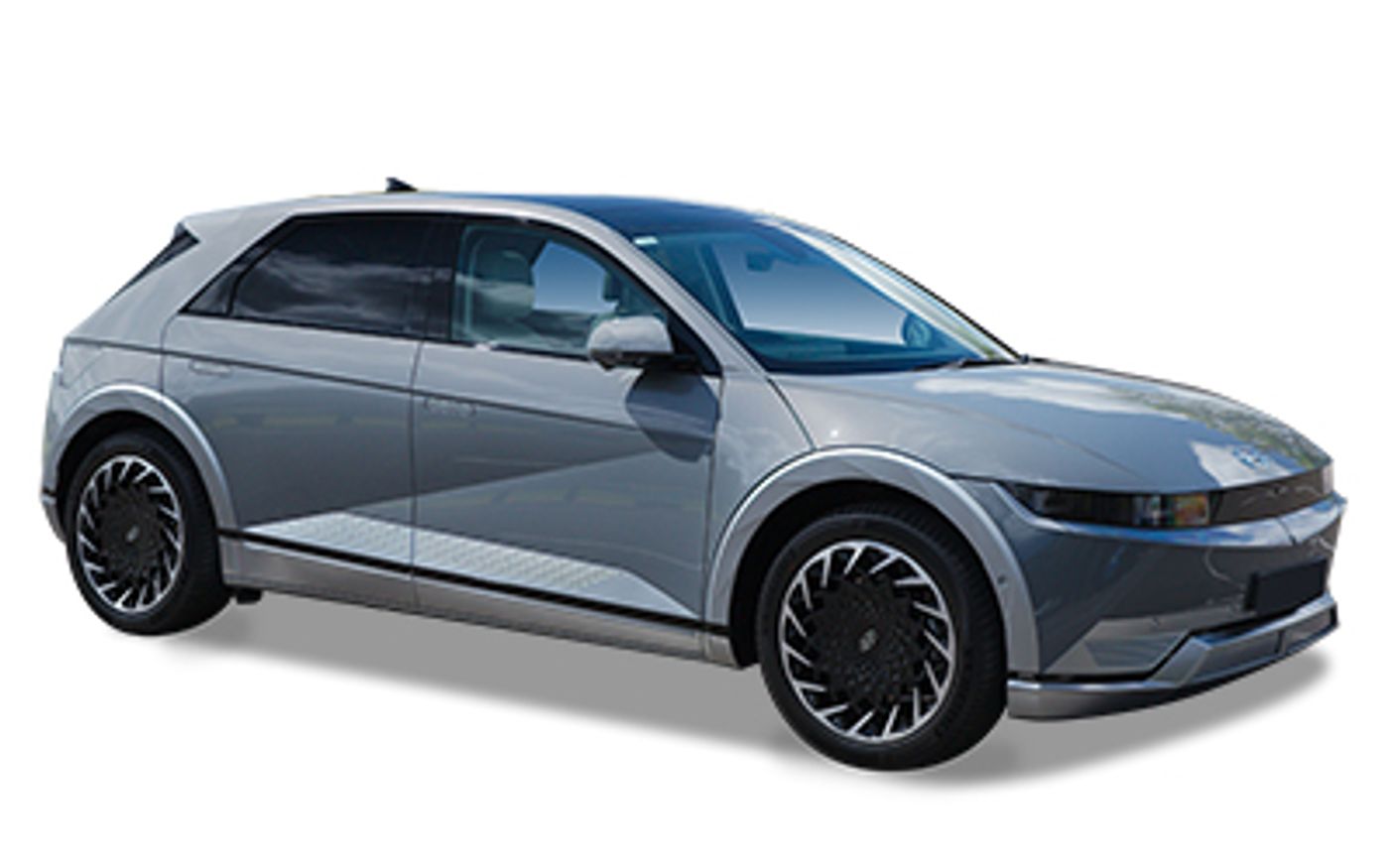

Hyundai IONIQ 5 Techniq (2022) price & specs
Save $$$ with CarExpert*
From
$77,500â€
Techniq
Overview
The 2022 Hyundai IONIQ 5 Techniq is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th January 1970 classified as a Ne.V2. The Hyundai IONIQ 5 is regarded as a Suv Medium Luxury built in Korea with prices starting at $77,500 before on-road costs.
This Hyundai IONIQ 5 uses a fully electric engine.
The Hyundai IONIQ 5 measures 1605mm (63.2 inches) in height, 4635mm (182.5 inches) in length, 1890mm (74.4 inches) in width with a 3000mm (118.1 inches) wheelbase that brings about a total of 1990kg (4387.2 lbs) of unladen weight. The IONIQ 5 Techniq comes standard with 255/45 R20 front tyres and 255/45 R20 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2022 Hyundai IONIQ 5 Techniq has a 160mm ground clearance with a 1600kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the IONIQ 5 compare?
Quickly see how the 2022 Hyundai IONIQ 5 Techniq stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
79.21 - 113.07 kW/t
60.09 kW/t
218.66 kW/t
Boot Space
527 litres
115 litres
971 litres
Price
$69,900 - $77,500
$47,240
$192,000
Warranty (Years)
5 years
2 years
5 years
Warranty (Distance)
Unlimited
80,000 km
Unlimited
Years on Sale
2 - 3 years
1 year
4 years
Service Interval
12 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,430 - 2,540 kg
1,950 kg
3,220 kg
Braked Towing Capacity
1,600 kg
750 kg
2,400 kg
Ground Clearance Unladen
160 mm
122 mm
236 mm
Battery & Charging
Max. battery kilowatt hour
72.6 kWh
0.2 kWh
80 kWh
AC Charging (max kW)
10.5 kW
3.7 kW
11 kW
DC Fast Charging (max kW)
240 - 350 kW
150 kW
350 kW
Vehicle Range (EV)
430 - 481 km
46 km
666 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,635 mm
1,890 mm
inc mirror: 2,152 mm
inc mirror: 2,152 mm
1,605 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,635 mm |
| Overall Width | 1,890 mm |
| Overall Width (Inc Mirror) | 2,152 mm |
| Overall Height | 1,605 mm |
| Wheelbase | 3,000 mm |
| Turning Circle | 11,980 mm |
| Load Capacity | 550 mm |
Looking for complete Hyundai IONIQ 5 size & space specs?
Our Hyundai IONIQ 5 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Hyundai IONIQ 5 Sales rolling 12-months#
Explore Hyundai IONIQ 5 Features & Specs
Cruise Control
Adaptive Cruise Control Linked To Mapping: yes
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Steering: yes
Memorised Adjustment
Door Mirror Position: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Remote Park
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Remote HVAC Control
Includes Cooling: yes
Includes Heating: yes
Includes Phone: yes
Includes Timer: yes
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
USB Charging Port
Location: Front
Number of Ports in Front: 2
Location: Rear
Number of Ports in Rear: 2
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Virtual Assistant: Other
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 0
CO2 Level (Combined): 0
CO2 Level (Urban): 0
Standard Met: ZEV
Energy Recuperation
Single Pedal Driving: yes
Fuel
Generic Primary Fuel Type: Electric
Minimum Fuel Type: Electric
Fuel Type: Electric
Charging Connector
CCS (Combo) Location of DC 1 Socket: Rear Side
CCS (Combo) Type: Ccs (Combo)
Type 2 (Mennekes) Charging Socket AC 1: yes
Type 2 (Mennekes) Location of AC 1 Socket: Rear Side
Type 2 (Mennekes) Type: Type 2 (Mennekes)
Charging Information
Mode 2 Amps: 10
Mode 2 Duration: 31.00
Mode 2 Quoted kW Supplied To Vehicle: 2.00
Mode 2 Scenario: Mode 2
Mode 2 State of Charge Ends At (%): 100
Mode 2 State of Charge Starts At (%): 0
Mode 2 Voltage: 230
Mode 3 Duration: 6.15
Mode 3 Max kW Supplied To Vehicle: 10.50
Mode 3 Quoted kW Supplied To Vehicle: 7.00
Mode 3 Scenario: Mode 3
Mode 3 State of Charge Ends At (%): 100
Mode 3 State of Charge Starts At (%): 10
Mode 4 Duration: 0.28
Mode 4 Max kW Supplied To Vehicle: 350.00
Mode 4 Quoted kW Supplied To Vehicle: 350.00
Mode 4 Scenario: Mode 4
Mode 4 State of Charge Ends At (%): 80
Mode 4 State of Charge Starts At (%): 10
Electric Driven Wheels
Electric Driven Wheels: 4x4
Electric Motor
Motor 1 Type: Ac Perm Magnet Synchronous
Motor 1 Max Torque Motor (Nm): 255
Motor 1 Number: 1
Motor 1 Power Output (hp/PS): 95.2
Motor 1 Power Output Motor (kW): 70.0
Motor 2 Electric Motor Type: Ac Perm Magnet Synchronous
Motor 2 Max Torque Motor (Nm): 350
Motor 2 Number: 2
Motor 2 Power Output Motor (hp/PS): 210.8
Motor 2 Power Output Motor (kW): 155.0
Electric Power Source
Actively Heated Cooled Battery: yes
Battery Cell Count: 360
Battery Cell Type: Pouch
Battery Supplier: Lg Energy Solution
Battery Type: Lithium-Ion Polymer
Battery Voltage: 653.0
High Power Charger: yes
Maximum Battery (kWh): 72.60
Onboard Charger: 10.5
Range (km): 430.00
Range (miles): 267.19
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 12.30
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 12.30
Instrument Cluster
Head Up Display: Windscreen
HUD Including Augmented Reality: yes
Reconfigurable: yes
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Standard: Adr 81/02
Performance
Acceleration 0 To 100 km/h: 5.2
Max Speed On Electric Power Only (km/h): 185
Maximum Speed (km/h): 185
Maximum Speed (mph): 115
Power
Maximum Power (hp/PS): 306
Maximum Power hp/PS Electric Motor: 306
Maximum Power (kW): 225
Maximum Power kW Electric Motor: 225
Maximum Torque (Nm): 605
Maximum Torque Electric Motor (Nm): 605
Power Consumption
Combined (km/kWh): 0.2
Combined (kWh/100 miles): 30.6
Combined (kWh/100km): 19.0
Combined (kWh/km): 0.5
Combined (kWh/mile): 0.3
Combined (miles/kWh): 0.3
Combined (Wh/km): 190
Combined (Wh/mile): 306
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time/Disconnect
Transmission
Description: Automatic
Number of Speeds: 1
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Heated: yes
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 105
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: W
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 255
Rear Wheels Tire Load Index: 105
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: W
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 20
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.5
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 20
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.5
Rear Two Tone: yes
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: E-Gmp
Wheelbase Type: Short
Spoiler
Location: Roof
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 56.0
Rear Seat Down (L): 1587
Rear Seat Up to Lower Window (cu ft): 18.6
Rear Seat Up to Lower Window (L): 527
External Dimensions
Kerb to Kerb Turning Circle (mm): 11980
Front Track (in): 64.1
Front Track (mm): 1628
Ground Clearance Unladen (in): 6.3
Ground Clearance Unladen (mm): 160
Kerb To Kerb Turning Circle (ft): 39.3
Overall Height (in): 63.2
Overall Height (mm): 1605
Overall Length (in): 182.5
Overall Length (mm): 4635
Overall Width Folded Mirror (in): 77.0
Overall Width Folded Mirror (mm): 1957
Overall Width (in): 74.4
Overall Width Inc Mirror (in): 84.7
Overall Width Inc Mirror (mm): 2152
Overall Width (mm): 1890
Rear Track (in): 64.4
Rear Track (mm): 1637
Wheelbase (in): 118.1
Wheelbase (mm): 3000
Internal Dimensions
Front Headroom (in): 40.7
Front Headroom (mm): 1034
Rear Headroom (in): 37.5
Rear Headroom (mm): 953
Front Hip Room (in): 53.9
Front Hip Room (mm): 1368
Rear Hip Room (in): 53.6
Rear Hip Room (mm): 1362
Front Leg Room (in): 44.8
Front Leg Room (mm): 1138
Rear Leg Room (in): 39.4
Rear Leg Room (mm): 1002
Front Shoulder Room (in): 57.7
Front Shoulder Room (mm): 1465
Rear Shoulder Room (in): 57.7
Rear Shoulder Room (mm): 1465
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: White
Type: Mica
Blind
Location: Side
Side Blind Type: Manual
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors Tilting for Reverse: Automatic
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1600
Gross Trailer Weight Braked (lb): 3527
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2540
Gross Vehicle Weight (lb): 5600
Published Kerb Weight (kg): 1990
Published Kerb Weight (lb): 4387
Tare Weight (kg): 1990
Trailer Noseweight (kg): 100
Audio System
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
USB (Rear): yes
Total Front USB Connections: 2
Total Rear USB Connections: 1
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Bose
Number of Speakers: 8
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Synthetic Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Adult Occupant Score: 88.0
ANCAP Child Occupant Score: 87.0
ANCAP Date Tested: 20210101
ANCAP Overall: 5.0
ANCAP Pedestrian Score: 63.0
ANCAP Rating Year: 2021
ANCAP Safety Assist Score: 89.0
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Active Without Turn Signal: yes
Includes Display: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor & Camera
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 6
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Thigh Support Type: Electric
Driver Front Seat Type: Single Ottoman
Driver Front Seat Ventilated: yes
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Memory
Location: Passenger
Passenger Front Seat Lumbar Type: Electric
Passenger Front Seat Number of Electrical Adjustments: 6
Passenger Front Seat Reach Type: Memory
Passenger Front Seat Reclining Type: Memory
Passenger Front Seat Thigh Support Type: Electric
Passenger Front Seat Type: Single Ottoman
Passenger Front Seat Ventilated: yes
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Touch Screen Controls: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
