Hyundai Ioniq Elite (2020) price & specs
Save $$$ with CarExpert*
From
$48,490â€
Elite
Overview

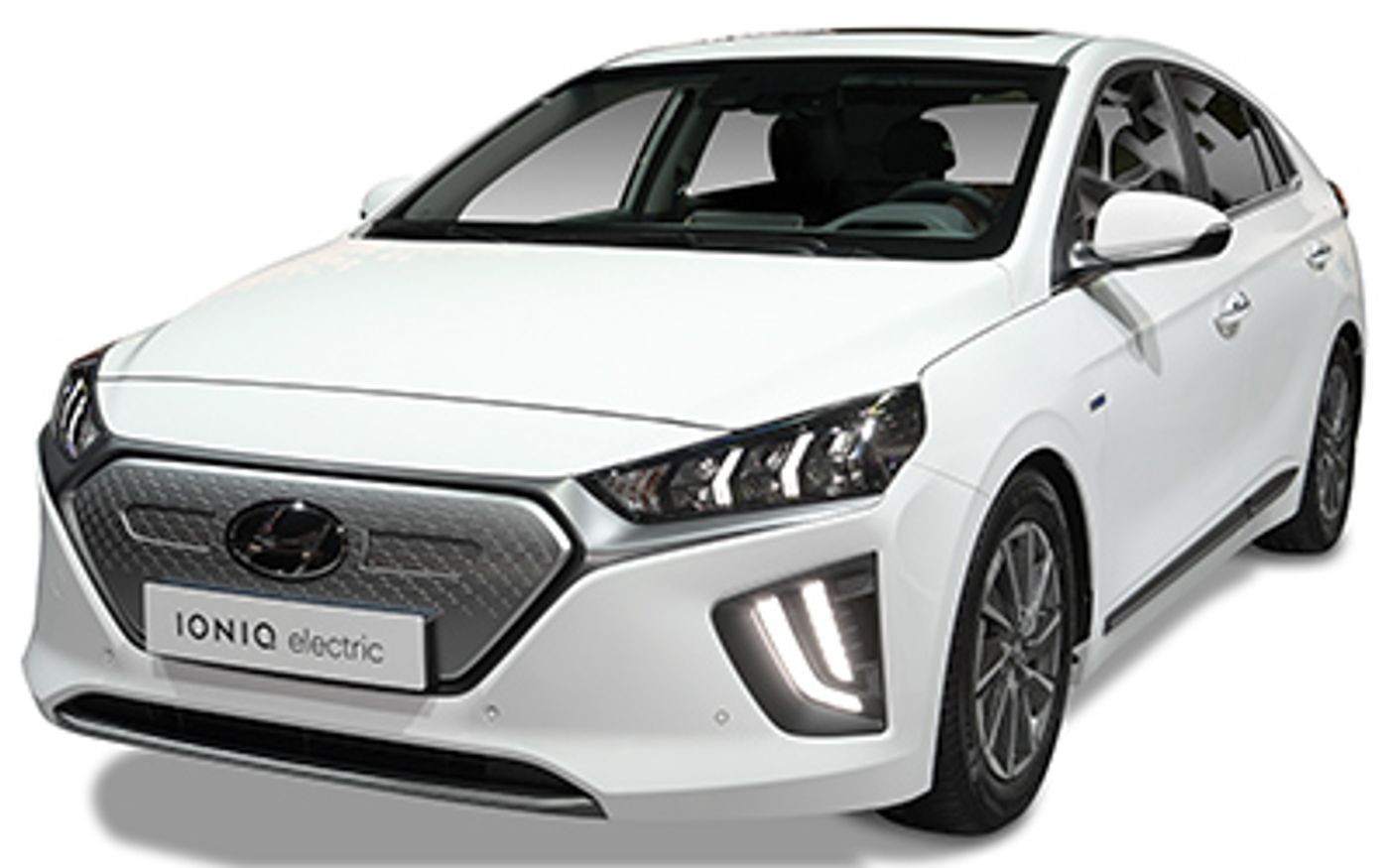

The 2020 Hyundai Ioniq Elite is a front-wheel drive, 5-door Hatchback that was released to the Australian market on 2nd October 2019 classified as a Ae.3. The Hyundai Ioniq is regarded as a small car built in Korea with prices starting at $48,490 before on-road costs.
This Hyundai Ioniq uses a fully electric engine.
The Hyundai Ioniq measures 1475mm (58.1 inches) in height, 4470mm (176.0 inches) in length, 1820mm (71.7 inches) in width with a 2700mm (106.3 inches) wheelbase that brings about a total of 1575kg (3472.3 lbs) of unladen weight. The Ioniq Elite comes standard with 205/60 R16 front tyres and 205/60 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Ioniq compare?
Quickly see how the 2020 Hyundai Ioniq Elite stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
63.49 - 70.89 kW/t
63.49 kW/t
168.45 kW/t
Boot Space
341 - 456 litres
208 litres
575 litres
Fuel Efficiency
1.1 - 3.9 L/100km
1.1 L/100km
8.8 L/100km
Vehicle Range
1,154 - 1,324 km
534 km
1,324 km
Price
$34,790 - $53,010
$19,990
$74,990
Warranty (Years)
5 years
3 years
7 years
Warranty (Distance)
Unlimited
150,000 km
Unlimited
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
1,890 - 1,970 kg
1,650 kg
1,980 kg
Ground Clearance Unladen
142 - 150 mm
102 mm
163 mm
Battery & Charging
Max. battery kilowatt hour
1.6 - 38.3 kWh
0.2 kWh
38.3 kWh
AC Charging (max kW)
7 kW
7 kW
DC Fast Charging (max kW)
100 kW
100 kW
Vehicle Range (EV)
63 - 373 km
63 km
373 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,470 mm
1,820 mm
1,475 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,470 mm |
| Overall Width | 1,820 mm |
| Overall Height | 1,475 mm |
| Wheelbase | 2,700 mm |
| Turning Circle | 10,600 mm |
| Load Capacity | 395 mm |
Looking for complete Hyundai Ioniq size & space specs?
Our Hyundai Ioniq Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Hyundai Ioniq Sales rolling 12-months#
Explore Hyundai Ioniq Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Media Control
Touch Screen: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Remote HVAC Control
Includes Phone: yes
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Electrical System
Voltage: 48
Emission Control Level
CO2 Level (Combined): 0
Energy Recuperation
Engine: yes
Single Pedal Driving: yes
Fuel
Generic Primary Fuel Type: Electric
Fuel Type: Electric
Charging Connector
Mode 2 (EVSE) Type: Mode 2 (Evse)
Type 2 (Mennekes) Type: Type 2 (Mennekes)
Charging Information
Mode 2 Duration: 6.12
Mode 2 Max kW Supplied To Vehicle: 7
Mode 2 Scenario: Mode 2
Mode 2 Voltage: 240
Mode 4 Duration: 0.90
Mode 4 Max kW Supplied To Vehicle: 100
Mode 4 Scenario: Mode 4
Electric Driven Wheels
Electric Driven Wheels: Front
Electric Motor
Motor 1 Max Torque Motor (Nm): 295
Motor 1 Number: 1
Electric Power Source
Battery Type: Lithium-Ion Polymer
Battery Voltage: 319
High Power Charger: yes
Maximum Battery (kWh): 38.3
Onboard Charger: 7.2
Range (km): 373.00
Range (miles): 231.77
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 10.3
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 7.0
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Rim Mounted Sensor: yes
Fuel Consumption
ADR 81/02 Standard: Adr 81/02
Power
Maximum Power (hp/PS): 136
Maximum Power hp/PS Electric Motor: 136
Maximum Power (kW): 100
Maximum Power kW Electric Motor: 100
Maximum Torque (Nm): 295
Maximum Torque Electric Motor (Nm): 295
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Power Consumption
Combined (km/kWh): 0.1
Combined (kWh/100 miles): 18.8
Combined (kWh/100km): 11.7
Combined (kWh/km): 0.3
Combined (kWh/mile): 0.2
Combined (miles/kWh): 0.2
Combined (Wh/km): 117
Combined (Wh/mile): 188
Drive
Driven Wheels: Front
Transmission
Description: Automatic
Number of Speeds: 1
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Torsion Beam
Rear Wheel Dependence: Semi-Independent
Tires
Front Wheels Tire Load Index: 92
Location: Front
Front Wheels Tire Low Rolling Resistance: yes
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Load Index: 92
Rear Wheels Tire Location: Rear
Rear Wheels Tire Low Rolling Resistance: yes
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.5
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.5
Rear Two Tone: yes
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Platform Code: K2
Wheelbase Type: Short
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 50.0
Rear Seat Down (L): 1417
Rear Seat Up to Lower Window (cu ft): 12.6
Rear Seat Up to Lower Window (L): 357
External Dimensions
Kerb to Kerb Turning Circle (mm): 10600
Front Track (in): 61.2
Front Track (mm): 1555
Ground Clearance Unladen (in): 5.9
Ground Clearance Unladen (mm): 150
Kerb To Kerb Turning Circle (ft): 34.8
Overall Height (in): 58.1
Overall Height (mm): 1475
Overall Length (in): 176.0
Overall Length (mm): 4470
Overall Width (in): 71.7
Overall Width (mm): 1820
Rear Track (in): 61.6
Rear Track (mm): 1564
Wheelbase (in): 106.3
Wheelbase (mm): 2700
Internal Dimensions
Front Headroom (in): 39.2
Front Headroom (mm): 995
Rear Headroom (in): 37.4
Rear Headroom (mm): 951
Front Hip Room (in): 53.8
Front Hip Room (mm): 1366
Rear Hip Room (in): 52.9
Rear Hip Room (mm): 1344
Front Leg Room (in): 42.2
Front Leg Room (mm): 1073
Rear Leg Room (in): 35.7
Rear Leg Room (mm): 906
Front Shoulder Room (in): 56.1
Front Shoulder Room (mm): 1425
Rear Shoulder Room (in): 55.0
Rear Shoulder Room (mm): 1396
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 0
Gross Trailer Weight Braked (lb): 0
Gross Trailer Weight Unbraked (kg): 0
Gross Trailer Weight Unbraked (lb): 0
Gross Vehicle Weight (kg): 1970
Gross Vehicle Weight (lb): 4343
Published Kerb Weight (kg): 1575
Published Kerb Weight (lb): 3472
Tare Weight (kg): 1575
Audio System
Brand Name: Infinity
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Infinity
Number of Speakers: 8
Subwoofer: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Date Tested: 20160101
ANCAP Overall: 5.00
ANCAP Pedestrian: Acceptable
ANCAP Standard: Ancap
ANCAP Version Tested: Hybrid (Lhd)
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Manufacturer Name: Blind Spot Collision Warning (Bcw)
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 1
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 1
Ventilation System
Digital Display: yes
Heater Type: Electric
Power Locks
Automatic Locking: yes
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
