Base
Overview

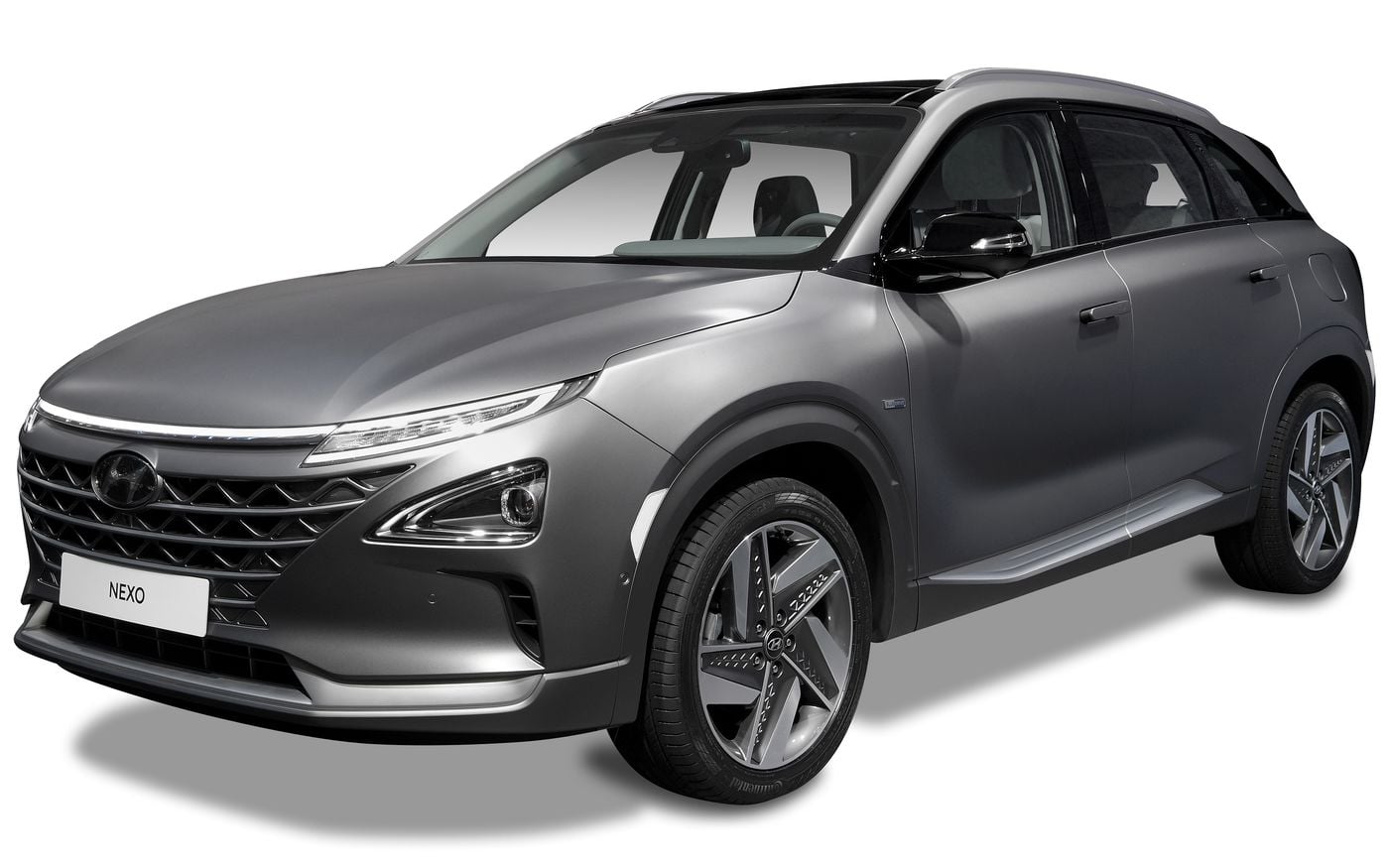

The 2024 Hyundai Nexo Base is a front-wheel drive, 5-door SUV that was released to the Australian market on 4th March 2024. and when it was new had prices starting at .
This Hyundai Nexo is powered by a null engine that has 120 kW of power and 395 Nm of torque via an One-speed Automatic transmission. Hyundai claims the Nexo Base uses 0.9L/100km of Hydrogen in the combined city and highway cycle while putting out nullg of CO2. It has a 157L fuel tank, meaning it should be able to travel 17444km per full tank
The Hyundai Nexo measures 1640mm (64.6 inches) in height, 4670mm (183.9 inches) in length, 1860mm (73.2 inches) in width with a 2790mm (109.8 inches) wheelbase that brings about a total of 1814kg (3999.2 lbs) of unladen weight. The Nexo Base comes standard with 245/45 R19 front tyres and 245/45 R19 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Nexo compare?
Quickly see how the 2024 Hyundai Nexo Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
66.15 kW/t
65.45 kW/t
218.66 kW/t
Boot Space
461 litres
115 litres
620 litres
Fuel Efficiency
0.9 L/100km
0.9 L/100km
11.3 L/100km
Vehicle Range
10,000 km
461 km
10,000 km
Warranty (Years)
5 years
2 years
5 years
Warranty (Distance)
Unlimited
80,000 km
Unlimited
Years on Sale
5 years
1 year
4 years
Service Interval
12 months
12 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,340 kg
1,950 kg
2,950 kg
Ground Clearance Unladen
162 mm
122 mm
224 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,670 mm
1,860 mm
1,640 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,670 mm |
| Overall Width | 1,860 mm |
| Overall Height | 1,640 mm |
| Wheelbase | 2,790 mm |
| Turning Circle | 11,200 mm |
| Load Capacity | 526 mm |
Looking for complete Hyundai Nexo size & space specs?
Our Hyundai Nexo Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Hyundai Nexo Sales rolling 12-months#
Explore Hyundai Nexo Features & Specs
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Semi-Auto Park, Perpendicular & Exit
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Remote Services
Beep Flash: yes
Driving History Analysis: yes
Find My Car: yes
Geo Fencing: yes
Months Subscription Included: 36
Remote Lock Unlock: yes
Send Destination To Car: yes
Speed Alert: yes
Vehicle Diagnostics: yes
Vehicle Start: yes
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
USB Charging Port
Location: Front
Number of Ports in Front: 2
Location: Rear
Number of Ports in Rear: 2
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Vehicle 360 View Camera
3D Enhanced View: yes
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 0
CO2 Level (Combined): 0
CO2 Level (Urban): 0
Standard Met: ZEV
Fuel
Generic Primary Fuel Type: Hydrogen
Minimum Fuel Type: Hydrogen
Fuel Type: Hydrogen
Fuel Tanks
Main Capacity Gal: 41.5
Main Capacity (L): 157
Main Capacity Uk Gallons: 34.5
Main Type: Total
Electric Driven Wheels
Electric Driven Wheels: Front
Electric Motor
Motor 1 Type: Ac Perm Magnet Synchronous
Motor 1 Max Torque Motor (Nm): 395
Motor 1 Location: Front
Motor 1 Number: 1
Motor 1 Power Output (hp/PS): 163.2
Motor 1 Power Output Motor (kW): 120.0
Electric Power Source
Battery Type: Lithium Metal Polymer
Battery Voltage: 240.0
Max Wireless Charging (kW): 0.0
Range (km): 666.00
Range (miles): 413.83
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 12.30
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 10.25
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 10000
ADR 81/02 Calculated Vehicle Range (miles): 6214
ADR 81/02 Combined (km/L): 111.1
ADR 81/02 Combined (L/100km): 0.9
ADR 81/02 Combined (miles per UK gallon): 314
ADR 81/02 Combined (mpg): 261
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 0.9
Power
Maximum Power (hp/PS): 163
Maximum Power hp/PS Electric Motor: 163
Maximum Power (kW): 120
Maximum Power kW Electric Motor: 120
Maximum Torque (Nm): 395
Maximum Torque Electric Motor (Nm): 395
Primary or Secondary Fuel Power Figure: Primary
Drive
Driven Wheels: Front
Transmission
Description: Automatic
Number of Simulated Gears: 0
Number of Speeds: 1
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Heated: yes
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 98
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: W
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 245
Rear Wheels Tire Load Index: 98
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: W
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Wheels Rim Diameter (In): 19
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Location: Rear
Rear Rim Diameter (In): 19
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: Hyundai Xd
Wheelbase Type: Short
Cargo Capacity
Frunk Capacity (cu ft): 0.0
Frunk Capacity (L): 0
Measurement Standard: VDA
Rear Seat Down (cu ft): 51.8
Rear Seat Down (L): 1466
Rear Seat Up to Lower Window (cu ft): 16.3
Rear Seat Up to Lower Window (L): 461
External Dimensions
Kerb to Kerb Turning Circle (mm): 11200
Front Track (in): 63.5
Front Track (mm): 1614
Ground Clearance Unladen (in): 6.4
Ground Clearance Unladen (mm): 162
Kerb To Kerb Turning Circle (ft): 36.7
Overall Height (in): 64.6
Overall Height (mm): 1640
Overall Length (in): 183.9
Overall Length (mm): 4670
Overall Width (in): 73.2
Overall Width (mm): 1860
Rear Track (in): 64.0
Rear Track (mm): 1625
Wheelbase (in): 109.8
Wheelbase (mm): 2790
Internal Dimensions
Front Headroom (in): 38.0
Front Headroom (mm): 966
Rear Headroom (in): 38.0
Rear Headroom (mm): 965
Front Hip Room (in): 54.0
Front Hip Room (mm): 1372
Rear Hip Room (in): 53.5
Rear Hip Room (mm): 1360
Front Leg Room (in): 41.5
Front Leg Room (mm): 1054
Rear Leg Room (in): 38.6
Rear Leg Room (mm): 981
Front Shoulder Room (in): 57.2
Front Shoulder Room (mm): 1454
Rear Shoulder Room (in): 55.5
Rear Shoulder Room (mm): 1409
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: White
Type: Mica
Sunroof
Front Sunroof Location: Front
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Toned
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Toned
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 0
Gross Trailer Weight Braked (lb): 0
Gross Trailer Weight Unbraked (kg): 0
Gross Trailer Weight Unbraked (lb): 0
Gross Vehicle Weight (kg): 2340
Gross Vehicle Weight (lb): 5159
Published Kerb Weight (kg): 1814
Published Kerb Weight (lb): 3999
Tare Weight (kg): 1808
Trailer Noseweight (kg): 0
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total 3rd Row USB Connections: 0
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Krell
Number of Speakers: 8
Subwoofer: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Doors: Synthetic Leather
Gear Selector: Leather
Instrument Panel: Synthetic Leather
Airbags
Number of Airbags: 6
Autonomous Drive
Active Lane Control: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Adult Occupant Score: 94.0
ANCAP Child Occupant Score: 89.0
ANCAP Date Tested: 20180101
ANCAP Overall: 5.0
ANCAP Pedestrian Score: 67.0
ANCAP Rating Year: 2018
ANCAP Safety Assist Score: 80.0
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Active Without Turn Signal: yes
Rear Cross Traffic Collision Avoidance
Includes Braking: yes
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Bucket
Driver Front Seat Ventilated: yes
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Number of Electrical Adjustments: 4
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Type: Bucket
Passenger Front Seat Ventilated: yes
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Marketed As Sustainable Vegan: yes
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
