Hyundai Santa Fe Elite (2006) price & specs
Save $$$ with CarExpert*
From
$43,490â€
Elite
Overview

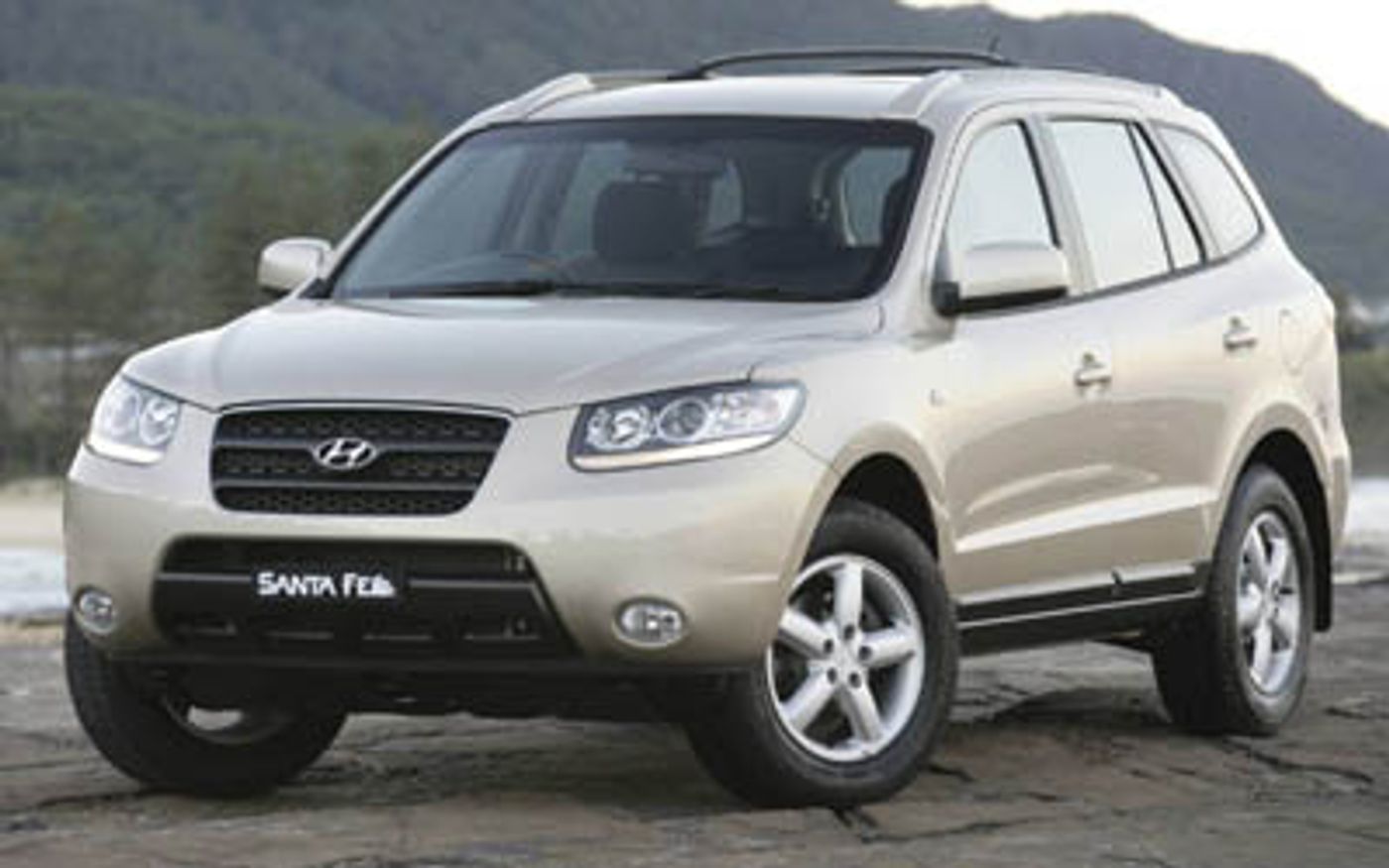

The 2006 Hyundai Santa Fe Elite is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th January 1970 classified as a CM. The Hyundai Santa Fe is regarded as a large SUV built in Korea with prices starting at $43,490 before on-road costs.
This Hyundai Santa Fe is powered by a 2.7L 6-cylinder engine that has 138 kW of power (at 6000 rpm) and 248 Nm of torque (at 4000 rpm) via a Four-speed Automatic transmission. Hyundai claims the Santa Fe Elite uses 10.6L/100km of Unleaded in the combined city and highway cycle while putting out 258g of CO2. It has a 75L fuel tank, meaning it should be able to travel 708km per full tank
The Hyundai Santa Fe measures 1795mm (70.7 inches) in height, 4675mm (184.1 inches) in length, 1890mm (74.4 inches) in width with a 2700mm (106.3 inches) wheelbase that brings about a total of 1893kg (4173.3 lbs) of unladen weight. The Santa Fe Elite comes standard with 235/60 R18 front tyres and 235/60 R18 rear tyres. It has a 60 month, 130,000 km warranty.
The 2006 Hyundai Santa Fe Elite has a 203mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Santa Fe compare?
Quickly see how the 2006 Hyundai Santa Fe Elite stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
58.73 - 74.07 kW/t
54.5 kW/t
116.88 kW/t
Fuel Efficiency
7.3 - 10.6 L/100km
7.3 L/100km
14.3 L/100km
Price
$35,990 - $48,990
$35,990
$81,090
Warranty (Years)
5 years
3 years
5 years
Warranty (Distance)
130,000 km - Unlimited
100,000 km
Unlimited
Years on Sale
2 years
1 year
5 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,400 - 2,550 kg
2,400 kg
2,900 kg
Braked Towing Capacity
2,000 kg
1,500 kg
2,500 kg
Approach Angle
25.6°
25.6°
39°
Departure Angle
22.9°
22.9°
27°
Ground Clearance Unladen
203 mm
200 mm
235 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,675 mm
1,890 mm
1,795 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,675 mm |
| Overall Width | 1,890 mm |
| Overall Height | 1,795 mm |
| Wheelbase | 2,700 mm |
| Turning Circle | 10,900 mm |
| Load Capacity | 507 mm |
Looking for complete Hyundai Santa Fe size & space specs?
Our Hyundai Santa Fe Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Hyundai Santa Fe Sales rolling 12-months#
Explore Hyundai Santa Fe Features & Specs
Emission Control Level
CO2 Level (Combined): 258
Engine
Bore Engine: 86.7
Engine (cc): 2656
Compression Ratio: 10.4
Engine Configuration: V
Engine (L): 2.7
Number of Cylinders: 6
Number of Valves per Cylinder: 4
Stroke Engine: 75
Valve Gear Type: Double Overhead Cam
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 19.8
Main Capacity (L): 75
Main Fuel Type: Unleaded
Main Type: Total
Computer
Average Fuel Consumption: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Fuel Consumption
ADR 81/02 Combined (L/100km): 10.6
ADR 81/02 Combined (mpg): 22
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 10.6
Power
Maximum Power (hp/PS): 188
Maximum Power (kW): 138
Maximum Torque (Nm): 248
Measurement Standard: EEC
Rpm For Maximum Power Low: 6000
Rpm For Maximum Torque Low: 4000
Differential Lock
Location: Centre
Drive
Assisted Four-Wheel Drive Selection: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Manual & Automatic
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Automatic With Manual Mode
Electronic Control Auto Only: yes
Lock Up Auto Only: yes
Manual Mode: yes
Mode Select Auto Only: yes
Number of Speeds: 4
Shift Lever Location: Floor
Type: Automatic
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Extra Load: ?
Location: Front
Front Wheels Tire Official Brochure Tire Size: yes
Front Wheels Tire Profile: 60
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Extra Load: ?
Rear Wheels Tire Location: Rear
Rear Wheels Tire Official Brochure Tire Size: yes
Rear Wheels Tire Profile: 60
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7
Body Style
Body Type: SUV
Driver Location: RHD
Local Body Type: SUV
Mud Flaps
Rear Mud Flaps Location: Rear
Non-Corrosive Body
Non-Corrosive Panel Location: Part
Non-Corrosive Panel Type: Galvanised
Spoiler
Location: Roof
Underbody Protection
Location: Engine
Cargo Capacity
Rear Seat Down (cu ft): 78.2
Rear Seat Down (L): 2213
External Dimensions
Kerb to Kerb Turning Circle (mm): 10900
Front Track (in): 63.6
Front Track (mm): 1615
Ground Clearance Unladen (in): 8
Ground Clearance Unladen (mm): 203
Kerb To Kerb Turning Circle (ft): 35.8
Overall Height (in): 70.7
Overall Height (mm): 1795
Overall Length (in): 184.1
Overall Length (mm): 4675
Overall Width (in): 74.4
Overall Width (mm): 1890
Rear Track (in): 63.8
Rear Track (mm): 1620
Wheelbase (in): 106.3
Wheelbase (mm): 2700
Internal Dimensions
Front Headroom (in): 40.2
Front Headroom (mm): 1020
Rear Headroom (in): 39.6
Rear Headroom (mm): 1005
Front Hip Room (in): 55.8
Front Hip Room (mm): 1417
Rear Hip Room (in): 55
Rear Hip Room (mm): 1398
Front Leg Room (in): 41.6
Front Leg Room (mm): 1057
Rear Leg Room (in): 36.8
Rear Leg Room (mm): 935
Front Shoulder Room (in): 59.5
Front Shoulder Room (mm): 1511
Rear Shoulder Room (in): 58.6
Rear Shoulder Room (mm): 1489
Ramp Angles
Approach Angle: 25.6
Departure Angle: 22.9
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
Paint
External Colour: Green
Type: Gloss
Roof Rails
Cross Bars: Removable
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Number of Front Express Power Windows: 1
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2400
Gross Vehicle Weight (lb): 5291
Published Kerb Weight (kg): 1893
Published Kerb Weight (lb): 4173
Antenna
Type: Roof
Audio System
Cassette Player: yes
CD Player Reads MP3: yes
Disc Autochanger: yes
Autochanger Disc Capacity: 6
Radio Type: Am/Fm
Disc Player
Dashboard Capacity: 6
Location: Dashboard
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 7
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Load Restraint
Type: net
Cigar Lighter
Location: Front Seats
Power Outlet 12V
Location (12V): Boot/Cargo
Number of Outlets in Boot Cargo (12V): 1
Location (12V): Front
Number of Outlets in Front (12V): 1
Location (12V): Rear
Number of Outlets in Rear (12V): 1
Reading Lights
Location: Front
Location: Rear
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Wood & Leather
Gear Selector: Leather
Instrument Panel: Wood Or Woodlook
Crash Test Results
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Active: yes
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 2
Rear Seats Height Adjustable: yes
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Tilt Adjustment: yes
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Location: Passenger
Passenger Front Seat Number of Electrical Adjustments: 2
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Cup Holders
Location: Front Seats
Front Seats Type: Fixed
Location: Rear Seats
Rear Seats Type: Pop Out
Door Pockets Bins
Location: Driver
Location: Passenger
Location: Rear
Seat Back Storage
Location: Front
Air Conditioning
Climate Control - Number of Zones: 2
Fully Automated Climate Control: yes
Rear Outlet: yes
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Micro Filter: yes
Anti-Theft Protection
Peripheral: yes
Power Locks
Includes Trunk Hatch: yes
Operation: Remote
