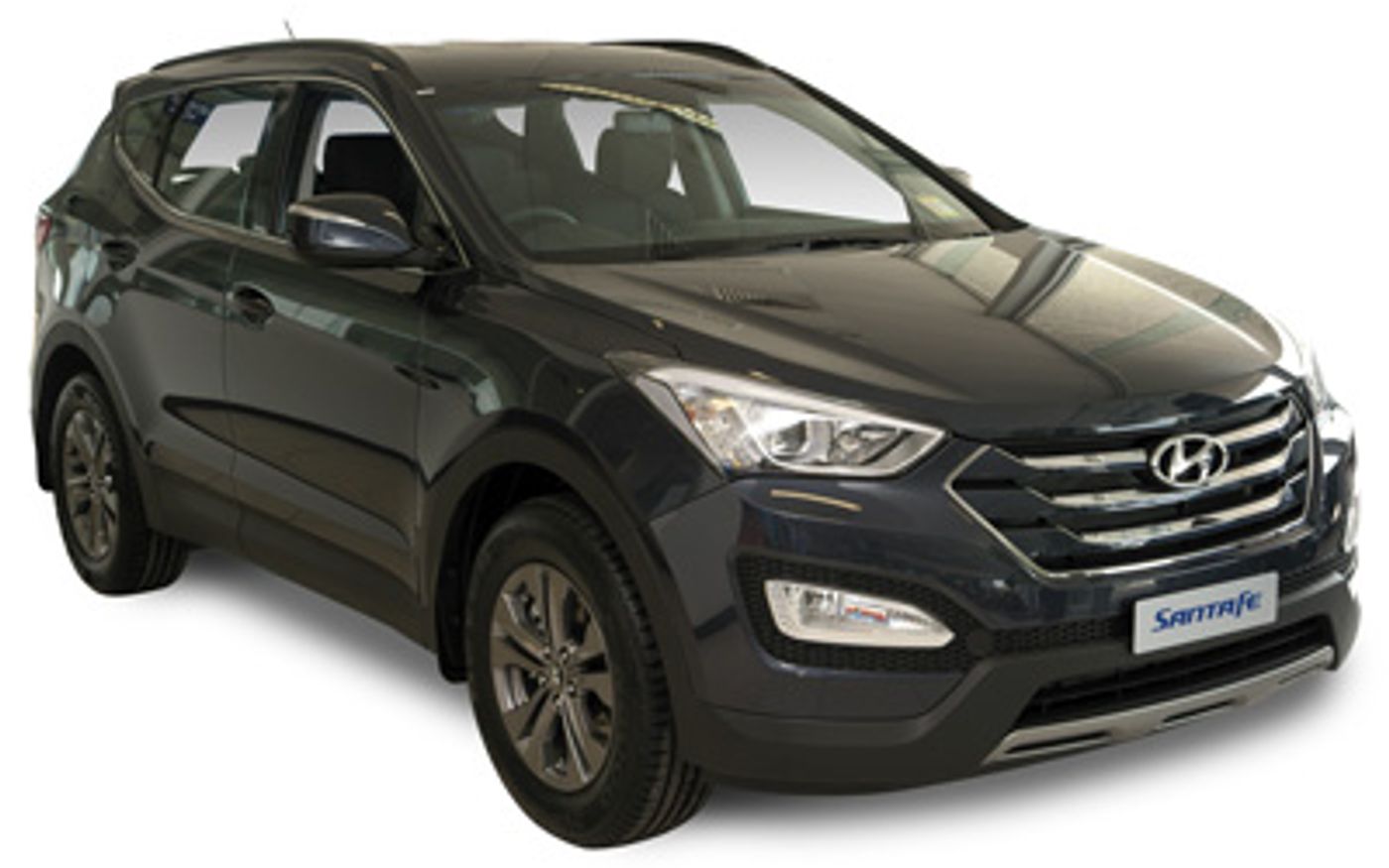

Hyundai Santa Fe Active (2013) price & specs
Save $$$ with CarExpert*
From
$38,490â€
Active
Overview
The 2013 Hyundai Santa Fe Active is a four-wheel drive, 5-door SUV that was released to the Australian market on 6th March 2014 classified as a DM. The Hyundai Santa Fe is regarded as a large SUV built in Korea with prices starting at $38,490 before on-road costs.
This Hyundai Santa Fe is powered by a 2.4L 4-cylinder engine that has 141 kW of power (at 6300 rpm) and 242 Nm of torque (at 4250 rpm) via a Six-speed Manual transmission. Hyundai claims the Santa Fe Active uses 9.0L/100km of Unleaded in the combined city and highway cycle while putting out 209g of CO2. It has a 64L fuel tank, meaning it should be able to travel 711km per full tank
The Hyundai Santa Fe measures 1690mm (66.5 inches) in height, 4690mm (184.6 inches) in length, 1880mm (74.0 inches) in width with a 2700mm (106.3 inches) wheelbase that brings about a total of 1697kg (3741.2 lbs) of unladen weight. The Santa Fe Active comes standard with 235/65 R17 front tyres and 235/65 R17 rear tyres. It has a 60 month, unlimited km warranty.
The 2013 Hyundai Santa Fe Active has a 185mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Santa Fe compare?
Quickly see how the 2013 Hyundai Santa Fe Active stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
73.68 - 83.09 kW/t
53.56 kW/t
120.05 kW/t
Boot Space
516 litres
142 litres
742 litres
Fuel Efficiency
6.6 - 9 L/100km
6 L/100km
13.5 L/100km
Vehicle Range
711 - 970 km
603 km
1,149 km
Price
$36,990 - $51,990
$32,500
$73,990
Warranty (Years)
5 years
3 years
5 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
2 years
1 year
5 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,510 - 2,600 kg
2,268 kg
3,030 kg
Braked Towing Capacity
2,000 - 2,500 kg
1,000 kg
3,000 kg
Approach Angle
16.9°
16.9°
36.6°
Departure Angle
21.5°
21.5°
28°
Ground Clearance Unladen
185 mm
147 mm
267 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,690 mm
1,880 mm
1,690 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,690 mm |
| Overall Width | 1,880 mm |
| Overall Height | 1,690 mm |
| Wheelbase | 2,700 mm |
| Turning Circle | 10,900 mm |
| Load Capacity | 813 mm |
Looking for complete Hyundai Santa Fe size & space specs?
Our Hyundai Santa Fe Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Hyundai Santa Fe Sales rolling 12-months#
Explore Hyundai Santa Fe Features & Specs
Emission Control Level
Australia Air Pollution Rating: 7.5
Australia Greenhouse Rating: 6.0
Australia Overall Emission Control Level Rating: 3.5
CO2 Level (Combined): 209
Standard Met: EU4
Engine
Bore Engine: 88.0
Engine (cc): 2359
Engine Configuration: In-Line
Engine (L): 2.4
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 97.0
Valve Gear Type: Double Overhead Cam
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 16.9
Main Capacity (L): 64
Main Capacity Uk Gallons: 14.1
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 711
ADR 81/02 Calculated Vehicle Range (miles): 442
ADR 81/02 Combined (km/L): 11.1
ADR 81/02 Combined (L/100km): 9.0
ADR 81/02 Combined (miles per UK gallon): 31
ADR 81/02 Combined (mpg): 26
ADR 81/02 Country Highway (km/L): 14.1
ADR 81/02 Country Highway (L/100km): 7.1
ADR 81/02 Country Highway (miles per UK gallon): 40
ADR 81/02 Country Highway (mpg): 33
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 8.2
ADR 81/02 Urban (L/100km): 12.2
ADR 81/02 Urban (miles per UK gallon): 23
ADR 81/02 Urban (mpg): 19
Fuel Economy
ADR 81/02 (L/100km): 9.0
Power
Maximum Power (hp/PS): 192
Maximum Power (kW): 141
Maximum Torque (Nm): 242
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6300
Rpm For Maximum Torque Low: 4250
Differential Lock
Location: Centre
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Manual & Automatic
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Manual
Number of Speeds: 6
Shift Lever Location: Floor
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 104
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: All Seasons
Front Wheels Tire Width: 235
Rear Wheels Tire Load Index: 104
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: All Seasons
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: Hyundai Nf
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Spoiler
Location: Roof
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 57.0
Rear Seat Down (L): 1615
Rear Seat Up to Lower Window (cu ft): 18.2
Rear Seat Up to Lower Window (L): 516
External Dimensions
Kerb to Kerb Turning Circle (mm): 10900
Front Track (in): 64.3
Front Track (mm): 1633
Ground Clearance Unladen (in): 7.3
Ground Clearance Unladen (mm): 185
Kerb To Kerb Turning Circle (ft): 35.8
Overall Height (in): 66.5
Overall Height (mm): 1690
Overall Length (in): 184.6
Overall Length (mm): 4690
Overall Width (in): 74.0
Overall Width (mm): 1880
Rear Track (in): 64.7
Rear Track (mm): 1644
Wheelbase (in): 106.3
Wheelbase (mm): 2700
Internal Dimensions
Front Headroom (in): 39.6
Front Headroom (mm): 1006
Rear Headroom (in): 39.1
Rear Headroom (mm): 992
Front Hip Room (in): 56.7
Front Hip Room (mm): 1439
Rear Hip Room (in): 55.4
Rear Hip Room (mm): 1406
Front Leg Room (in): 41.3
Front Leg Room (mm): 1048
Rear Leg Room (in): 39.4
Rear Leg Room (mm): 1000
Front Shoulder Room (in): 59.4
Front Shoulder Room (mm): 1508
Rear Shoulder Room (in): 58.3
Rear Shoulder Room (mm): 1480
Ramp Angles
Approach Angle: 16.9
Departure Angle: 21.5
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: Black
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2510
Gross Vehicle Weight (lb): 5534
Published Kerb Weight (kg): 1697
Published Kerb Weight (lb): 3741
Tare Weight (kg): 1657
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Gear Selector: Leather
Instrument Panel: Wood Or Woodlook
Airbags
Number of Airbags: 7
Crash Test Results
ANCAP Date Tested: 20121203
ANCAP Overall: 5.00
ANCAP Standard: Ancap
ANCAP Version Tested: 2.2 Crdi Comfort 5 Seat
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Location: 3rd Row Seats
3rd Row Seats Number: 2
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Third Row Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 1
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 7
Configuration: 2+3+2
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
